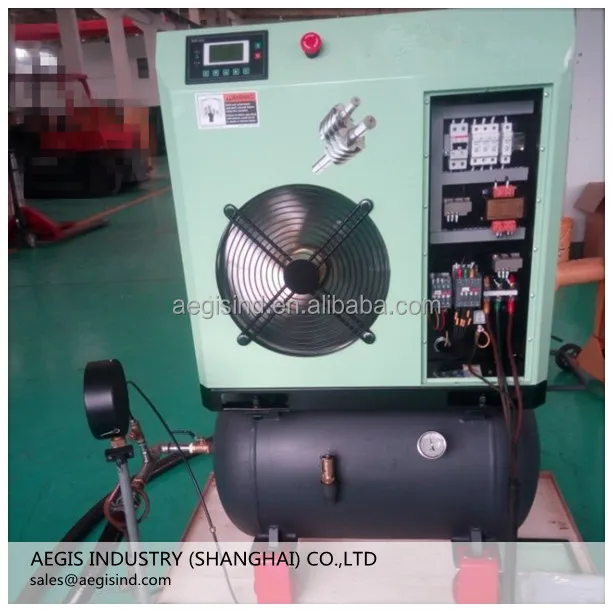

Deck air compressor / Service air compressor / Working air compressor Application
AEGIS’S VISION IS ‘ Quality shapes the future’’,and this commitment drives everything we do at all leaves of the company. Our belief is that we can reach this goal and maintain our position at the world’s ‘’one of the best quality marine compressors’’.
AEGIS is good quality compressor manufacturer making equipment strictly for the marine and offshore makets,We understand the challenges of these industries, and have utilized innovative solutions to meet their unique and strict requirements.
Over the last several years we have developed strong relationships with shipyards,shipowners and drilling contractors and these have been of great importance in our constant search for innovative product improvements.The result of this cooperation will enable our customers to become more competitive in the long-term.
SPECIFICATIONS FOR MARINE COMPRESSOR ARKB4-A8
Engine
Power
11kw
Voltage
380v/3/50hz,440v/3/60hz and customized
Output efficiency
96%
Degree of protection
IP55
Service Factor
1.15
Bearings
Special SKF over-loading
Others
Low noise and long useful life
Main performance
parameters
Air flow
1.80m3/min
Pressure
7(8)bar
Noise level
66dB(A)
Outlet connection
RP1/2
Weight
260kg
Dimension
925*620*1426mm
Main Features
1)AIREND is adopt upgrade version mainframe which introduce optimize type-line, high –quality SKF over loading bearing. So, our main parts have excellence dependability and durability.
2)PLC intelligent control system. Human-based Chinese/English user interface which have many function: remote control, several compressors interconnected running at the same time, automatic protection, automatic protective warming, unattended automatic running can be handled easily.
3)Automatic regulatory inlet value Adopting 0-100% inlet proportional regulator which stable work pressure of compressor and save energy.(provided by European corporation headquarters)
4)Specific electrical motor for compressor IP55 Fortify scale Special prepared of SKF over-loading bearing
5)Special structure design Special design of belt device with automatic tightly
Automatic change belt tight Deduce the times of maintenance Raise drive efficiency Safety design and striking marker Special design of drive device which is completely isolation insured the safety of operator and maintenance. Closed cooling system which is formed with new-model motor and special angle fans save energy and reduce noise. Centralized wind power and palpable cooling effects.
Joint devices which is adopt the standard of America auto industry Association eliminate line leakage.
6)The best oil-gas separator is formed with Separation core of oil-gas which is adopt patent technology—double layer hundred-folds model and Separation pot of oil-gas which is wheeled around and high velocity impact. This equipment is adopt specific semisynthetic cooling-oil. So, the oil content of compressed air is reduced 2-3ppm.
7)AEGIS CHINA specific cooling-oil MSDS which is conformed the quality to ISO14001 protect environment standard, have the characteristic of resistant to high temperature and oxidation. So, the cooling-oil is matched with the compressed air and have the best cooling and lubrication in larger difference in temperature, make sure the quality of oil-gas separated, extent the life of spare parts.
Machine Parts

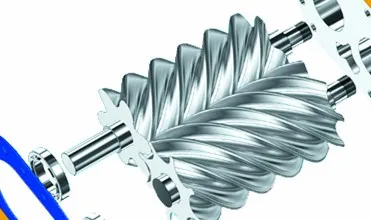

Name: Airend
Brand: TMC
Original: Italy
High performance comprssor airend with ingenious design and great security.
Main Features

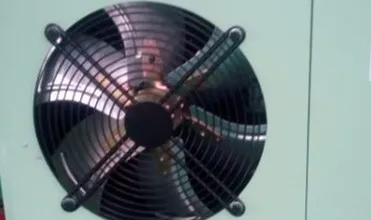

Name: Air cooled system Brand: AEGISIND Original: China Better cooling effect and save energy.
Machine Parts

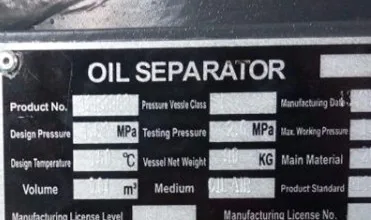

Name: Oil separator Brand: AEGISIND Original: China Double pleated-media fitter element and revolving,tackling and colliding crude separate oil tank.
Main Features

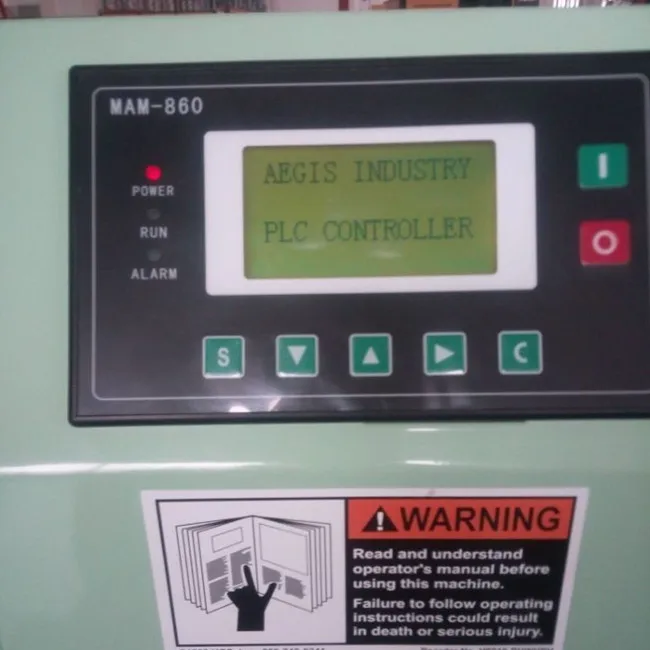

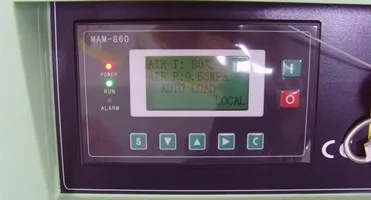

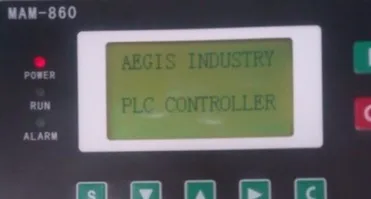

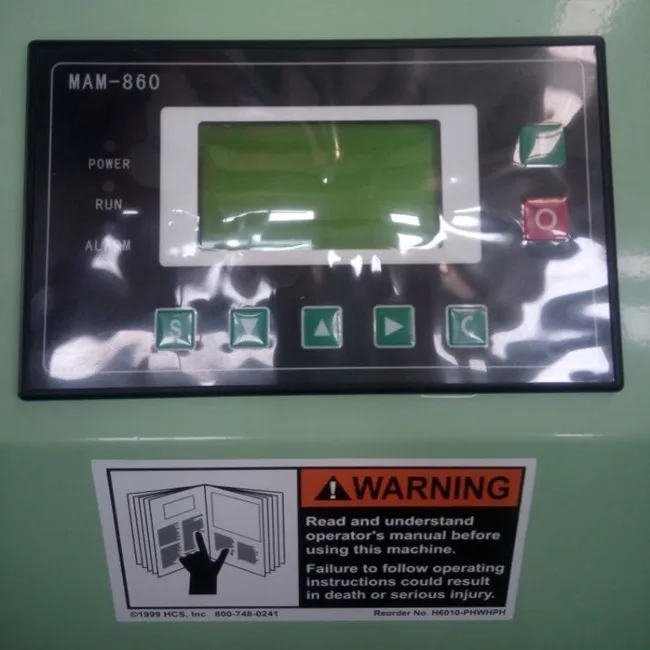

Name: PLC controller Brand: AEGISIND Original: China Remote control,Automatic control,Manual control and Linkage control on the compressed air.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service

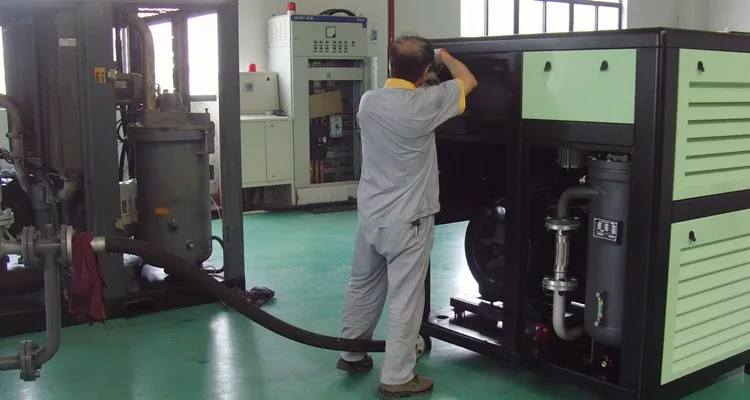

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
