Explosion proof H2S detector H2S transmitter gas leak detector with LED display and alarm lamp
- Category: >>>
- Supplier: Henan Inte Electrical Equipment Co. Ltd.
Share on (60676918164):
Product Overview
Description
Explosion proof H2S detector H2S transmitter gas leak detector with LED display and alarm lampamp
Product Description
KQ500D-H2S Fixed gas detector (also called gas sensor or gas transmitter). Can continuousely detect the density of H2S. Standard 4~20mA two wires signal output. Sound and light alarm, can get into the DSC system directly.
Parameter sheet
Detecting gas | Hydrogen sulfide |
Measuring Range | 0-100PPM |
Resolution | 0.1PPM |
Deviation | ≤± 3% F.S |
Respond Time | T90 < 30 s |
Working Temperature | Toxic gas: - 20 °C ~ + 50 °C |
Combustible gas: - 40 °C ~ + 70 °C | |
Working Humidity | < 95% R.H. no condensation |
Sensor | electrochemical sensor; |
Sensor life | 2-5 year |
Working Voltage | 24V DC±15% |
Working Time | continuously as long as power input |
Protection Class | IP66 |
Weight | 1.5KG |
Size | 203mm*141mm*95mm |
Fixed parameter | Fixing type: wall-mounted type |
Transition cable: two core shield cable | |
(KQ500-EX uses three core shield cable), | |
Section 2×1.5mm2, external diameter 10mm | |
Transmission distance ≤1000m | |
Technical parameter | Working voltage: 24V DC±15% |
Working current: KQ500-EX is 120mA, others ≤50 mA | |
Output signal: 4~20mA standard signal two wire type output | |
(KQ500-EX three wire type) | |
Explosion-proof Level | Exd IICT6(used for explosion proofing detector); |
ExiaIICT4(used for intrinsic safety type detector) |

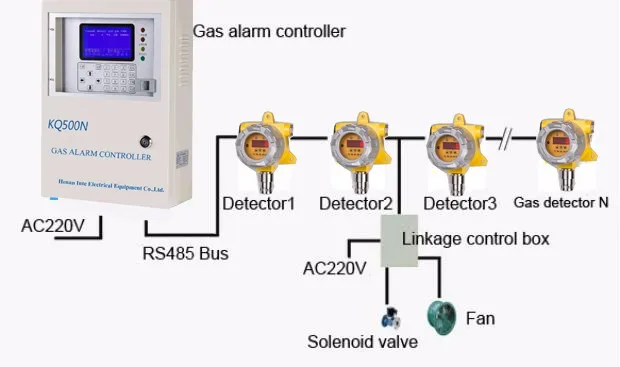

KQ500D diagram
Packaging & Shipping
FAQ
Q1. Can it applied to other gases?
A: KQ500D series can detect a wide range of gases, but one device is designed for one gas.
Q2.What's the minimum order?
A: One set for quality test is welcome.
Q3. How is the calibration be done?
A: To keep the high sensitivity, please calibrate it at least once a year .
Q4. What about the lead time?
A: We usually deliver the goods in 2-5 working days after the order confirmed.
Q5. Is it OK to print my logo on the gas detector?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. How to contact us?
A: Please send your enquiry to us, we will reply you without delay. Click "SEND" now!
