UV lamp electronic ballast 30w with UK plug for UV lamp lighting

UV Lamp Electronic Ballast Main Technical Data

Power Factor: >0.55

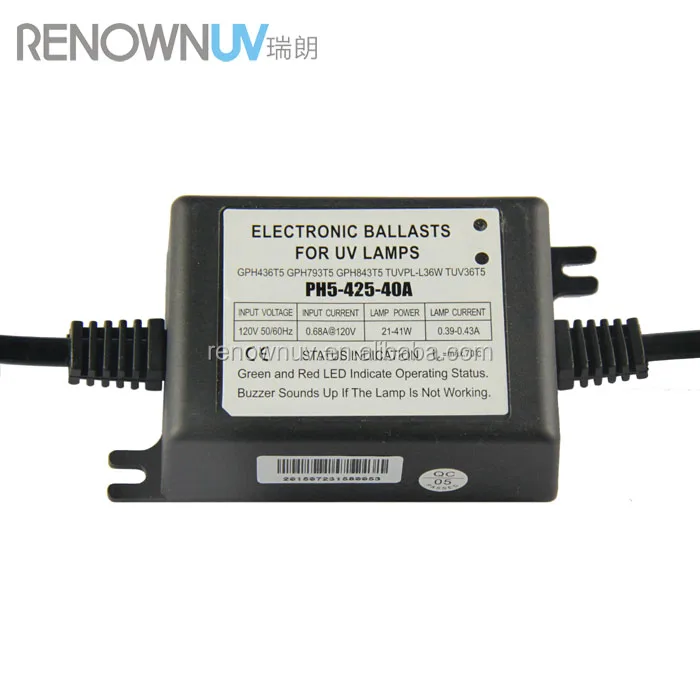

PH5-425-40A Application UV Lamp Types

GPH212T5 GPH287T5 GPH303T5 GPH357T5 GPH436T5 GPH793T5 GPH843T5 TUV11W TUV16W TUV36T5 TUVPL-L36W

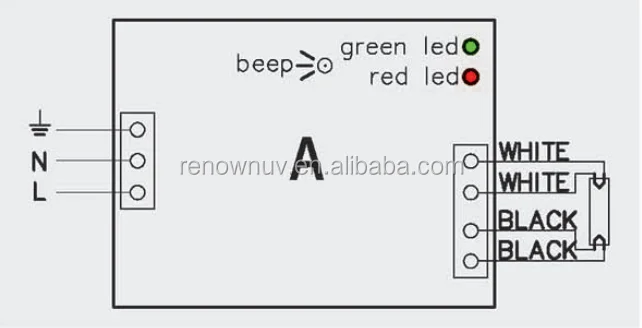

Electronic Ballast Wiring Diagram

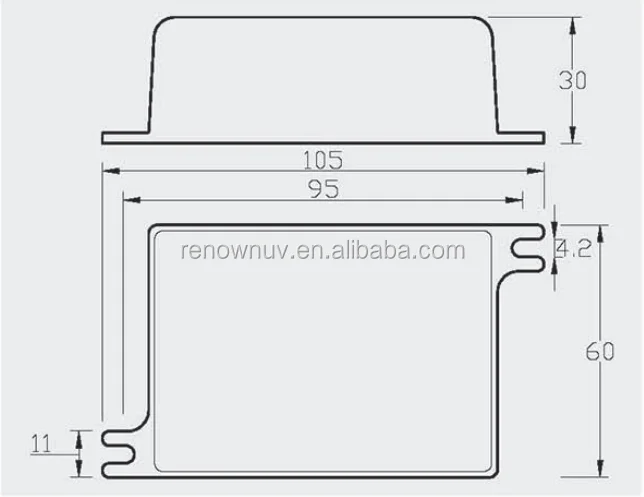

Electronic Ballast Dimension

l Technical Specifications

Mains Frequency:50/60Hz

Efficiency: >90%

Operating Frequency: 40-60KHz

Dimensions: 105*60*30mm

l Lamp status indication via LED indicators

Green LED:lamp on

Red LED:lamp fault

    Buzzer function: when the tube failure occurs buzzer will be intermittent sound.

lMounting Restrictions

Disconnect Input Power Before Installing or Servicing.

Don’t short any two wires of the four outputs.

l Features

Starting: Preheat

Applications

=>Air purification

=>Aquarium

=>Water treatment

RENOWNUV, a professional brand established in 1996, is focused on offering complete proposals for air and water UV disinfection treatment. RENOWNUV has advanced purification compounding technology of photochemical reaction and photophysics process and design capability from Europe.

As a professional designer and manufacturer of electronic ballast, RENOWNUV is delicated to develop high-quality electronic ballasts. Products are widely used in the fieds of sewage treatment, water purification, air purification, waste gas treatment, medical, priting and soon. RENOWNUV owns a professional and 10+ years experienced R & D team. Aiming to be “top China electronic ballast expert”, and insisting on meeting the customers requirement as the aim of researching and developing product. RENOWNU owns production line with annual production capacity reach 20 million pieces.

RENOWNUV owns full set of advanced production machines, like full automatic drying machine, automatic printing machine, high speed chip machine, automatic washing machine, off-line AOI visual inspection machine, automatic chain plug-in line and lead-free automatic wave soldering ect.

After years development, we gaind cooperation with many valueable customers by applying them different international certificates to meet different market needs. Till now, we have models of electronic ballast CE, UL, SAA etc certified.

Customers all around the world are welcome to consult us for special electronic ballast design, and certification application.

Our UV lamp electronic ballasts are well packed with cartons. Pallet will be used for large volume goods delivery. We offer multi delivery choices, like express, air shipping and sea shipping, for customers convenience.
