Circle Fan 100mm 4 Inline Duct Exhaust Fan 12 volt Duct Fan
- Category: >>>
- Supplier: Wenzhou Yudong Electrical Appliance & Sanitary Ware Co. Ltd.
Share on (60676950859):
Product Overview
Description
Product Description
Circular Air Fan 100mm Inline Duct Fan 12 volt Duct Fan
Product Features
The fan is suitable for inline duct mounting in suspended ceiling
Flexible inline installation booster

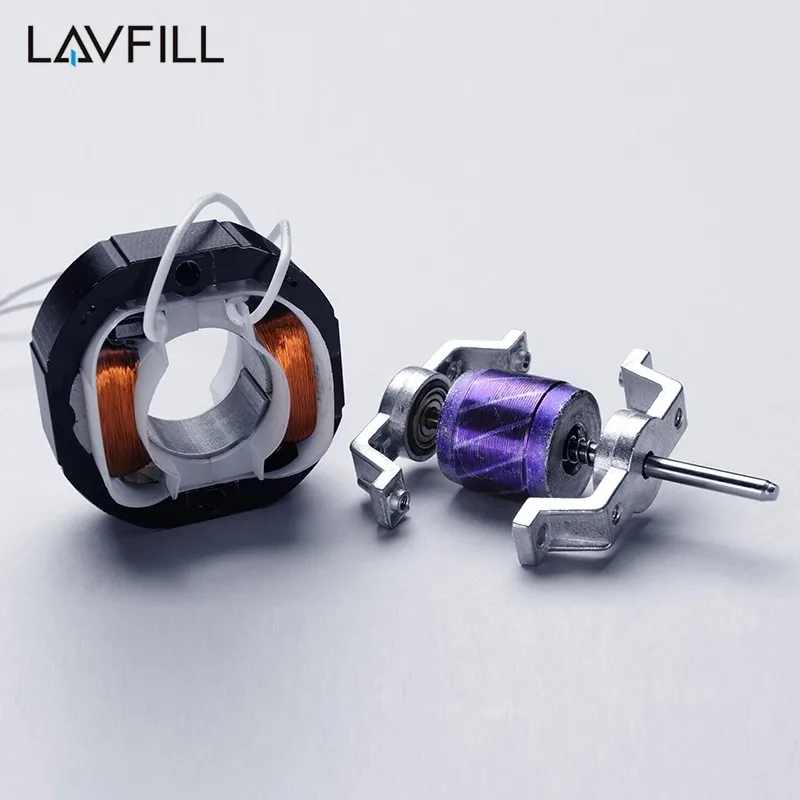

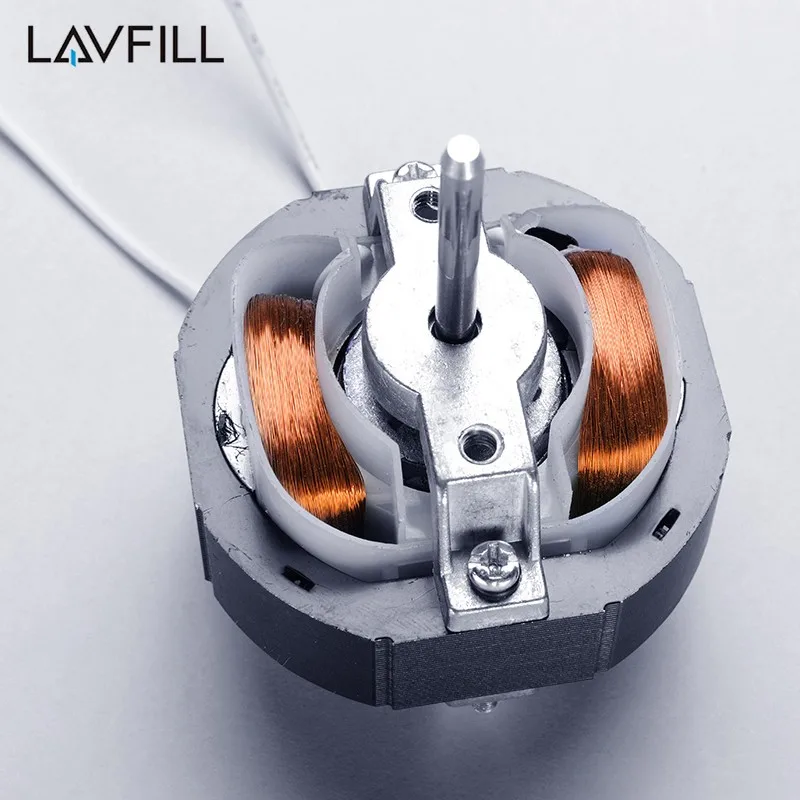

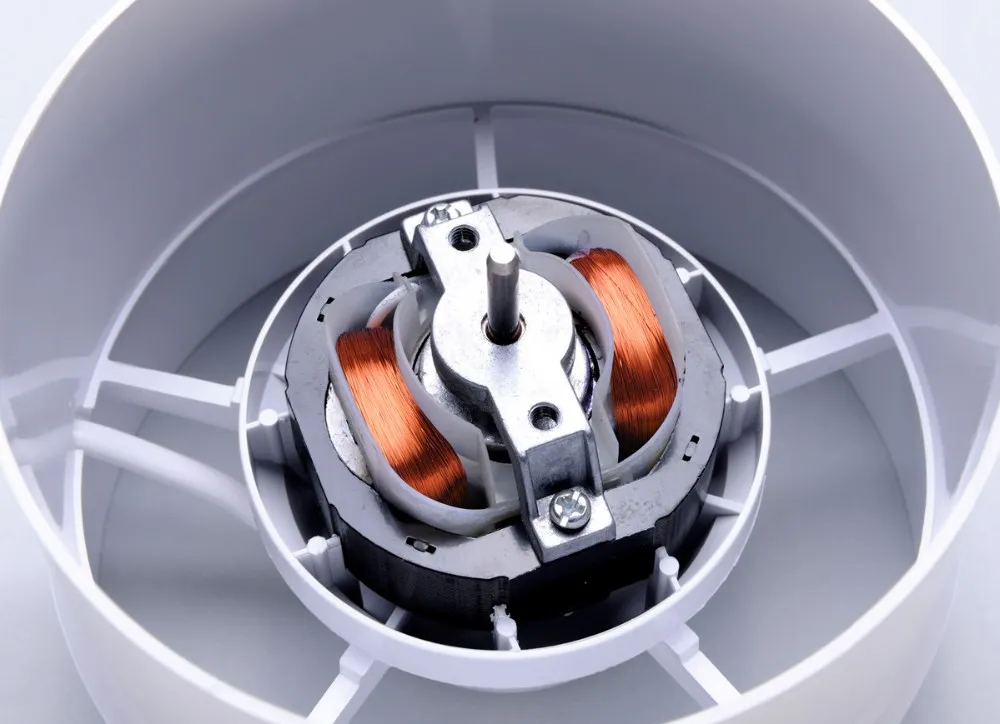

Shaded pole motor with thermo cut-off

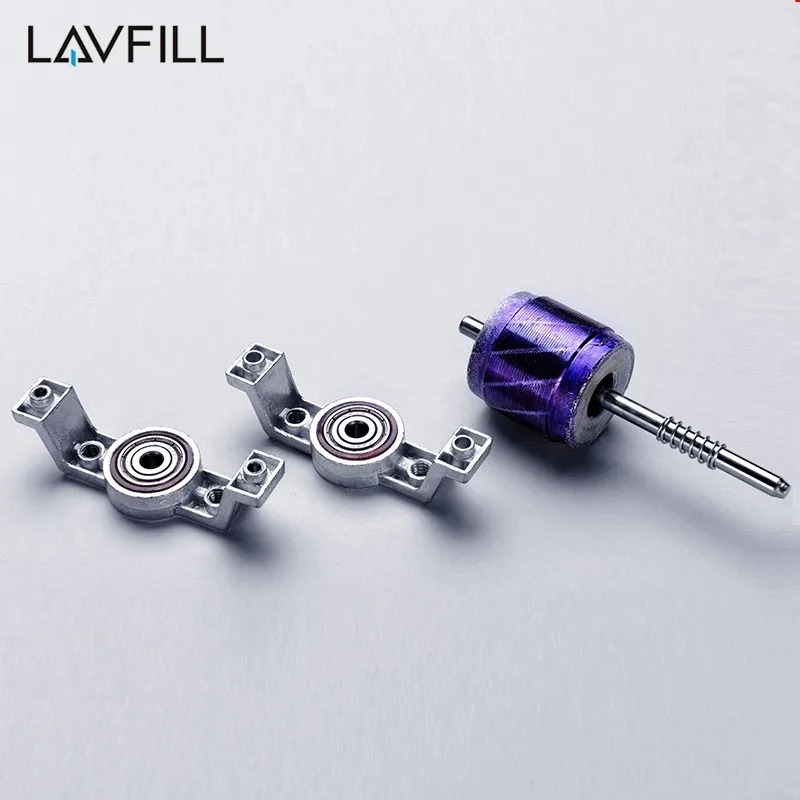

Ball bearing motor to reduce friction for long life operation
Operating temperature range -10°C ~ 40°C
Safety design based on IEC requirements
Approved by SAA TUV SASO CE RoHs
Dimensions
Unit: mm
| Article No. | A | B | C | D |
| LFI-09S | ∅96 | ∅104 | ∅100 | 88 |
| LFI-11S | ∅116 | ∅129 | ∅125 | 88 |
| LFI-13S | ∅146 | ∅154 | ∅150 | 108 |
Technical Parameter
| Article No. | Category | Rated Voltage/Frequency | Ventilator Power | Air Volume | Noise |
| LFI-09S | Inline ducted Fan | 110V~,60Hz 127V~,60Hz 220V~,50Hz 220V~,60Hz 220V~,50/60Hz 220-240V~,50Hz | 12W | 130m³/h | 34dB |
| LFI-11S | 16W | 240m³/h | 34dB | ||
| LFI-13S | 18W | 320m³/h | 35dB |
Product display

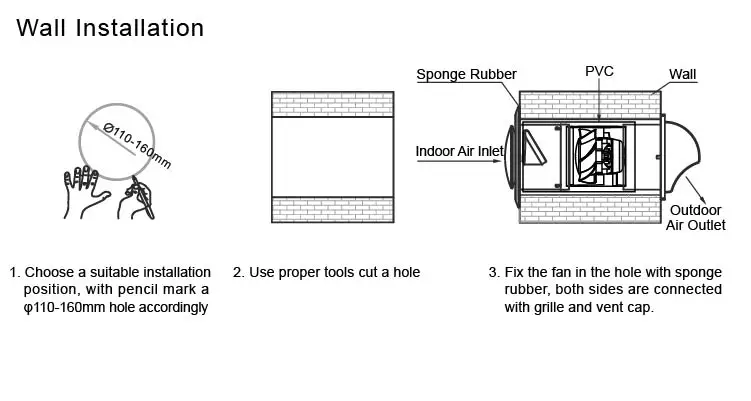

INSTALLATION
FAQ
