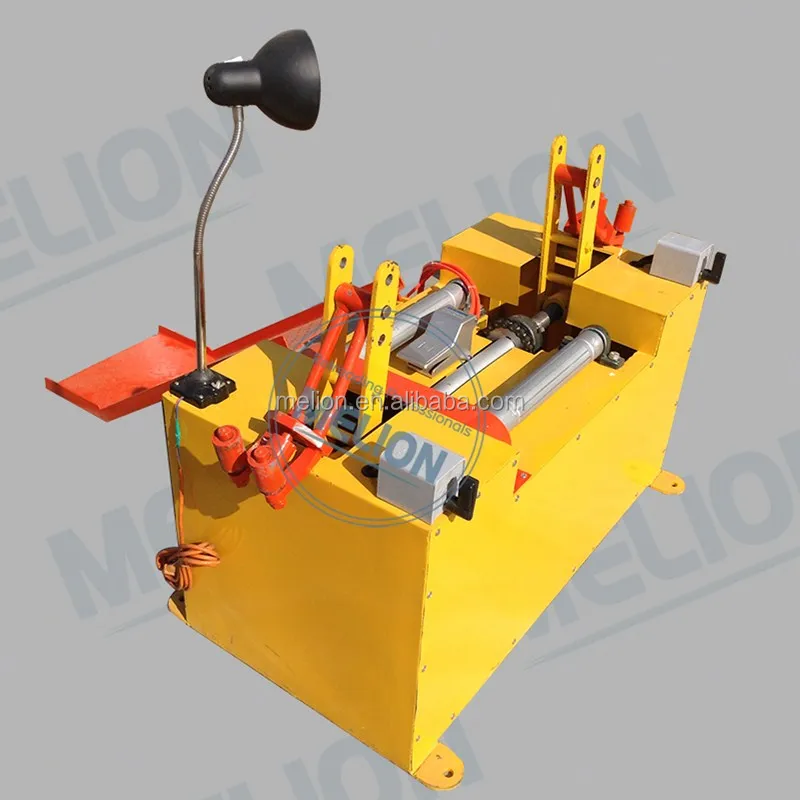

Tire retreading Inspection Machine Weight:200 Kgs Power:1.5Kw,380V,50Hz Dimension: 1100x750x850 mm Every single tire casing will receive a thorough inspection identifying potential defects.Using Melion multiple methods to inspect tires for defects and ensure only high quality casings to be retreaded.If repairs are needed, they are administered after inspection.

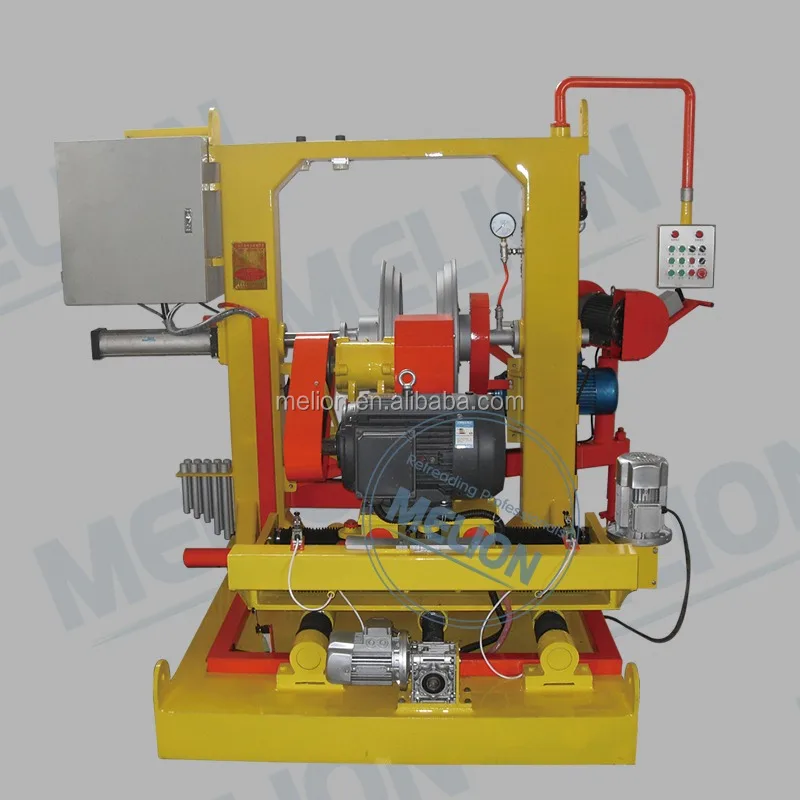

Tire retreading Buffing Machine Model:ML-FXM-F Standard Size: 15'',16'',20'',22.5'' Motor Power: 16Kw Dimension:1600x1800x2100 mm The tire’s old tread is mechanically removed on high speed buffers.Melion's buffers are extremely accurate and will remove the proper amount of old rubber while turning the tire to an exact specified diameter and radius.
Rubber Dust Collector Model: ML-SJG-S Motor Power: 3 Kw Weight: 220 Kgs Dimension: 1600X780X2000 mm Electricity:380V,50Hz,3 Ph Usage Description:Collecting Rubber Crumbs which buffed off old tread by Buffing Machine Tire retreading Multifunctional Repair Stand Model: ML-XTJ-M Power: 0.18 Kw With advances in state-of-the-art repair materials and repair methods, many of these tyres can be routinely repaired and in most cases can be retreaded when the original tread is worn off. The repair station is where any surface injury is treated using effective material and tools for grinding and patching.

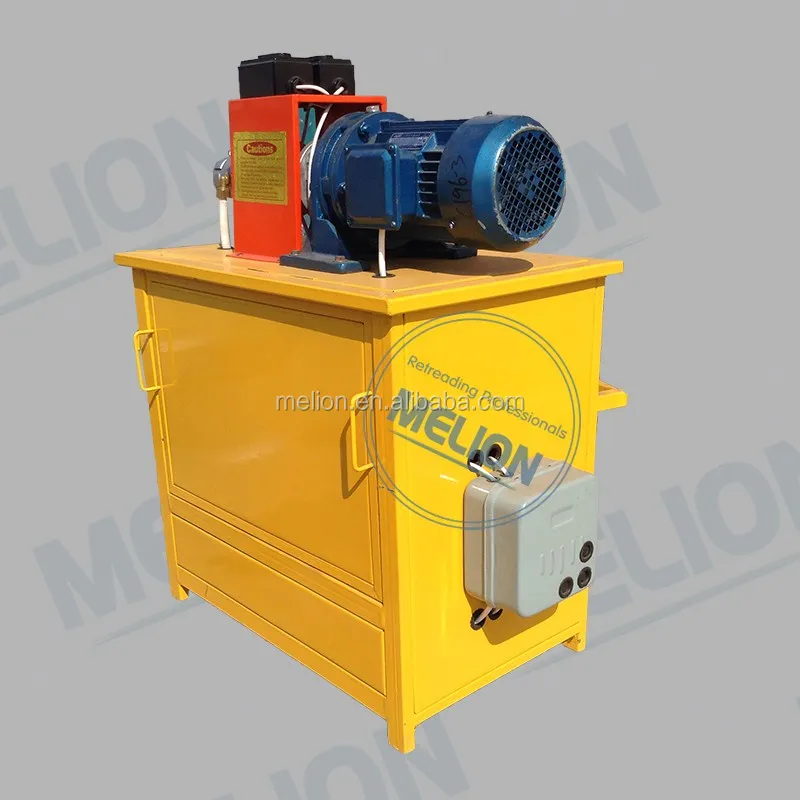

Tire retreading Rubber Extruder Machine Even in small injuries it is critical that the injury is cleaned and filled. If this is not done, severe rust, separation and steel cable looseness could take tyre out of service. The injury should be inspected, and then cleaned out with a carbide cutter. After cementing the injury, a vulcanizing rubber stem should be applied to “fill” the injury. This would create a permanent repair that maximizes tyre life. Cement Mixing Tank Model:ML-JBJ-FB Weight:90 Kgs Motor Power: 1.5 Kw Dimension: 800x800x1500 mm Usage Description: Engineered with explosion-proof motor,Cement Mixing Tank stir industrial solvent and rubber materials evenly to guarantee the procedure of cement spraying.

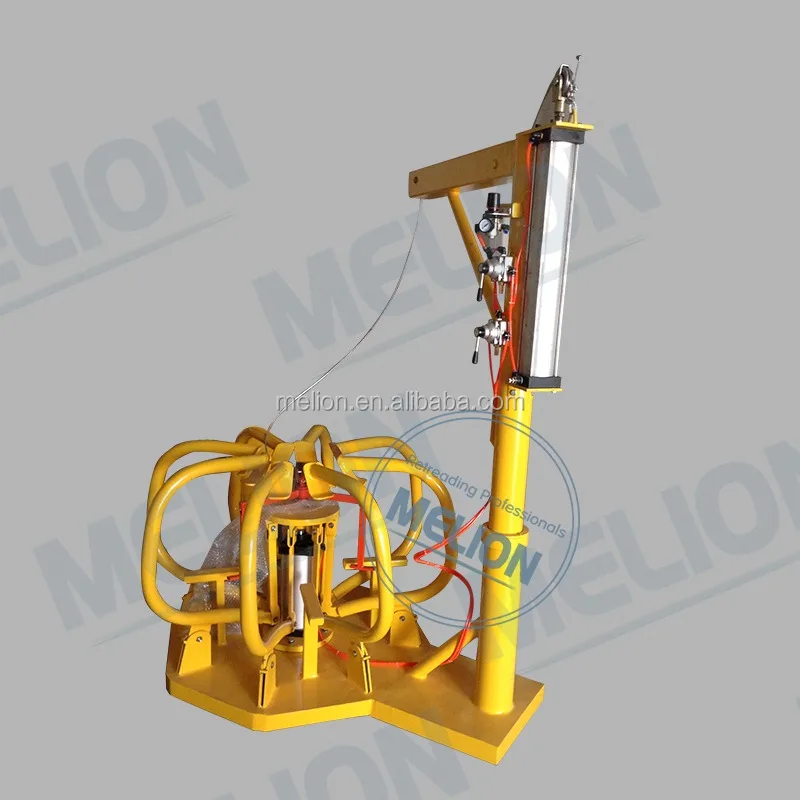

Tread Retreading Building Machine Model: ML-TBM-F Dimension: 1800x2100x2100 mm Wheel Chuck:15'',16''-20'',22.5'' In the Pre-cure Tire Retreading System, the Tread Rubber has already been vulcanized with the new tread pattern design. The buffed tire needs a thin layer of cushion gum to be wrapped around its crown area. The Pre-cured Tread Rubber(PTR) is then applied with the building machine. This is called the MELION Building Process. Envelope Spreader Model:Ml-BFT-H Dimension:1600x1500x2200 mm Operate the air cylinder and drive the Spreading Arms outwards to spread the Envelope. Then open the Gripper and grip the bead, and then lift the tire up with the cylinder-driven cable wire and guiding pulley. Rotate the lifting arm and lower the tire into the center of the Spreading Arms, and put it into the envelop. Manipulate the Air Cylinder to retrieve the Spreading Arms and release the Spreading Pads off the Envelop. Then lift the tire out of the Spreader.

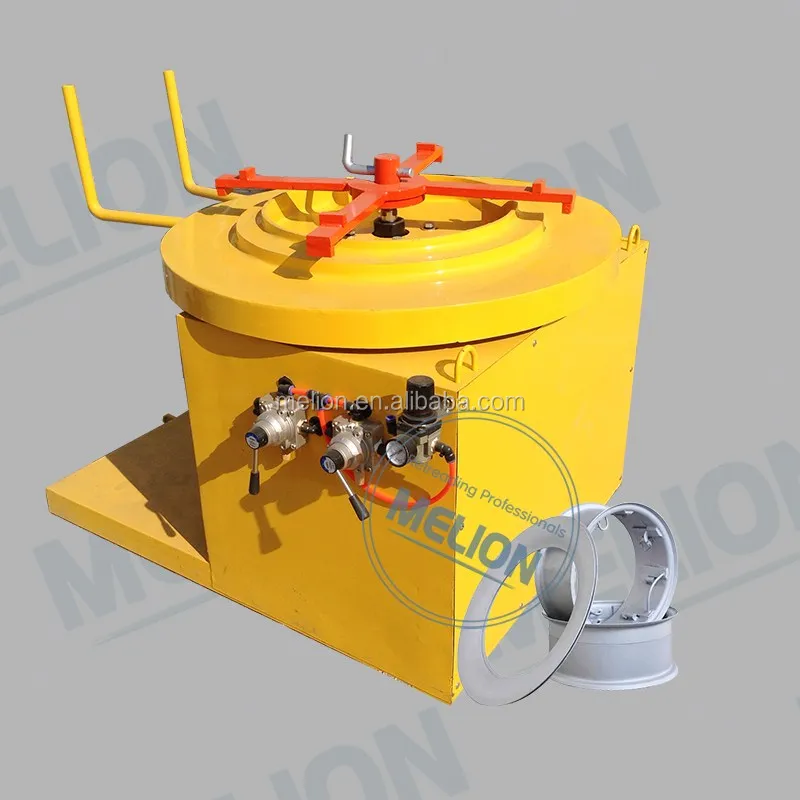

Rims Mounting Machine Model: ML-CGQ-A Dimension: 1500x1300x800 mm Description: In the Pre-cure Tire Retreading System, this Rims Mounting Machine is used to Mounting and Demounting the Curing Rims & Ring Plate for Enveloped Tires. Monorail System Model: ML-GDJ-A Dimension: 4000x1600x2100 mm Description: The monorail & hooks system increase productivity by reducing chances of casing contamination and allows for faster loading and unloading of tires.This increases your work place safety and productivity.
Curing Chamber Model:ML-LHG-12 Dimension: 5500x2100x2350 mm Heating Power:60 Kw Usage:The Tires are then placed in Curing Chamber and the pre-cured tread becomes adhered to the tyre through a vulcanizing process.
Our Services
As a tire retreading machines specialized manufacturing supplier who providing Turn-Key Service, Rizhao Melion Industry company provides customers with complete solutions all the time,including professional marketing planning,production line procedure analysis,suitable raw materials supply,free technical training and so on.
Complete Tire Retreading Solutions Supply
*Full Set Tire Retreading Equipment
*Precured Tread Rubber materials
*Cushion Gum
*Retreading Accessories and Tools
Melion Team Technical Support *Engineers available to service machinery overseas
Rizhao Melion Industry Co., Ltd As a tire retreading machines manufacturing supplier who providing Turn-Key Service,Melion provide customers with complete solutions all the time,including professional marketing planing,production line procedure analysis,suitable raw materials supply,free technical training and so on.
We manufacture complete set of tire retreading machines with different production output from 4 to 24 tyres satisfying different buyer's requirement.Our engineers can go to buyer's factory for help installing and giving technical courses to the workers.With our quality rubber materials of Precured Tread Rubber ,Rubber Strip and Cushion Gum,you are guanranteed to produce quality products of retreaded tyres.
Packaging & Shipping
Container Type
1x40Hc
Capacity
12 Tyre Retreading Machines
Weight
10 Mts
Customers
We have had thousands of customers from the world visit us in factory in past more than ten years,and expecting you very soon !
FAQ
Q: Can you provide complete tire retreading supplies?
A: Yes,we are complete tire retreading solutions supplier who can supply equipment,rubber materials,consumable tools from A to Z.
Q: How long is your delivery time?
A: Generally it is 45 days production time after receive deposit.
Q: Do you provide overseas installation and training service ?
A: Yes, we could send our engineers go to your country for installing and training services.
Q: Can I come to your factory for learning?
A: Welcome for visit any time!
If you have another question, pls feel free to contact us as below:
