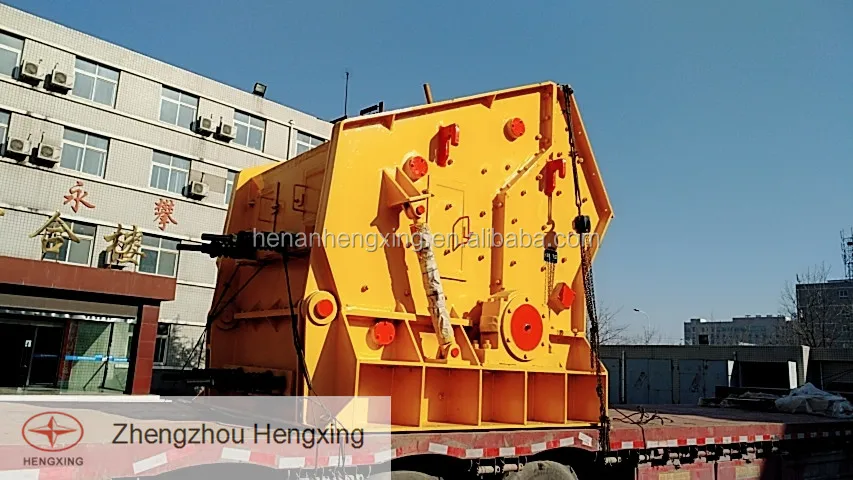

PF 1315 High Capacity Crushing Equipment Impact Crusher For Road Construction

Product Overview

Description

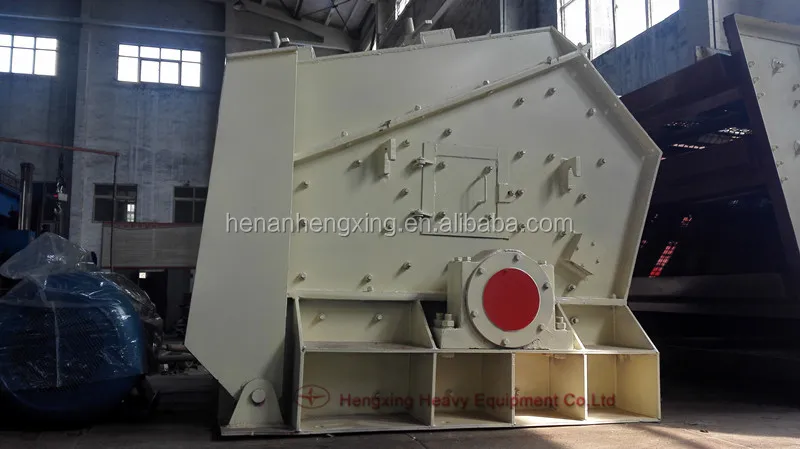

High Capacity Crushing Equipment, Road Construction Machine Impact Crusher, High Specification Impact Crusher

Introduction Of Rock Impact Crusher, Impact Crusher Crushing Equipment

This series of impact crusher is a new type of high-efficiency crushing equipment which developed by absorbing domestic and foreign advanced technology and combining with mining conditions of domestic industry. The operator feeds chunks of material into the machine's hopper and it crushes them, turning the pieces into small chunks of a more uniform size. They can be run through another crusher to make them even smaller, or used as-is, depending on the setting. Numerous companies manufacture impact crushers, including large stationary models, as well as portable equipment for job sites.

Impact crusher is equipped with Advanced technology.The triple counterattack plate structure of it can reduce friction of machine parts, reduce plate hammer loss, so that help to extend the life of wear parts.Its counter-plate and plate hammer gap can be easily adjusted to effectively control the material size.The impact plate adjustment system can prevent the sundries or non-broken objects from causing damage to the machine.The Large feeding port and high broken cavity of PF impact crusher are able to greatly improve production efficiency, and simplified crushing process to reduce the cost of equipment.



Working principle of Rock Impact Crusher, Impact Crusher Crushing Equipment

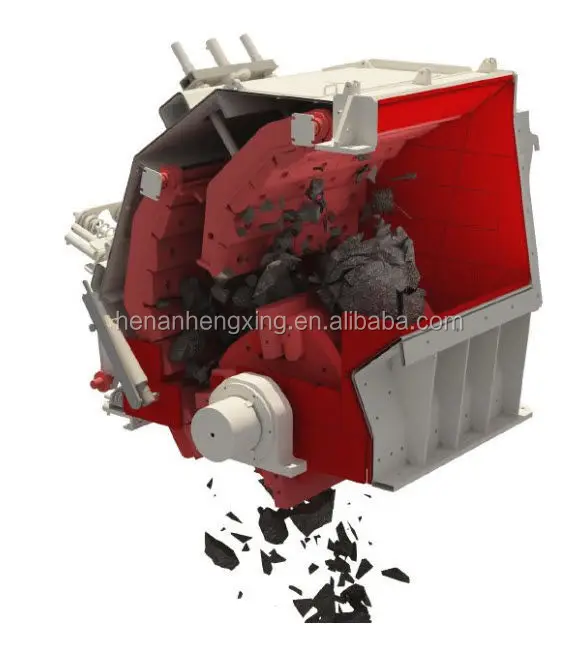

The material falls to the high-speed rotating turn plate. With the effect of strong centrifugal force, the material in the plate hammer function area will impact with hammers on the rotor. Then the material will be thrown into the counter attack device for second crushing. After that, the materials will be rebounded to the former area from the impactor lining board for further crushing. This process will be repeated until desired purpose is achieved. The finished products will be discharged from the discharge port. To control the granularity and the shape of the material, you can adjust the space between the impact rack and the rotor.



Working Method of Rock Impact Crusher, Impact Crusher Crushing Equipment

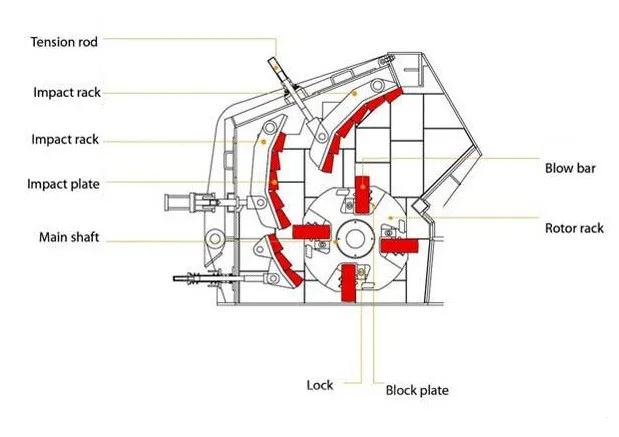

Impact crusher structure :

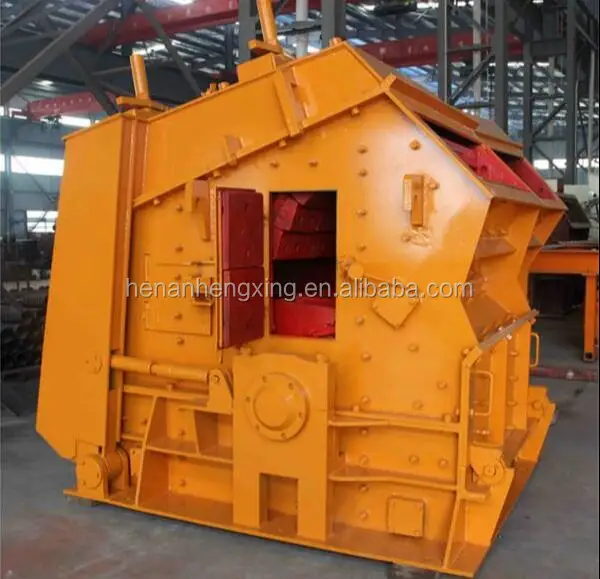

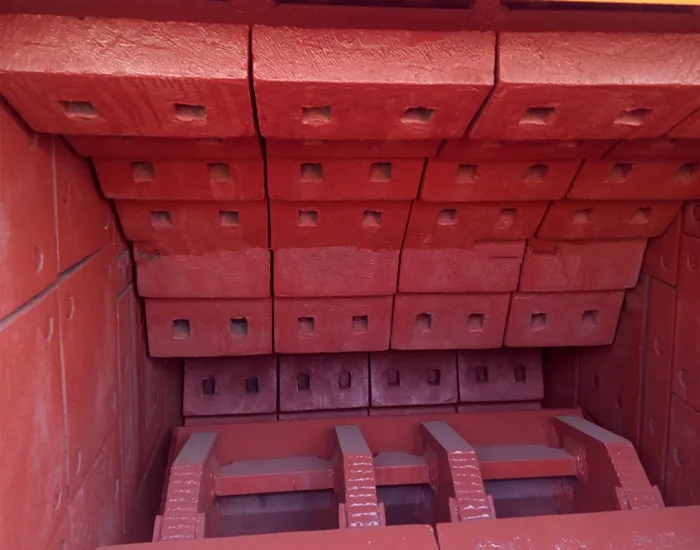

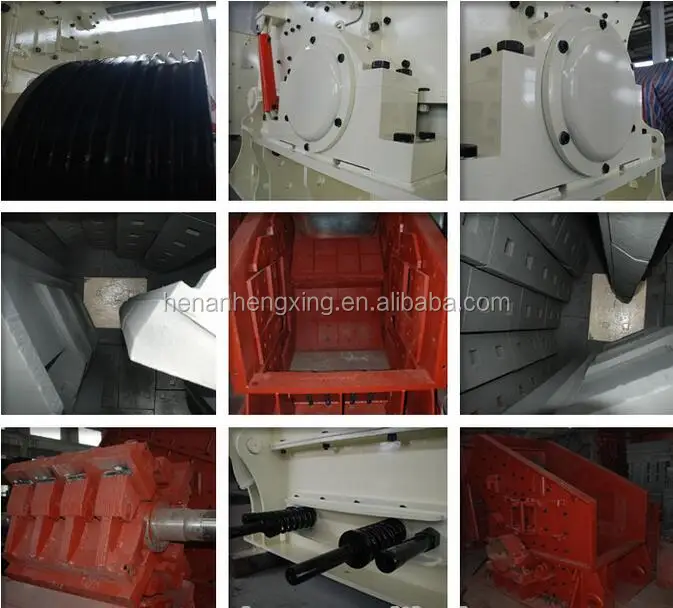

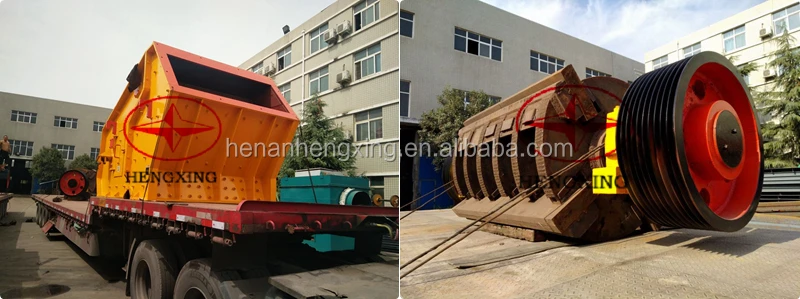

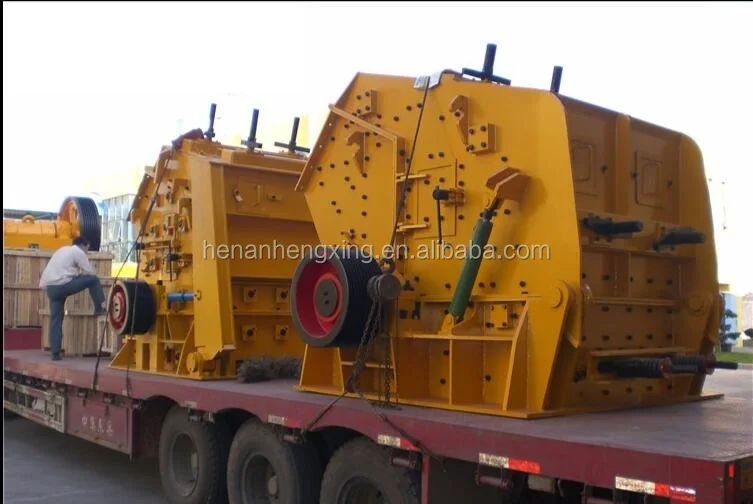

Impact crusher detailed parts photos :





Characteristic of Rock Impact Crusher, Impact Crusher Crushing Equipment

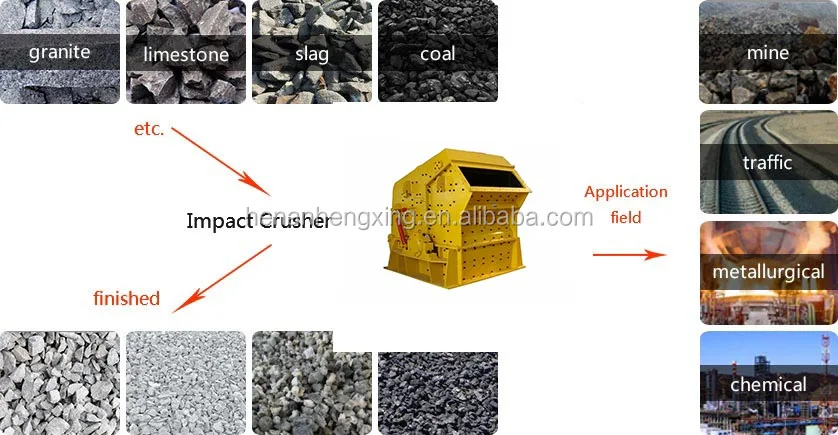

1)Scope of application
The ideal granularity of material is between 100-500mm, the Max. granularity should not exceed the regulated figure. The output capacity is decided by the following issues: (a) Ore compressive strength≤200Mpa; (b) Surface moisture content≤2%; (c) Ore stacking density is 1.6t/m3; (d) Continuous and even feeding within the full-width range of rotor.

2)Structure characteristics
PF Impact crushers have large feeding port and high broken cavity.The use of triple counterattack plate structure, so that the materials are hit and hard squeezed increased in the number. The counter-plate and plate hammer gap of PF impact crusher can be easily adjusted through the adjustment of the bolt. The impact crusher's output granularity can be adjusted by adjusting the clearance between plate hammer and impact plate.Its impact plate adjustment system is also can be the whole machine overload protection device at the same time. When the sundries or non- broken pieces into the crusher, the impact plate can automatically rebound back, so that keeping the sundries away from the impact crusher machine.To prevent foreign objects (such as iron, etc.) or non-broken objects on the equipment damage.





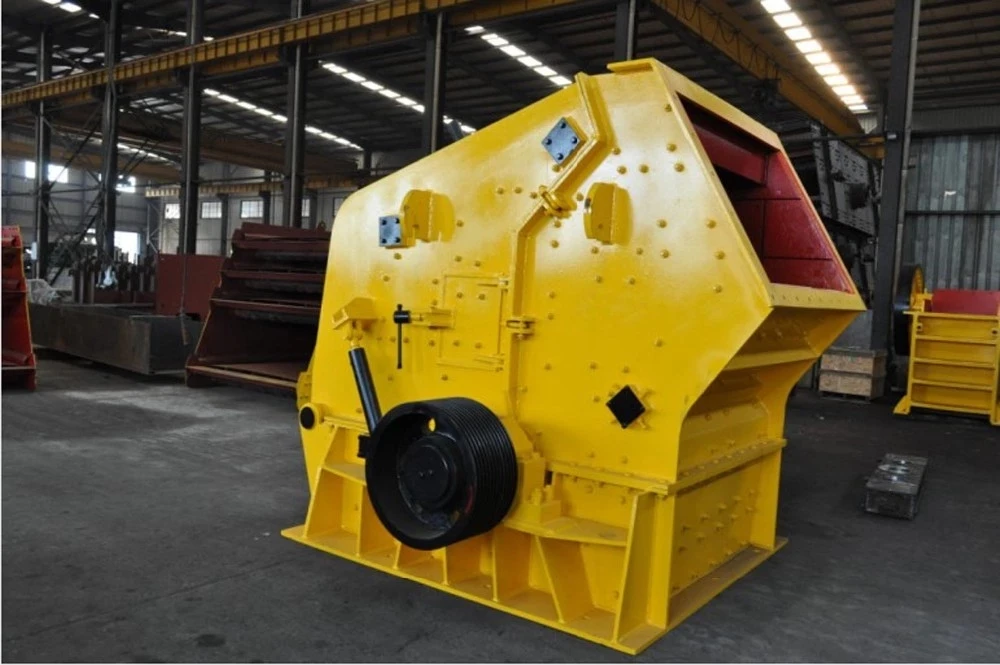

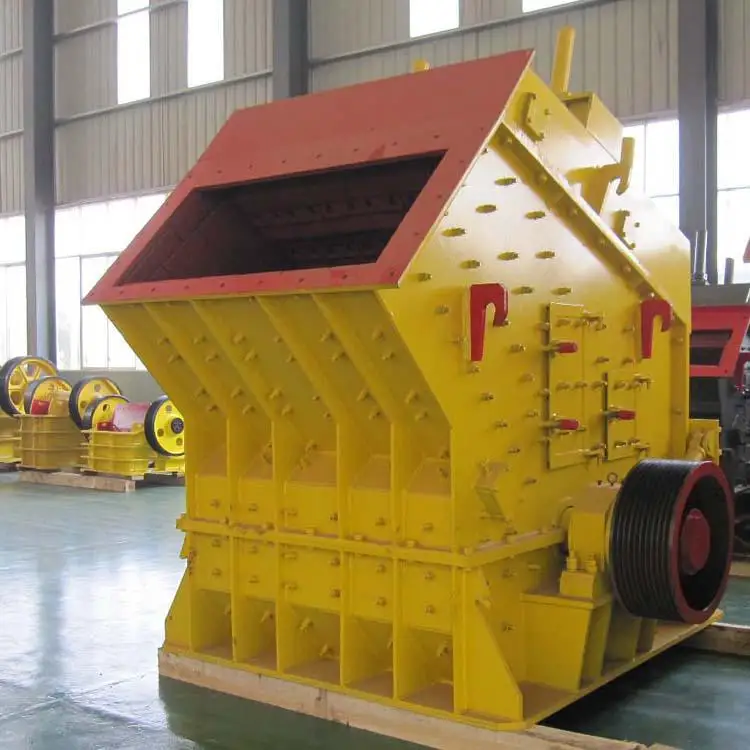

Features of Rock Impact Crusher, Impact Crusher Crushing Equipment

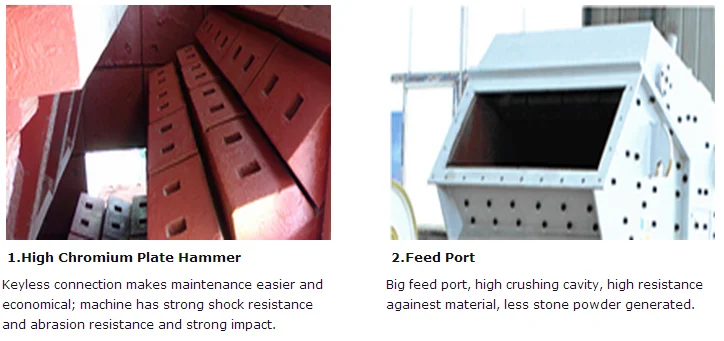

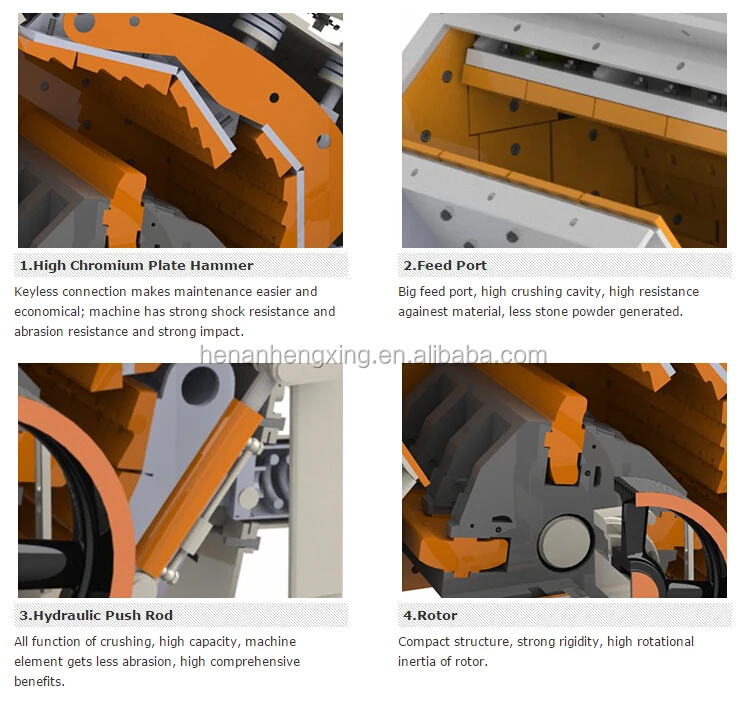

Heavy duty rotor design; By improving the method of fixing the hammer to make machine have more reliable working.
Long service life; Reliable overload and tramp iron protection device.
Easy maintenance; The lining board can be replaced and easy to maintain.
Large crushing cavity; The design of crushing cavity is increased, and the application scope is wider
Large feed port; The feed port is large enough to crush larger materials.

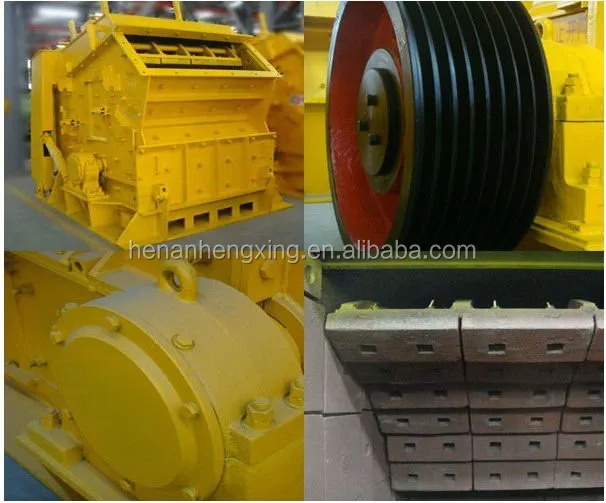

Blowbar of Rock Impact Crusher, Impact Crusher Crushing Equipment







Liner of Rock Impact Crusher, Impact Crusher Crushing Equipment





Inner of Rock Impact Crusher, Impact Crusher Crushing Equipment

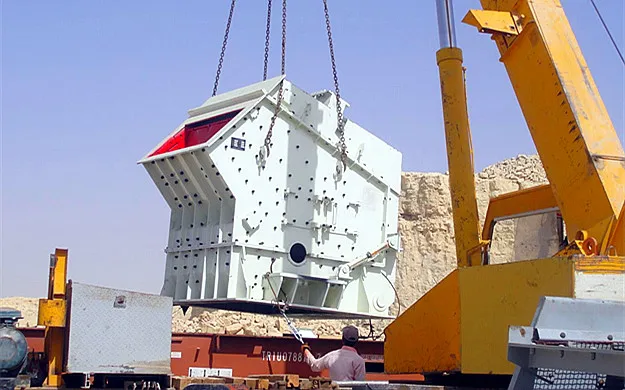

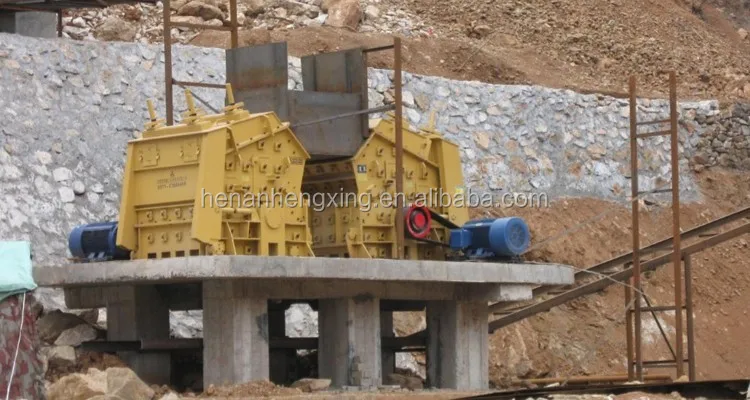

Working site  Of Rock Impact Crusher, Impact Crusher Crushing Equipment



Main technical parameters Of Rock Impact Crusher, Impact Crusher Crushing Equipment

Type	Model (mm)	Feeding size (mm)	Max long size (mm)	Capacity (t/h)	Power (kw)	Weight (t)	Overall (L×W×H) (mm)
PF-1007	Φ1000×700	400×730	300	30-70	45	12	2330×1660×2300
PF-1010	Φ1000×1050	400×1080	350	50-90	55	15	2370×1700×2390
PF-1210	Φ1250×1050	400×1080	350	70-130	110	17.7	2680×2160×2800
PF-1214	Φ1250×1400	400×1430	350	100-180	132	22.4	2650×2460×2800
PF-1315	Φ1320×1500	860×1520	500	130-250	220	27	3180×2720×2620
PF-1520	Φ1500×2000	830×2040	700	300-550	400	50.6	3959×3564×3330
