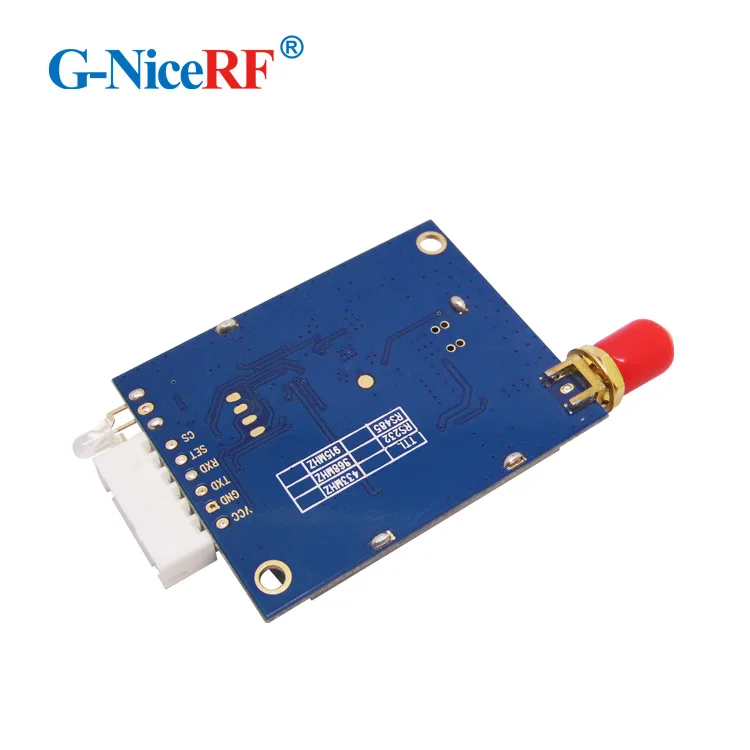

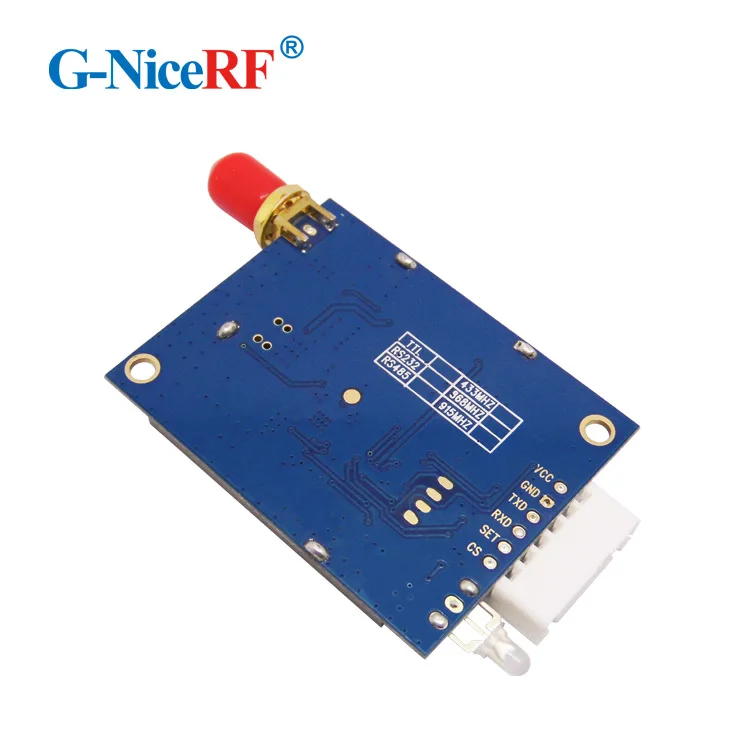

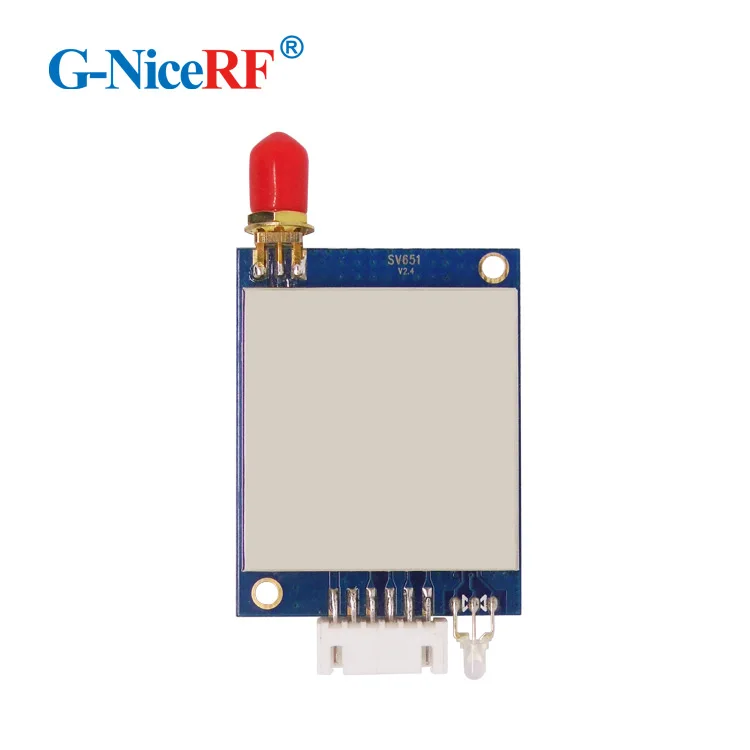

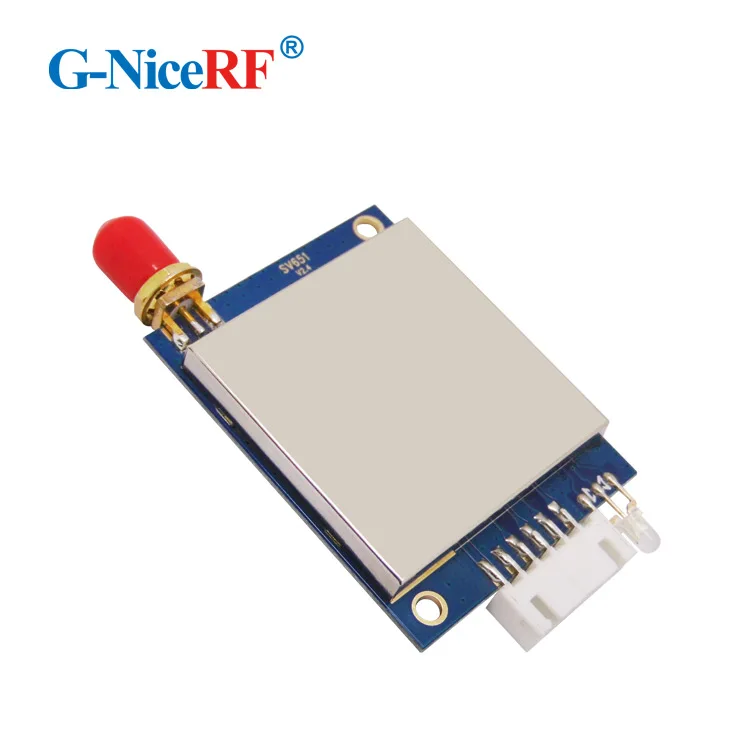

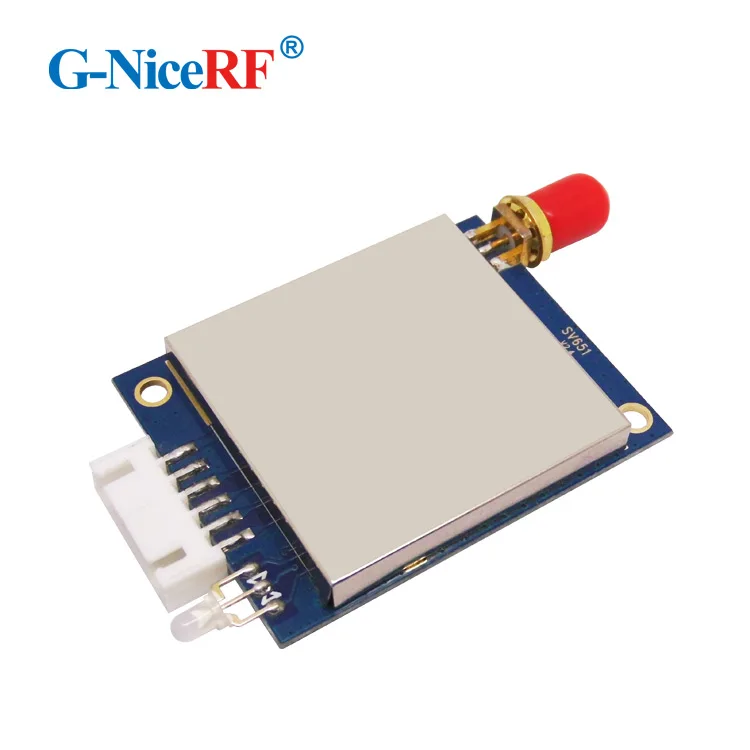

G NiceRF SV651 500mW 27dBm TTL /RS232 /RS485 RF Transmitter Module Long Range RF 433MHz Transceiver Module

Share on (60677051604):


Price:

Quantity:


Product Overview

Description

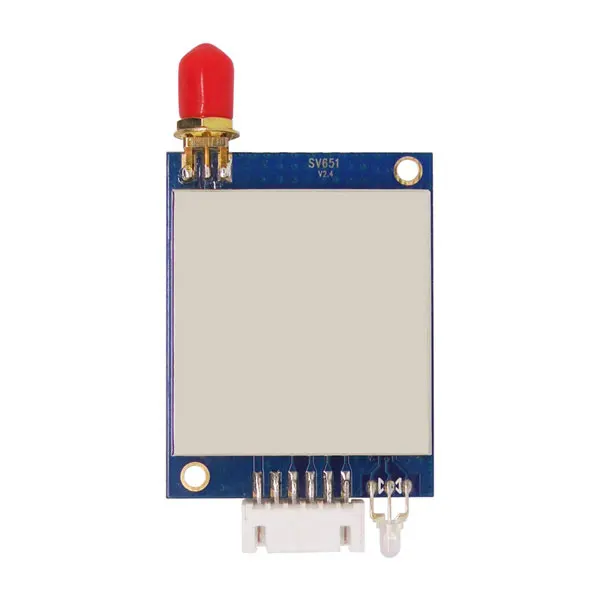

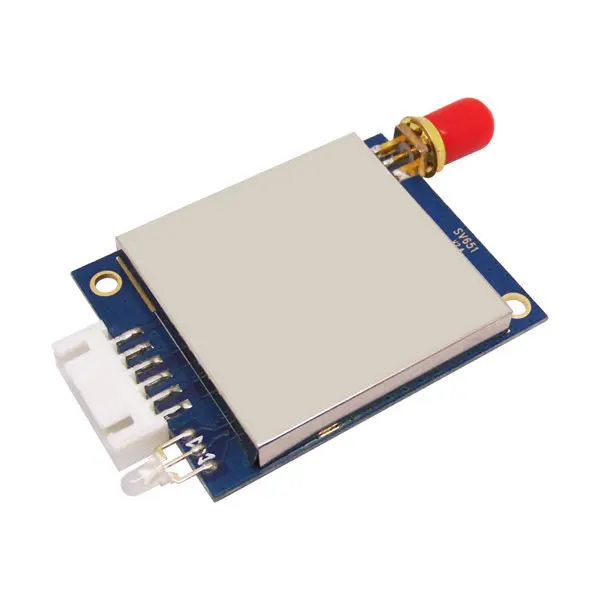

SV651 500mW 27dBm TTL /RS232 /RS485 RF Transmitter Module Long Range RF 433MHz Transceiver Module

Here is the order list :
  • 2PCS SV651 -TTL -433MHz Wireless modules

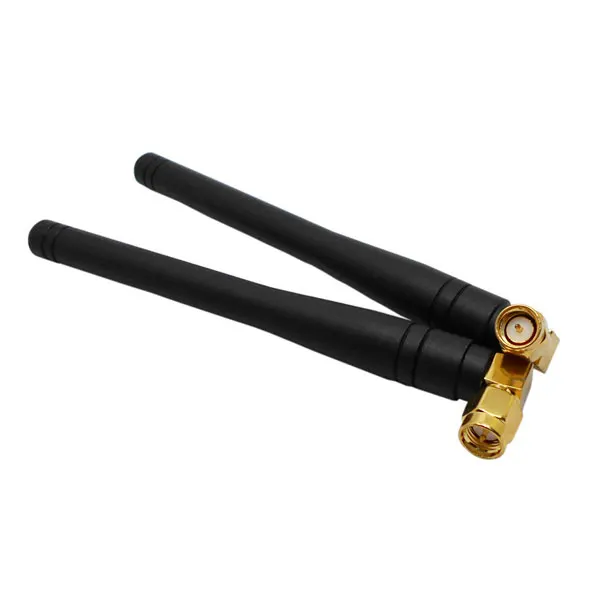

  • 2PCS SW433-WT100 Rubber antennas
  • 1PIECE TTL USB Bridge board

Product Description


SV651 is an Industrial class & highly-integrated RF transceiver module, which adopts the highperformance Si4432 from Silicon Labs and industrial micro-controller . TTL / 232 /485 can bechosen corresponding to SV651-TTL / SV651-232 / SV651-485. SV651 has good sensitivity and500mW output power to achieve long RF range and reliable RF communication. To avoid theinterference, SV651 provides 40 frequency channels and configurable Net ID. SV651 is flexible buteasy to use , it comes with many parameters, such as: frequency, data rate, output power, Net ID,Node ID. Users can configure the parameters through PC or customer’s own device


Feature

  • 433/470/868/915 MHz (Customizable240-930 MHZ)
  • Industrial class
  • 40 channels
  • 4 bytes Net ID & 2 bytes Node ID
  • Series Data Rate: 1200 ~ 115200 bps
  • Air Data Rate: 1200 ~ 115200 bps
  • GFSK modulation
  • RSSI
  • Interface:TTL/RS232/ RS485
  • Antenna matching automatically
  • Bi-directional & Half duplex
  • Sensitivity:-121 dBm
  • Max output power:500 mW (+27 dBm)
  • Working voltage:3.3~ 6.5V
  • Working temperature: -40 ~ +85 °C
  • Weight:14.0g
  • Parameters save automatically


Application



  • Remote control telemetry
  • Security system
  • Industrial data acquisition
  • Home automation
  • Wireless data communication
  • Access system
  • Robot control
  • Wireless PC peripherals

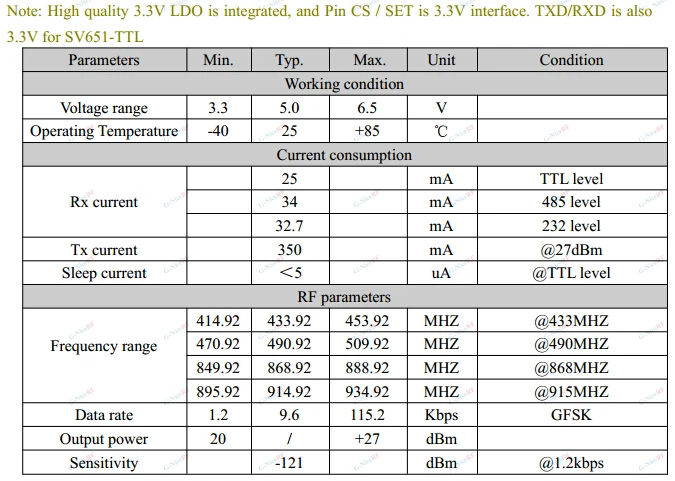

Electrical Characteristics

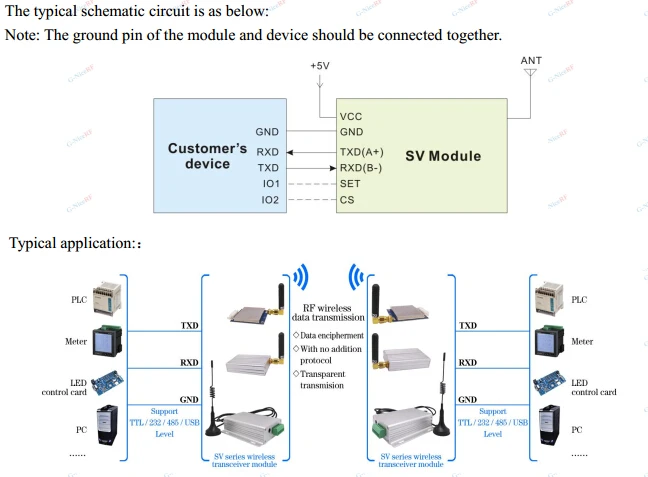

Typical application:

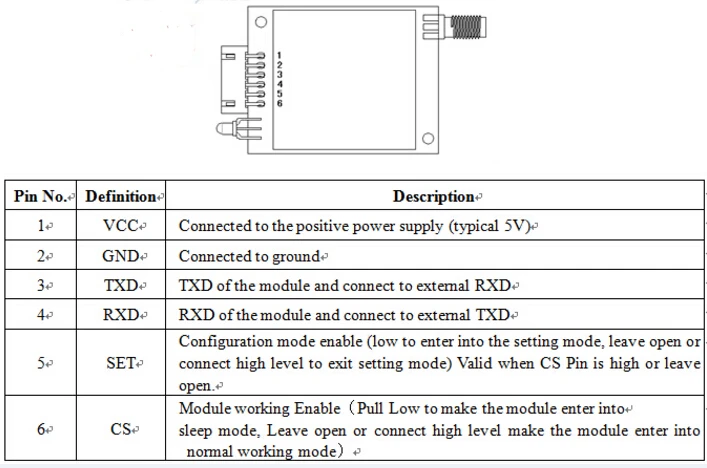

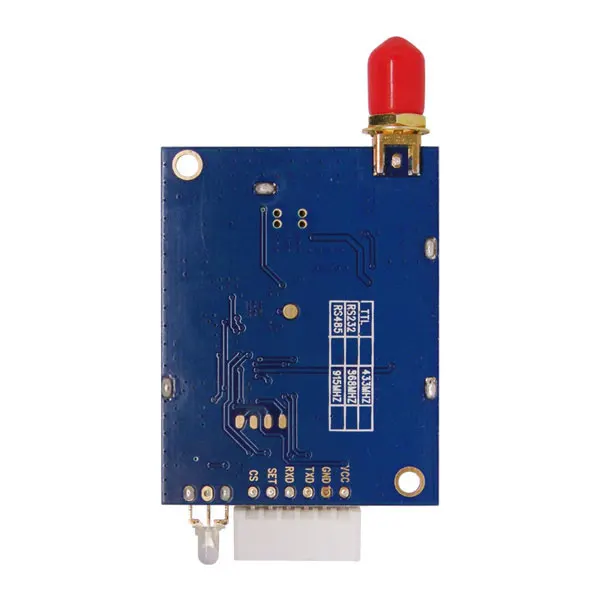

Pin definition:

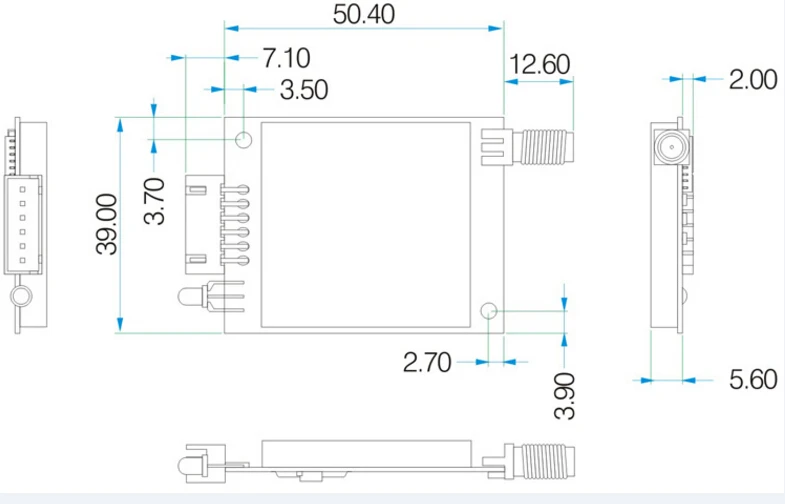

Mechanical dimension:






Packaging & Shipping
