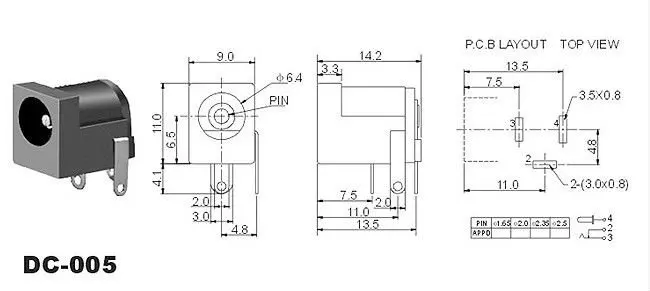

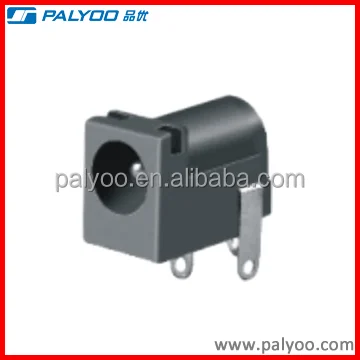

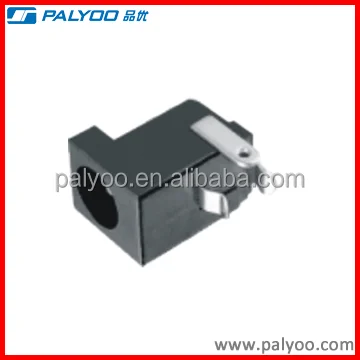

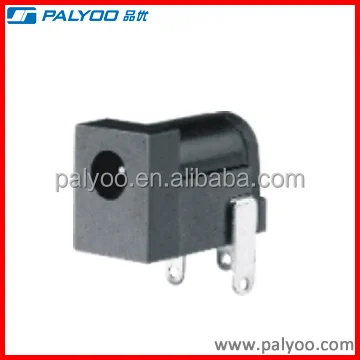

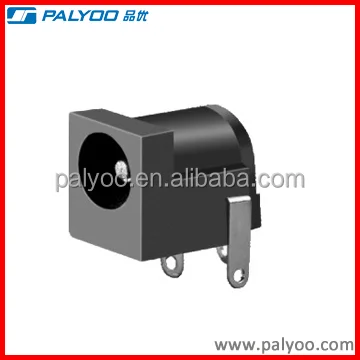

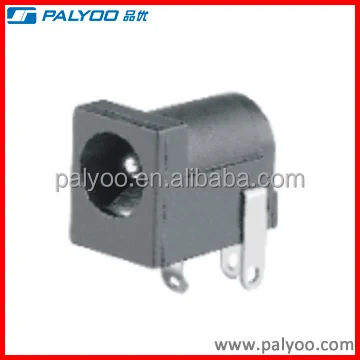

dc 005 2.1 x 5.5 mm dc power jack socket

Product Overview

Description

DC power jack
→Specification←
Temperature:		-30~+70°C	Rating:	DC 30V 0.5A
Contact Resistance:		≤30mΩ Max	Insulation Resistance:	≥100MΩ
Withstanding Voltage:		AC500V(50Hz) min	Insertion and Withdrawal  Force	3~20N
Life:		5000 times
→Package←	PVC bag,inside carton and outside carton.

Specifications



Current rating: 3AMP



Contact resistance: 20MΩ Max



Insulation resistance: 1000 MΩ Min



Withstand voltage: AC 500V





Operation temperature:



Gold plated, from -55°C to +105°C



Tin plated, from -40°C to +105°C



Contact material: Brass/Phosphor Bronze



Contact plating: Au or Sn over 50 u" Ni



Insulator material: Polyester (UL94V-0), Nylon-66/PBT



Color:Black/Blue/Red/White/Yellow/Grey





Advantage

1.All kinds of products 100% tested before delivery..

2.Well-equipped testing facilities and strong technical force.

3. Prompt delivery and competitive price and quality.

4. Used in the most of home appliances,computer,PCB,LCD,TV.

5.Our factory has nearly ten years manufacturing experience.



We provide many kinds connectors, such as pin header ,female header, box header, ejector header, ic socket, d-sub connectors ,sockets,switches, cables etc,and promise all products are ROHS with high quality, if you have any need or question,please don't hesitate to contact us.
