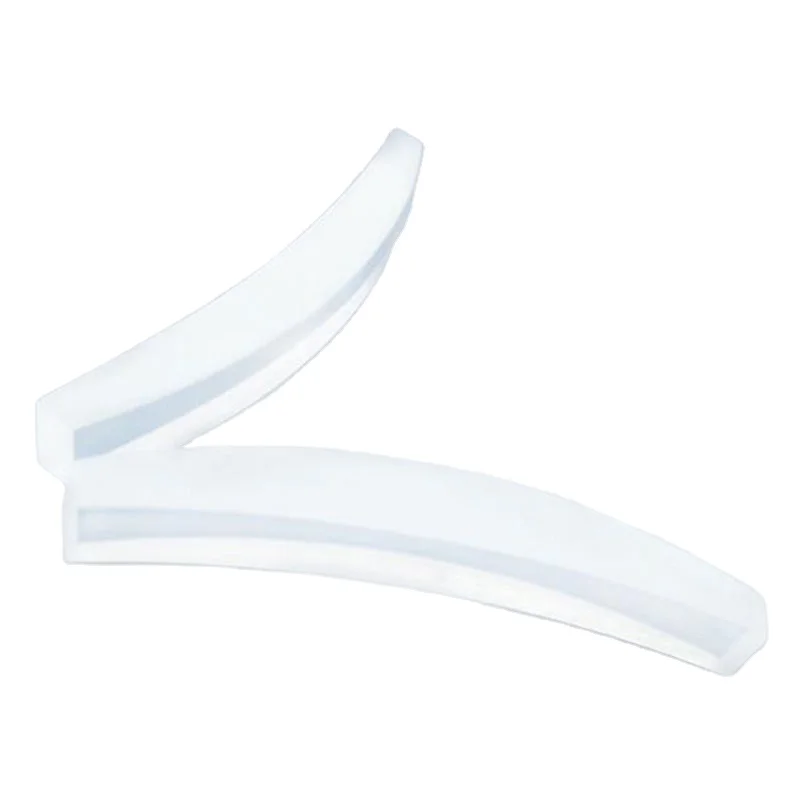

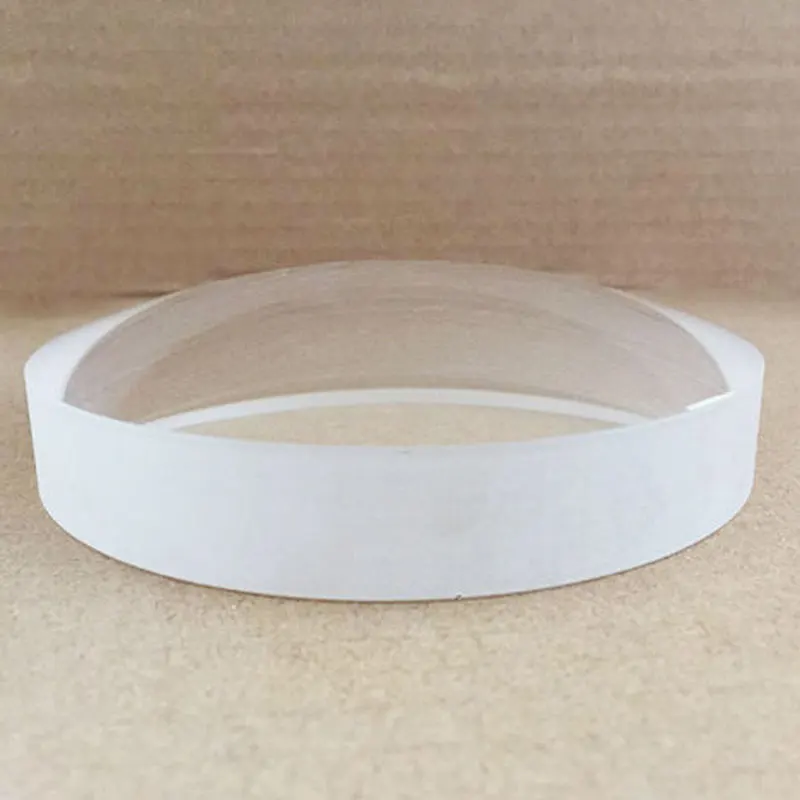

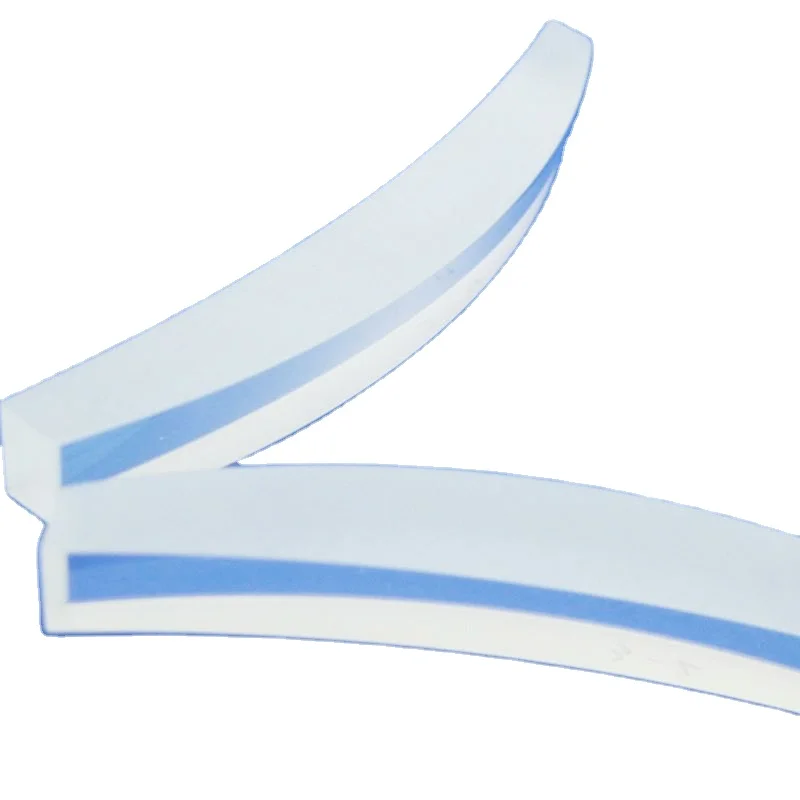

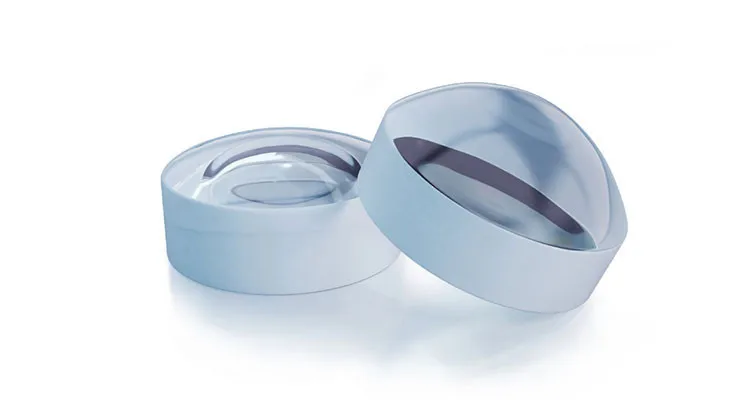

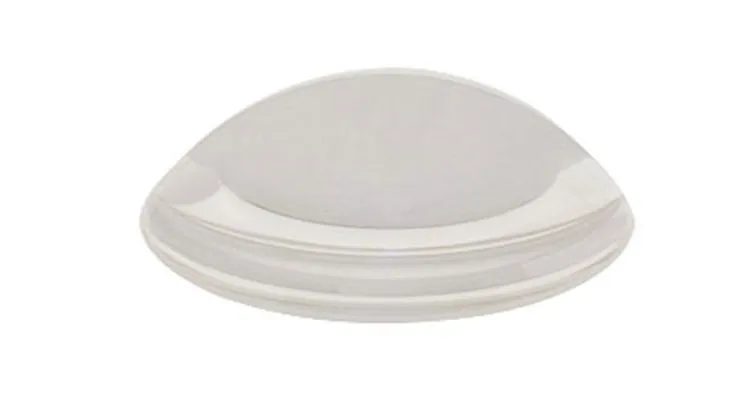

Customized high precision BK7/K9 Fused Silica CaF2 Germanium ZnSe Positive Meniscus Lens
- Category: Lenses >>>
- Supplier: Wuhan Especial Optic Inc.
Share on (60677080277):
Product Overview
Description
Product Description
Features
Ø1" Positive Meniscus Lenses Fabricated from N-BK7 Glass
Available Uncoated or with One of Three AR Coatings:
Uncoated: 350 nm to 2.0 µm
A Coated: 350 - 700 nm
B Coated: 650 - 1050 nm
C Coated: 1050 - 1700 nm
Focal Lengths Available from -100.0 to -1000.0 mm
Spherical Surface Power: 3 Fringes
Spherical Surface Irregularity: λ/4
These Positive Meniscus Lenses are fabricated from RoHS-compliant BK7 glass (N-BK7) and are available uncoated or with one of our three broadband antireflection coatings: -A (350-700 nm), -B (650-1050 nm), or -C (1050-1700 nm). These coatings greatly reduce the 4% loss per surface incurred when using an uncoated lens.

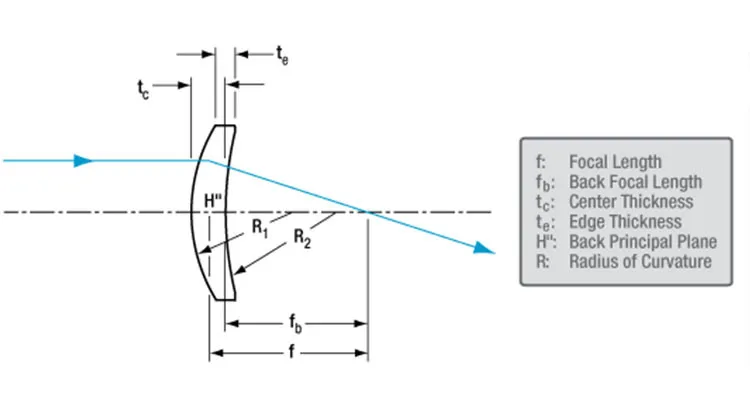

Positive meniscus (convex-concave) lenses are designed to minimize spherical aberration. When used in combination with another lens, a positive meniscus lens will shorten the focal length and increase the numerical aperture (NA) of the system without introducing significant spherical aberration. When used to focus a collimated beam, the convex side of the lens should face the source to minimze spherical aberration.
Lens Shape | Positive Meniscus |
Substrate Material | N-BK7 |
Wavelength Ranges | Uncoated: 350 nm - 2.0 µm |
A: 350 - 700 nm | |
B: 650 - 1050 nm | |
C: 1050 - 1700 nm | |
Diameter Tolerance | +0.00/-0.10 mm |
Clear Aperture | >90% of Diameter |
Thickness Tolerance | ±0.1 mm |
Focal Length Tolerance | ±1% |
Design Wavelength | 587.6 nm |
Index of Refraction | 1.515 @ 633 nm |
Surface Quality | 40-20 Scratch-Dig |
Centration | <3 arcmin |
Damage Thresholdsb | A: 7.5 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.504 mm) |
B: 7.5 J/cm2 (810 nm, 10 ns, 10 Hz, Ø0.144 mm) | |
C: 7.5 J/cm2 (1542 nm, 10 ns, 10 Hz, Ø0.123 mm) |
Detailed Images
Our Company
Wuhan Especial Optic.,INC was founded in 2012,located in Wuhan East Lake High-tech Development Zone.
Especial Optic focuses on the design, development and production of infrared optical components and visible optical components, and is good at developing and producing kinds of infrared optical components of ultra high precision, ultra thin, very large, ultra small and customized service. The company has optical optimization design, precision optical processing and optical coatingtechnology and production technology, with complete production processing and testing equipment, perfect quality management system.
After many years of unremitting efforts, Especial Optic has successfully produced a variety of special customized products and small batch infrared optical components, accumulated rich experience, we look forward to continue to provide more perfect service for our customers.
With continuous technological progress and management innovation, we will create more value and provide better products and services for our customers.
Especial Optic focuses on the design, development and production of infrared optical components and visible optical components, and is good at developing and producing kinds of infrared optical components of ultra high precision, ultra thin, very large, ultra small and customized service. The company has optical optimization design, precision optical processing and optical coatingtechnology and production technology, with complete production processing and testing equipment, perfect quality management system.
After many years of unremitting efforts, Especial Optic has successfully produced a variety of special customized products and small batch infrared optical components, accumulated rich experience, we look forward to continue to provide more perfect service for our customers.
With continuous technological progress and management innovation, we will create more value and provide better products and services for our customers.
Factory
Lobby
Coring
Forming
Rounding
Polishing
High speed polishing
Low speed polishing machine
Mould warehouse
Interferometer
Spectrophotometer
Central deviation measuring instrument
30-fold microscope
Coating machine
Our Service
a: Dimesion size : 5-300mm , thickness up to customer requirements
b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2,Ge, Si, Znse,ZnS and so on.
c: AR HR DLC coating or as your request
d: Product shape : As required
For more information, kindly visit our website: www.wheo.cn
Our products
uncaoted BK7 windows
caf2 window
AR coating Ge window
ZnSe window
AR coating SI window
AR coating ZnS window
Sapphire window
Fused Slica window
optical lens
cylindrical lens
Si lens
optical convex mirror
Al coated mirror
gold coated mirror
optical bandpass filter
optical prism
Si galvanometer
Packing & Delivery
Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.
3-4 weeks for custom-made products for sample.
in common, 4 weeks for mass production
Contact us
Wuhan Especial Optic.,INC
Contacts: David Liu
T: 86-027-87504830
P: +86 18622556450
Skype: +86 18622556450
Email: David(at)wheo.cn
Website: www.wheo.cn
FAQ
What's the way of shipping?
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.
How to pay?
We usually draft Trade Assurance Order on Alibaba, you can pay by the most convenient way which also protect most of your rights.
What's the deliver time?
For inventory: the delivery time is around 5 workdays.
Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
How to ensure the safety of payment?
Wuhan Especial Optic.,INC is the gold supplier and supports Alibaba Trade Assurance. Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shippment.
Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
