DDGTNDT 200kv X Ray Generator Non Destructive Weld Radiographic Inspection Testing Instrument X ray Flaw Detector XXG 2005
- Category: >>>
- Supplier: Dandong Flaw Detector Equipment Co. Ltd.
Share on (60677124231):
Product Overview
Description
Our Company
Our company DDGT NDT was founded in 1988,which is one of the well known companies specialized in Non-dectructive testing(NDT) equipments. After 20 years' development,we have accumulated abundant technical force and established a wealth of design and practical experience.We are a manufacturer and trading company. .Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.
Product Description

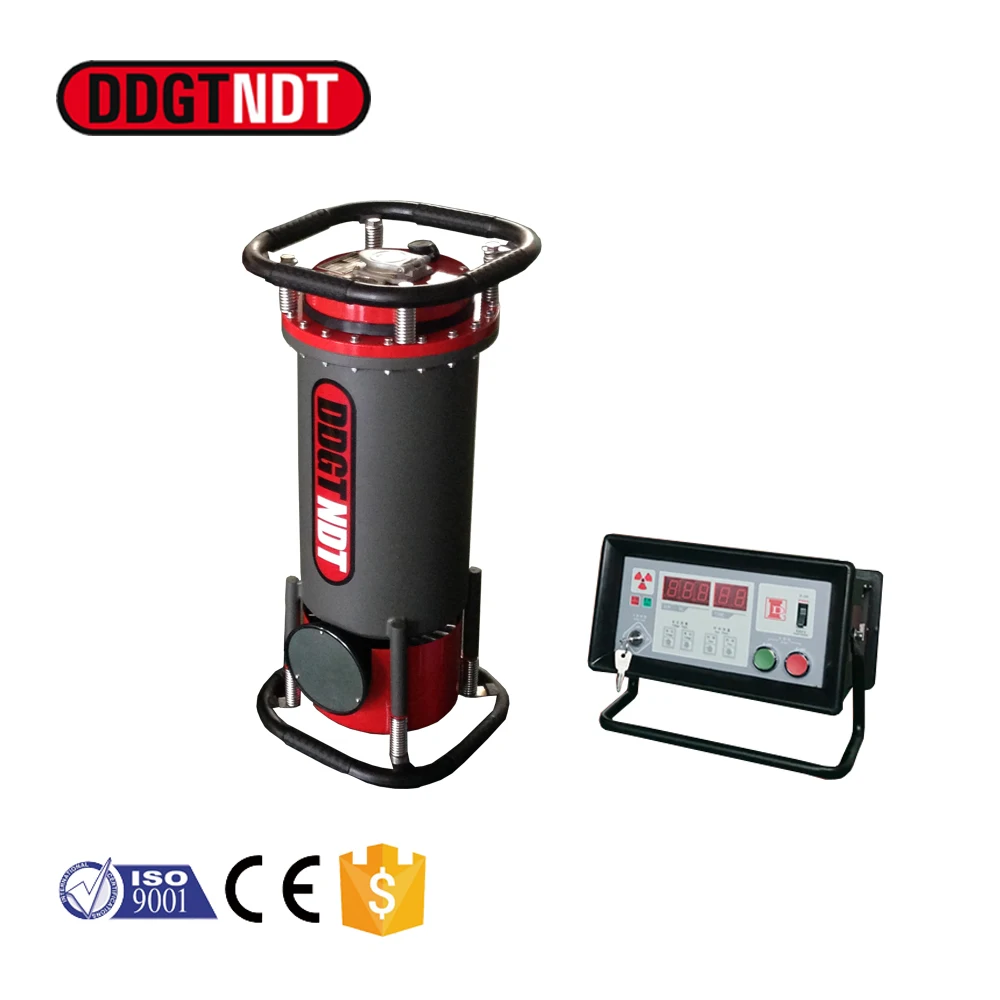

DDGTNDT 200kv X Ray Generator Non-Destructive Weld Radiographic Inspection Testing Instrument X-ray Flaw Detector XXG-2005
Product Application

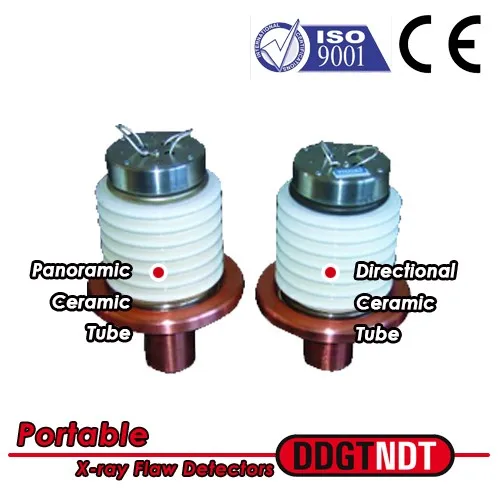

- XXG-2005 Series x-ray flaw detector is with ripple ceramic x-ray tube.

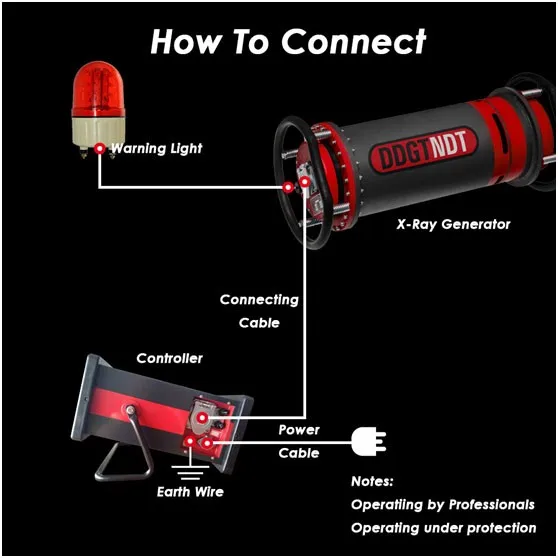

- Portable X-ray flaw detector is made up by x-ray generator, controller, connecting cable, power cable and accessories.

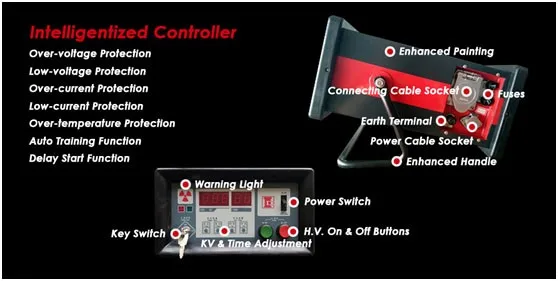

- The intelligent design for controllers, the tube voltage and exposing time can be preset, the timer is digital. The controllers have over-voltage protection, over-current protection, low-current protection and exposing delay function. Strong impact resistance and anti-jamming performance for the complex work environment.
- X-ray generators have over-temperature protection. When the generator is over-temperature, it will shut down the high voltage automatically.
- Our equipments have one year free warranty period.
- We have over 20-year-experience on industrial x-ray machines, and the x-ray machines we produce have smaller dimensions, lighter weight, best quality, longer trouble-free cycle and lower maintenance cost.
Specifications
DDGTNDT 200kv X Ray Generator Non-Destructive Weld Radiographic Inspection Testing Instrument X-ray Flaw Detector XXG-2005
SPECIFICATIONS FOR XXG-2005 X-RAY FLAW DETECTOR | ||||||
XXG-2005 X-ray Flaw Detector | Power Supply | AC 198-242V/50-60HZ/2.5KW | ||||
Output voltage | 100-200KV | |||||
Max. Penetration(Fe) | 29mm | |||||
Focus Size(mm) | 1.5*1.5 | |||||
Ray Radiation Angle | 40° | |||||
X-ray Generator | Generator Size(mm) | 270*270*580 | ||||
Generator Weight(kg) | 20 | |||||
X-ray Controller | Controller Size(mm) | 320*180*380 | ||||
Controller Weight(kg) | 13 | |||||
Certifications
Our Service
DDGTNDT 200kv X Ray Generator Non-Destructive Weld Radiographic Inspection Testing Instrument X-ray Flaw Detector XXG-2005
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
After-Sales Service
* The quality guarantee period of our machine is 12 months.
* Within the quality guarantee period, free parts replacement and corresponding service are available.

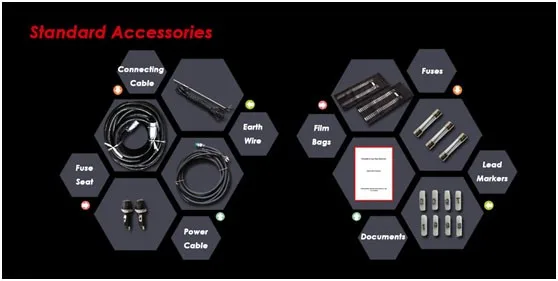

Packing & Delivery
High-end Equipment Non Destructive Weld Radiographic Inspection Testing
X-ray Flaw Detector XXG-2005
No. | Name | Quality | Unit |
1 | X-ray Generator | 1 | Set |
2 | X-ray Controller | 1 | Set |
3 | Connecting Cable | 25 | m |
4 | Power Cable | 10 | m |
5 | Earth Wire | 5 | m |
6 | Alarm | 1 | Set |
7 | Accessories | 1 | Set |
8 | Instruction Manual | 1 | Piece |
9 | Test Report | 1 | Piece |
Standard Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). It according to customers special request. | |
Optional Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). It according to customers special request. | |
Related Products
FAQ | ||||||
DDGTNDT 200kv X Ray Generator Non-Destructive Weld Radiographic Inspection Testing Instrument X-ray Flaw Detector XXG-2005
Q: How long will you give customer the reply? | ||||||
A: We will contact you soon. The latest will not exceed 10 hours. | ||||||
Q: How about the quality of the products? | ||||||
A: We have the certificates of ISO and CE. We can send our certificates to you for your reference. | ||||||
Q: What is the price of the product? | ||||||
A: As we all believe the quality is the most important. We will provide the best quality machines with best prices. | ||||||
Q: How about delivery time? | ||||||
A: Most of our products are in stock, after testing to your delivery, delivery time is about 5-7 days. | ||||||
Q: Can we visit your factory? | ||||||
A: Of course, please feel free to visit our factory. | ||||||
Q: How long is the warranty? | ||||||
A: 12 months. Warranty period free maintenance. | ||||||
