Foshan HongZhong machinery Co.,ltd located in Foshan, Guangdong China, It only take 40 mins from Guangzhou airport, as 5000 square meters factory, Our export value is No.1 in this industrial, As we only manufacturing coil slitting line and cut to length line for decades. Our most cherished advantages as below: 1, Technical team from Taiwan , designers have more than 20 years experience, It can help customers to find best quality solution 2, Quality Control team from Taiwan, They use Taiwan quality standard, that’s why we are No.1 in our industrial 3, Professional as we only produce coil slitting line and cut to length line. We pay all time for slitting line and cut to length line Research and Design, So we can get improve day by day 4, Skilled installation team to keep sure customer satisfy with their requirements. Our exist customers list: 1) Jindal stainless limited (India) 2) Apollo tubes (India) 3) Raajratna& Raajtubes 4) BMW Mexco plant 5) Jindal Indonesia plant 6) Honda Auto I am excited to be your partner from now, We will shake hands to win future, treasure and reputation in our hands by my quality and your trust!
Product Description
cut to length line used to cutting coil to sheets, then stacking the sheet to pallet. it is widely used in metal fabrications, sheet processing, and punching industries. it contains the mechnical parts, hydraulic part, electric part, pneumatic part and lubraicate part. Our advantage as below:
1, Technical team from Taiwan , designers have more than 20 years experience, It can help customers to find best quality solution
2, Quality Control team from Taiwan , They use Taiwan quality standard, that’s why we are No.1 in our industrial
3, Professional as we only produce coil slitting line and cut to length line. We pay all time for slitting line and cut to length line Research and Design, So we can get improve day by day
4, Skilled installation team to keep sure customer satisfy with their requirements.

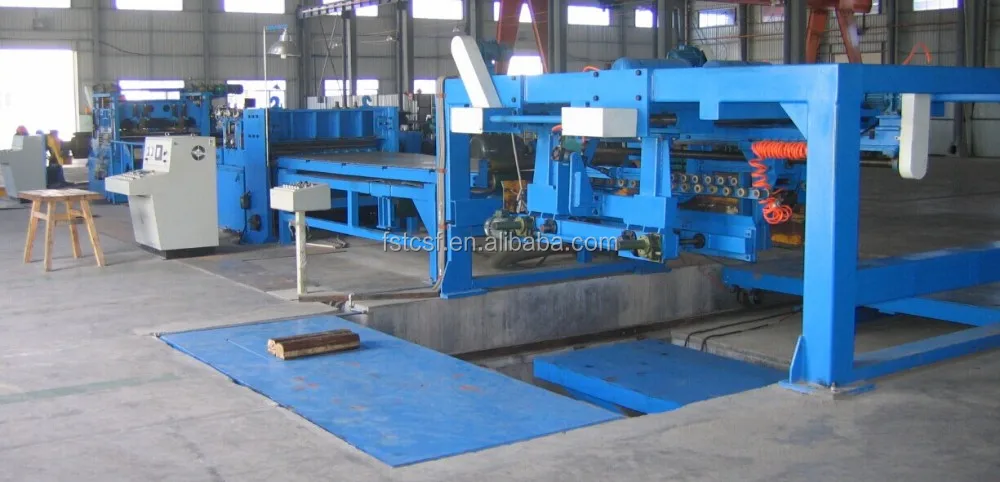

cut to length line introduction
1, Raw material specification
1, Coil width: 500-1300mm
2, raw material: SS, GAL, COPPER
3, Coil weight: 5-15 T
4, Coil ID: 508MM
5, Line speed: 120m/min
6, Control system: Siemens/ABB
7, Drive: AC or DC
8, Machine color: blue
9, monthly production ability: 800-3000 T
2, Machine composition
1, Coil loading car
2, hydro decoiler
3, Pinch roller and leveler
4, loop bridge#1
5, Guider& NC length measure
6, hydro shear
7, belt conveyor
8, stacker
11, hydraulic system
12, electric system
3, Details description for cut to length line
(1) Coil loading car
type
Weld frame, V type
composition
consist of weld body+ 4 pillars+ wheel+ cylinder
function
vertical lift and leveling movement, moving by motor, lift by cylinder
(2) hydraulic decoiler
type
Weld frame, gear box and motor
composition
consist of weld body+ mandrel+ opener+ snubber+ motor power+ OBB
function
both side rotating, expansive and contractive by oil collapse in wedge

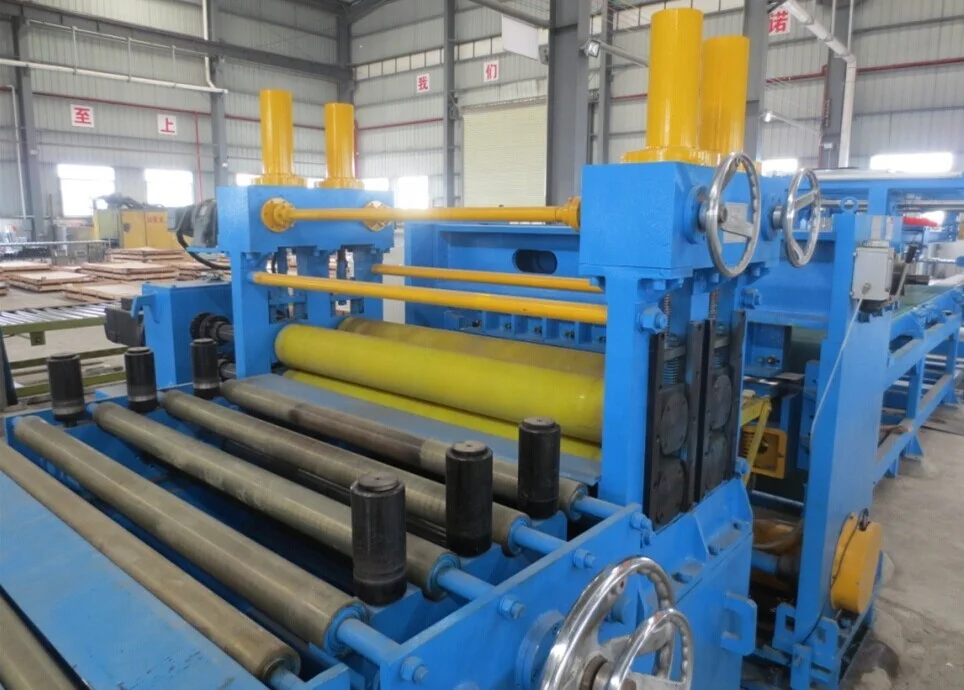

(3) Pinch roller, leveler
Pinch roller used to pinch sheet to loop bridge, drive from motor power
Leveler: Usage and structure: used to leveling uneven sheet, 4 HI structure, all rollers has been processed by fine machining, tempering, chrome plating to keep roller surface in good condition, leveler roller connected with coupler, driven by gear box, machine can be forward and reversing side rotation
(4) Loop bridge#1
Used to storage the enough coil to keep line working in best condition, also help to coodinate with each parts speed micro different, have sensor inside the pit to adjust each parts working speed in same
(5) guider
Guider used to guiding sheet going with correct way to the slitter, manual adjust the width by hand-wheel
(6) NC length measure
Used to measure the sheet length, and send signal to cutting machine to cutting, also give the sheet secondary leveling, adopts import servo motor system cut length with high accuracy, just set data in touch screen, easy to control, also can set sheet quantity in data display

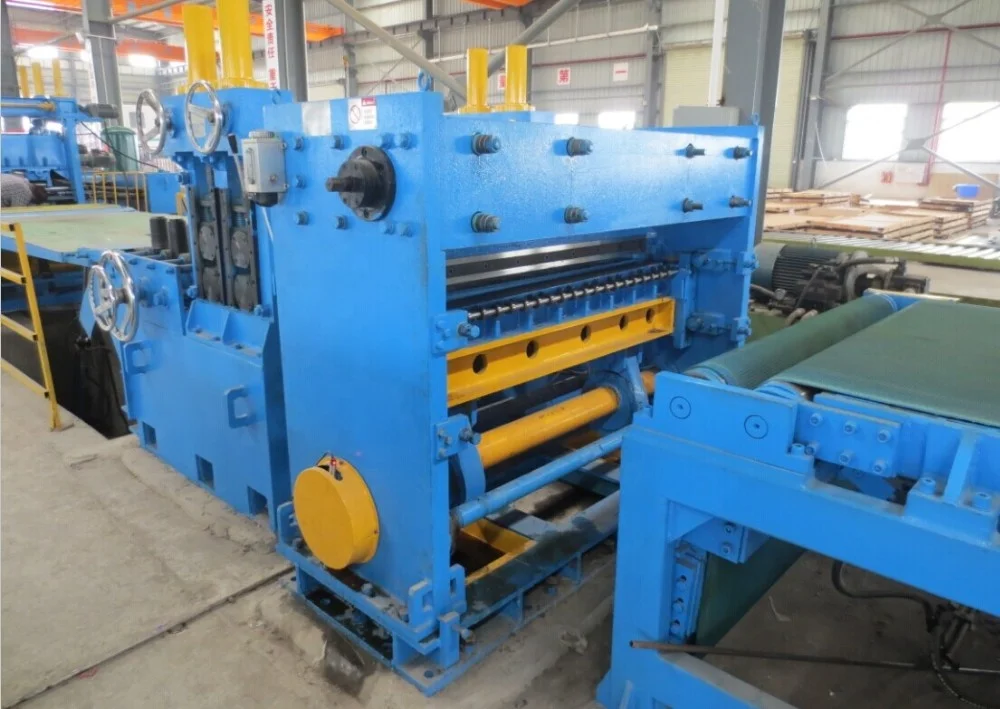

(7) hydro shear
Usage and structure: used to test the length through NC length measure device, cut by hydraulic motor, adjust the cutting gap through housing since cut different thickness of plate, blade 4 side cutting available, burr forward upper, it can be anti-damage to the belt.
(8) Belt conveyor
Used to conveying the cut plates, drive by AC motor, it can be cooperate with line speed
(9) auto stacker
Usage and structure: Used to collecting the plate then stacking to pallets. With pneumatic and oil pressure in stacking. It has fan power support since Plate dropping, it can be anti-scratch. Photoelectric switch control lift table lift, keep working table and lift table in suitable distance

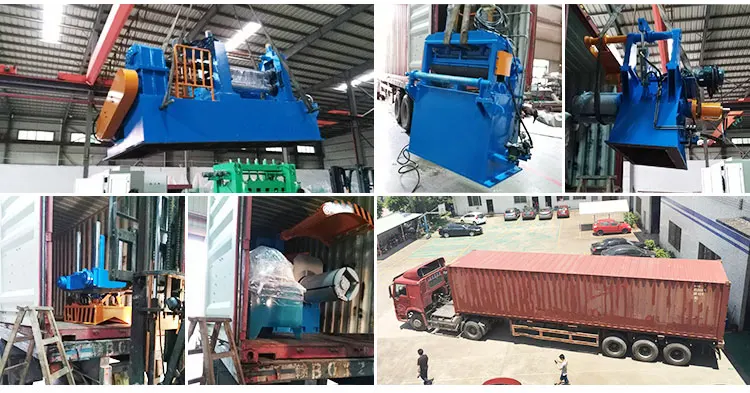

Packaging & Shipping
Packing details: Plastic film packing the motor and gear area, fixed in the container with steel wire. spares packed with wood box, parts do anti-rust and anti-dust protection
Shipping term: FOB or CIF acceptable
Our Services
Pre-sale service
1, Confirm all specifications with customer
2, All confirmed specifications write in Contract/Technical offer
3, Show our ability and do what we can do, never cheat customer we can do everything, be honest and be professional
After-sale service
1, Banglore office person will help to service you after you buy from us
2, Machine have 1 year free guarantee except man-power broken or nature disaster
3, Sales team will visit customer every year in India, Indonesia, Vietnam etc, if other coutries we can come as customer invite
4, keep contact with old customer and ask how is the machine using condition, to get some suggestion to improve our design
