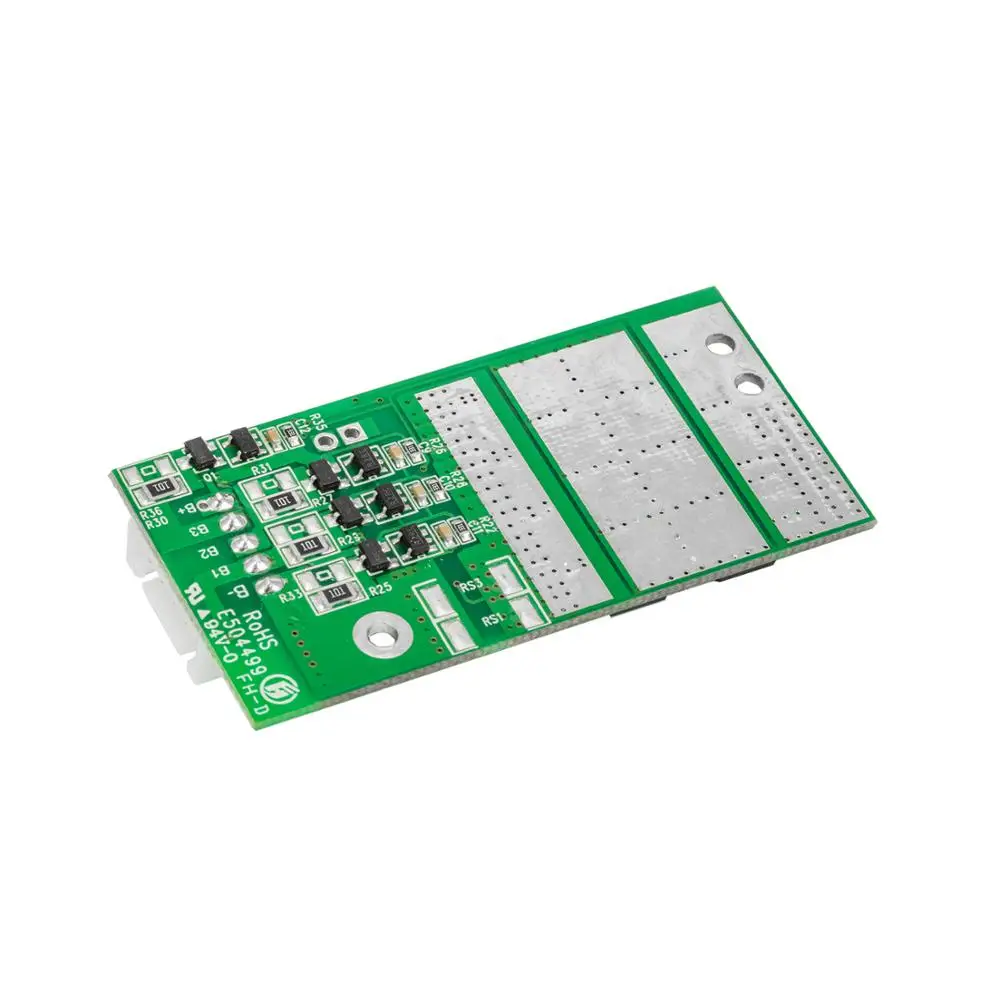

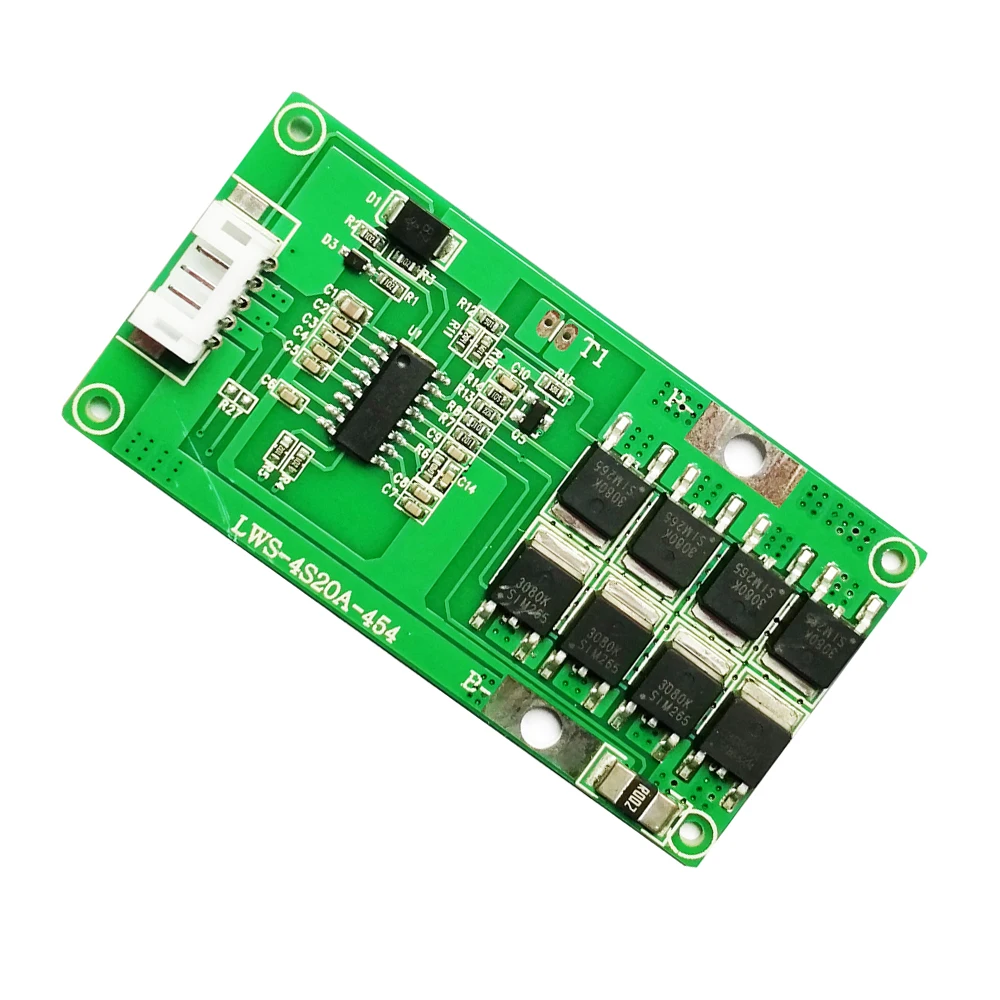

customize 14.8v bms 4s 20a li ion pcm/12.8v lifepo4 battery pack bms system/94v 0 battery pcb 4s 20a 15a
- Category: >>>
- Supplier: Shenzhen Li-Ion Battery Bodyguard Technology Co. Ltd.
Share on (60677286490):
Product Overview
Description
Advantages
LWS-04S20A-407- pcm bms pcb 20a 4s li-ion/12.8v lifepo4 battery pack bms system/94v-0 battery pcb 4s 20a
- Supply OEM/ODM and custom service
- High quality with smart balance function
- Wholesale price
- ISO9001/ISO14001/CE/ROHS certificates
- Fast delivery
About the battery BMS/PCB/PCM
Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure design
will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it
works well without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.
Packaging & Shipping
Delivery type:by air such as TNT,UPS,FEDEX or by sea ,just depend on your convenient.
Payment:L/C,T/T,Western Union,PAYPAL etc.
Company Information
FAQ
Product Description
| Products | pcm bms pcb 20a 4s li-ion | |||
| Model | LWS-04S20A-407(4S) | |||
| Test No. | Test item | Details | Criterion | |
| 1 | Voltage | Charging voltage | DC:12.5V 4.2V/Cell | |
| Balance voltage for single cell | 4.20V | |||
| 2 | Current | Balance current for single cell Current consumption | 42mA Max:20μA | |
| Maximal continuous charging current | 20A | |||
| Maximal continuous Discharging current | 20A | |||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.35V±0.025V | |
| Over charge detection delay time | 0.5S—2S | |||
| Over charge release voltage for single cell | 4.15V±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.40V±0.08V | |
| Over discharge detection delay time | 0.5S—1.5S | |||
| Over discharge release voltage for single cell | 3.00±0.062V | |||
| 5 | Over current protection | Over current detection voltage | 150±25mv | |
| Over current detection current | 80±10A | |||
| Detection delay time | 7.2ms—11ms | |||
| Release condition | Cut load | |||
| 6 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-500us | |||
| Release condition | Cut load | |||
| Resistance | Protection circuitry(MOSFET) | ≤60mΩ | ||
| 7 | Temperature | Operating Temperature Range | -40~+85℃ | |
| Storage Temperature Range | -40~+125℃ | |||

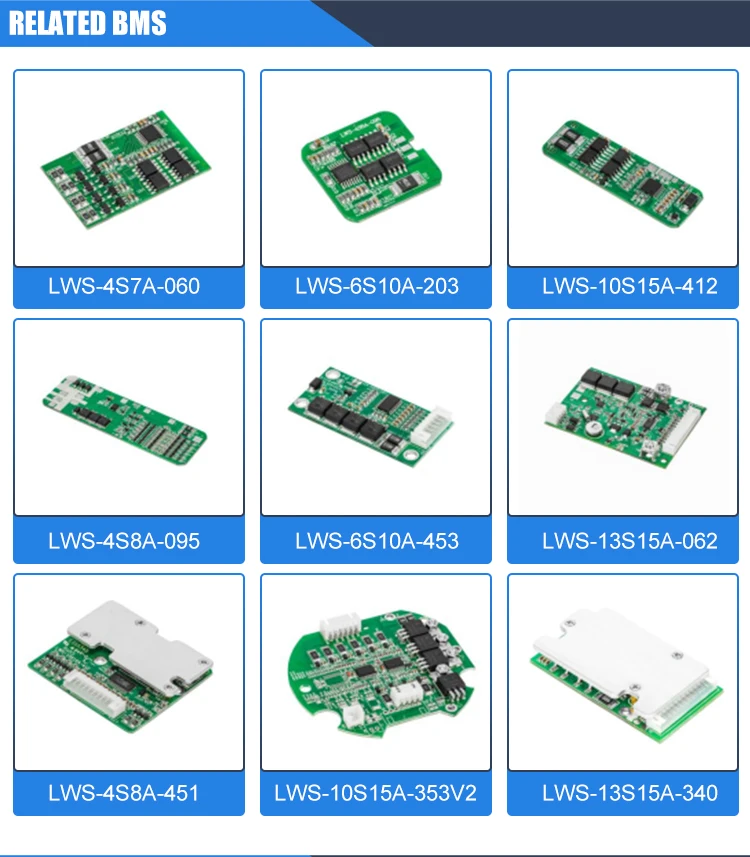

Similar items for 4s
