Full Automatic Gypsum Board Production Line Full Automatic Low Price Gypsum Board Production Line
$700,000.00-3,000,000.00
Eps and cement sandwich panel production line/lightweight wall materials precast concrete lightweight wall panel machine
- Category: >>>
- Supplier: Shandong Tianyi Machinery Co. Ltd.
Share on (60677326150):
Product Overview
Description
Eps and cement sandwich panel production line |
Machinery Paramenters |
Overall dimension (LxWxH)mm | 3030x1190x2500 |
| Total power(kw) | 23.75 |
| Hydraulic working pressure(Mpa) | 8 |
| Capacity of hydraulic tank(L) | 70 |
| Maximum hydraulic working pressure(Mpa) | 16 |
| Power of vibration system(kw) | 0.75 |
| Power of heating system(kw) | 20 |

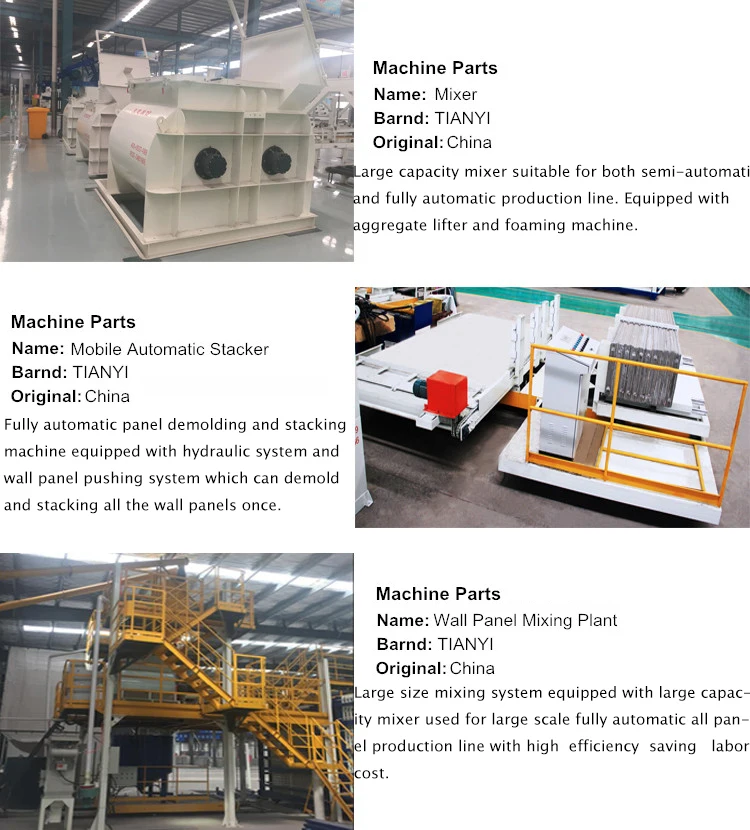

| Structural composition | Host machine, hydraulic system, power distribution system, heating system,vibration system, core tubles |
Raw material of lightweight wall panel |
| NO. | Material | Price(¥)/m² |
| 1 | Cement | 10 |
| 2 | Coal ash | 0.5 |
| 3 | Sand | 0.4 |
| 4 | Additive | 1.5 |
| 5 | Labor cost | 2 |
| 6 | water and electricity | 0.5 |
| 7 | Other cost | 0.1 |

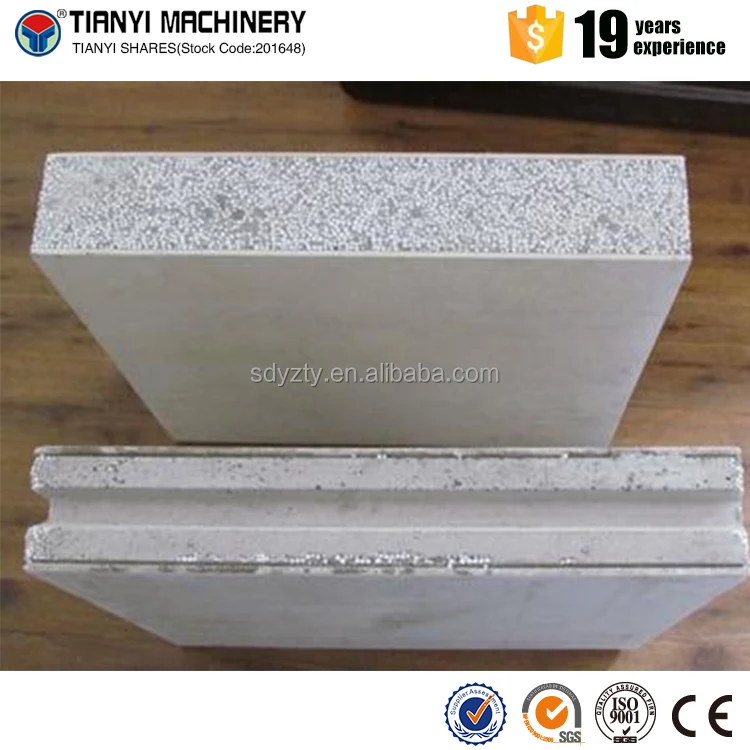

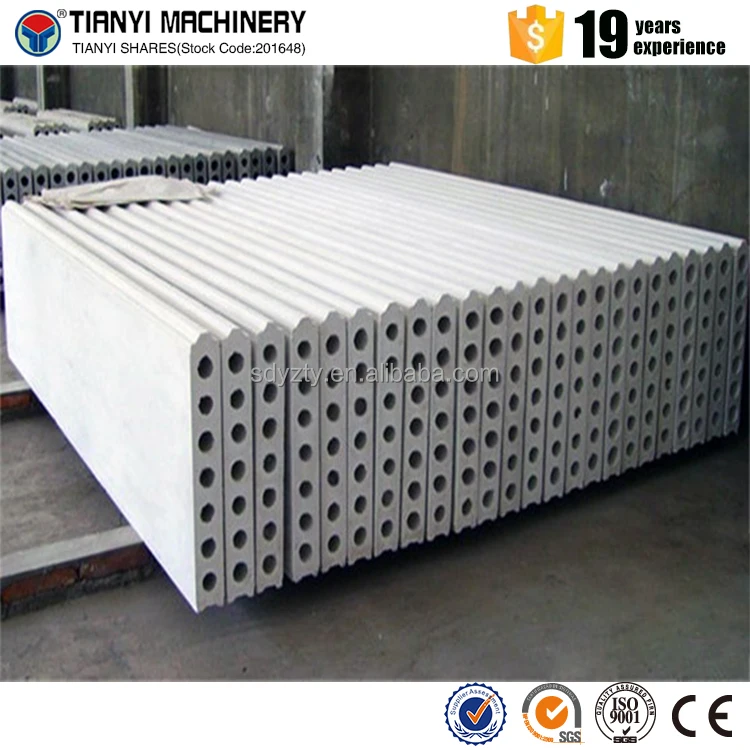

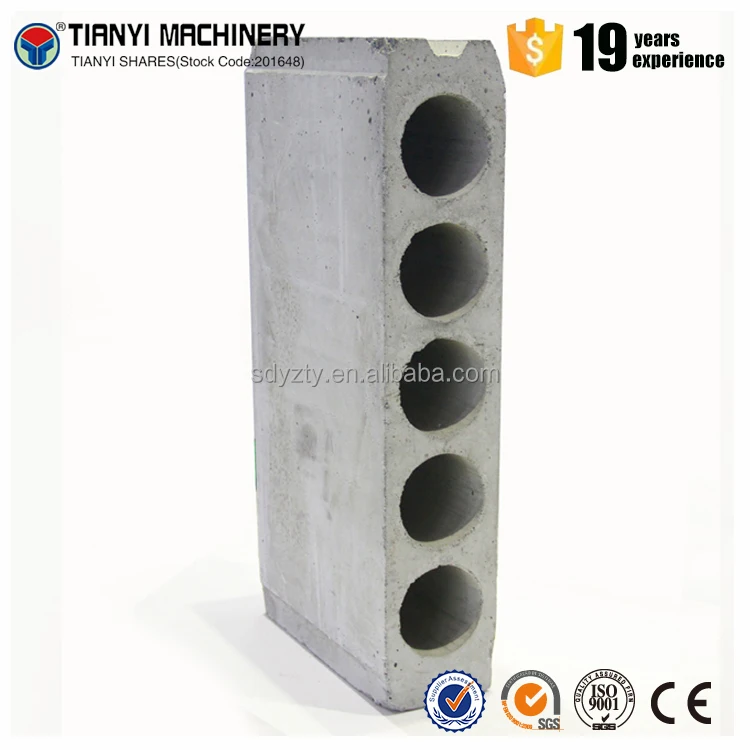

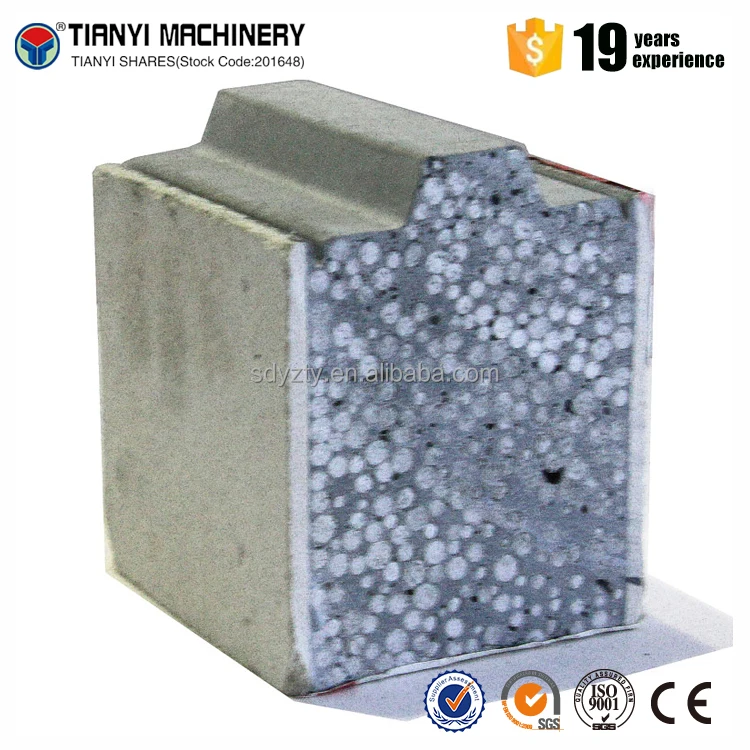

Finished products |
| Test ltems | National standard | Actual index |
| Compressive strength | ≥3.5MPa | ≥3.7MPa |
| Drying shrinkage | ≤0.6mm/m | 0.37mm/m |
| Hanging force | ≥1000N without 0.5mm crack in 24 hours | ≥1000N without 0.5mm crack in 24 hours |
| Shock resistance | without crack shocked by 30Kg sandbag for 5 times | without crack shocked by 30Kg sandbag for 5 times |
| Sound insulation | ≥35dB | 43dB |
Our unique advantages |
Our company |
Why choose us |
Shipping |
