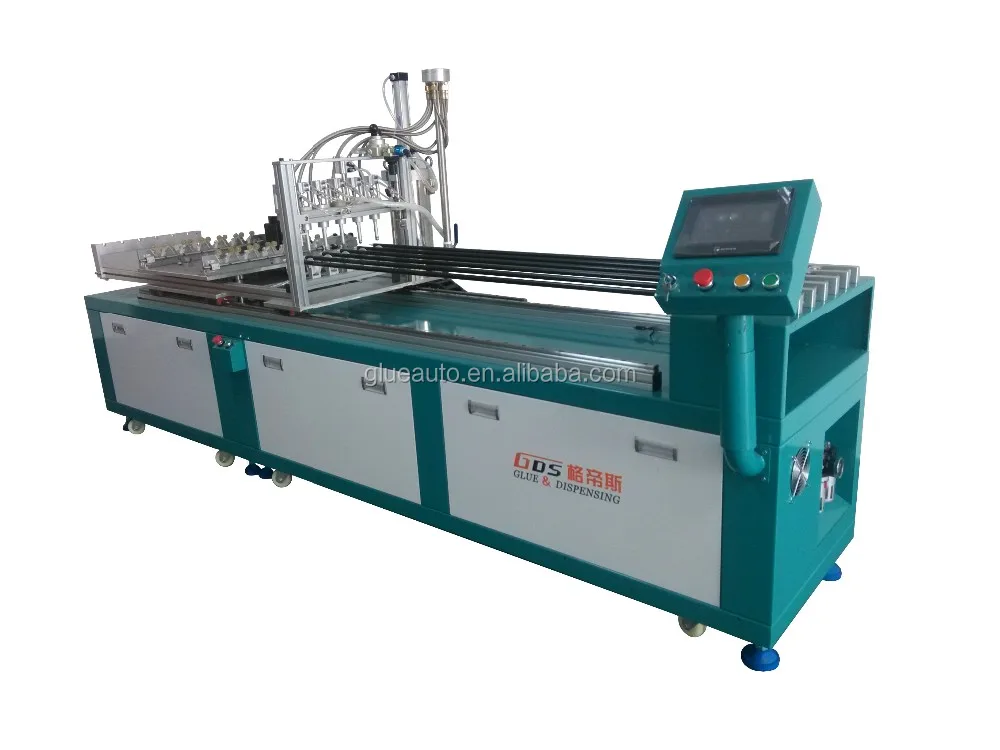

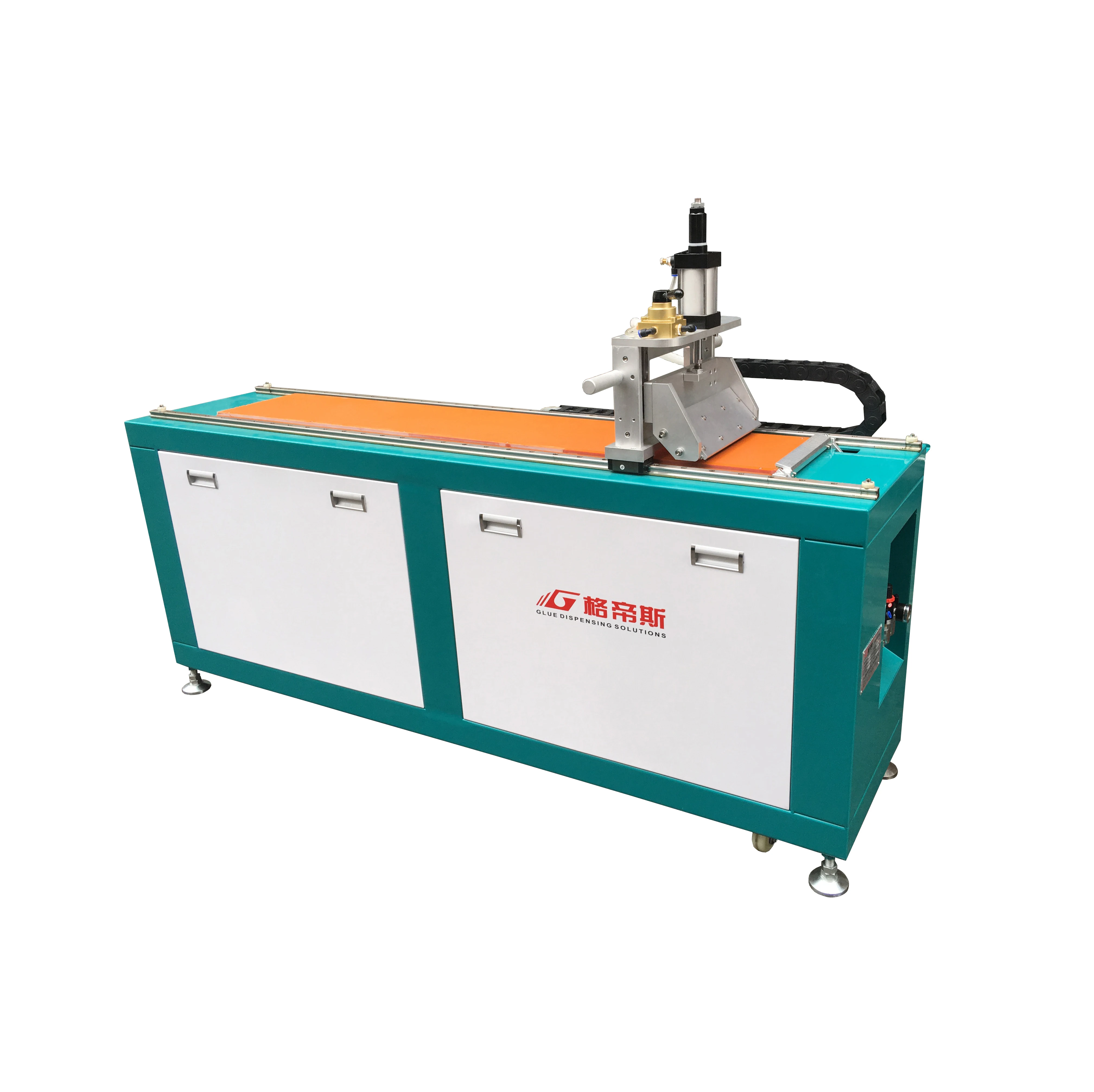

automatic silicone dispensing machine for pcb of T8 glass tube automatic glue dispenser gluing machine

Product Overview

Description

Principle Description

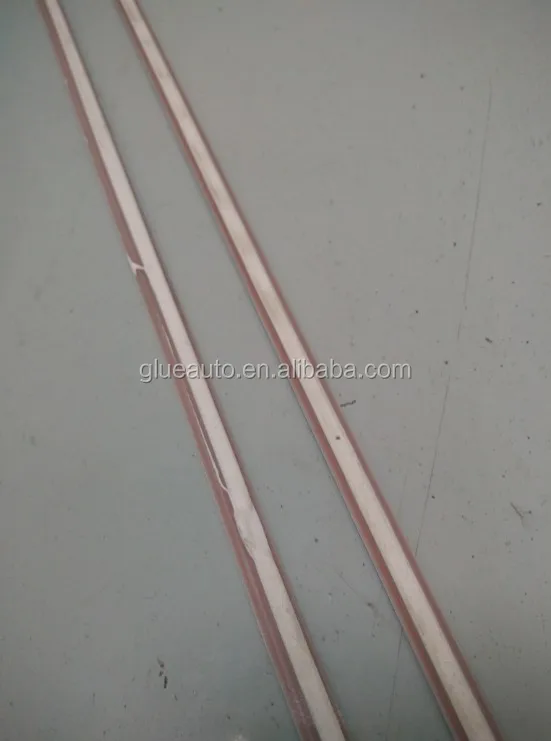

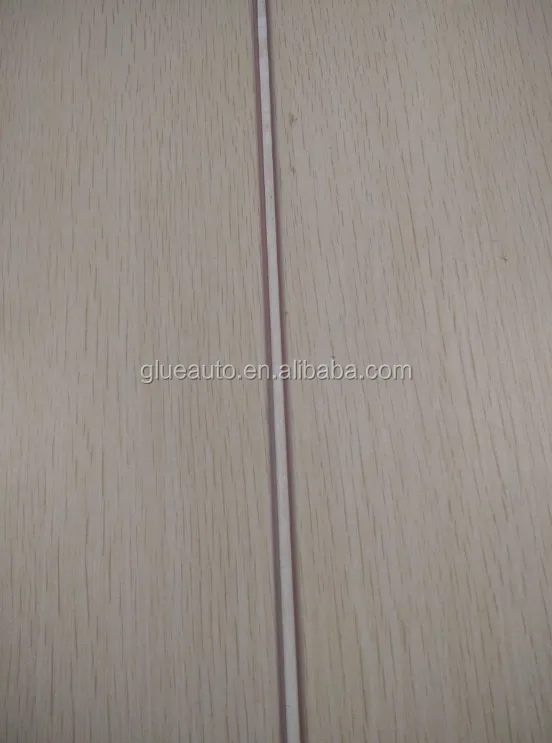

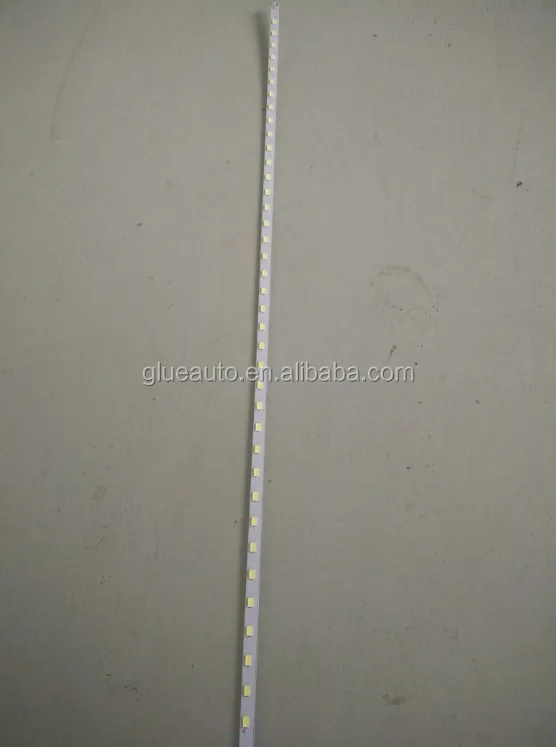

u Put six PCB strips downside on the fixture sticks. Six PCB strips on the fixture sticks are being glued while being inserted to the glass tube. The tubes press down for few seconds and stick with PCBs. The whole process is finished when the sticks are pulled out and tubes are transferred to the next work station.

Machine Feature

u Specially designed for T8/T5 glass tube, glue valves are working at the same time, the designed capacity is 400 pcs/h;

u Standard model is suitable for tubes in length of 600mm,900mm,1200mm(bigger size needs customization);

u Equipped independent dispensing valve for each of six glue tracks. Glue dispensing volume is accurate and fast without glue drawing, drops or leakage;

u Operation steps include: paving strips/placing tubes, glue dispensing/tubes coating, pressurization, separation, tubes picking and upside down placing;

u Pressurizing time can be set on the touch screen of controller according to glue nature

Technical Parameters

Model	TD-1206
Working Range	Max≤1200mm
Moving Speed	Max≤300mm/sec
Repeat Accuracy	±0.05mm
Power Source	Pressed Air+Assisting Cylinder
Glue Dispensing Volume	Depends on Glue Viscosity
Glue Container capacity	2600ml Silicone Pressure Barrel
Glue Viscosity	Max≤20000CPS
Control Mode	PLC+Touch Screen
Programming	Teaching Programming
Program Capacity	At least 100 units,4000 points/unit
Transmission Mode	Stepping Motor+Synchronous Belt+Linear Guide-way
Working Pressure	0.5-0.8Mpa
Working Power	AC220V 50HZ/2000W
Working Temperature	0-40℃
Working Humidity	20-90% no condensation
Dimension(W*D*H)	3200*750*1550mm
Weight	About 300KG

Suitable Glue: 2600ml single-component package for thermal conductive silicone

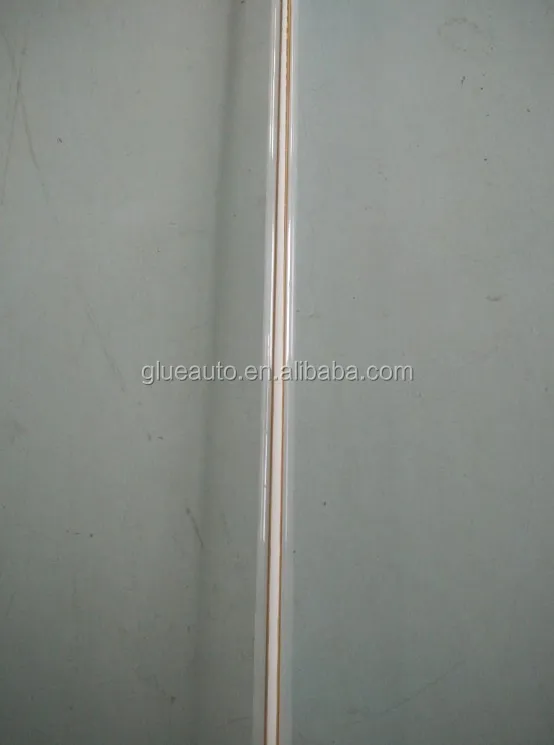

Applications: LED T8 glass tube
