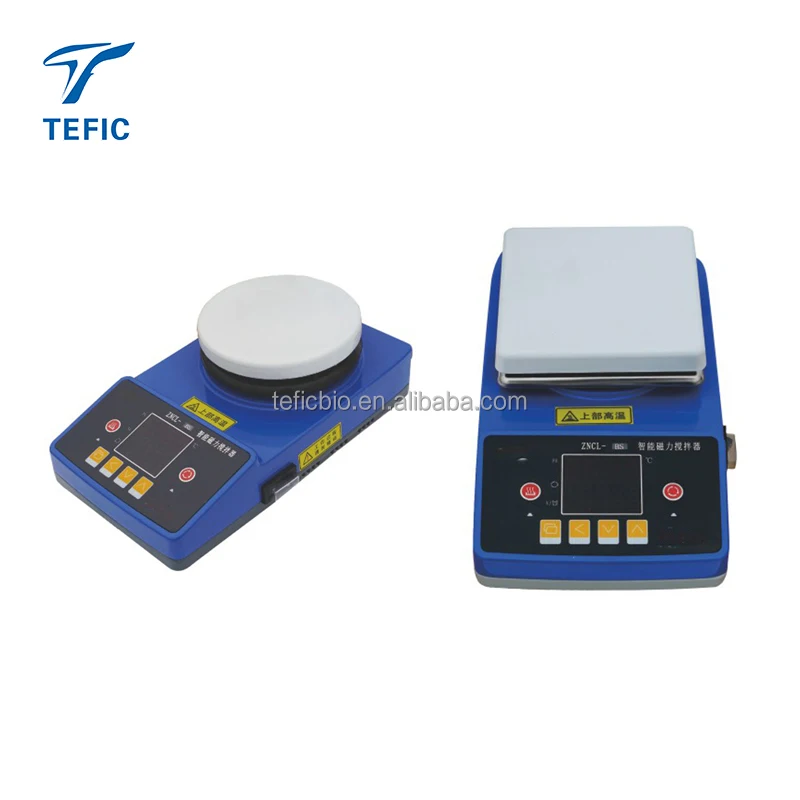

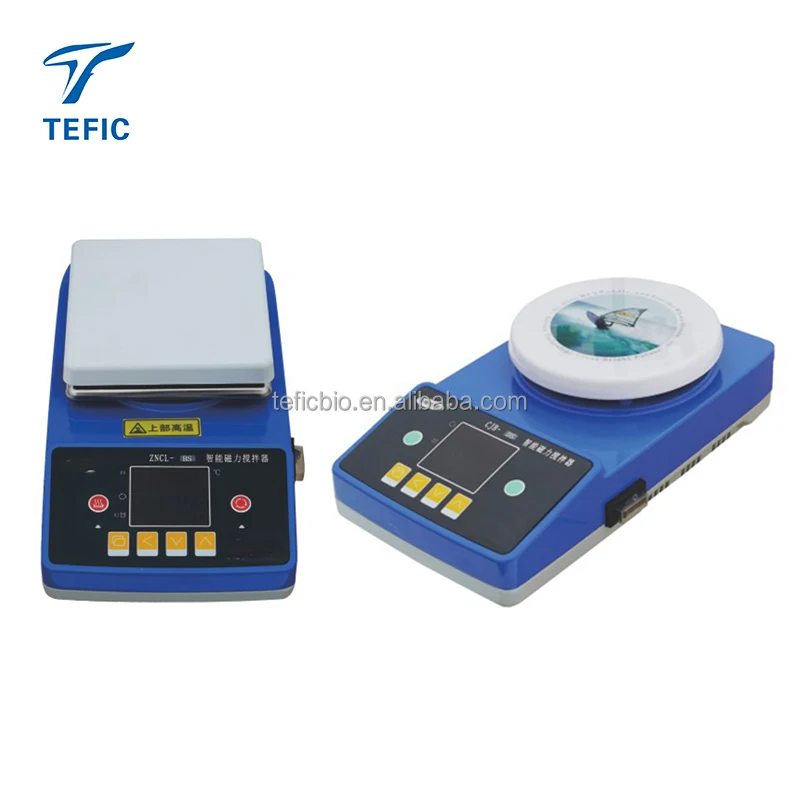

magnetic stirrer and hotplate for laboratory use, hot plate with magnetic stirrer function

Product Overview

Description

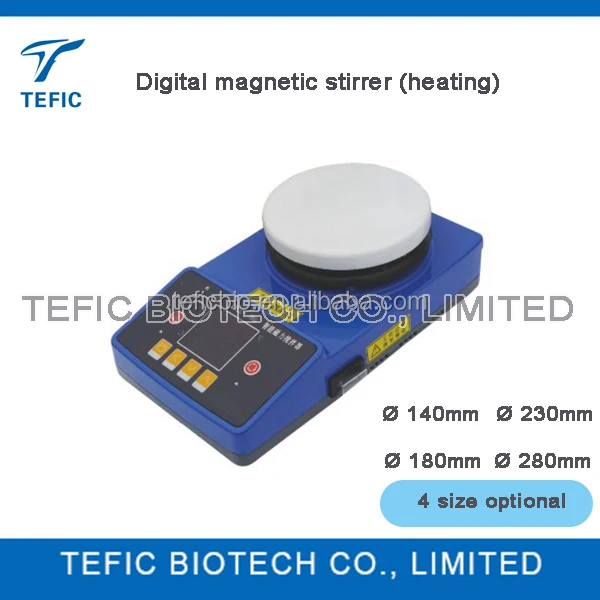

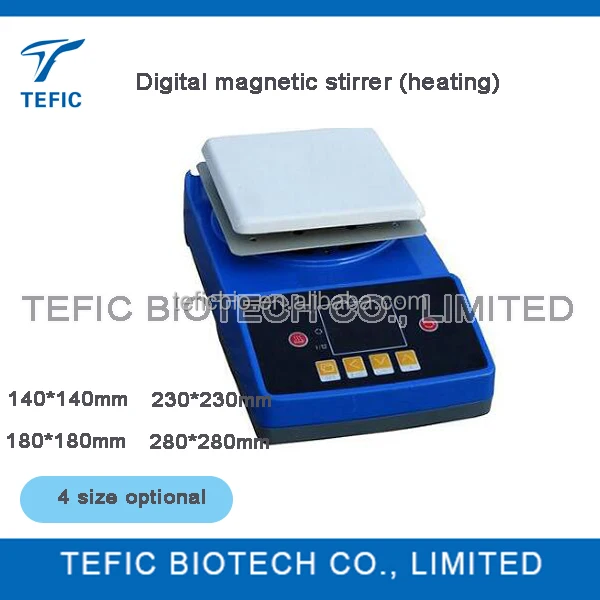

                                                                       Hot plate magnetic stirrer











Heating magnetic stirrer hot plate features:

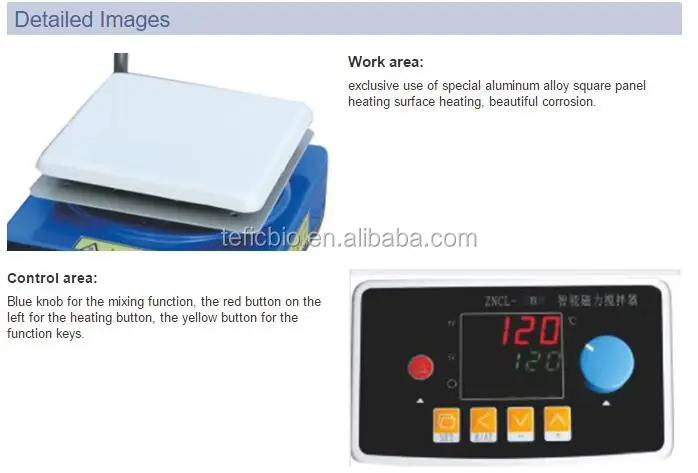

1.TEFIC laboratory hotplate magnetic stirrer adopt special square aluminum alloy material, special coating heating panel heating, beautiful and anti- corrosion.



2. TEFIC heating magnetic stirrer with unique heating method (patented), the maximum surface temperature can reach to 380 ℃



3. Rotating speed 0-2500RPM, digital display



4. Temperature control using fuzzy PID control algorithm, dual-screen digital display, self-tuning function, with high precision measurement, small temperature fluctuation, one-button operation, internal and external thermocouple temperature measurement, SCR control output, 160-240V wide voltage power supply, burnout protection function



5. Application for 50-10000ml standard or non-standard reaction flask heating and stirring



6. Germany PAPST series of brushless DC motor, stable performance, low noise, long life, no spark



7. TEFIC heating magnetic stirrer shell is made of one-time injection flame retardant reinforced PBT shell, high temperature resistance, corrosion resistance and good insulation performance

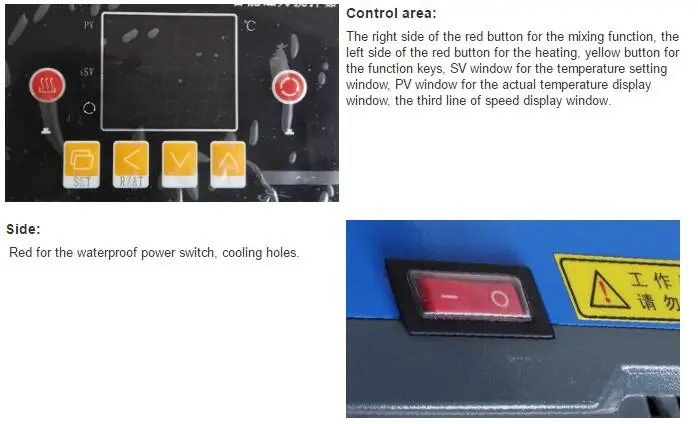

8. 30 °bevel control panel for seating and station viewing angle

9. stepless speed regulation, low-speed stable, high-speed strong

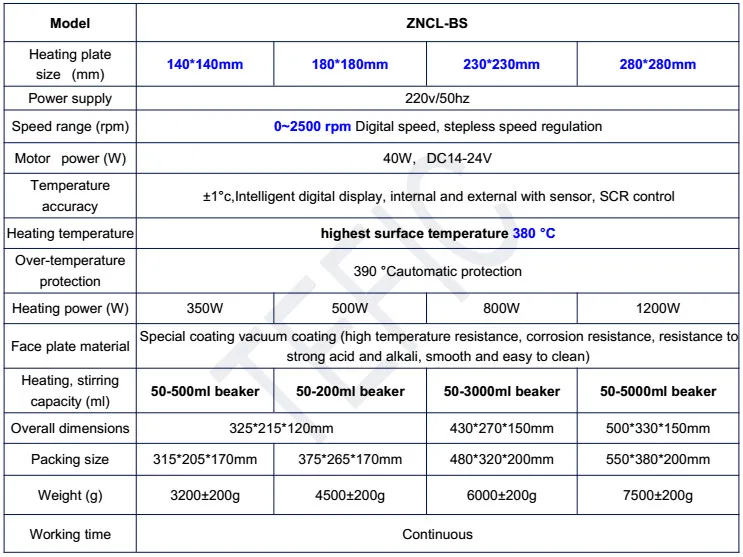

Heating magnetic stirrer hot plate spectifications

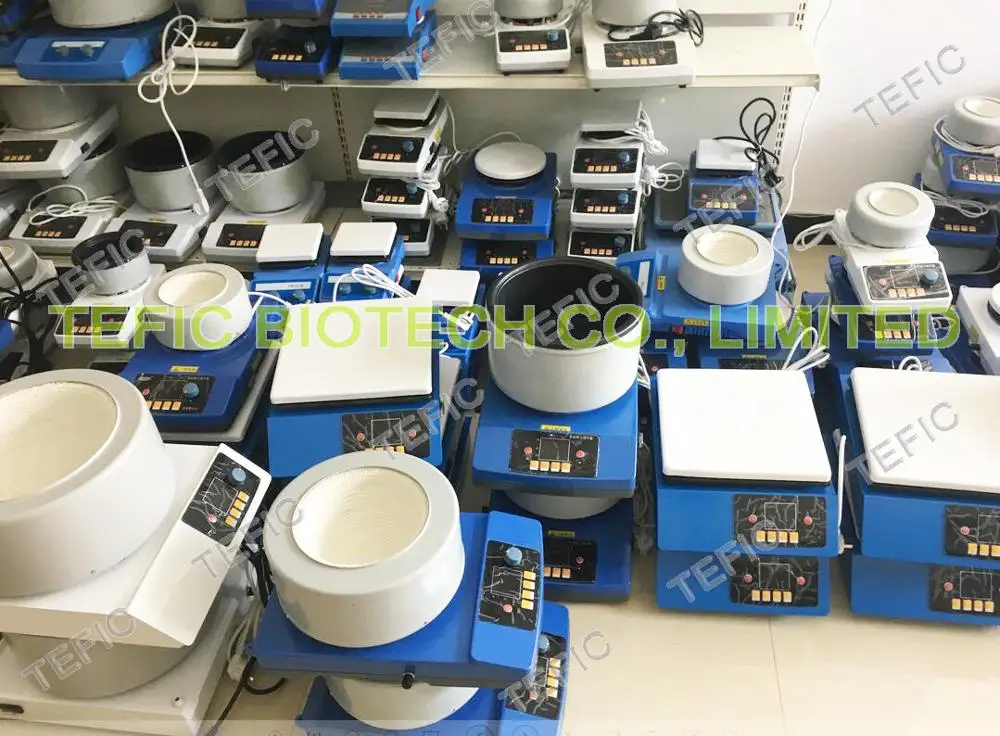

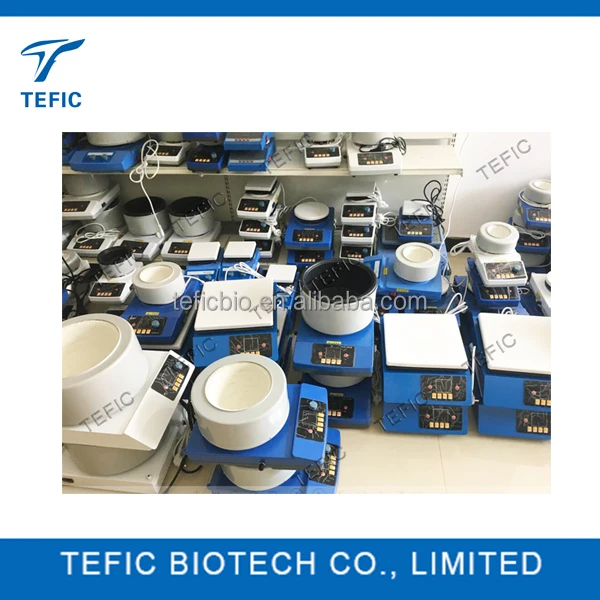

Magnetic stirrer warehouse





































Package of TEFIC instruments
