croissant bread flow packing machine

Product Overview

Description

croissant bread flow packing machine

Technical datas
model	ZE250	ZE350	ZE450
film width	Max.250mm	Max.350mm	Max.450mm
bag length	65-190mm or 120-280mm	65-190mm or 120-280mm	120-450mm
bag width	30-110mm	30-110mm	50-200mm
Product height	Max.40mm	Max.40mm	10-90mm
packing speed	40-230 bags/min	40-230 bags/min	20-75 bags/min



Main features:



A. Panasonic double transducer control, flexible bag length cutting. Save time and film.

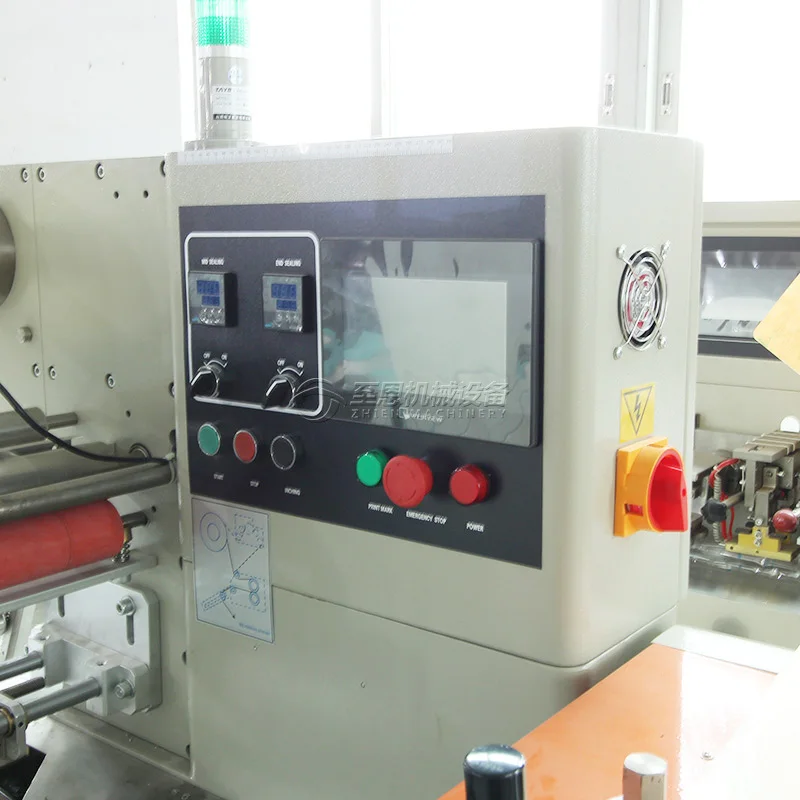

B. 7inch touch screen, easy operation and multiple language for choice.

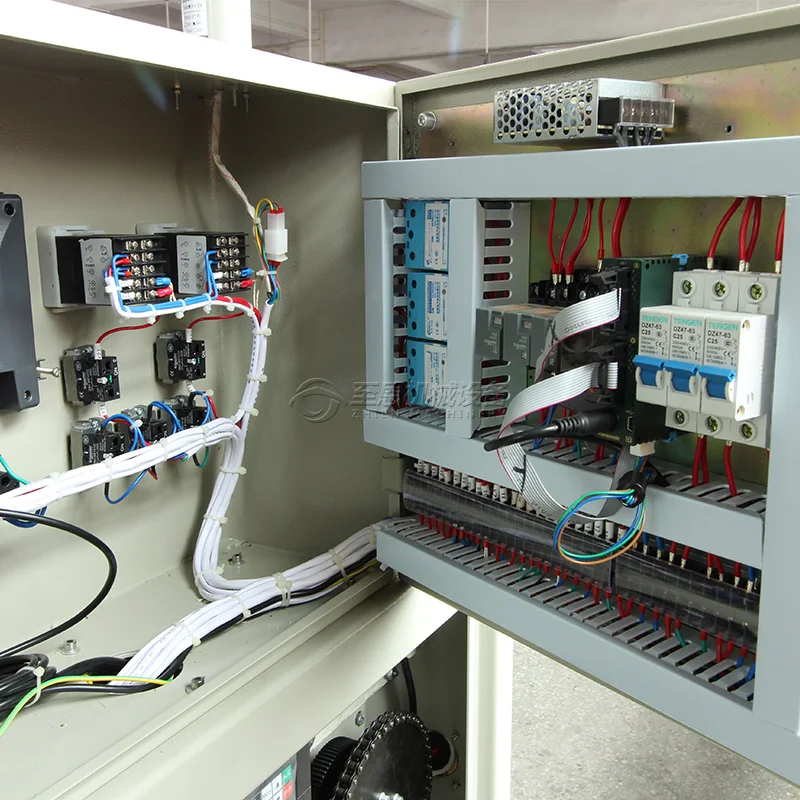

C. Imported PLC computer control system, machine performance is stable and convenient for parameters adjusting.

D. Self diagnosis failure function, machine error can be clearly displayed.

E. Separate PID temperature controller, suitable for various packing materials. Such as aluminium film, paper film, PE film, and composite film.

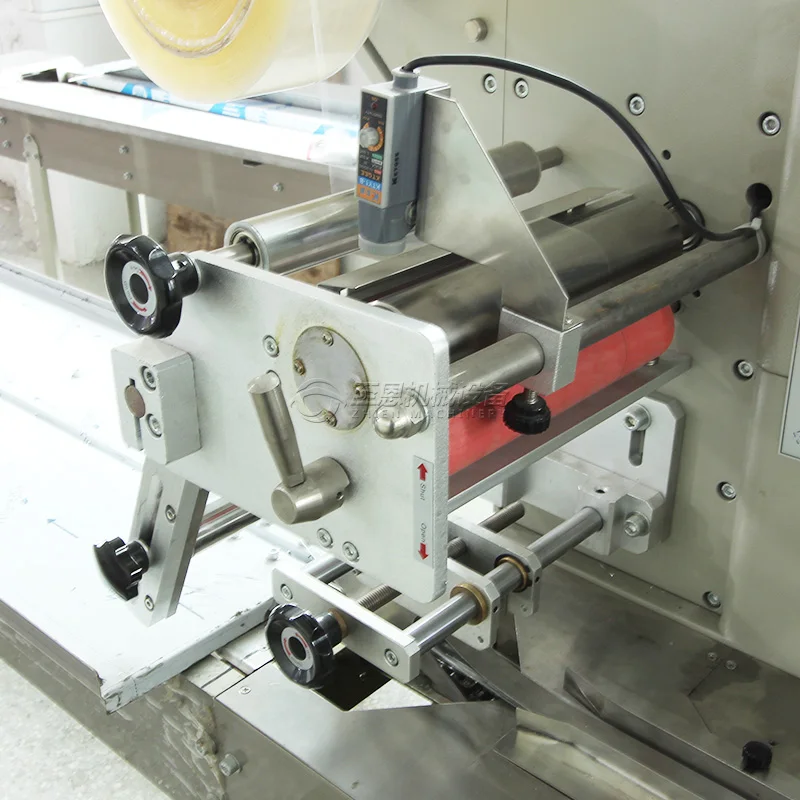

F. High sensitivity optical photocell for eye mark tracking, digital input for cutting position.

G. Position stop function, no adhesive and no waste of membrane and protect cutting jaws.

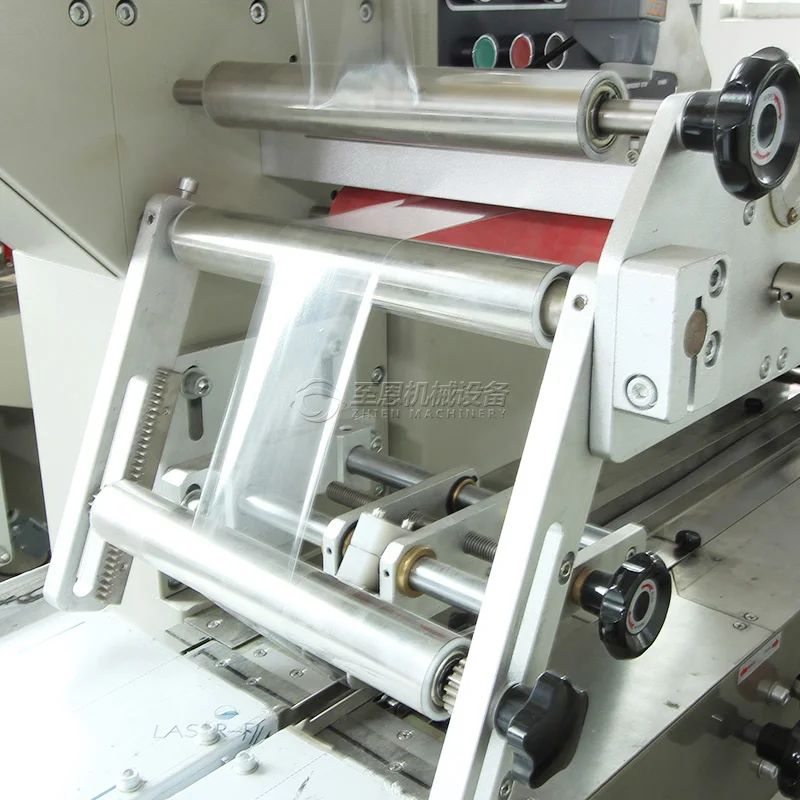

H. Stable and simply film roll structure enable roll film running smoothly.

I. Simple driving system, stable performance and convenient maintenance.

J.All controls are achieved by software, easy for function adjusting and upgrading.
