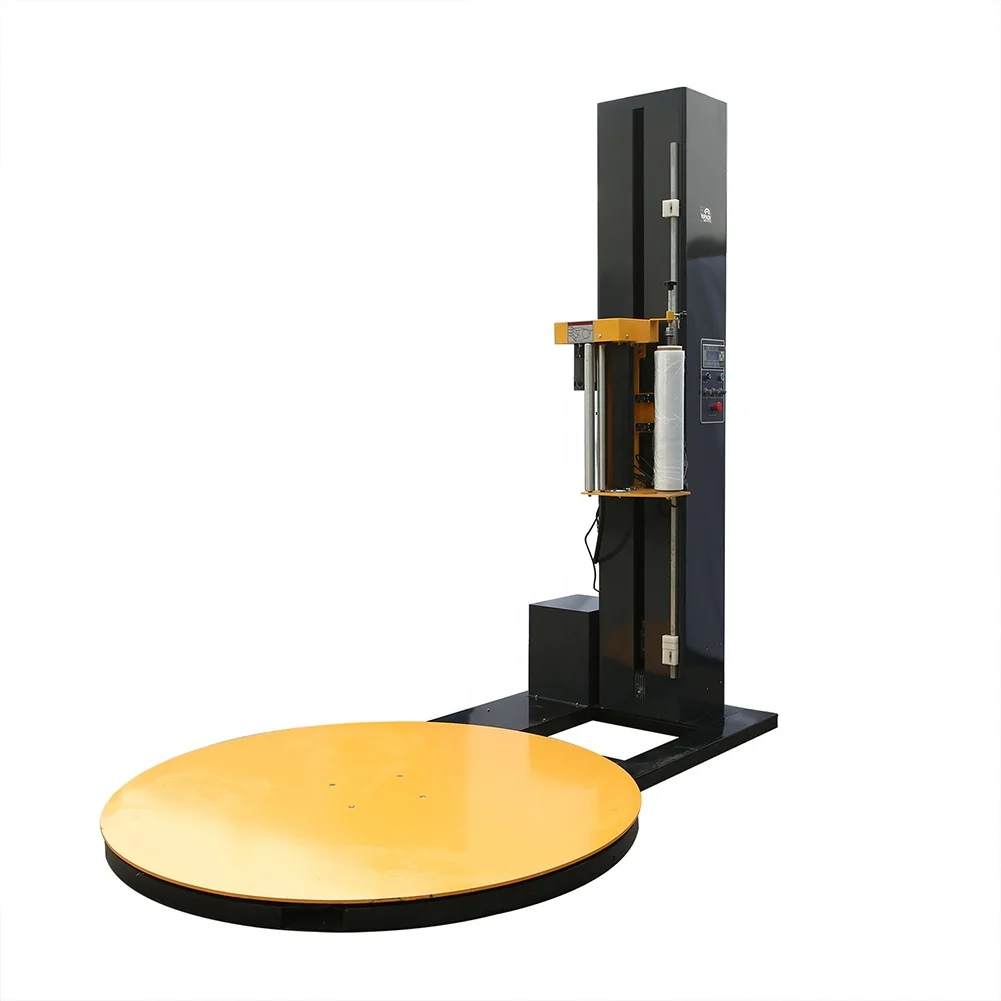

T1650F automatic stretch wrap machine/pallet stretch wrapper machine
- Category: Wrapping Machines >>>
- Supplier: Qingdao Ausense Packing Equipment Co. Ltd.
Share on (60677643797):
Product Overview
Description
Product Description
Automatic Pallet Stretch Wrapper Wrapping Machine for Box Carton
T1650F Pallet wrapping machine is the most easy operating and cost saving way to protect the cargo from moisture, dust,damage.Wrapping layers and wrapping circles of the pallet is easy to choose. Wrapping height is also available for your preference. Your reputation rests on what you deliver to your customers. Make sure your pallet loads are safe to ship. The pallet wrapping machine gives you professional results on every load.
Product Paramenters
Voltage | 220V 50Hz 1P | ||||||
Power | Turntable Motor:0.75kw;Film Motor:0.4kw;Column Motor:0.37kw | ||||||
L*Wmm Wrapping Size | (500-1100)*(500-1200) | ||||||
Wrapping Height | 500-2000/2400 | ||||||
Capacity | 20-40 pallet/Hour | ||||||
Turntable size | 1650mm | ||||||
Turntable Height | 85mm | ||||||
Max loading | 2000kg | ||||||
Speed | Adjustable | ||||||
Machine weight | 700kg | ||||||
Machine Size | 2650*1650*2400mm | ||||||
Product Advantages
Max Pre-stretch 350%
Adjustable tension with quick release

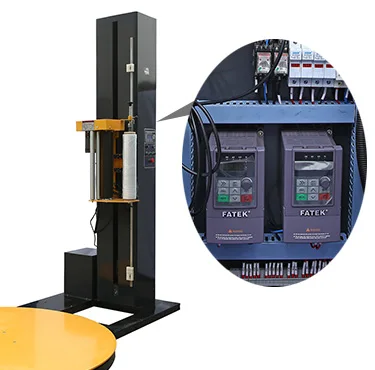

Independent PLC Inverter Control
Frequency conversion motor has less abrasion and stable packaging

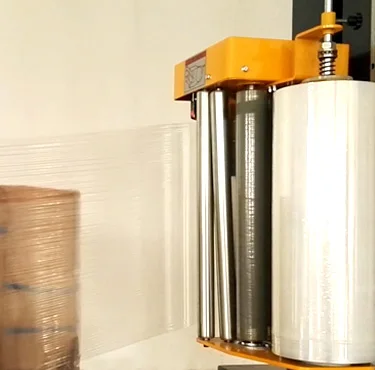

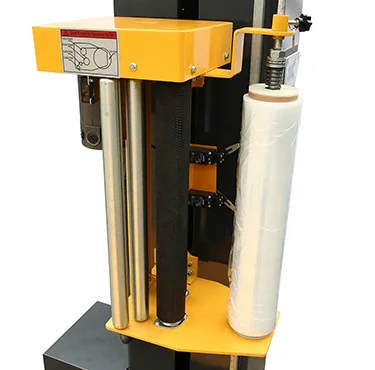

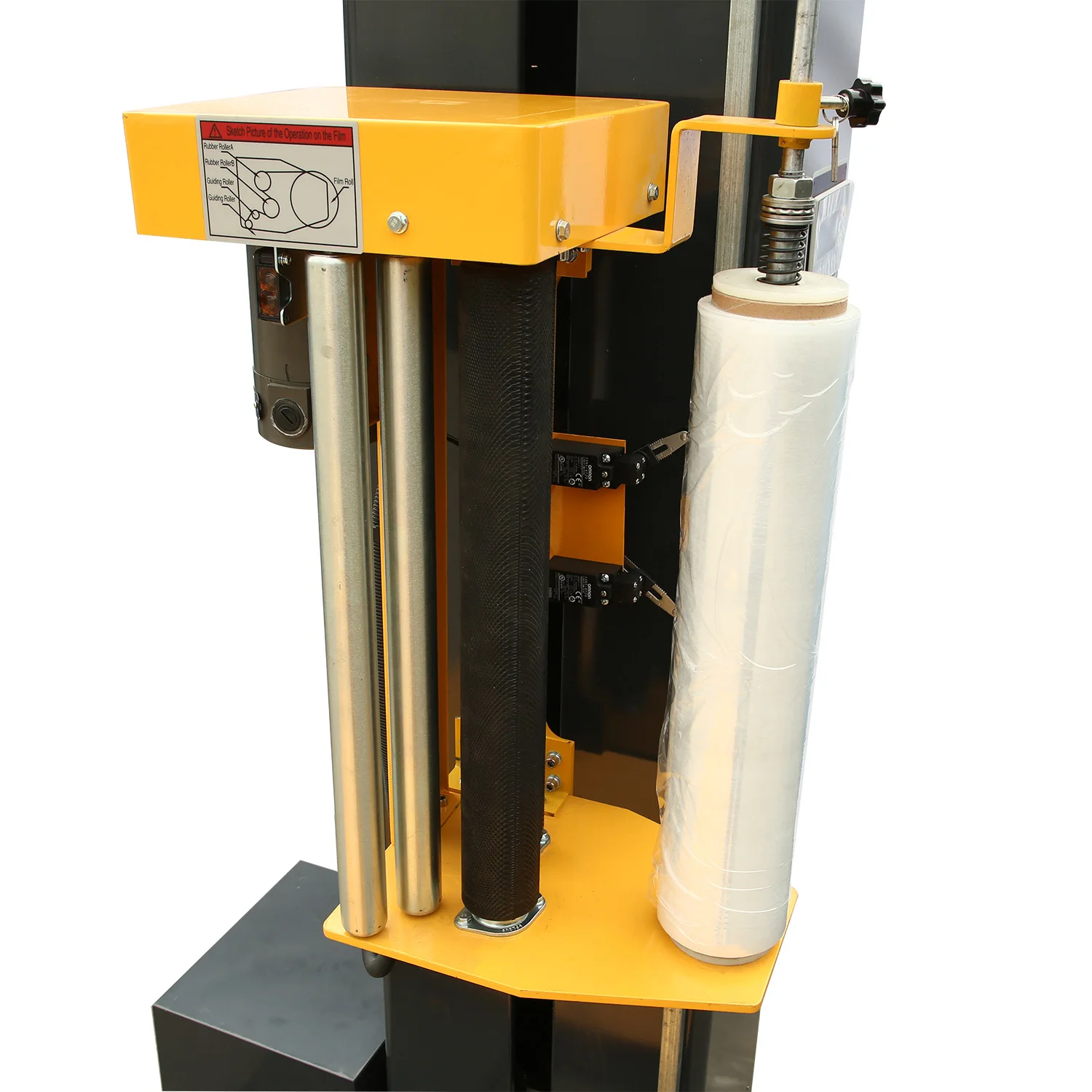

Film Formwork
Laminated film-type film release device has a beautiful stretching certificate, which saves the amount of film.
Membrane frame uses DC motor, good performance, cheaper maintenance, more energy saving and environmental protection

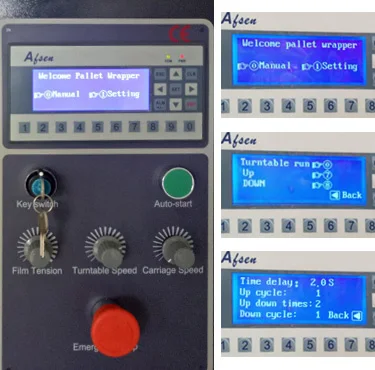

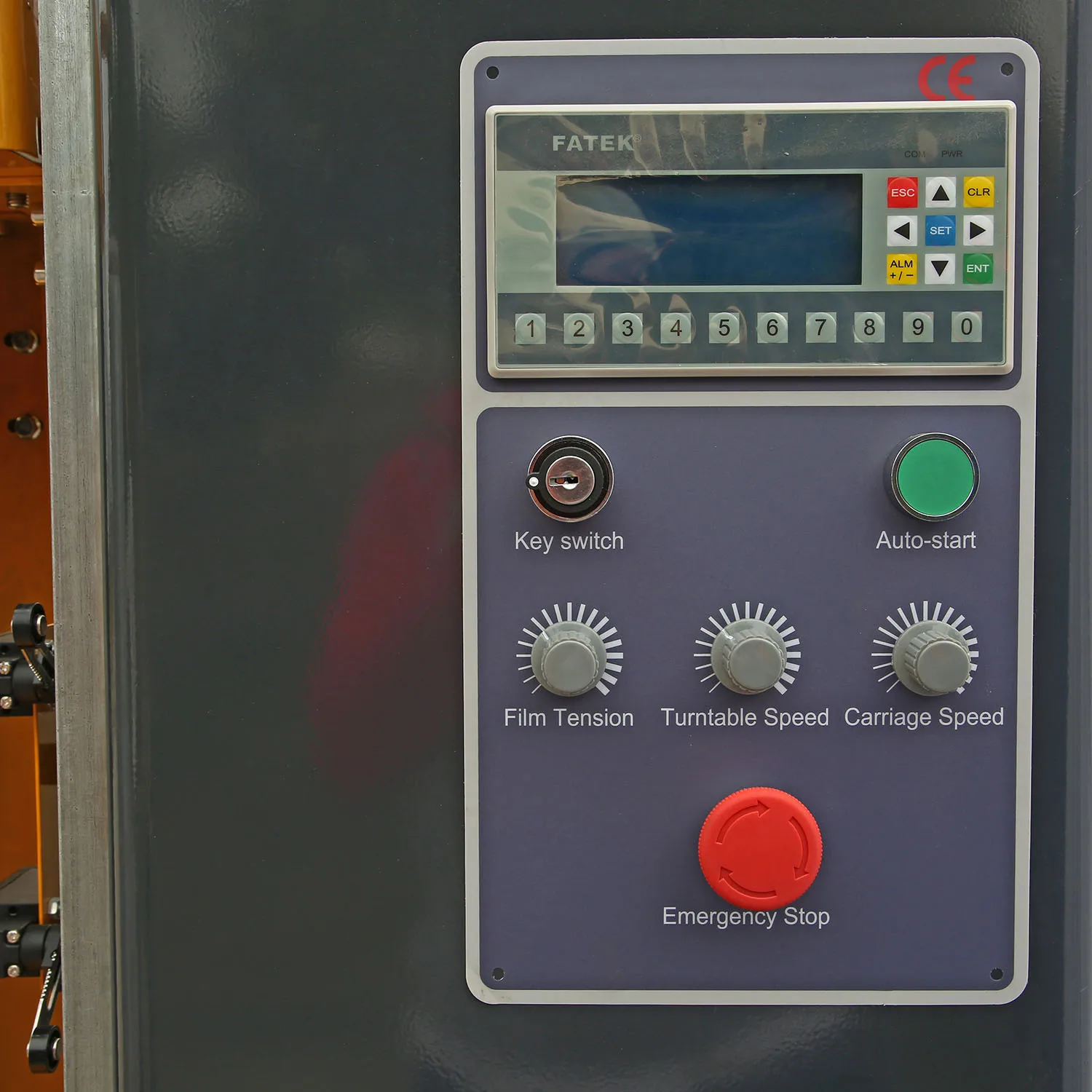

Easy To Operate
Simple and clear text screen.
Operation display : Interface for manual and auto, Settings, cycle &time chose as you need.
More Secure Design
Photoelectric induction design ensures automation, and the limit block provides double insurance for the mold stop.
Features of Automatic Pallet Wrapping Stretch Film Wrapper Machine.
•Open door film carriage
•Limit built-in
•1800mm wrapping height
•2000kgs loading
•Spring break stretch
•Home position: the turntable always stops at the same position
•Speed control on turntable
•Choose between 1 & 9 top and bottom wraps with re-enforce wrap
•Up & down or up only wrap cycle
•Semi auto and manual wrap options
•Adjustable pallet height photo sensor
•Secure Top Sheet Function
•Lockable control panel
•Adjustable tension with quick release
•Soft start and stop
•Machine can be paused during cycle
•Magnetic brake holds turntable still during loading/unloading
•Magnetic brake holds turntable still during loading/unloading
•Audible warning when running a cycle

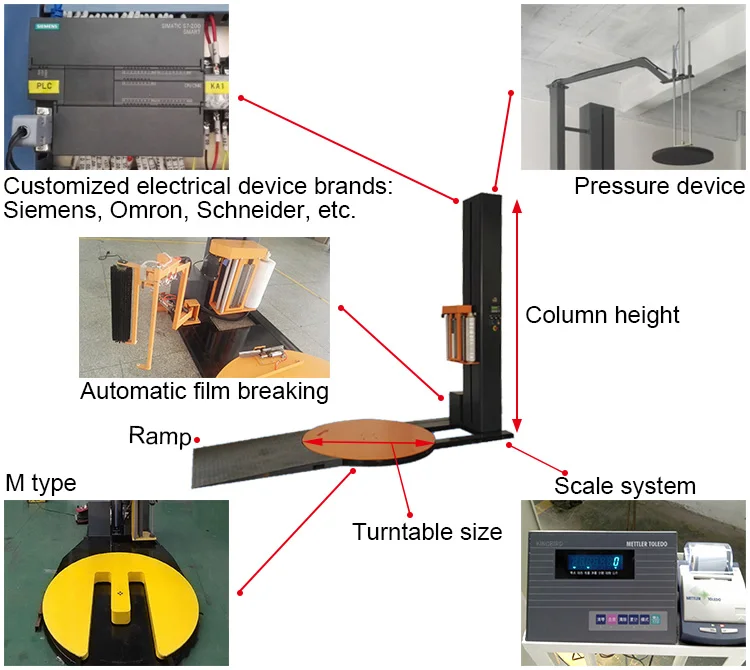

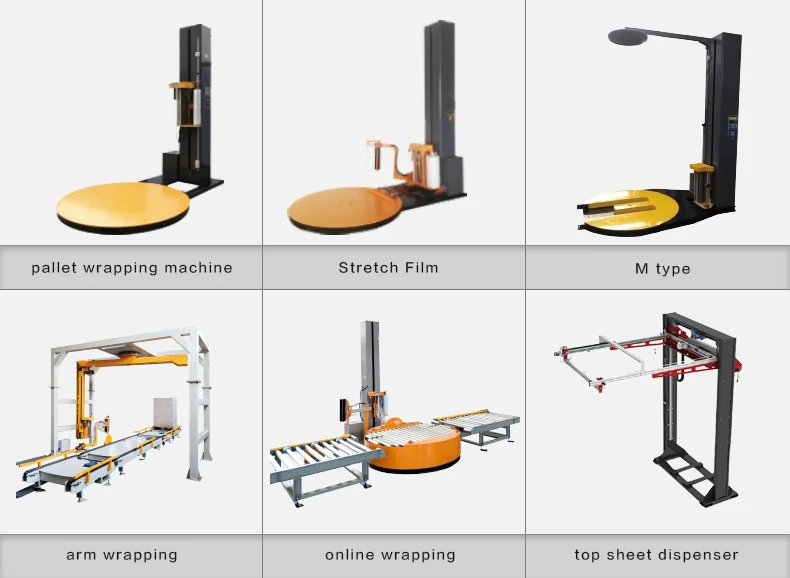

Custom Options

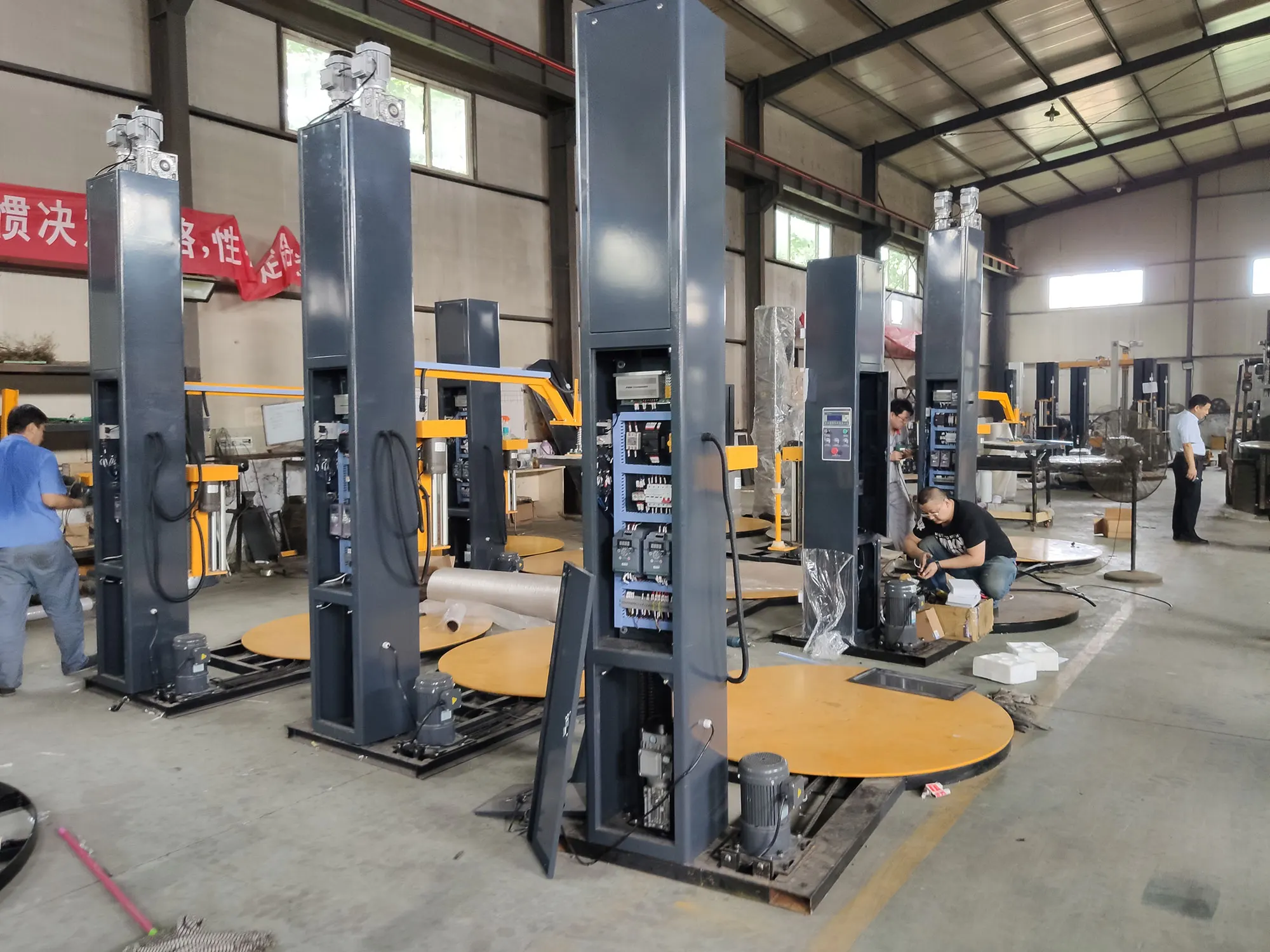

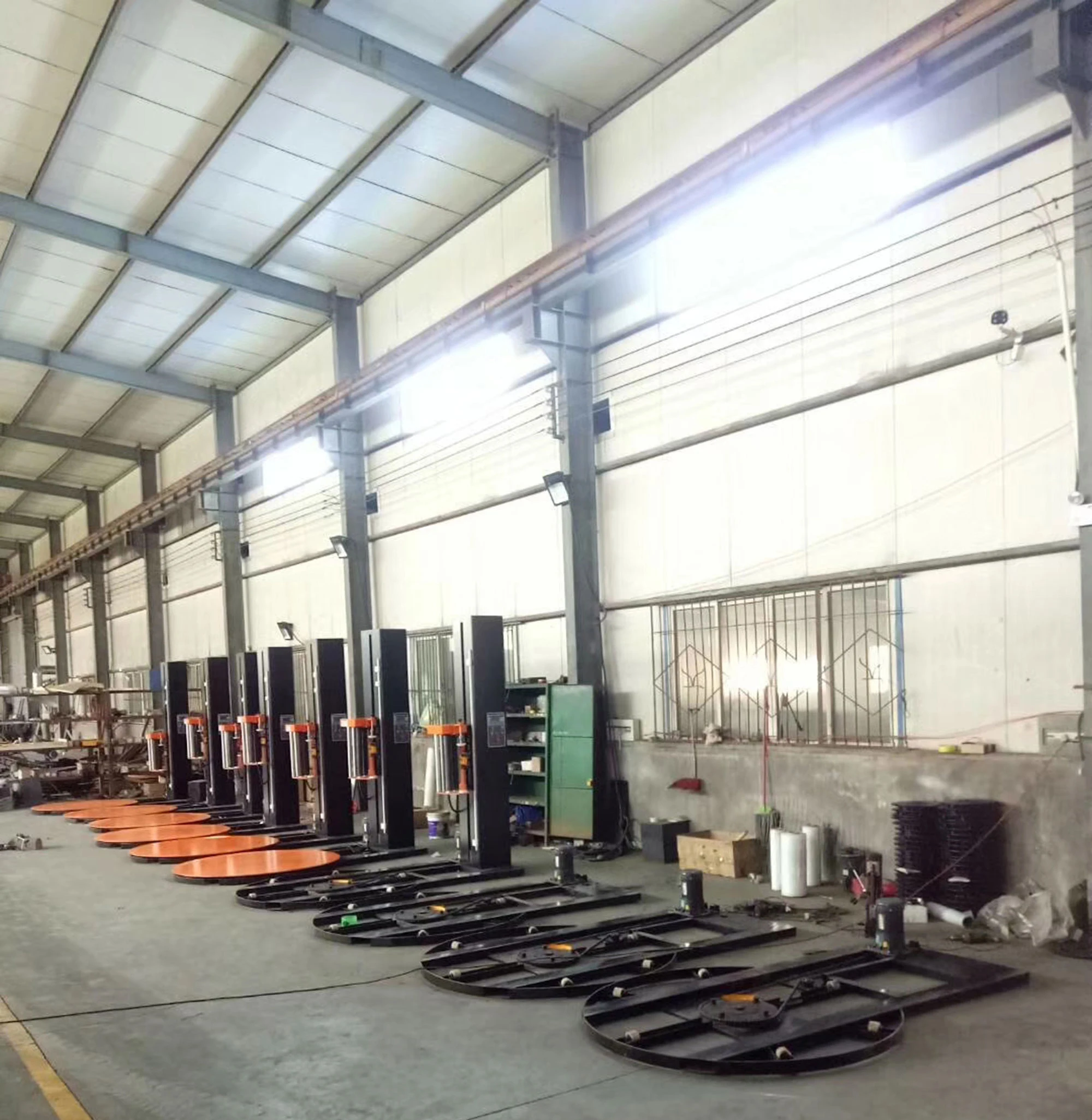

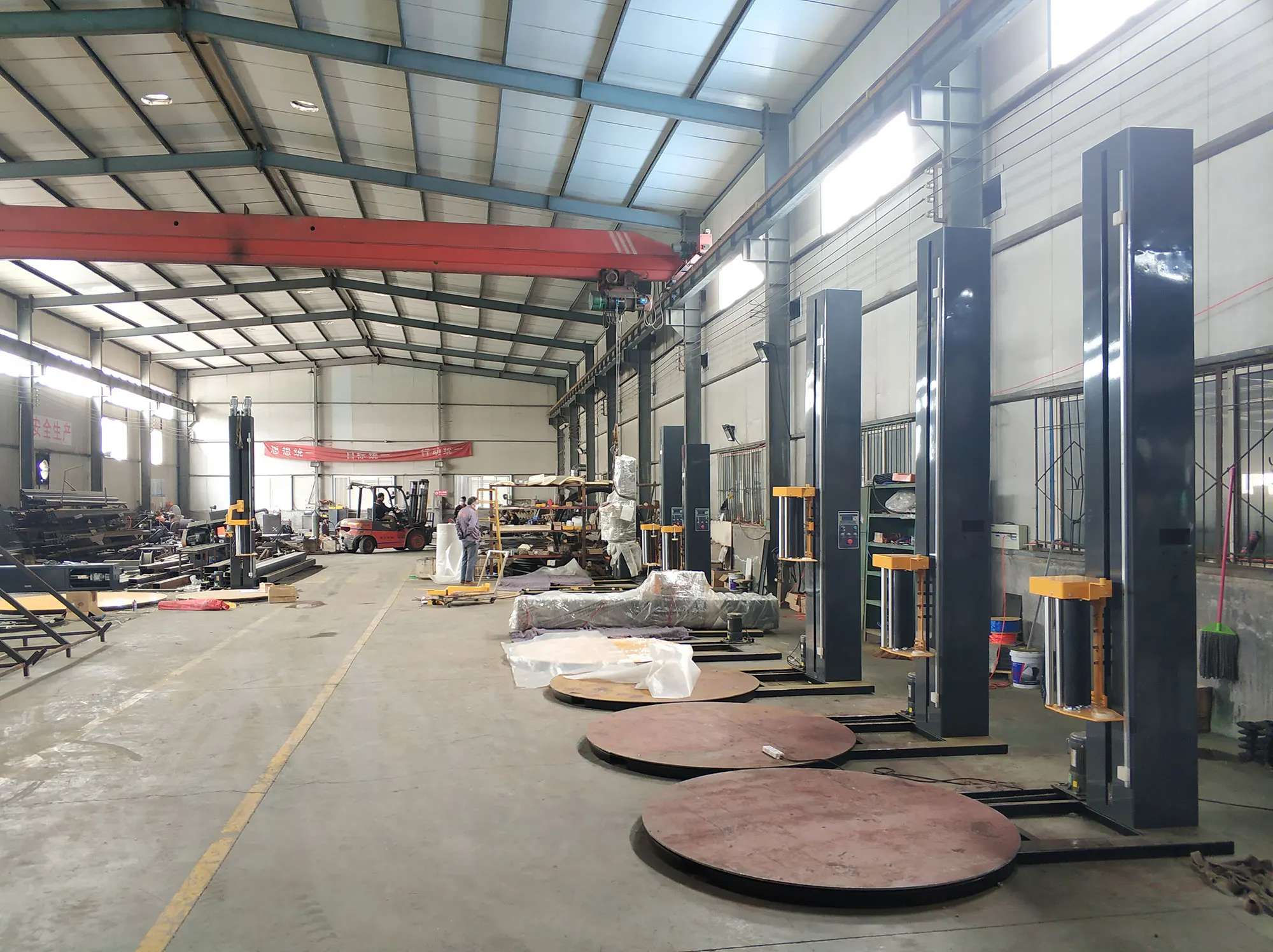

Our workshop
More Related Products
Company Profile
Qingdao Ausense has been established in 2008, which focus on the planning, R&D and manufacturing of automatic packaging production line. such as automatic carton packing line,shrinking wrapping line, fully automatic pallet strapping line,Conveyor system and soon......
Ausense main brand is YUPACK. All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Ausense main brand is YUPACK. All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Since 2017, Qingdao Ausense had successfully introduced robots into our end of packaging production line which can effectively integrate into the application of enterprise MES manufacturing execution system, and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.
FAQ
1.Are you manufacturer or trading company?
We are a professional manufacturer of packaging machine in Qingdao,China. We have more than 10years experiences.
2.Can you do OEM?
Yes,we can do OEM and also can print your logo on machine.
3.Approved CE?
All of our machines had approved CE&BV. And we will do our best to every customer.
4.Can you help us contact the shipping agent in your loading port?
Of course,we have our own shipping forwarder who always provide the best services&price to us. And you can check the
machine size and gross weight in production description. Thus you will have no problem to check freight by yourself.
machine size and gross weight in production description. Thus you will have no problem to check freight by yourself.
