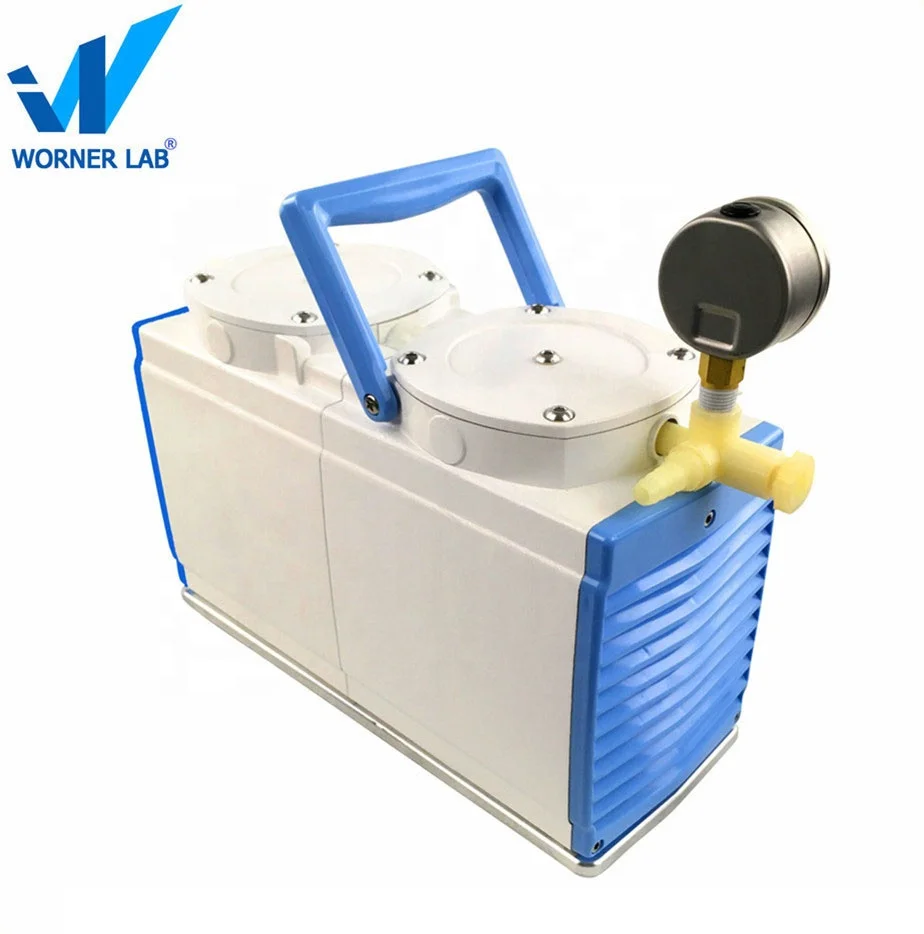

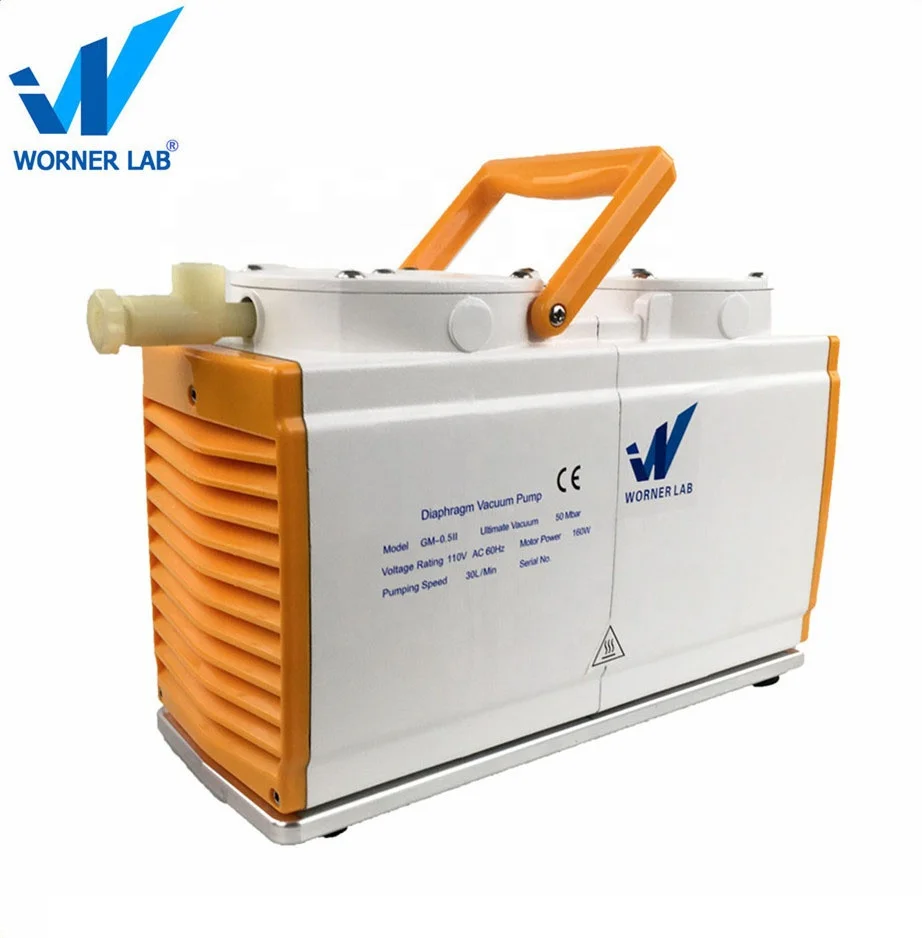

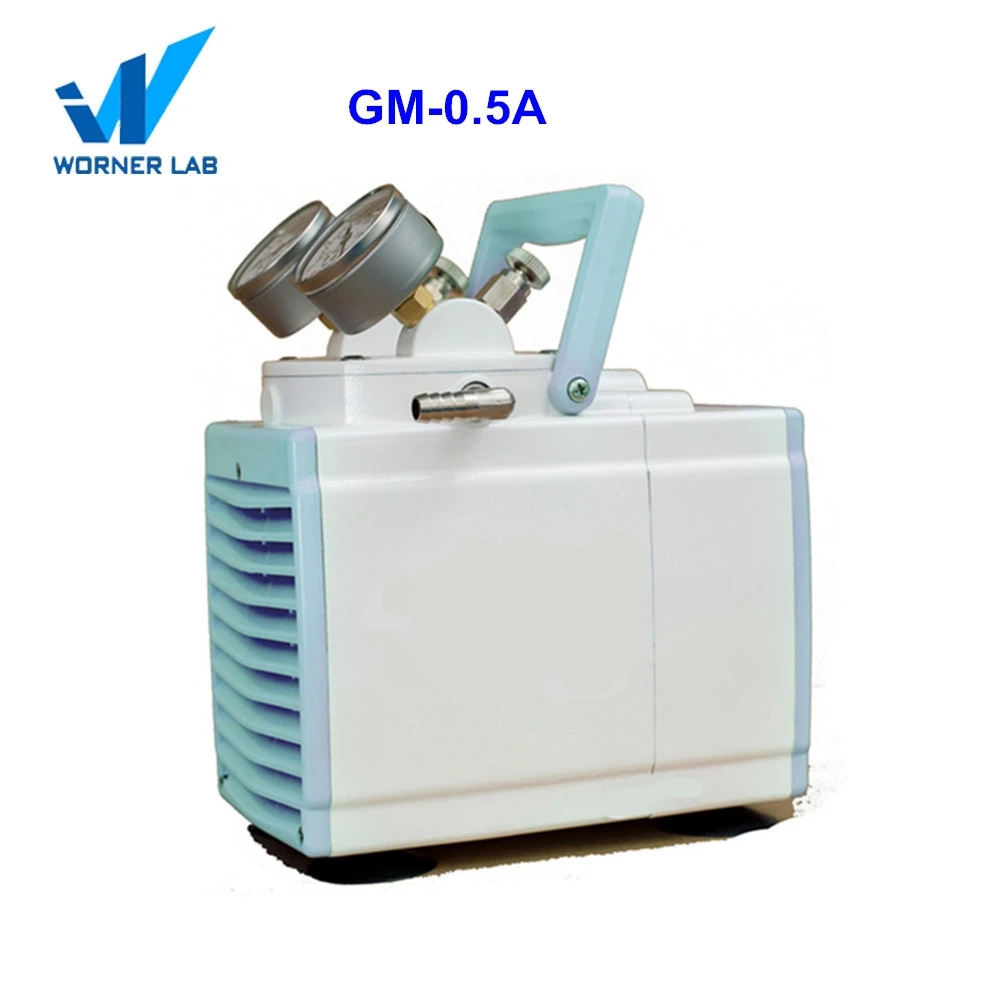

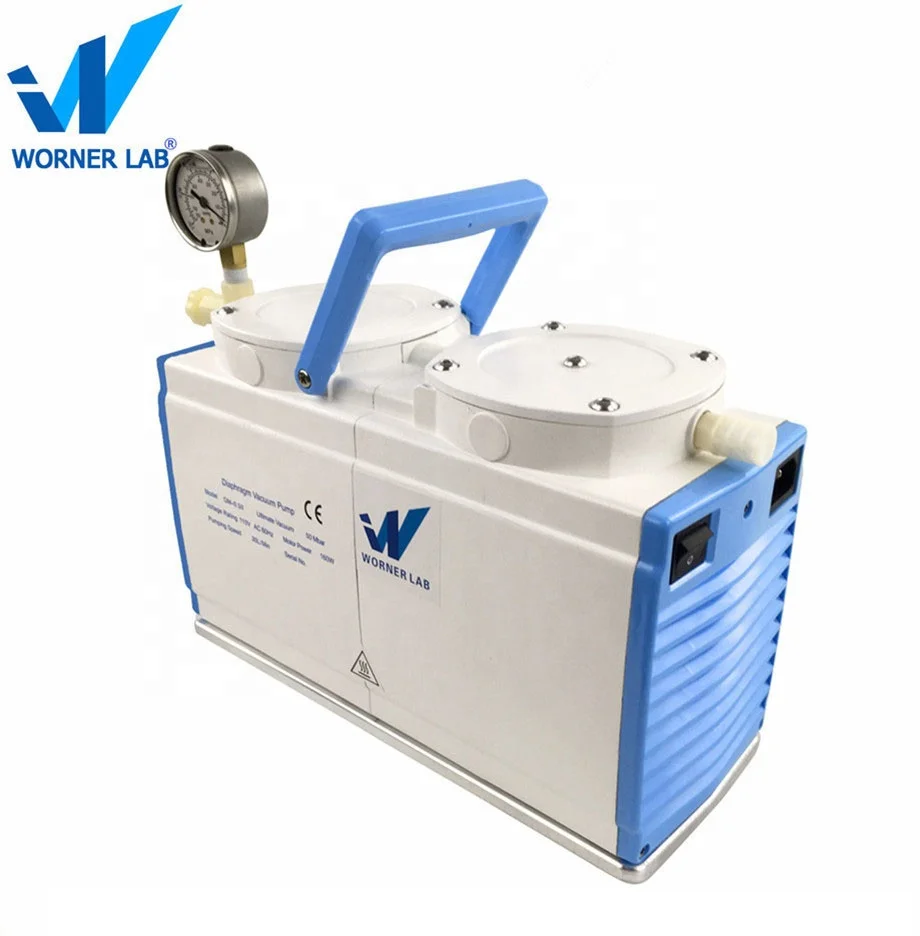

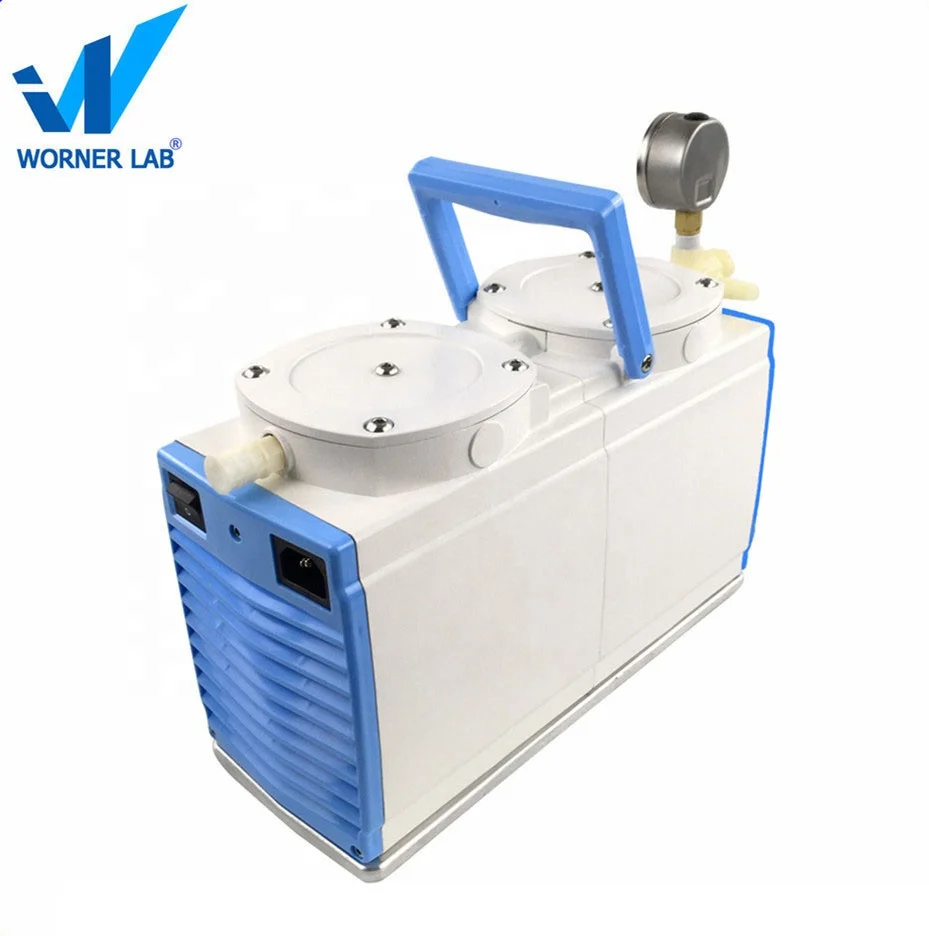

GM 0.5A 30L/Min Lab Oil Free Electric Vacuum Diaphragm Pump
- Category: >>>
- Supplier: Shaoxing Worner Lab Equipment Co. Ltd.
Share on (60677649734):
Product Overview
Description
Product Description
WORNER LAB Diaphragm Vacuum Pump has the features of continuous oil free pumping , low noise level , higher efficiency ,long lifetime . It is mainly used in medicinal products analysis , industry of fine chemicals , biochemical pharmacy , food examination, The criminal investigation technology , etc . It is used with the precision chromatography instrument , the necessary of laboratory . This product is specially designed for laboratory , reliable and easy to use .
1. Oil free,clean exhausted air by built- in filter .
2. Automatic cooling exhaust system ensures 24 h operation continuously.
3. The pressure adjustable design can satisfy a certain range of vacuum and gas velocity.
4. TEFLON surface treatment, anti- gas corrosion.
Product Paramenters

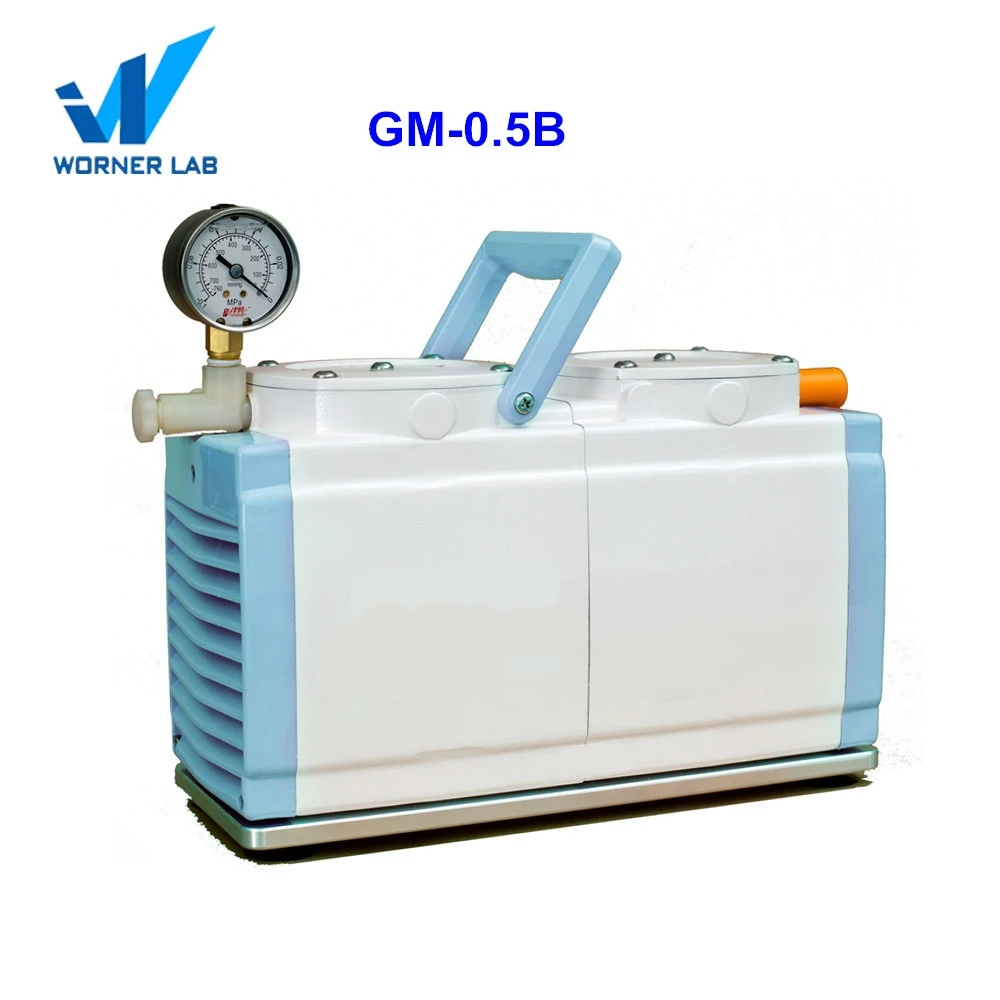

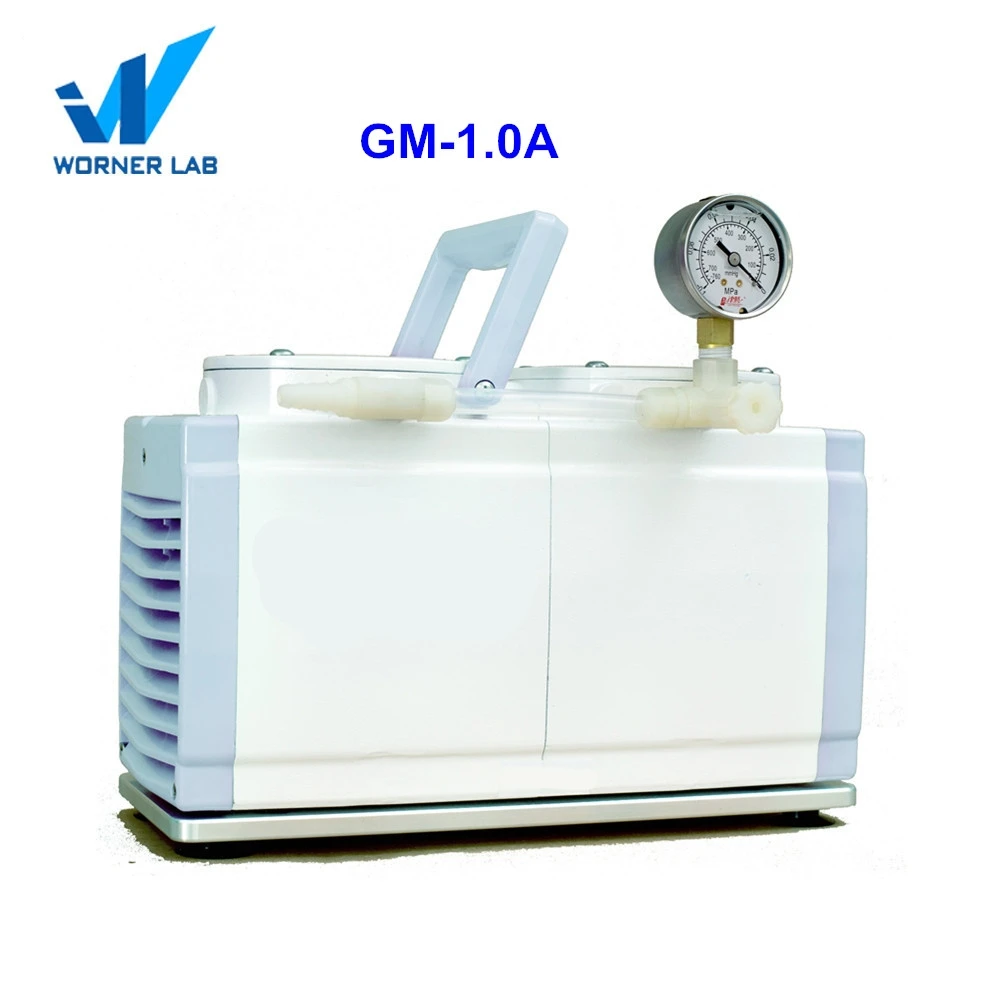

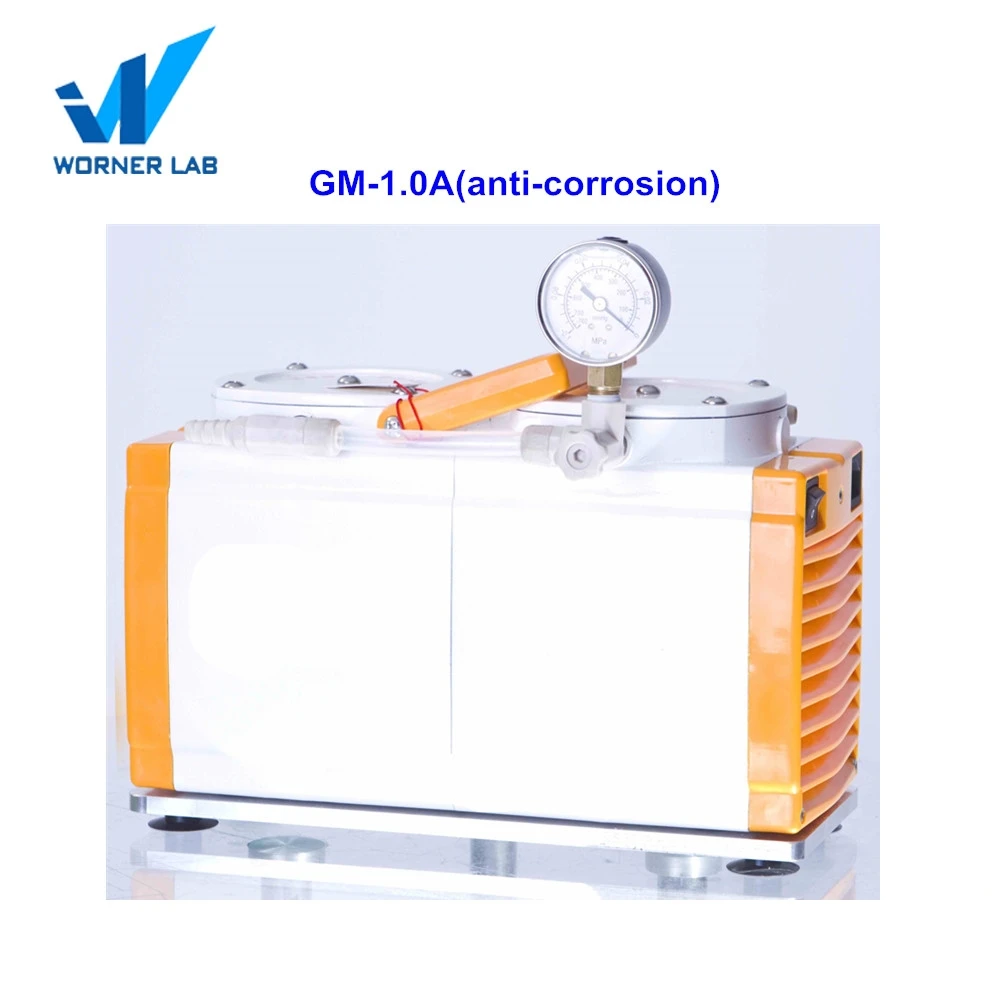

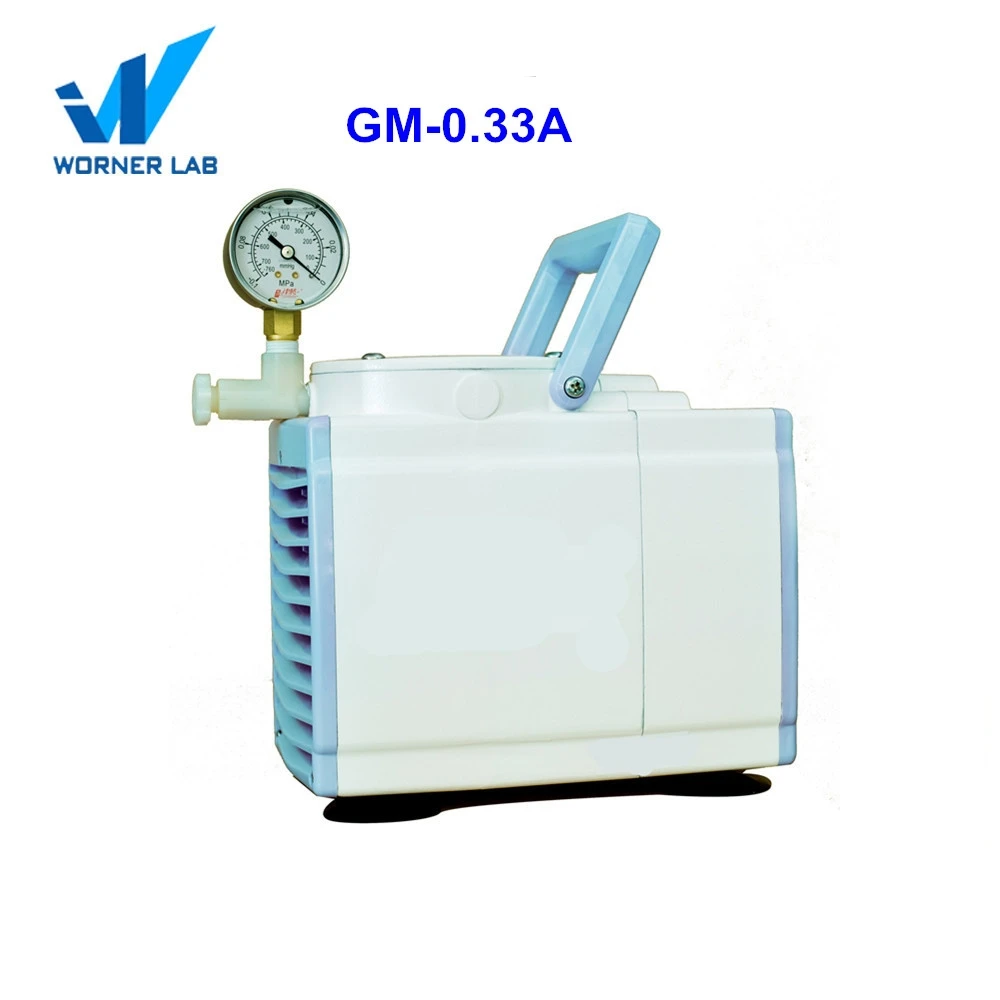

Model | GM-1.0A | GM-0.50B | GM-0.50A | GM-0.33A | ||||
Pumping speed: (L/Min) | 60 | 30 | 30 | 20 | ||||
Ultimate Pressure | ≥0.08Mpa | ≥0.095Mpa | ≥0.08Mpa | ≥0.08Mpa | ||||
Vacuum | 200mbar | 50mbar | 200mbar | 200mbar | ||||
Pressure | ≥ 30 Psi | ≥ 30 Psi | ||||||
Dimensions(mm) | 310×200×210 | 350x130x220 | 230×180×265 | 270×130×210 | ||||
Motor Power(w) | 160 | |||||||
Inlet (mm) | φ6 | |||||||
Outlet (mm) | Φ6 | Silencer | Φ6 | Silencer | ||||
Working Temp°C | 7—40 | |||||||
Pump Head | 2 | 2 | 1 | 1 | ||||
Voltage Rating | 110 or 220V | |||||||
Noise Level(dB) | <50 | <60 | <50 | |||||
Temp of the body°C | <55 | |||||||
Weight (Kg) | 10 | 10 | 7.5 | 7 | ||||
Diaphragm | NBR | |||||||
Valves | NBR | |||||||

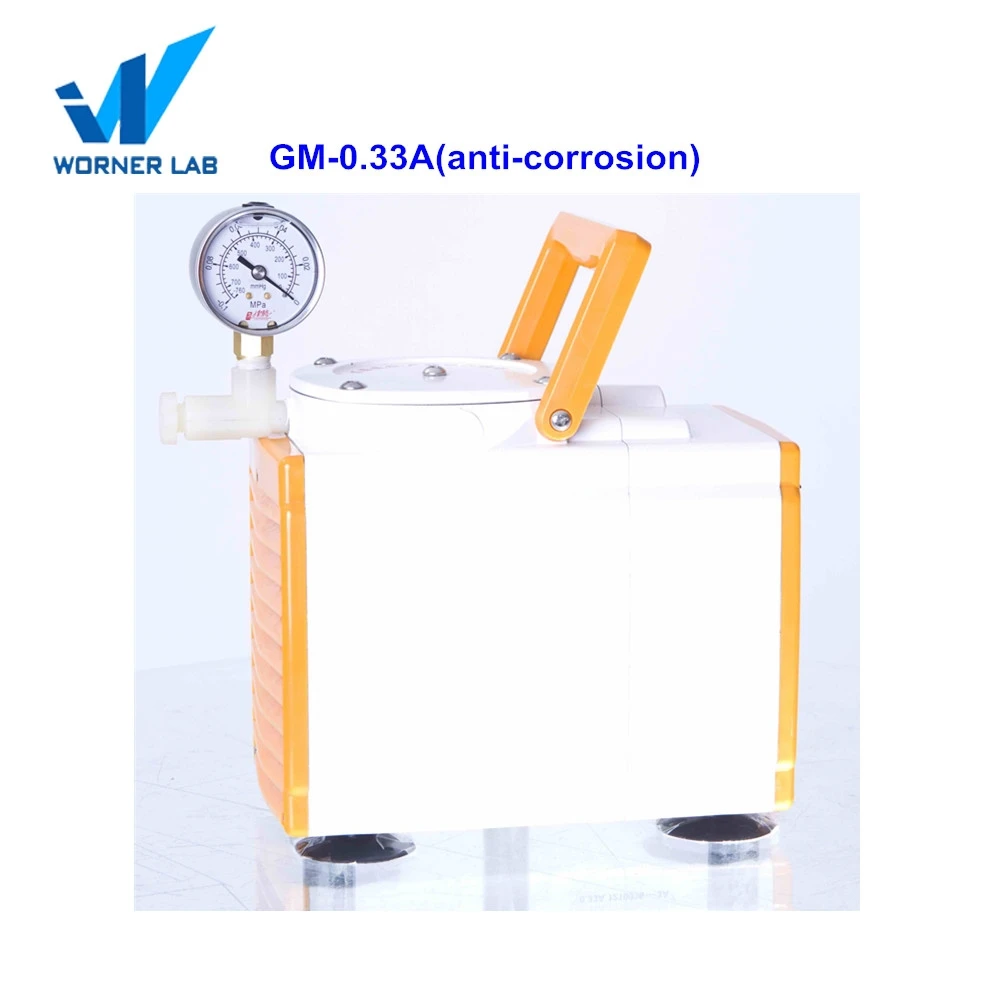

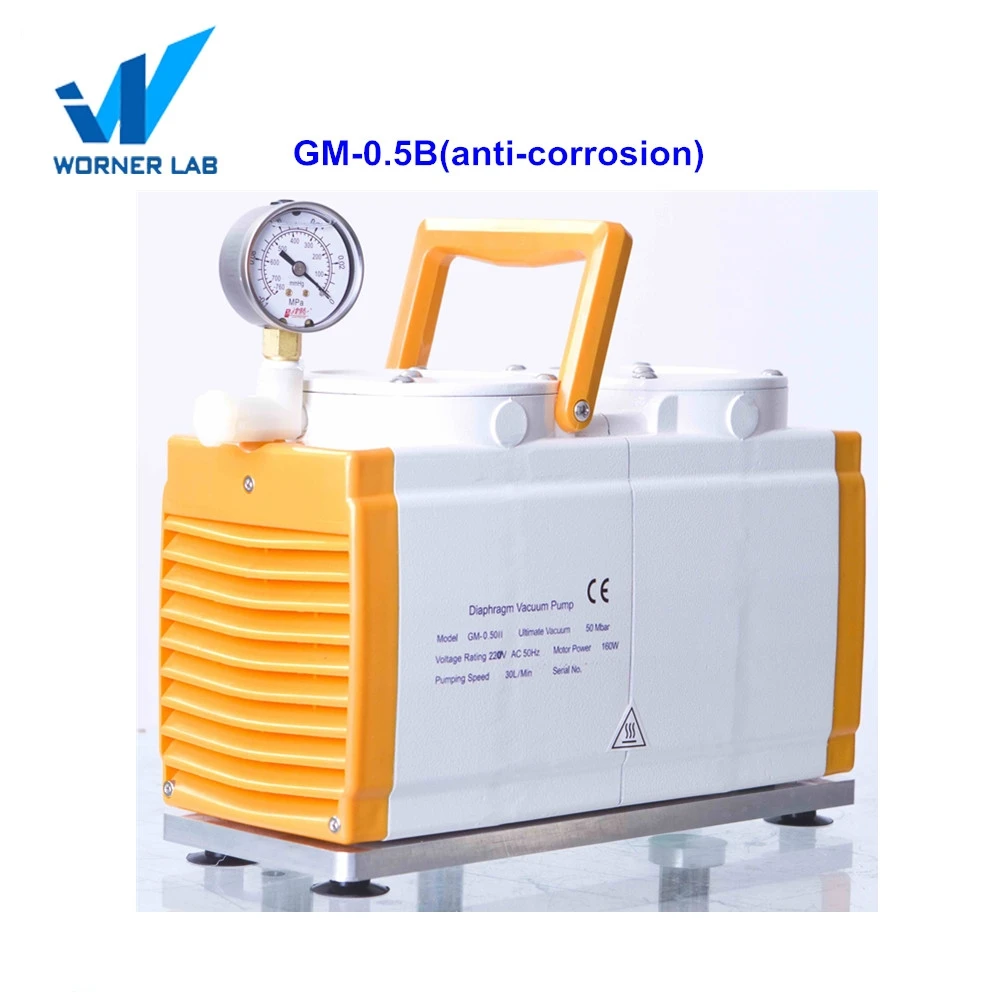

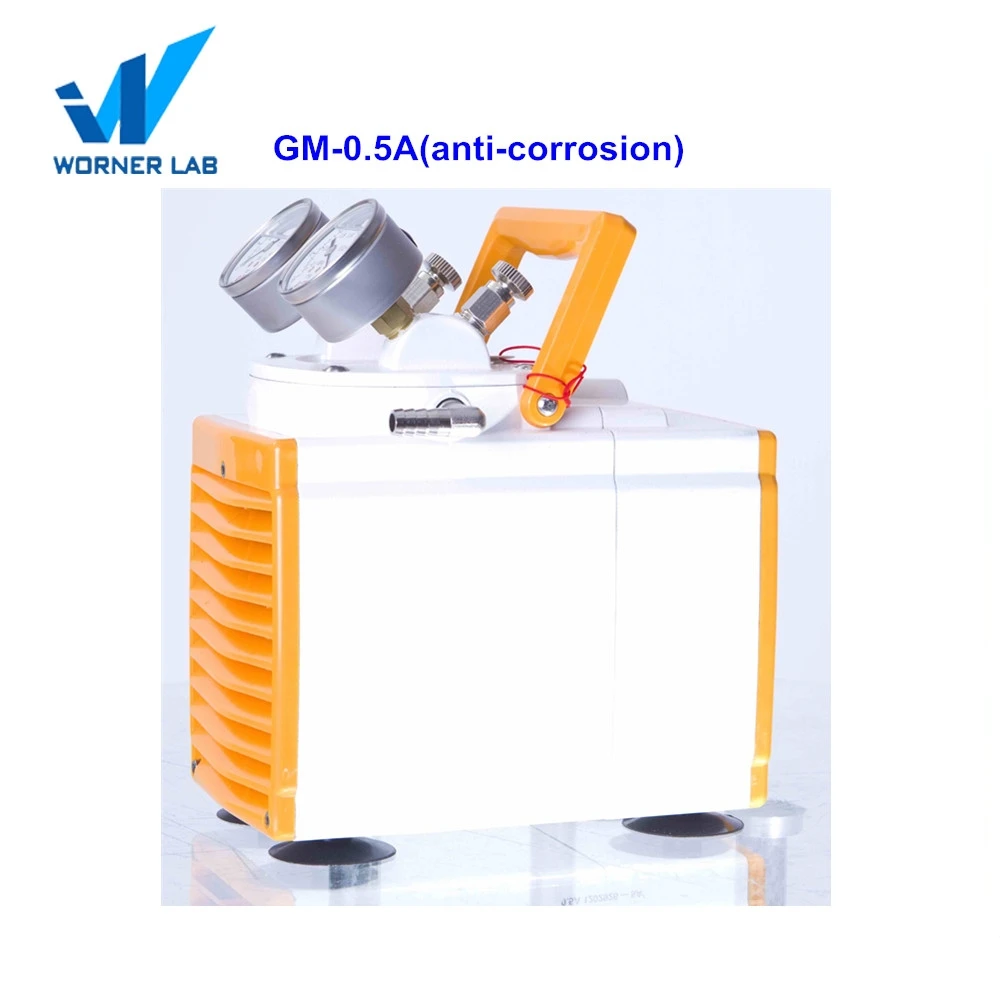

Remark:we have two types of diaphragm vacuum pump: Ordinary style and anti-corrosion style(PTFE) | ||||||||
Details Images
Packing & Delivery

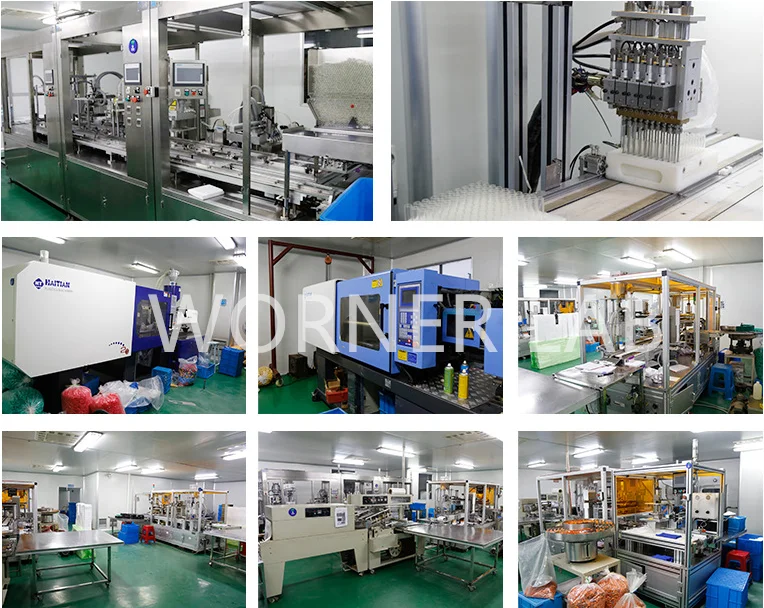

Company Strength
