plastic food container vacuum forming machine for PP PS PVC PET
- Category: >>>
- Supplier: Ruian Junda Machinery Co. Ltd.
Share on (60677675643):
Product Overview
Description
Product Description

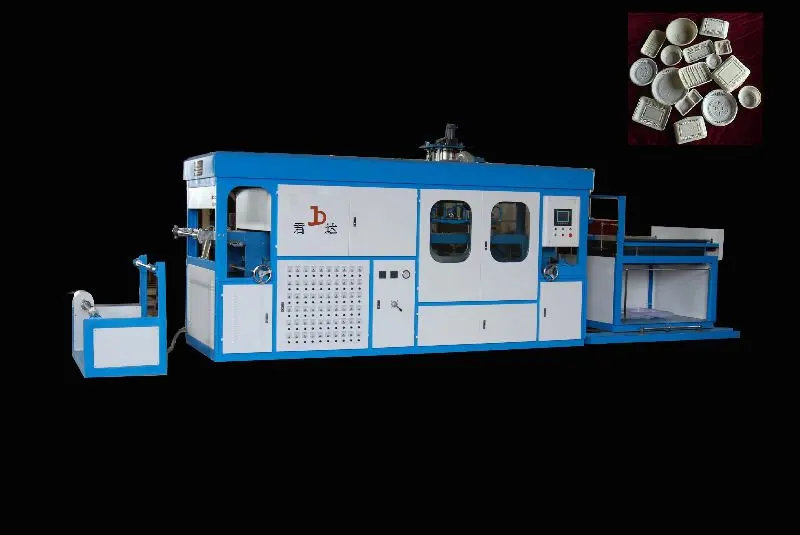

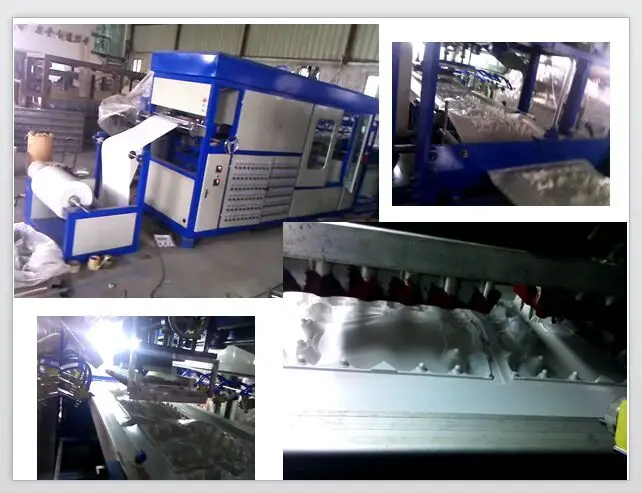

plastic vacuum forming machine
1. Main Features
1) With the control of PLC, it works stably and reliably.
2) Adopt the advanced touch screen wiyh long useful life and reliable performance, it is easy to adjust any parameter and can display the operation regulation and basic technical material.
3) Servo motor drive: the speed and length is adjustable and the sheet-pull is stable and reliable with less error.
4) With upper and lower mold for backwards and forwards and adjustable, solve the sealing problem for small impression forming, reduce scrap generation.
5) The module can be changed outside machine, labor saving, convenience, shortcut and safety.
6) Special chain rail, no deviation and vibration and wearing well.
2.Machine Parameters
Model | RJD-610 | RJD-720 | RJD-620 |
| Overall forming dimension | (L) 780-1130MM | (L) 780-1200MM | (L) 500-750MM |
| (W)480-610MM | (W)600-720MM | (W)480-620MM | |
| (H) 0-180MM | (H) 0-180MM | (H) 0-180MM | |
| Working speed | 2.5-7.5cycle/min | 3-8cycle/min | 2-7cycle/min |
| Vacuum pump capacity | XD-100 | XD-100 | XD-75 |
| Air pressure | 0.8mpa | 0.8mpa | 0.8mpa |
| Power supply | 380V(50HZ) | 380V(50HZ) | 380V(50HZ) |
| Max power consumption | 30KW | 35KW | 22Kw |
| Process sheet Thickness | 0.1-1.2MM | 0.1-1.2MM | 0.1-1.2MM |
| Raw material | PP PS PET PVC ABS | PP PS PET PVC ABS | PP PS PET PVC ABS |
| Machine size | 6.6*1.5*2.5M | 6.9*1.5*2.5M | 6.2*1.5*2.4M |
| Machine weight | 2000KG | 2500KG | 1800KG |

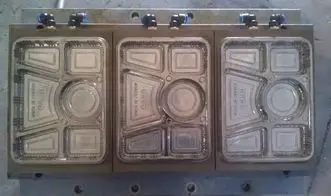

3.Mould

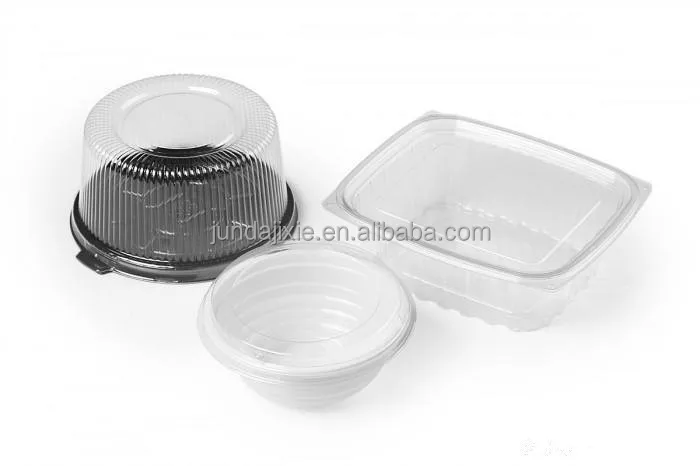

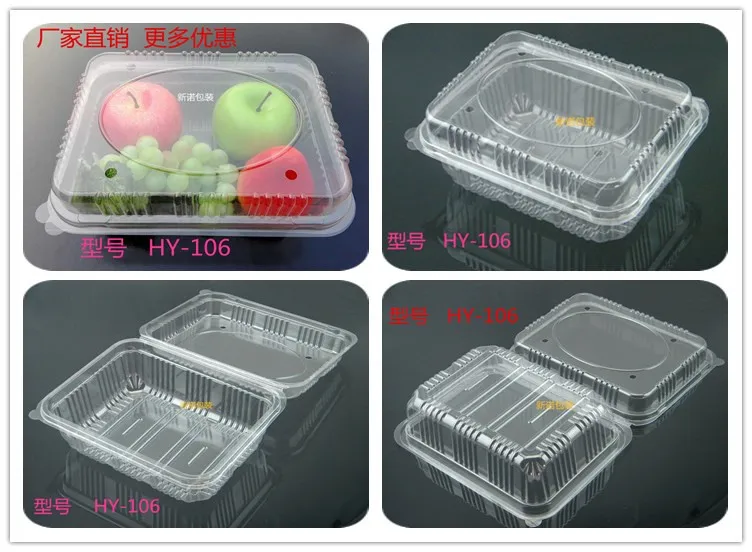

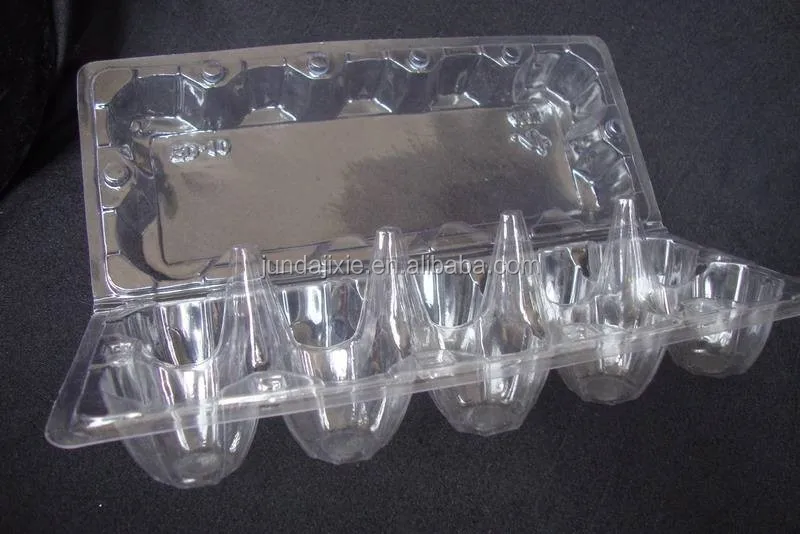

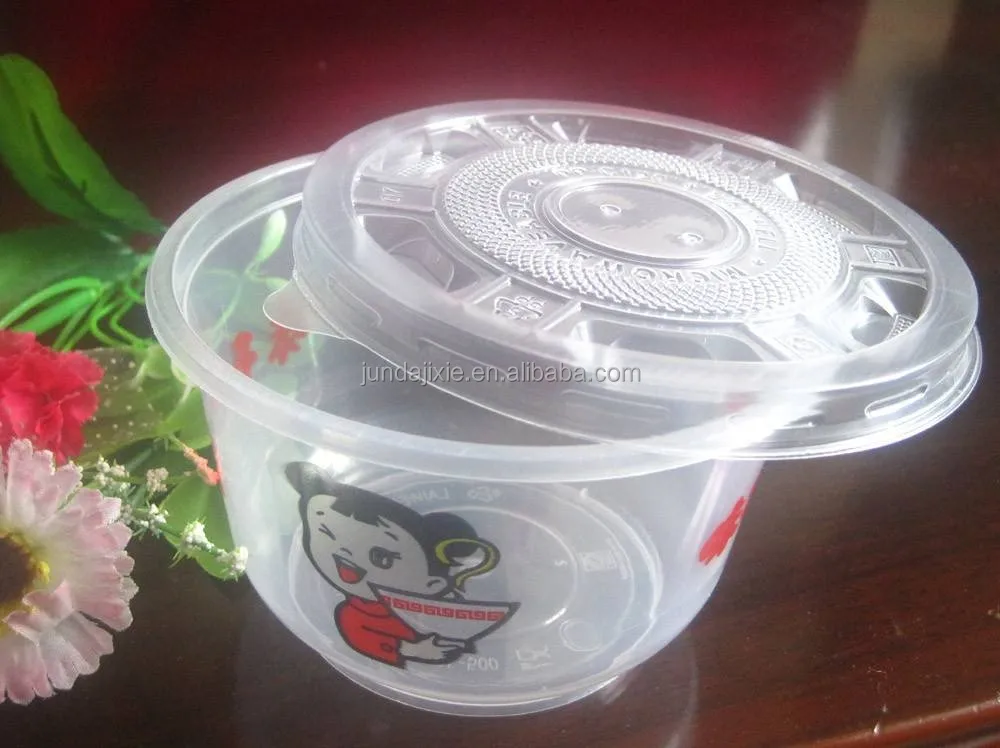

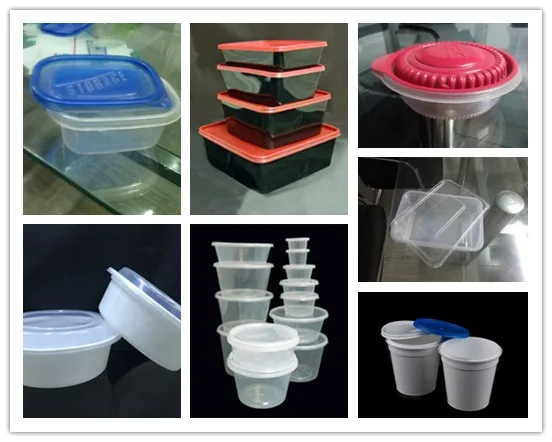

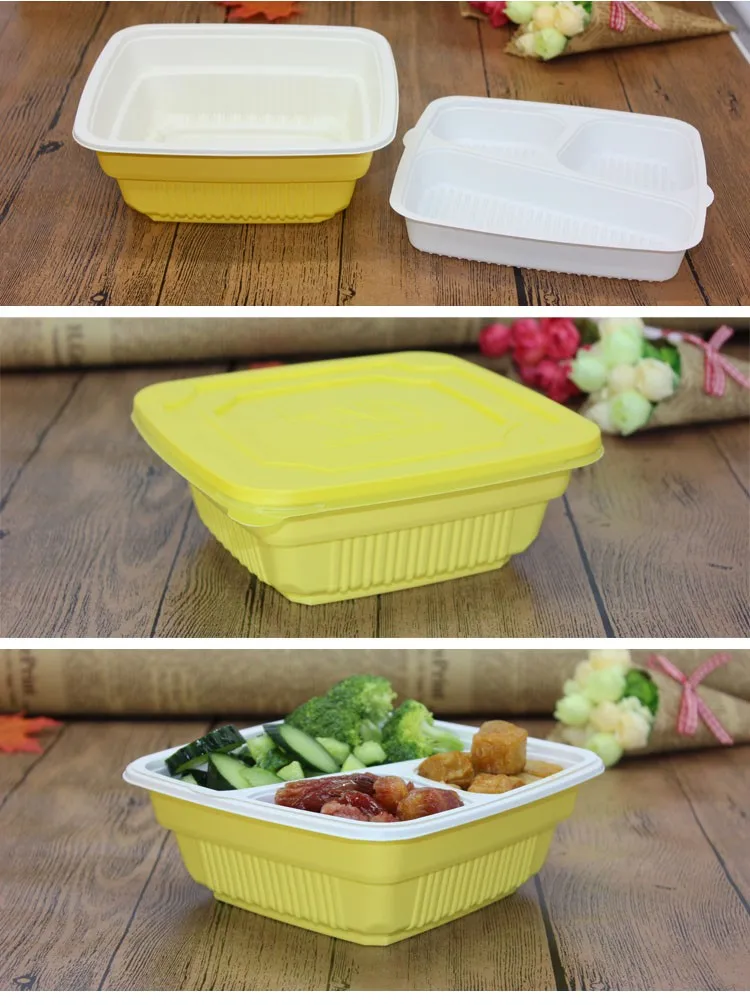

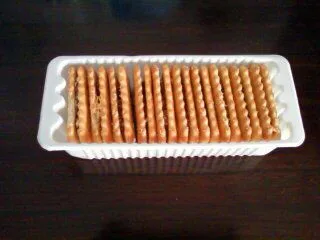

4.Sample
Packaging & Shipping
sterilized wooden packaging shipment
Company Information
Name:Ruian Junda Machinery Co., Ltd. (the original Ruian Junda Machinery Factory)
Location: located in Ruian City, Zhejiang Province South coast industrial zone district offices
Tangtou [Ryan Bridge (that is, Feiyun River Bridge) south]
Speciality: professional manufacturer of plastic packaging machinery company
Resources:with a number of highly qualified researchers and staff
operation system:with the design, development, production, Installation and service a complete operation system.
The core concept:create the perfect service to the community
Company Spirit:follow the "use of technology, innovation is the soul, quality-oriented, excellence, service users, perfect, "
Service:the quality, with advanced equipment and technology, scientific management, production and customer satisfaction products.
About us
Our Services
| samples | samples will be first making drawing for customer checking and confirmation then starting mould production, machine quotation based on FOB Ningbo Port. |
| Installation and Start-up | 1 or 2 technicians will be assigned to coordinate installation, commissioning and training,cost for flight and suitable accommodation & food will becharged additionally. for cup machine normally one week and cup line will be two weeks. |
| Terms of Payment | 40% advance payment by T/T upon signing the contract. 60% balance by the T/T before shipment. |
| Delivery time | 30 days after deposit reached. |
| Warranty | 12 months limited warranty. Starting from the date of machine arrival buyer's place excluding wear parts. |
FAQ
Thanks for viewing, If you have any questions please contact me
mobile/what's app :0086 15168713018 contact name :Claier Wang
Wechat:junda15168713018
