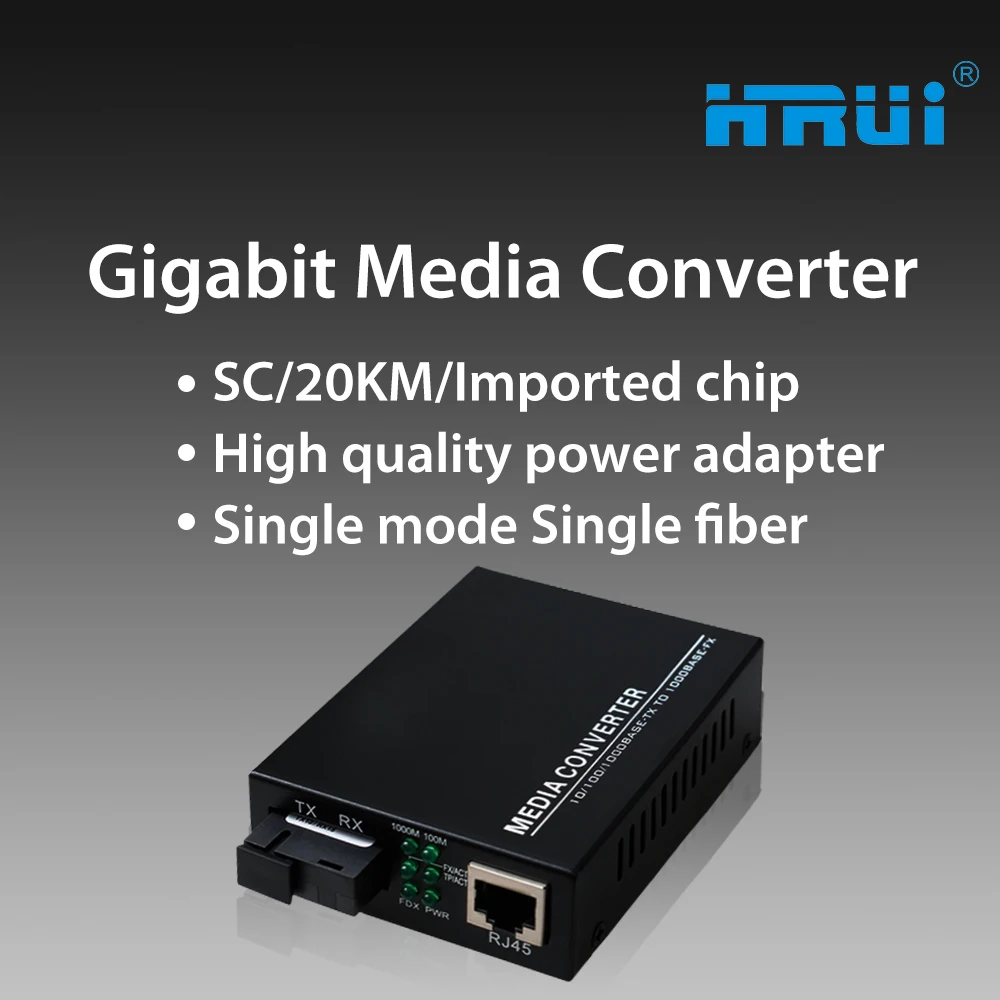

industrial copper to fiber st media converter poe with fiber

Product Overview

Description

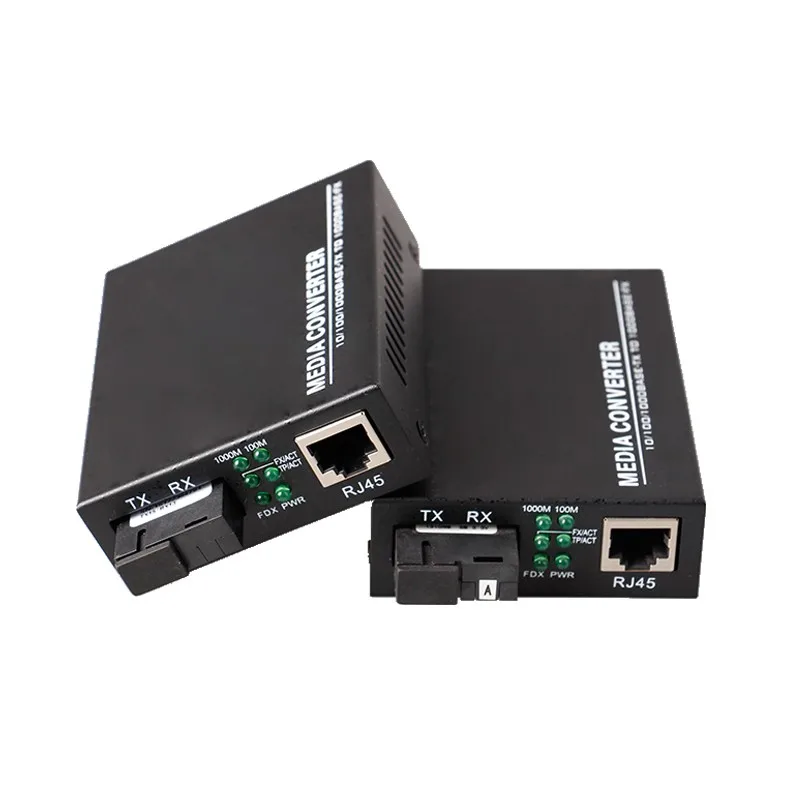

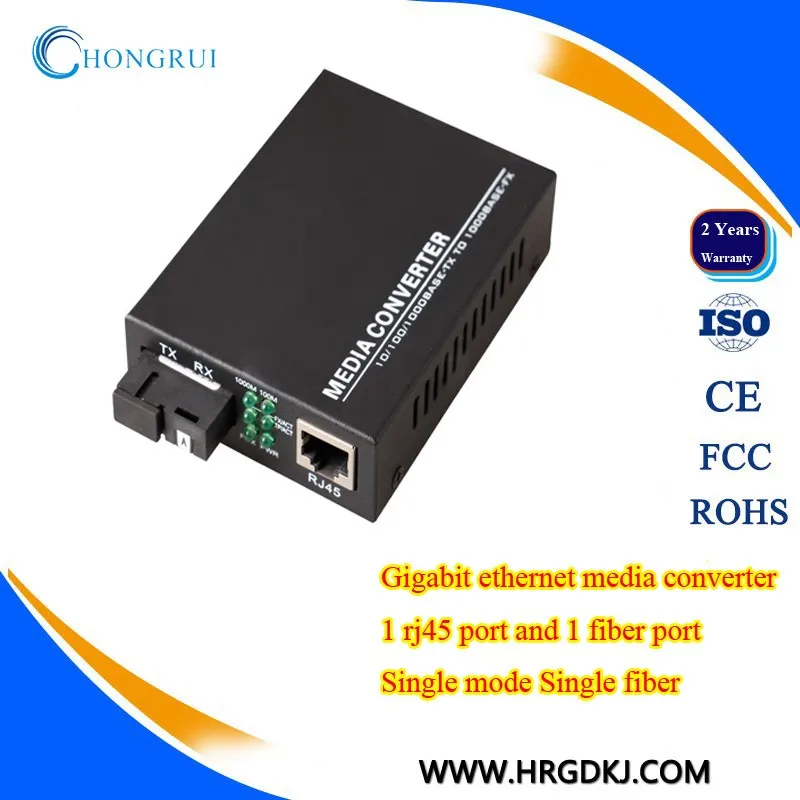

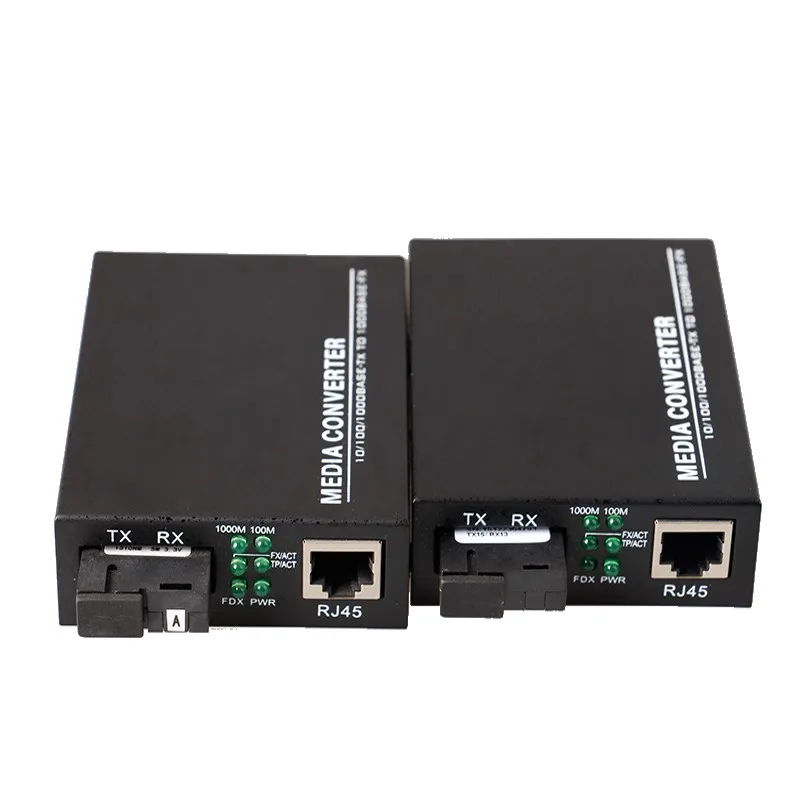

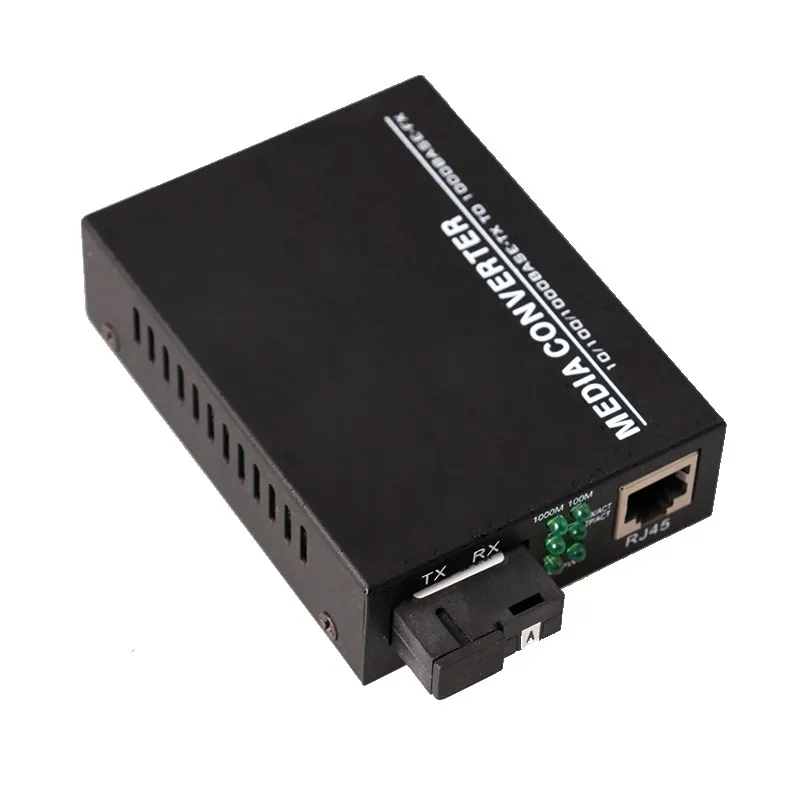

Industrial copper to fiber st media converter poe with fiber

Description



The Ethernet media converters are designed to transmit and receive 10/100/1000 Mbps data over single mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 /1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.

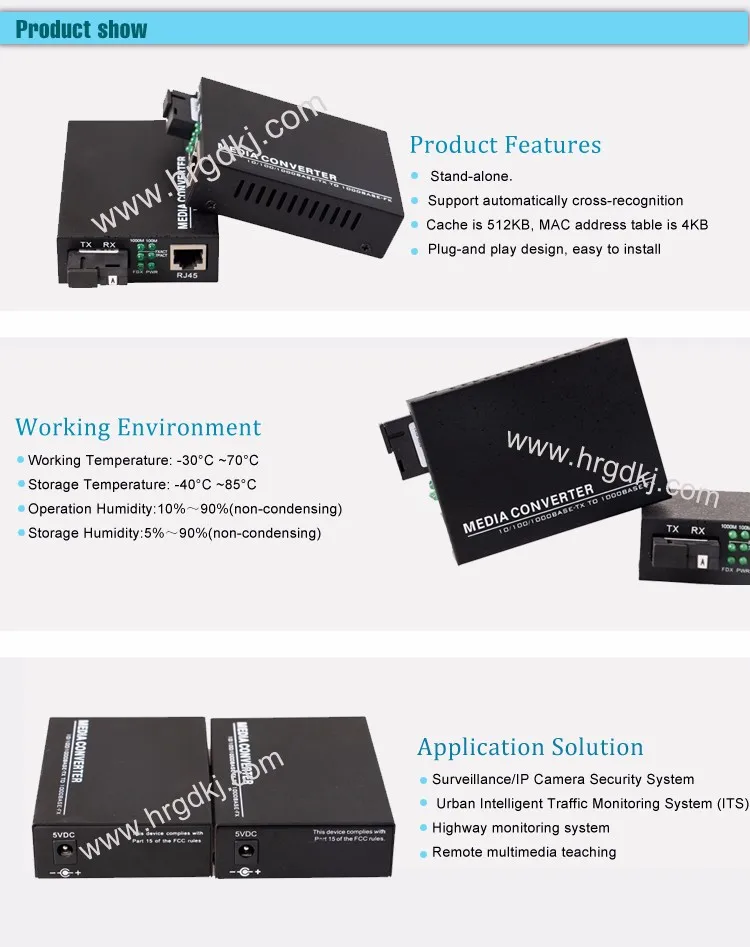

Features



1. Plug and play, high performance, Low power consumption
2. Card-type or stand-alone, apply in centralized management 2U aluminum chassis
3. Cache is 512KB, MAC address table is 4KB
4. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX),Compliant IEEE802.3z/AB
1000Base-T,1000Base-SX/LX standards.
5. Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
6. Automatic MDI/MDI-X crossover
7. Distances up to: 20 km Single Mode
8. SC optical connectors.
9. DC powered
10. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
11. CE approved

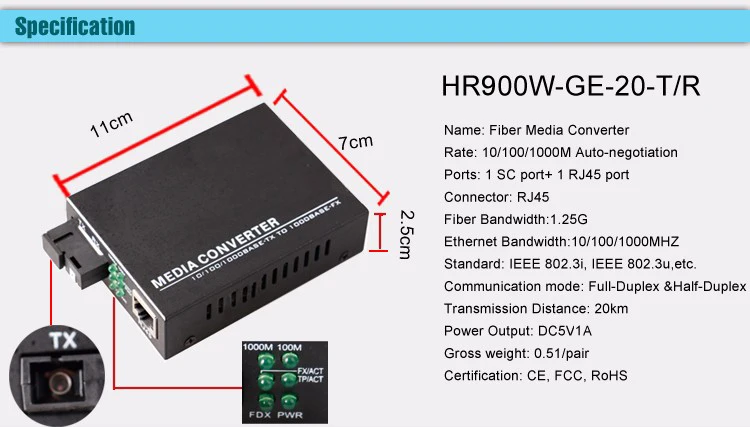

Technical Specification



Product Name	10/100/1000M Single Fiber ,Single Mode, Fiber Media Converter
Model	HR900W-GE-20-T/R
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control,  IEEE 802.1af DTE Power via MDI
Wavelength	Single Mode: 1310nm,1550nm
Port	One RJ45 port, One Fiber(SC)
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Forward Mode	Store and forward
LED Indicator	PWR: Green Illuminated to indicate unit is operating under normal operation TX Link/ACT: Green Illuminated indicates receiving link pulses from compliant  copper device and flashes when data being sent / received FX Link/ACT: Green Illuminated indicates receiving link pulses from compliant  fiber deviceand flashes when data being sent / received 1000M: Green Illuminated when data packets  are being transmitted at 1000 Mbps
Power Supply	DC5V1A
Environmental requirements	Operating Temperature: 0°C~+70°C Storage Temperature: -45°C~+95°C Relative Humidity: 0~95% (non-condensing)
Transmission Distance	Fiber: Single Mode,20km; UTP: Cat.5/6, 100m
Diemension	11cm*7cm*2.5cm
