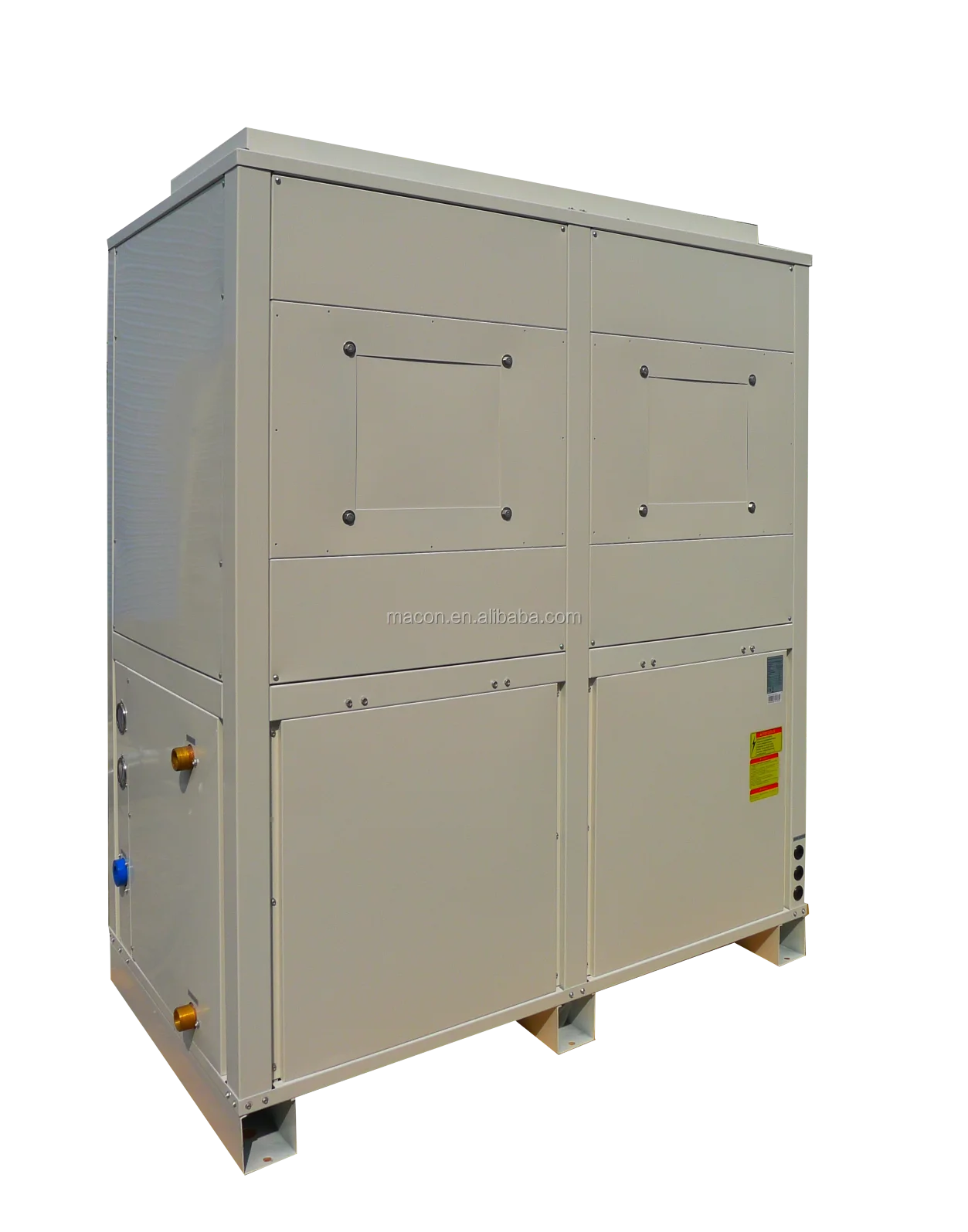

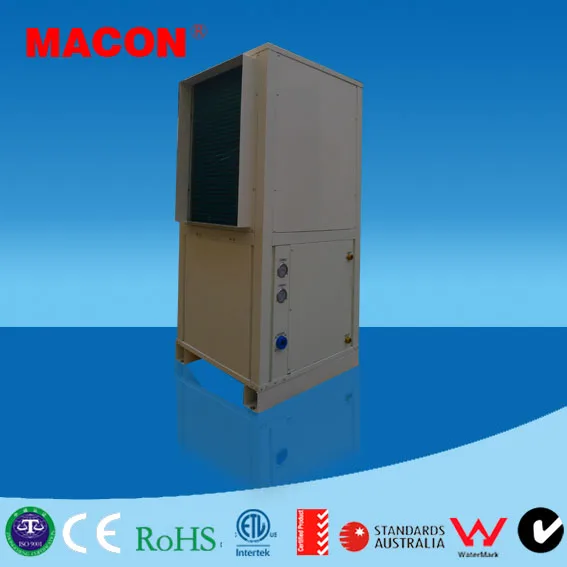

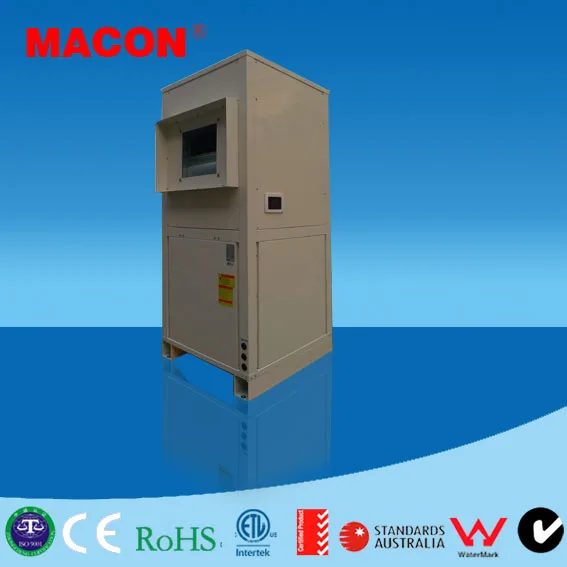

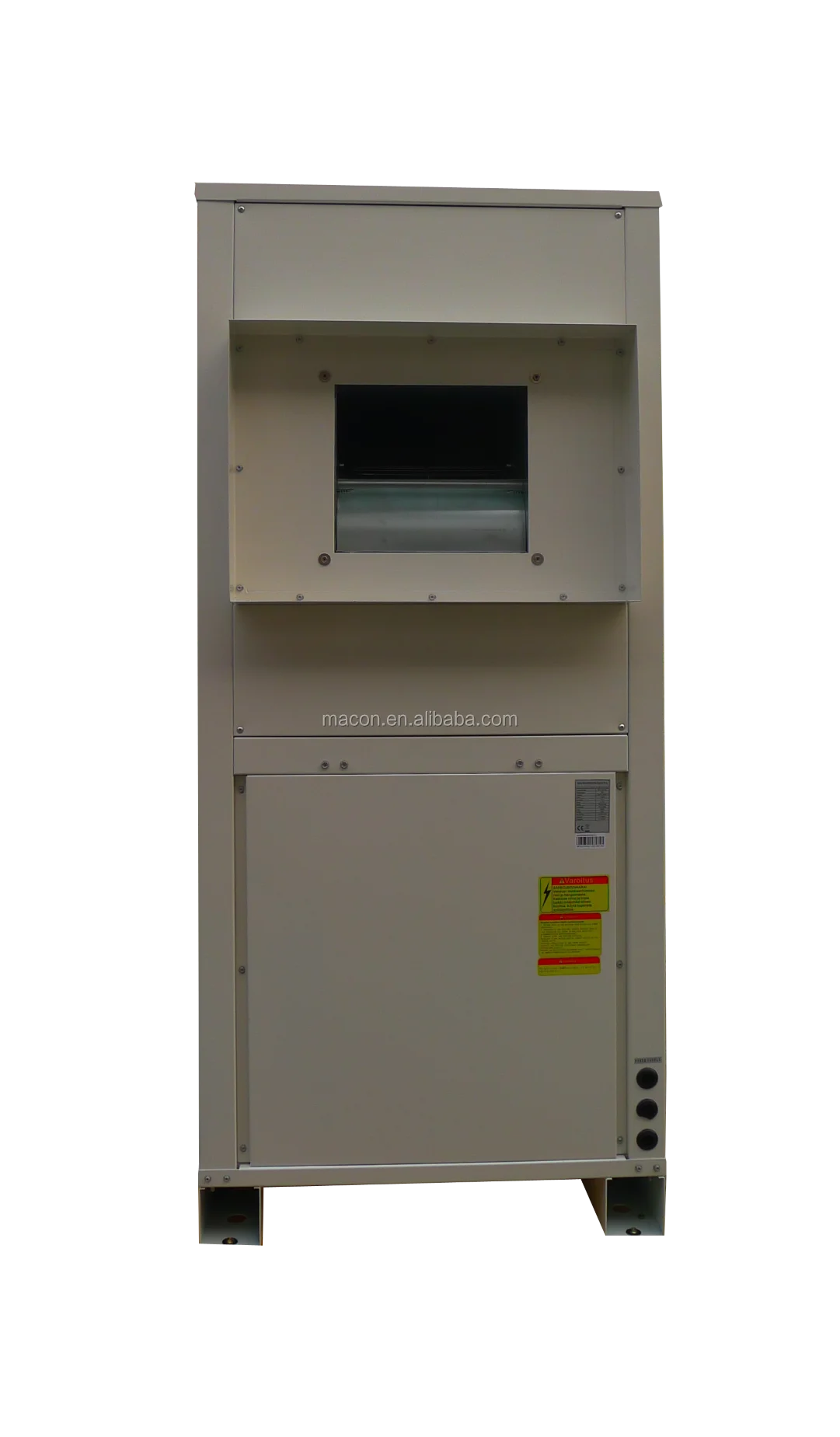

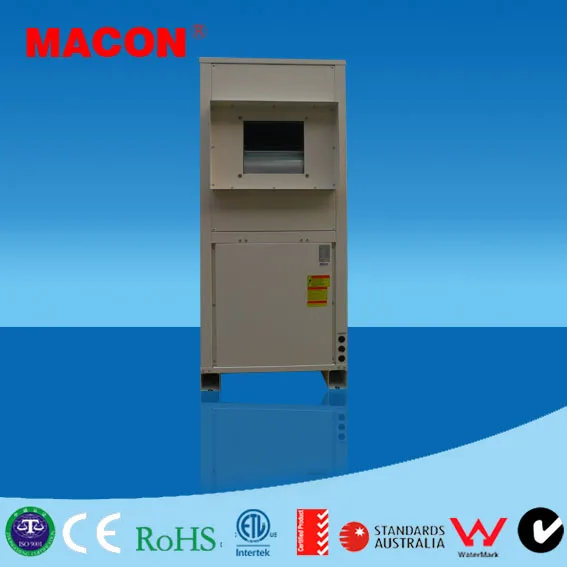

Water soure heat pump 4 ton air duct water to air heat pump for heating,cooling

Product Overview

Description

Macon geothermal water to air heat pump



   ♣Feature



1.    Wide application scope.Apply to household, commercial and industrial air-conditioning , floor heating  for the room ,

domestic hot water and comprehensive energy demand  application site of SPA,the best choice for  public places hot and

cold applications demand, such as villa, hotels, restaurants, office buildings, cinemas, shopping malls, stadiums, hospitals and other public places.

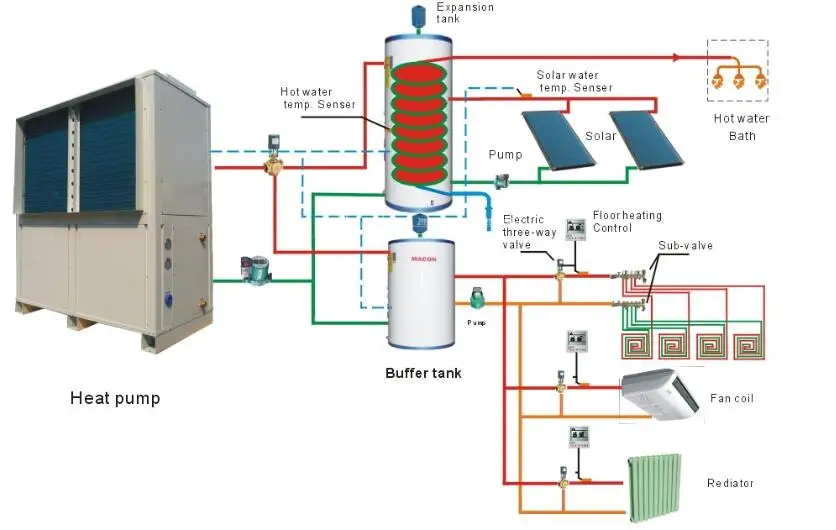

2.    Patent product with Multi-usage function.Multi-function patent with five modes : air heating, air cooling, domestic hot water,

air heating &domestic hot water at the same time, air cooling+ domestic hot water at the same time.



3.    High efficiency and energy saving.Using energy efficient scroll compressors and 2 plate heat exchanger to improve energy efficiency.

Comprehensive energy consumption is only 75% of  the solar energy water heater,25% of electric water heater. When it is cooling + hot water, the COP will be more than 7.5.



4.    Three-core design.Heat pump, electric auxiliary heat and solar heater integrated together (optional), super energy,

which can meet all-weather hot water supply.The high quality components.Using  high efficient scroll compressor, plate heat exchanger,

high efficient shell and tube heat exchanger, high efficient spiral casing heat exchanger, built-in WEILO water pump





♣Parameter

Model	MWCHRA	020ZC	030ZC	040ZC	050ZC
Cooling capacity	KW	5.6	8.4	11.2	14
Rated input power	KW	1.15	1.73	2.31	2.89
Rated input current	A	5.2	7.9	10.5	13.1
Heating capacity	KW	6	9	12	15
Rated input power	KW	1.41	2.12	2.85	3.53
Rated input current	A	6.4	9.6	12.8	14
Power supply		220V/1PH/60Hz
Compressor		Rotary	Rotary	Scroll	Scroll
Noise	dB(A)	50	52	54	56
Refrigerant		R410A	R410A	R410A	R410A
