SW38A автоматический гибочный станок с двойной головкой и вращением на 90 градусов

Product Overview

Description

SW38A Automatic double head pipe bending machine with 90 degree rotation

Main specification:

Uses the single-chip computer control,operates easily, performance stable, double-end curving synchronization shapes work piece of the bended pipe opens, the angle is precise, Double-end curving angle may adjust from 0-180, but must consider the material-taking problem. May establish two ases different angles to be curving .
1. According to different base frame, it can be divided into standard type and rotary type.

2. Hand-operated, auto, semi-circulation and other functions can be chosen.

3. Single-chip computer control, imported electric elements. The program can be stored forever, no losing.

4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.

5. Double head can be used separately.

6. Three pieces can be bended one times.

 Main Technical Parameter

Item  Model	SW38A	SW50A
Main Power(Kw)	5.5	7.5
Max. Steel, Tube O.D.(mm)	Φ38x1.8t	Φ50x2.0t
Max. Stainless Steel, Tube O.D.(mm)	Φ32x1.8	Φ48x2.5
Max. Bending Radius   (mm)	38-200	50-250
Center Distance between Two Shafts  (mm)	170-1700	170-1700
Max. Bending Angle   (°)	185	185
Bending-Pipes quantity once	Φ22x2	Φ25x2
Motor power for Hydraulic   (Mpa)	14	14
Gross Weight	1500	2500
Machine Dimension(cm)	270x126x132	350x150x190

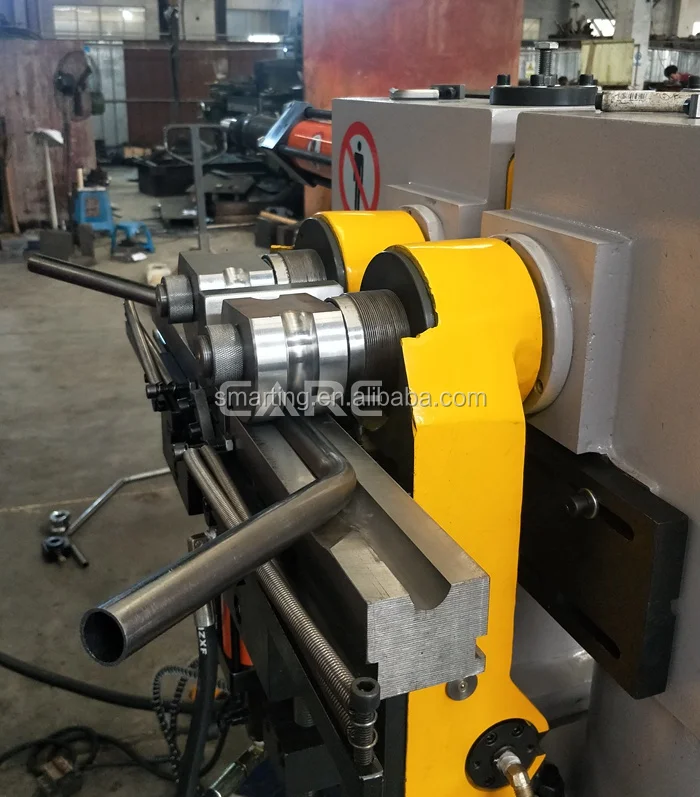

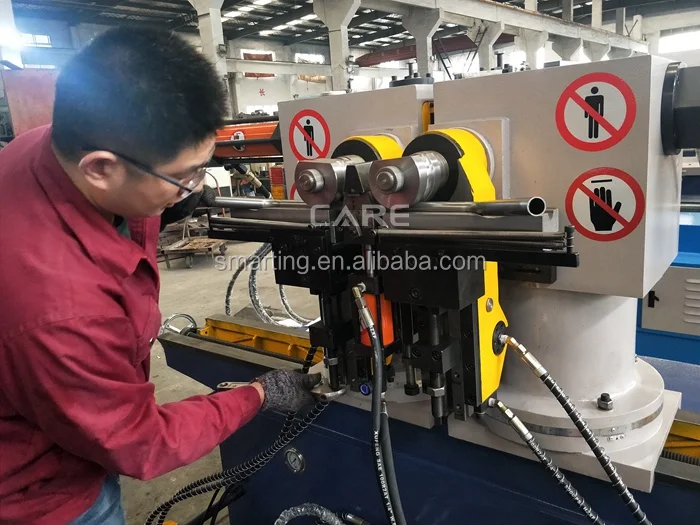

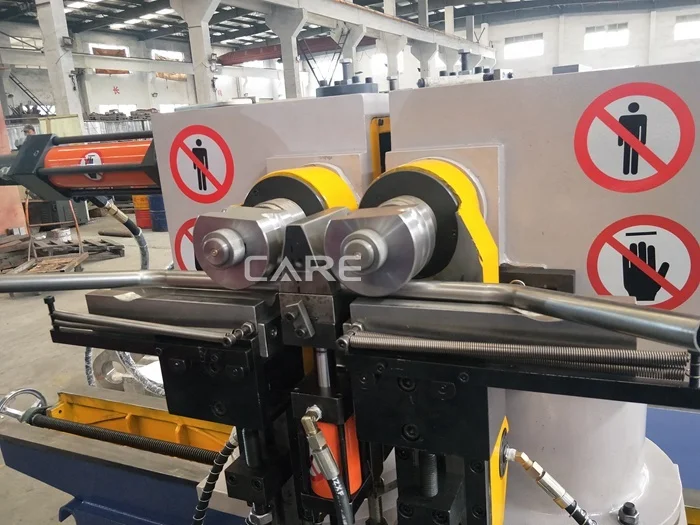

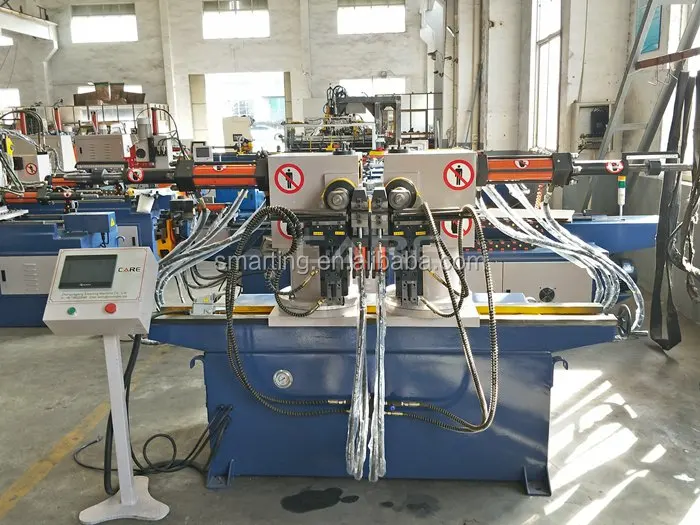

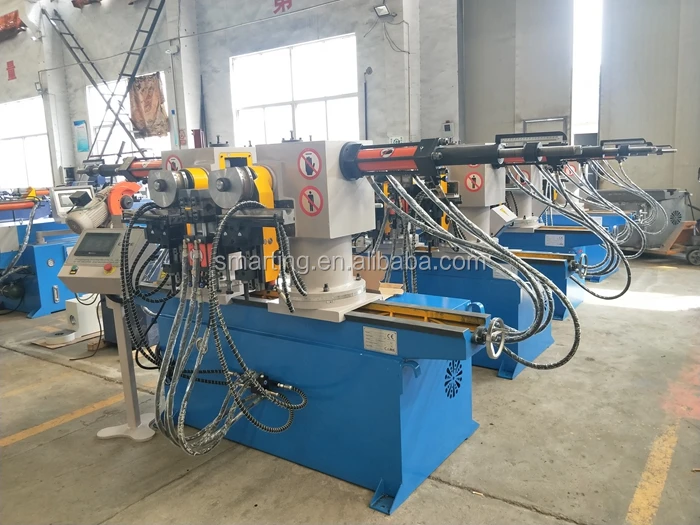

Machine photo

Main parts

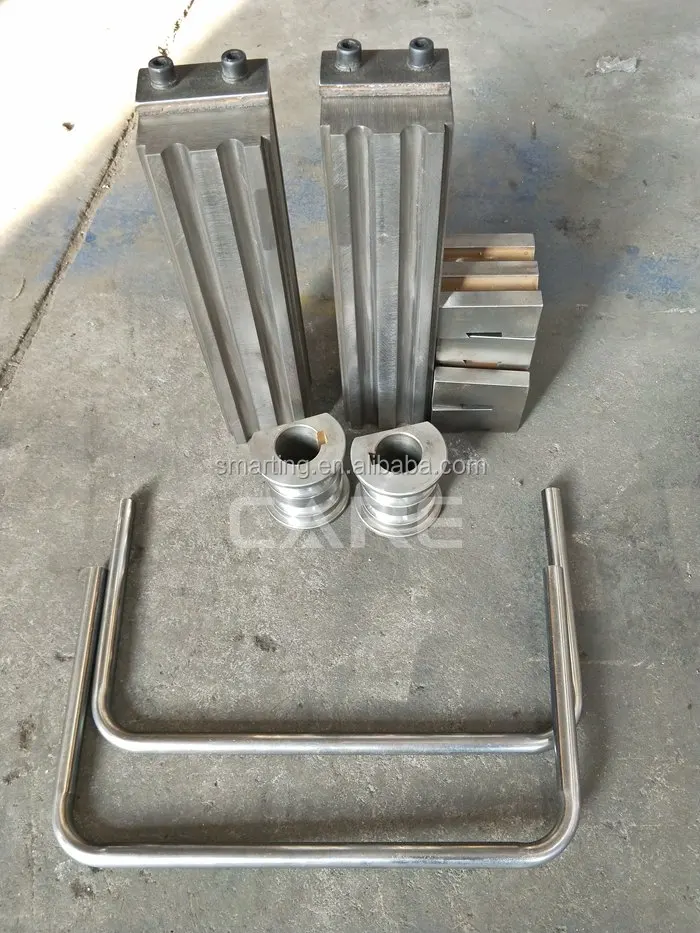

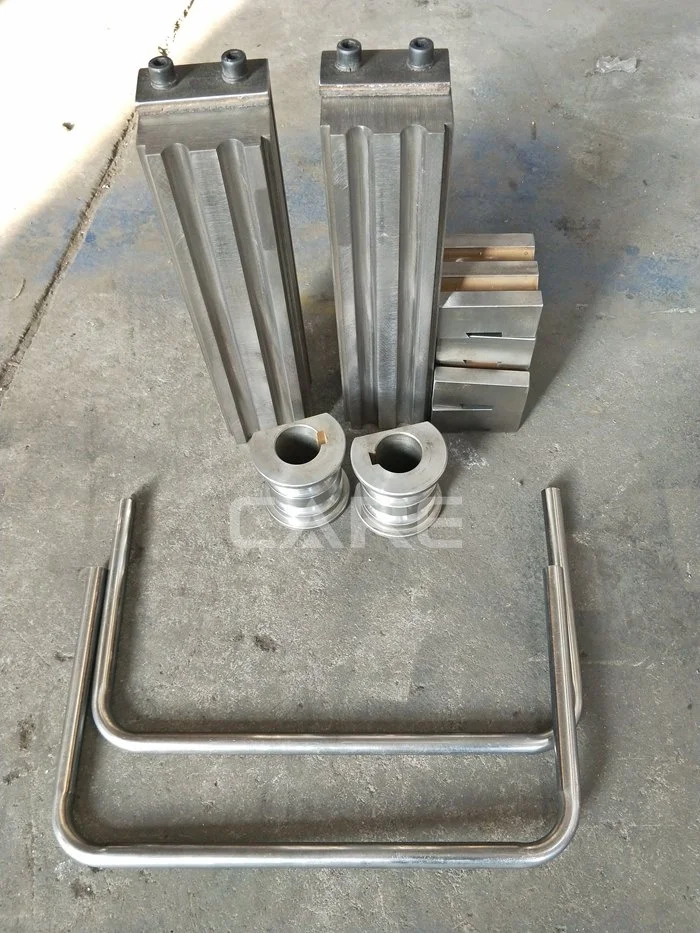

bending molds
