Price:4 200,00 $

Quantity:


Product Overview

Description



Product Description


Tractor Log Trailer With Crane


Note 1: ZM**** = TR*** + CR**

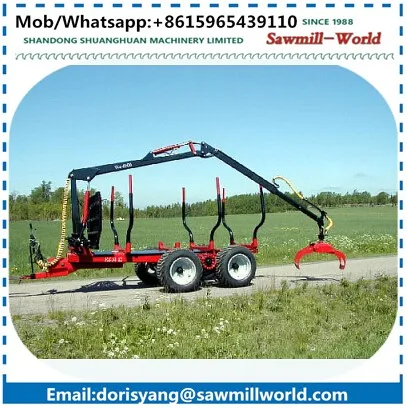

Log Trailer with Crane
1T
3T
5T
8T
10T
12T
Model
ZM1002
ZM3004
ZM5004
ZM8006
ZM10006
ZM12006
Matching Power
10-20 hp
20-50 hp
30-60 hp
50-80 hp
70-100 hp
80-140 hp
Machine Weight (kg)
1010
1790
2040
2750
3000
3200
Referenced Packing Dimensions/unit(mm)
3750×1200×900
4400×1500×1000
4500×1500×1050
5150×1850×1050
5900×1850×1050
5900×1950×1050



One：Trailer Section




Trailer Model
TR10
TR30
TR50
TR80
TR100
TR120
N/W of Trailer(Kg)
420
690
940
1450
1700
1900
Rated Loading Capacity
1T
3T
5T
8T
10T
12T
Loading Area
0.85m2
1m2
1.6m2
2.2m2
2.5m2
2.8m2
Total Length of Trailer
3.6m
5.1m
5.1m
5.9m
6.3m
6.3m
Trailer Loading Length
2.0m
3.1 m
3.1 m
3.7 m
4.3 m
4.3 m
Total Width of Trailer
1.4m
1.6 m
1.8 m
2.2 m
2.3 m
2.5 m
Dimensions of Trailer Frame
80x80x6 mm
140x140x6 mm
140x140x6 mm
160x160x6 mm
160x160x6 mm
160x160x6 mm
Assistant Hydraulic Steering
NO
Yes
Yes
Yes
Yes
Yes
Dia.of Traction Hole
33 mm
38 mm
38 mm
38 mm
38 mm
38 mm
Tire Model
6.00-13
7.0-16
8.25-16
400/60-15.5
400/60-15.5
400/60-15.5
No. of Tires
4
4
4
4
4
4
Referenced Packing Dimensions/unit(mm)
3750×860×560
4350×1330×720
4350×1390×750
5200×1550×1050
5900×1550×1050
5900×1550×1050
Options for Trailer Section：
1.Air Brakes of Rear Two Tires
2.Air Brakes of Four Tires


Two：Hydraulic Crane Section




Model
CR02
CR04
CR04
CR06
CR06
CR06
Weight of Crane (Kg)
590
1100
1100
1300
1300
1300
Max. Arm Reach
3.5m
4.3m
4.3m
6m
6m
6m
Lifting Capacity/Arm Reach(kg/m)
400/2,300/3,200/3.5
1280/2,760/3,
500/4,450/4.3
1280/2,760/3,
500/4,450/4.3
1280/2,760/3,
500/4,340/5,240/6
1280/2,760/3,
500/4,340/5,240/6
1280/2,760/3,
500/4,340/5,240/6
Rotating Angle
370°
400°
400°
400°
400°
400°
Max.Grab Opening Width（mm）
1140
1300
1300
1430
1430
1430
Grabbing Dia.of Logs（mm）
80～420
70～485
70～485
75～530
75～530
75～530
Rotator Load-bearing Capacity（Kg）
1000
3000
3000
3000
3000
3000
Referenced Packing Dimensions/unit(mm)
2280×1200×550
2800×1300×550
2800×1300×550
3700×1400×550
3700×1400×550
3700×1400×550
Options for Hydraulic Crane Section：
1. PTO Type
2. Diesel Engine Type
3. Gasoline Engine Type

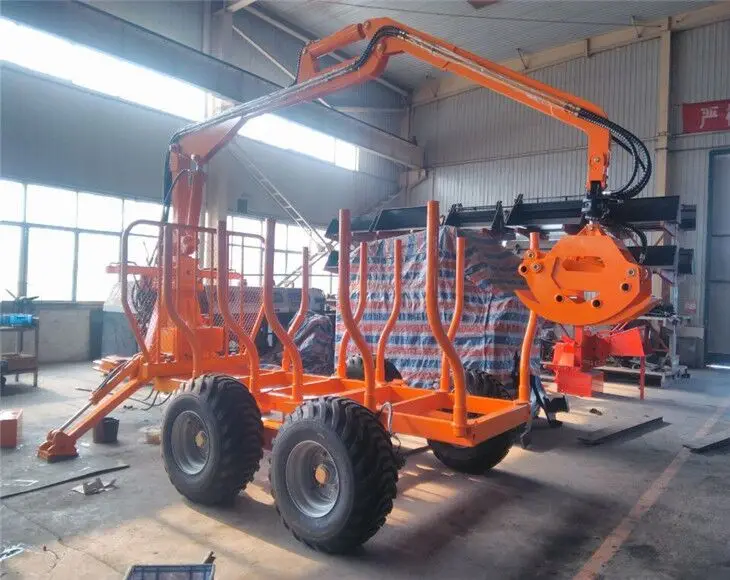

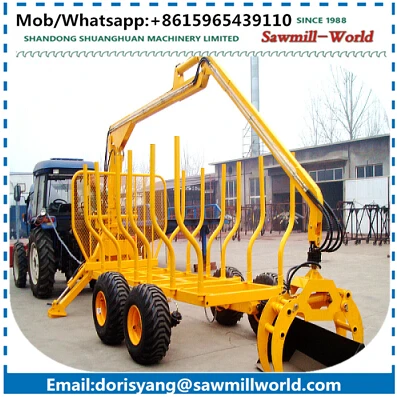

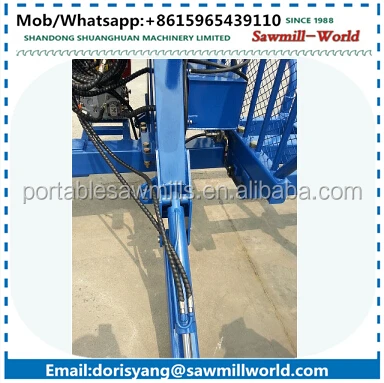

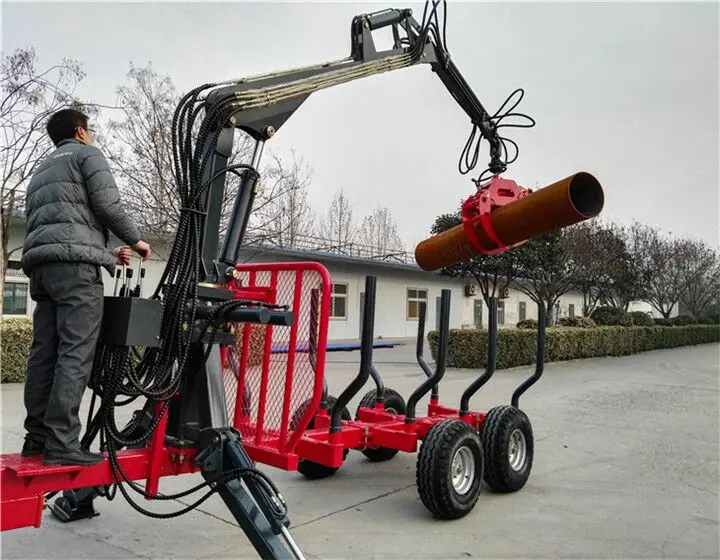

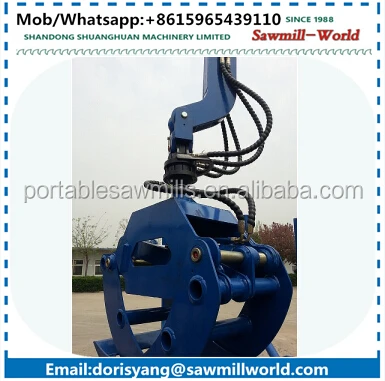

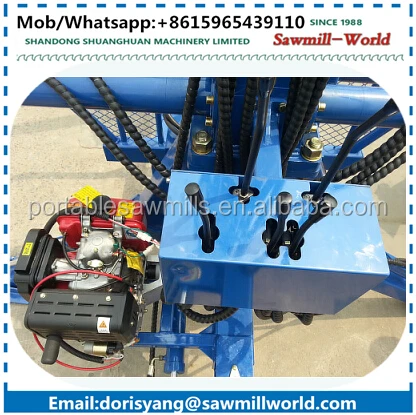

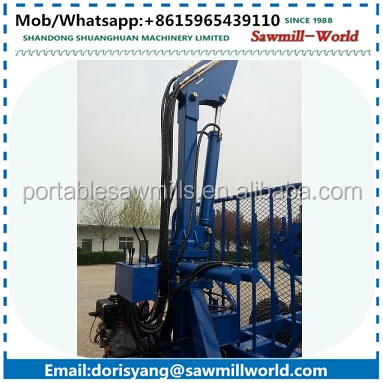

Detailed Images










Related Products

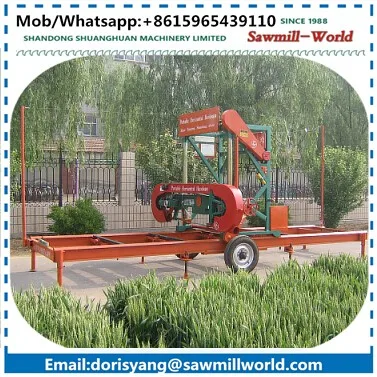

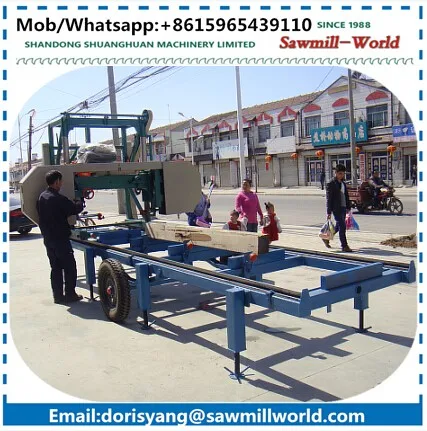

Mobile Horizontal Band Sawmill


Hydraulic going up and down

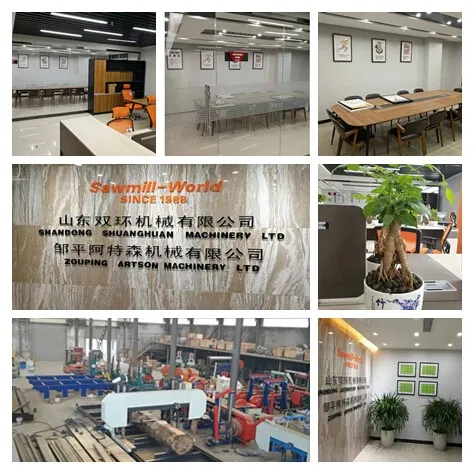

Our Company


Shandong Shuanghuan Machinery Limited


Establish in 1985, we specialize in research & development, production, sales of sawmills and the relevant fittings. Besides China, we have expended our footprints and business to over 60 countries and areas around the world.We invite worldwide distributors to join us and hope sincerely that our cooperation will bring a win-win development.

Honesty and utter dedication is who we are. Top-notch service is what we do. High-quality machines are what we provide to you. Sincerity, ethics and responsibility are what we believe in. We work towards one goal and one goal only your satisfaction and we will stick to out commitment amidst fierce competition.

Our machines are highly trusted in:
Africa:Angola,Cameroon,Ivory Coast,Congo,Ethiopia,Gabon,Ghana,Gambia,Kenya,Mauritius,Mozambique,
Nigeria,South Africa,Tanzania,Zambia,Zimbabwe,Togo.
Oceania:Australia,New Zealand,Papua New Guinea,Fiji,Vanuatu,Solomon,
America:Brazil,Ecuador,Guatemala,Honduras,Nicaragua,Panama,Peru,Suriname,USA
Asia:India,Sri Lanka,Thailand,Burma,Vietnam,South Korea,Malaysia,Philippine,Qatar,Oman,Jordan,Kuwait
Europe:Russia,Turkey,Italy,Bulgaria,UK,Finland,Cyprus,Estonia.
