New product stainless steel solar water tank all pressure integrated copper heat pipe heater
- Category: >>>
- Supplier: Shanghai Highshine International Trade Co. Ltd.
Share on (60677918775):
Product Overview
Description
all stainless steel pressure solar water heater
all stainless steel Integrative Pressurized heat pipe Solar Water Heaters

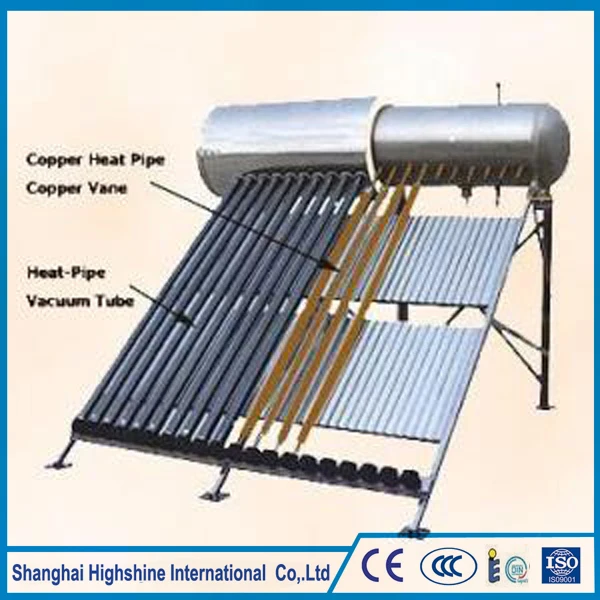

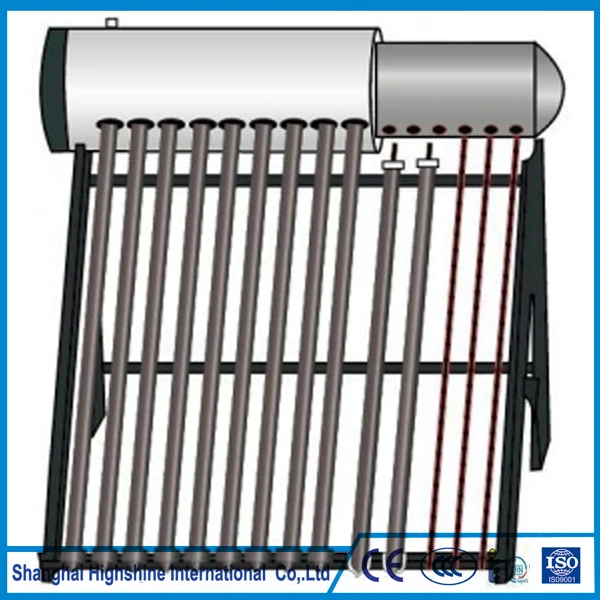

Integrative Pressurized Solar Water Heater compose of pressure solar tank, high performance vacuum tube with heat pipe and strong galvanized steel frame. The Vacuum tube absorbs solar energy, and conductive copper pipe(heat pipe) transfers the heat into the pressurized water tank. In this case, the water inside the tank becomes hot. With the design of no water inside vacuum tube, the system will keep work even one or more tube was broken by accident or in a freezing area.
Specifications ( We accept the custom-made according to your specificaitons)
| Storage Tank | Inner Tank | SUS304-2B food grade stainless steel( 1.5mm ) | |||||||
| Outer Tank | Galvanized steel 0.4mm white color | ||||||||
| Insulating Layer | Polyurethance Foam 50mm | ||||||||
| Inlet/outlet | 3/4 | ||||||||
| Vacuum Tube | Material of the glass tube | Borosilicate glass 3.3 | |||||||
| Absorptive Coating Grade | ALN/AIN-SS/CU | ||||||||
| Size | 58mm*1800mm | ||||||||
| Glass Thickness | 1.6mm | ||||||||
| Distance between two tubes | 75mm | ||||||||
| Tube holder | UV stabilized nylon | ||||||||
| Heat Pipe | Material | TU1 copper | |||||||
| Length | 1700mm | ||||||||
| Condenser material | TU1 copper | ||||||||
| Diameter | Condenser dia 14mm, body dia 8mm | ||||||||
| Contact sheets | Aluminum fin | ||||||||
| Frame | Material | Galvanized Steel | |||||||
| Thickness | 1.5mm | ||||||||
| Angle | 25 to 45 degree available | ||||||||
| Optional | Controller | SR609 | |||||||
| Electric Heater | 1500W /2000W | ||||||||
Technical Parameters
| Storage Tank | Pressure endurable | 6bars working pressure | |||||||
| Pressure test in factory | over 12bars | ||||||||
| P/T valve | Release pressure when pressure over 6bar or temperature over 99°C | ||||||||
| Magnesium bar | Check or change it every two years | ||||||||
| Vacuum Tube | Absorption coefficient | ≥ 94% | |||||||
| Emission coefficient | ≤ 7% | ||||||||
| vacuum (Pa) | <5*10-3 | ||||||||
| Hail resistance | 25mm diameter | ||||||||
| Heat Pipe | Start working | 30 degrees | |||||||
| Thermal conductivity | 2x104 to 1.6x106 W/(m.°C) | ||||||||
| Anti-freezing | Minus 30 °C | ||||||||
