TPE/TPR/TPU plastic parallel twin screw extruder machine
- Category: Plastic Extruders >>>
- Supplier: Jiangsu,Meizlon,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

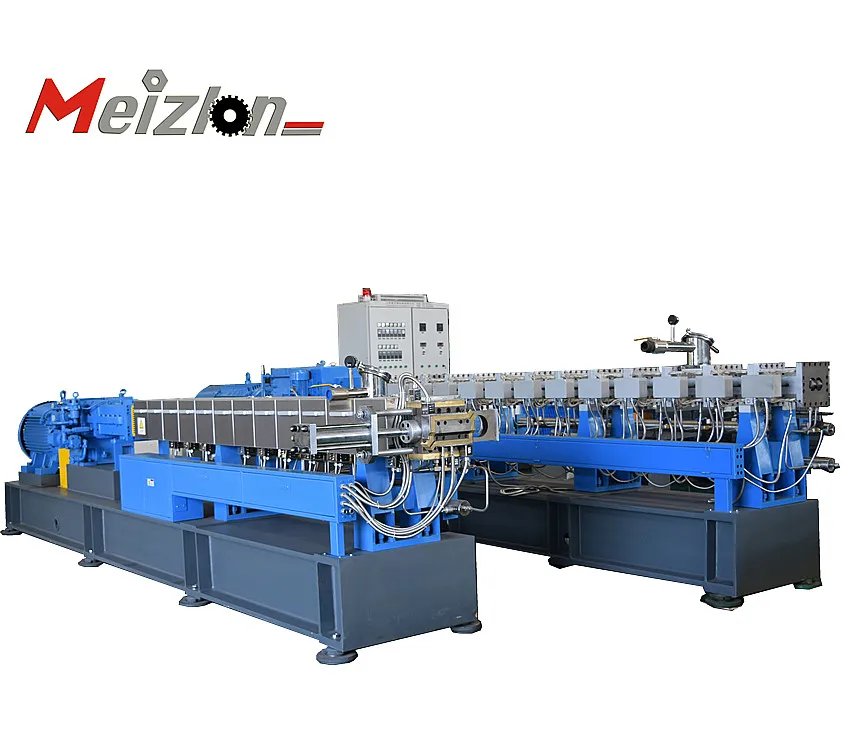

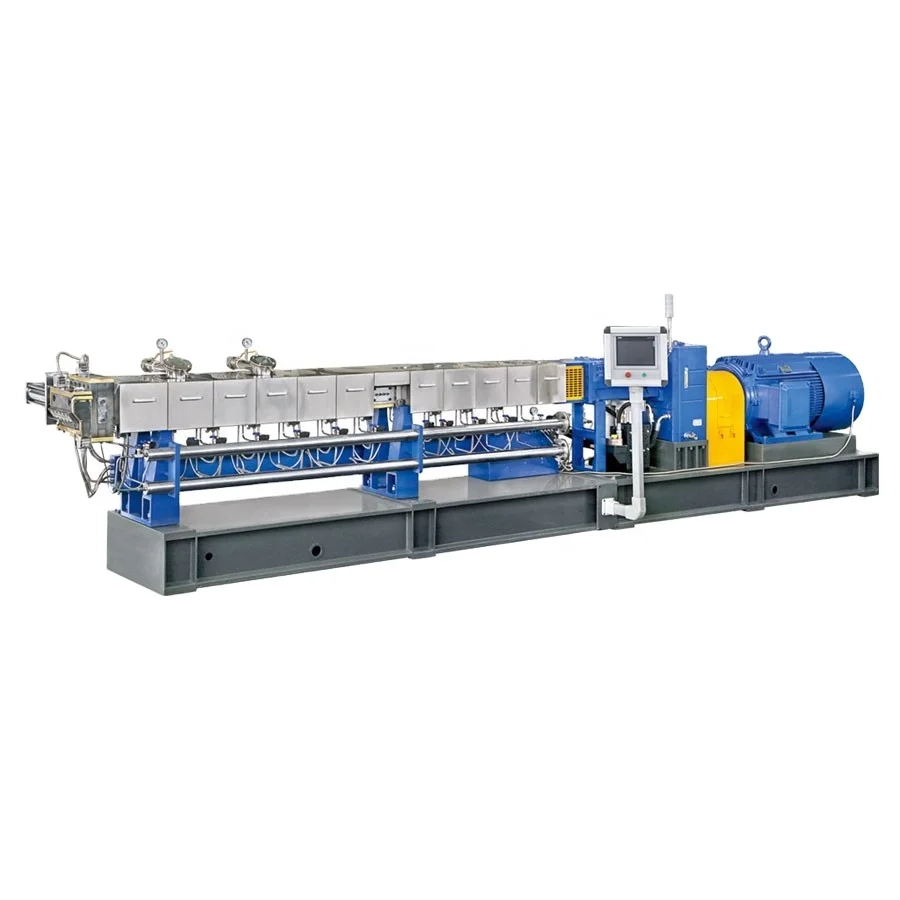

TPE/TPR/TPU plastic parallel twin screw extruder machine
 | >>Gearbox Reduction transmission: High torque gearbox |
 | >>Screw Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel. |
 |

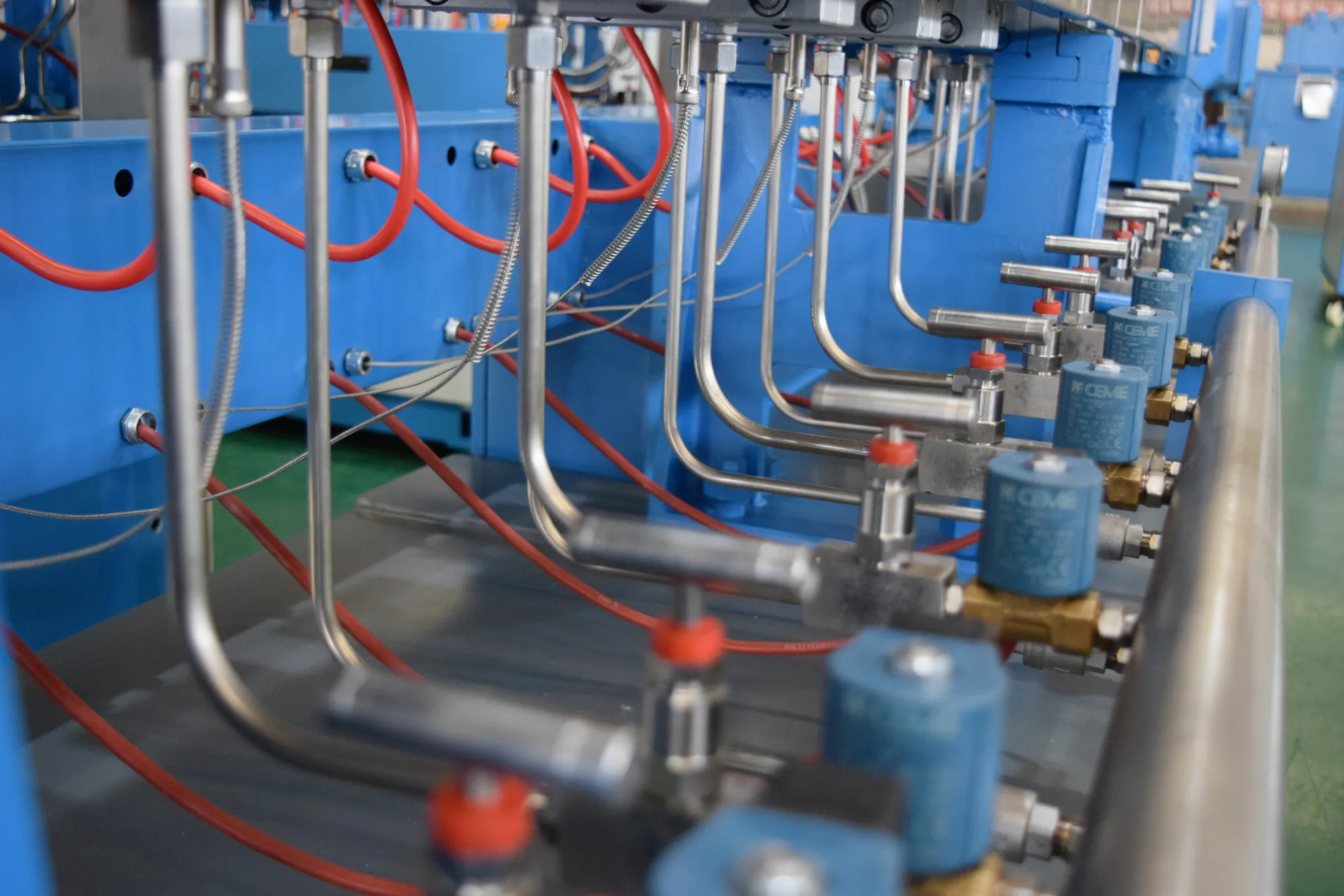

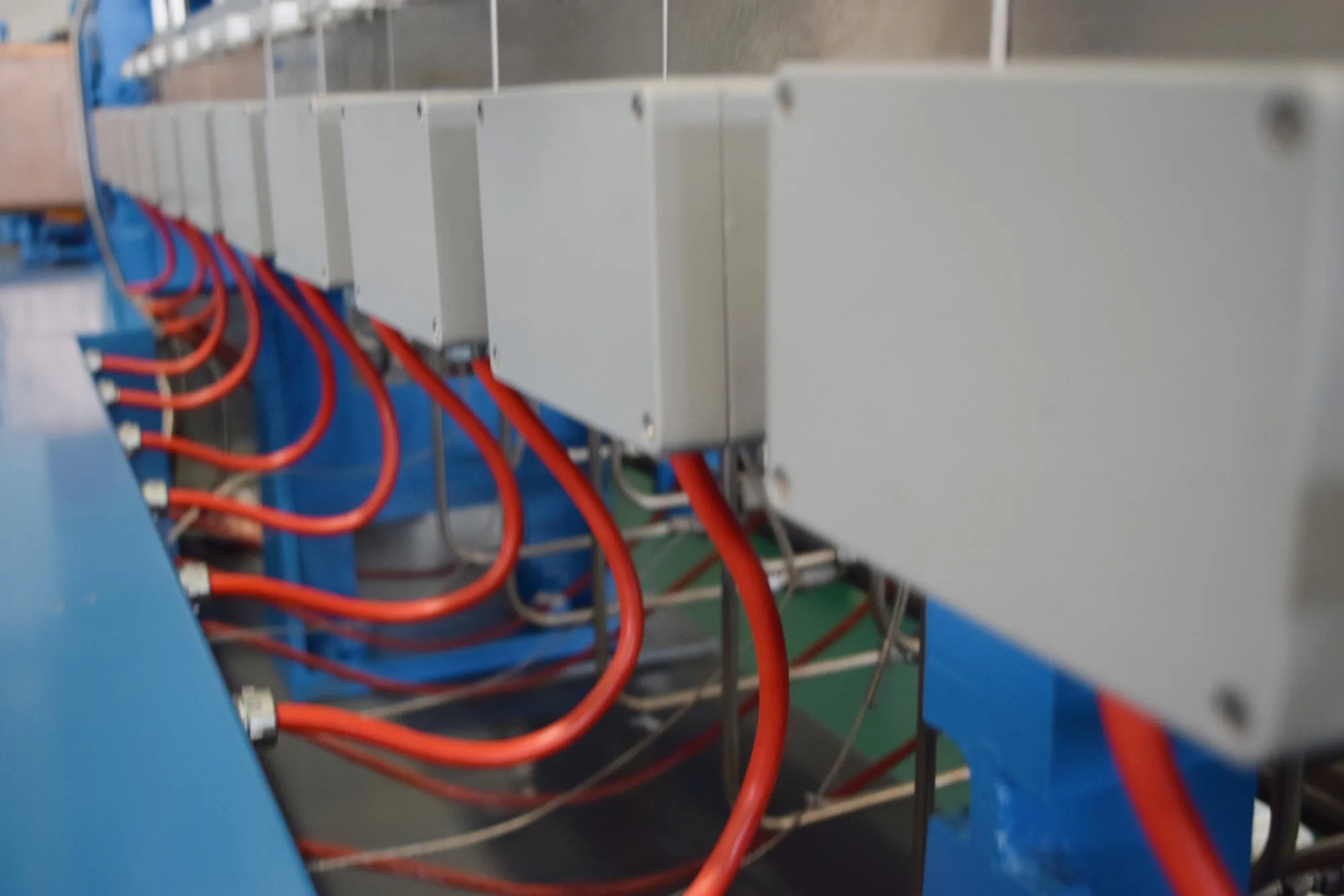

>>Barrel By means of the replaceable screw barrel sections, the processing sections is devided into individual zones. The barrels are heated electrically. In addition, the barrels are provided with longitudinal bores for cooling with water. Uniform temperature distribution, namely on the circumference of the eightshaped barrel bore, is achieved by a reverse forceflow temperature |
| Model Parameter | Screw Diameter (mm) | Groove depth (mm) | L/D | Motor power (KW) | Rotating speed (rpm/min) | Output (kg/h) |
| MT-20 | 21.7 | 3.85 | 28/60 | 4 | 600 | 5-15 |
| MT-26 | 25 | 4.1 | 28/60 | 5.5-10 | 600 | 10-40 |
| MTG-36 | 35.6 | 6 | 28-60 | 15-55 | 600 | 15-120 |
| MT-40 | 41 | 7 | 28-60 | 30-37 | 500/600 | 50-150 |
| MTG-52 | 51.4 | 9 | 28-60 | 55-160 | 500/600/900 | 150-350 |
| MT-60 | 60 | 10 | 28-60 | 45-75 | 400/500/600 | 100-300 |
| MT-65 | 62.4 | 11 | 28-60 | 55-90 | 400/500/600 | 150-400 |
| MT-75 | 71 | 12 | 28-60 | 110-250 | 400/500/600 | 250-800 |
| MT-95 | 92 | 16.3 | 28-60 | 200-315 | 400/500/600 | 650-1500 |
| MT-135 | 133 | 23.5 | 28-48 | 600 | 300/400 | 1500-3000 |
Application:
Suitable for reinforcement modification,filling modification,masterbatch and pigment blending pelletizing of most macromolecule material such as TPR, TPE, TPV, PP,PE,PET,PS,ABS,PC,PA,POM,EVA,PMMA and PPS.This system features simple structure and convenient operation &maintenance.
Application for plastic
Packaging & Shipping
Company Information
Our Services
| Pre-sales service |
| ♦1.Introducing in detail features and application of the products to customer. ♦2.Selecting economical and practical machine & equipment for customer. ♦3.Providing operation data of the related machine & equipment. ♦4.Providing means of trial performance for customer. |
| Sales service |
| ♦1.Recommending engineering conditions required for installation if the machine & equipment. ♦2.Communicating in time the manufacturing progress of the machine with user. ♦3.Providing assistance in technical conditions ,screw combination and barrel disposition needed for product. |
| After-sales service |
| ♦1.Providing on-the-spot technical assistance in installation,commissioning and training. ♦2.Filing in detail customer’s information. ♦3.Providing long-term maintenance service and spare parts. ♦4.Giving technical support to customer for developing new product. ♦5.Providing free maintenance for a year. |
