High Quality VHF UHF Low Noise Amplifier Module
- Category: >>>
- Supplier: Shenzhen Xinlun Communication Technology Co. Limited
Share on (60677997401):
Product Overview
Description
Product Description

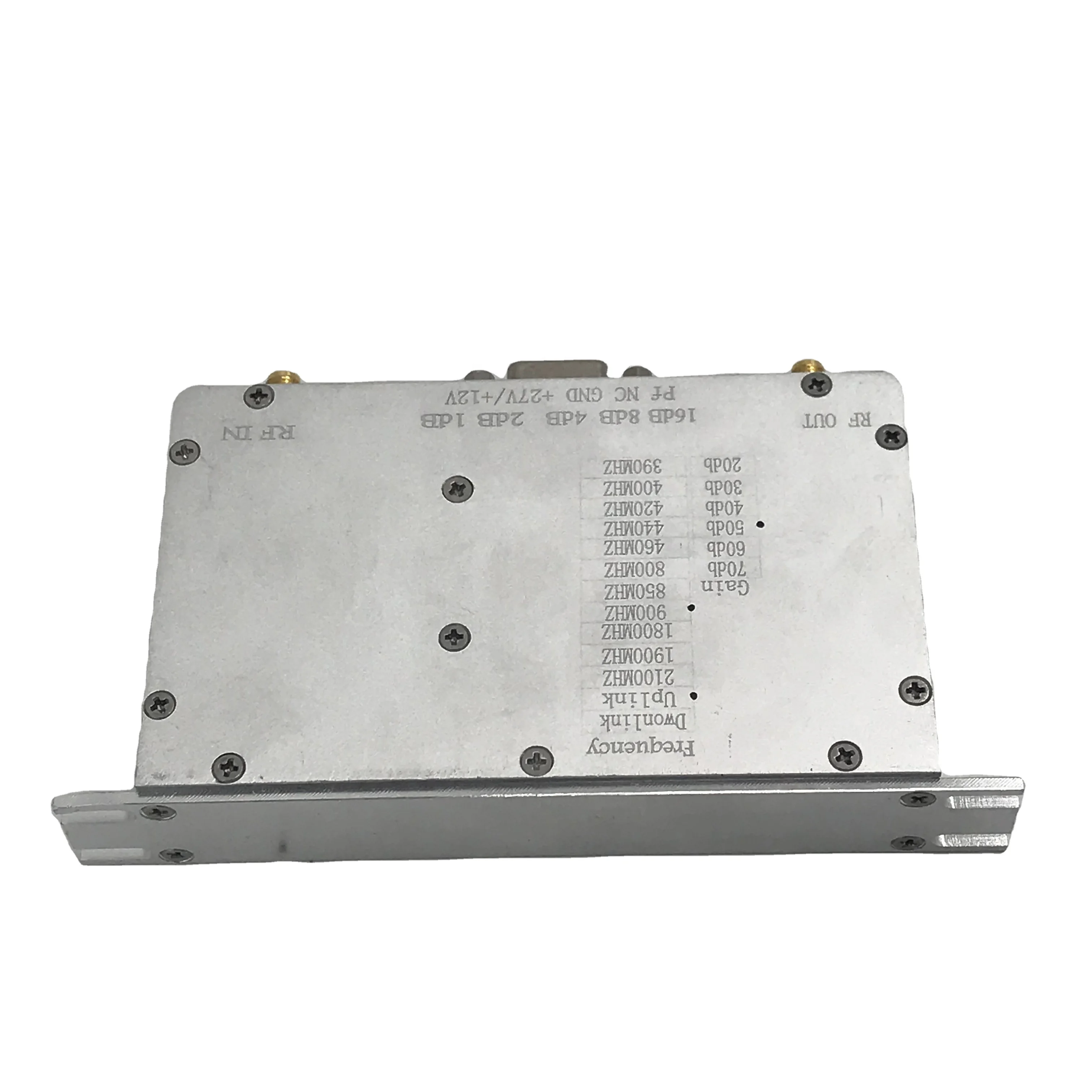

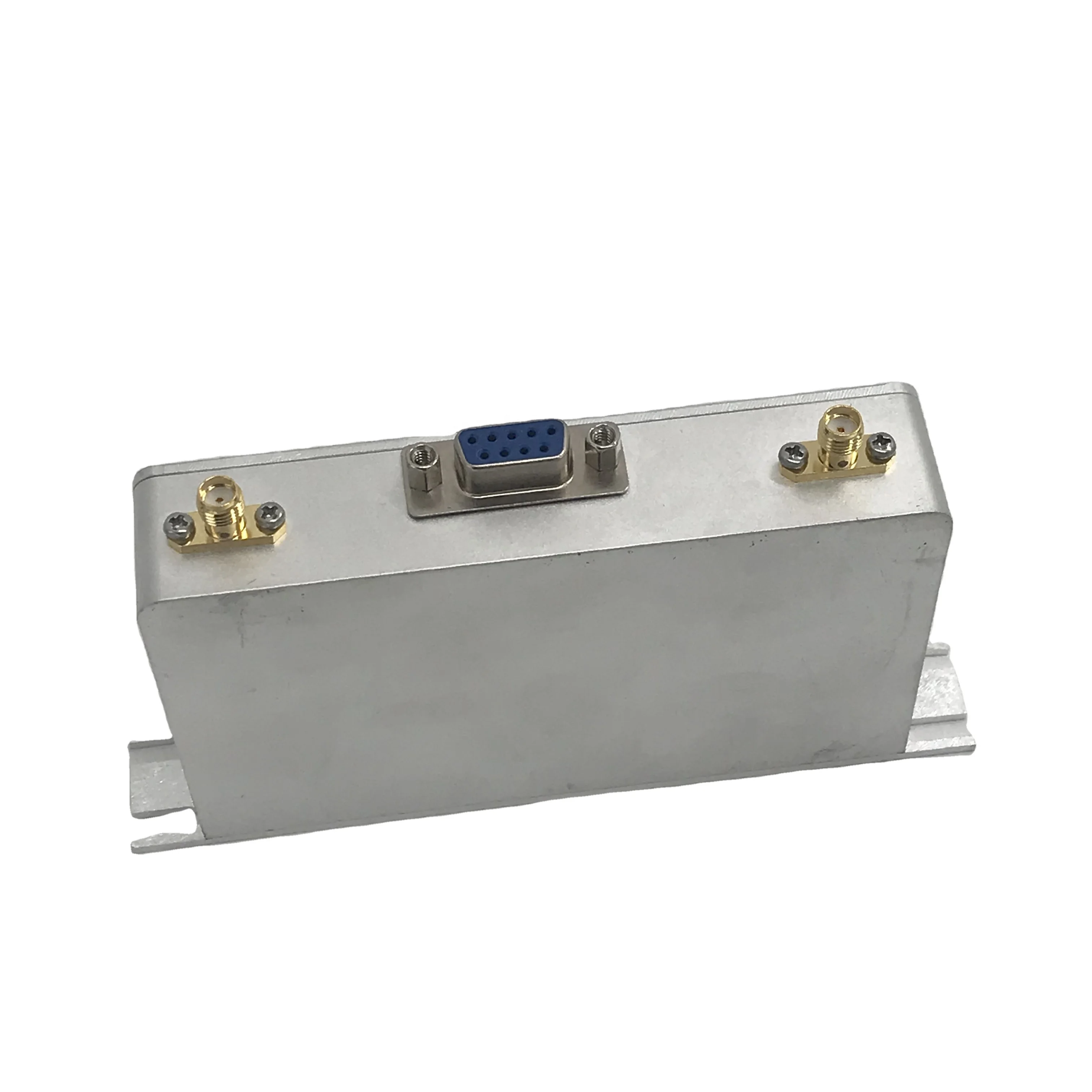

VHF UHF Low Noise Amplifier Module
Specifications
Parameters | ||
Frequency Range | 136MHz~174MHz | |
330MHz~400MHz | ||
400MHz~520MHz | ||
Output Power | 15±1dBm | |
Gain | 20±1dB | |
Gain Modulation Range | 15dB | |
Gain Modulation Step | 1dB | |
Gain Modulation Error | Error≤1.0dB | |
IMD | ≤-45dBc | |
Automatic Level Control(ALC) | Output power variation < 1dB, when adding 10dB at max output power. | |
Pass Band Ripple | ≤2.0dB | |
VSWR | ≤1.4 | |
Time Delay | ≤1.0μs | |
Noise Figure | ≤1.5dB | |
Spurious Emissions(Non harmonic) | In-band | ≤-36dBm/30kHz |
Out-band | 9kHz ~150kHz:≤-36dBm/1kHz | |
150kHz ~ 30MHz: ≤-36dBm/10kHz | ||
30MHz ~ 1GHz: ≤-36dBm/100kHz | ||
1GHz~12.75GHz:≤-30dBm/1MHz | ||
Power Supply Mode | DC9V~17V | |
Operation Current | ≤300mA | |
Monitoring | RS485, Baud rate:9600 | |
RF Connection Mode | SMA/F,50Ω | |
DC&Monitoring Connector | DB15/M | |
Operation Temperature | -25℃ ~ +70℃ | |
Storage Temperature | -40℃ ~ +85℃ | |
Humidity | ≤95% | |
Dimension | 100*70*23mm(L*W*H) | |
Weight | ≤0.5kg | |
MTBF | ≥100000h | |
Related Products
Our company mainly produce cavity duplexers,power splitters,directional couplers,
cavity filters,TX combiners,RX multicouplers,dummy loads,RF isolators,tetra repeaters,dmr repeaters,bi directional amplifiers,band selective repeaters,fiber optic repeaters,power amplifiers and so on.
Packaging & Shipping
1.Packaging:paper box;
2.Delivery time: shipped within 3~10days after payment;
3.Payment ways:TT,Western Union,PayPal,Alibaba trade assurance etc;
4.Shipping ways:DHL/FEDEX/EMS/UPS/TNT etc.
Our Services
1.Your inquiry related to our products or prices will be replied in 24hours;
2.Well-trained and experienced staffs to answer all your inquiries in fluent English;
3.Monthly output over 2000pcs;
4.Strong package;
5. Sample order in small quantity is acceptable;
