    The term BALUN (pronounced "bal-un") is derived from the function of the passive device that converts between a BALanced and UNbalanced electrical signal. Common types of baluns convert 100 Ohm twisted pair (balanced) to 75 Ohm coaxial (unbalanced).



      HT BALUN-1/16/24-XX-XX family 75 to 120 Ohm BALUN provide IDC-BALUN, single port Box BALUN, 8/16/24 ports 19 inch Rack Mount BALUN.



    HWATEL Balance-Unbalance converter totally comply with EUROPE USA standard. And OEM for many Europe, USA, Japan and Taiwan partner, such as CISCO, Alcatel (Shanghai), HUAWEI, ZTE, UT-starcom, Fiberhome, D-link, ADC, CTC, NEC, Comtech, advantech.







     More HWATEL provide compatible accessory which connect between BALUN and DDF , such as CISCO, HUAWEI, ZTE standard E1 Coaxial Cable patch cord, T type DDF connector , E1 cable.

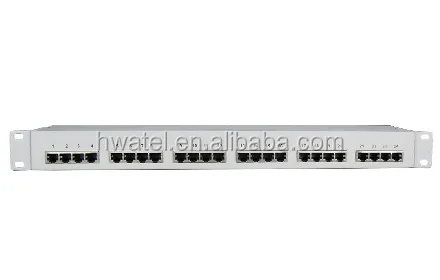

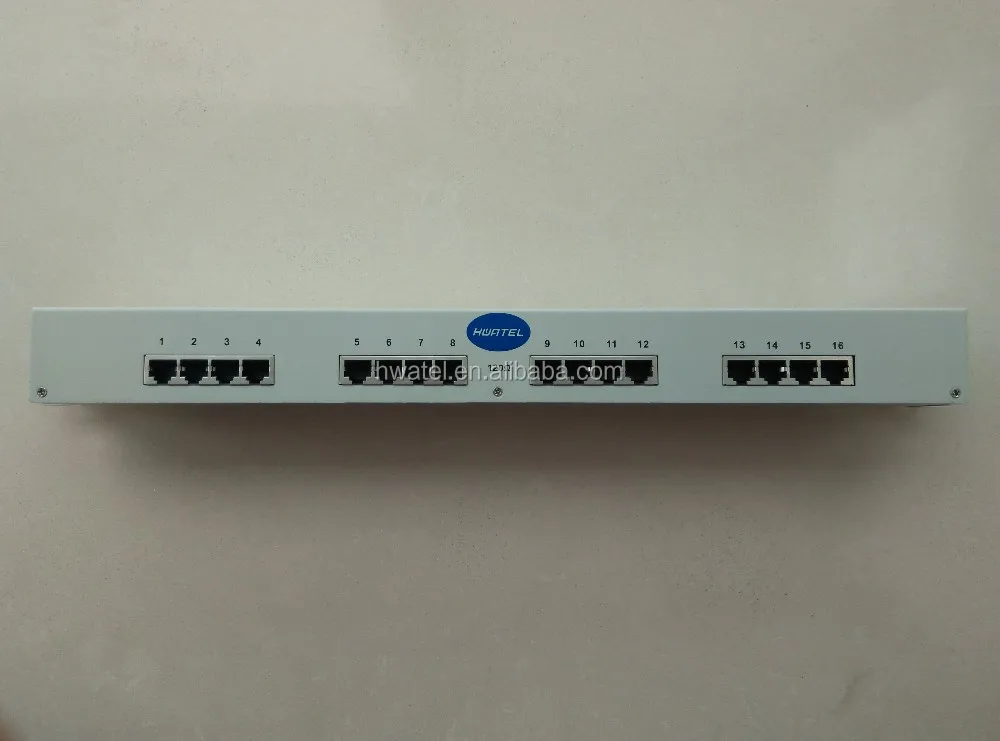

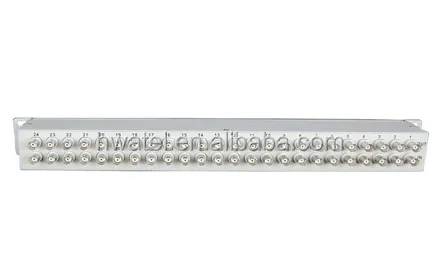

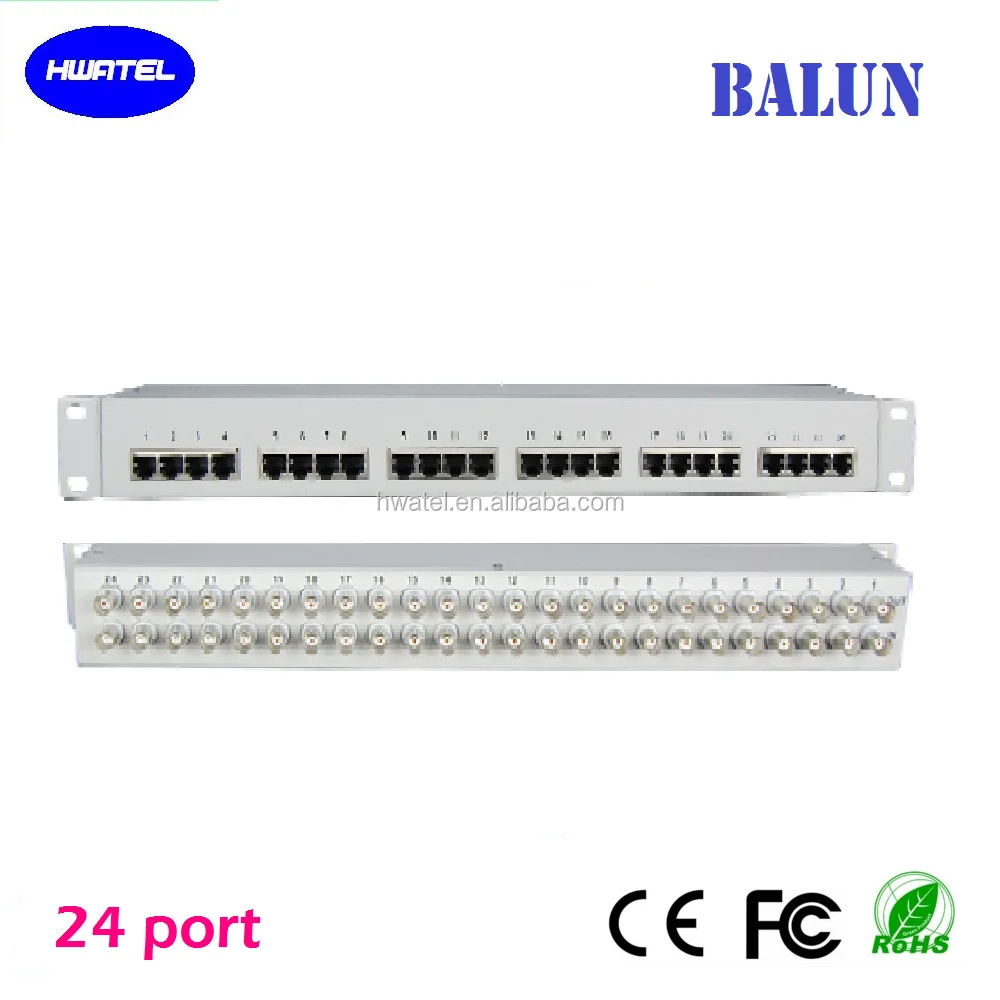

HT BALUN-24

E1 BNC to RJ45 BALUN Converter



       HT Balun-XXXX family 75 to 120 Ohm BALUN provide mini-BALUN, single port Box BALUN, 8/16/24 ports 19 inch Rack Mount BALUN.

     HWATEL Balance-Unbalance converter totally comply with EUROPE USA standard. And OEM for many Europe, USA, Japan and Taiwan partner.



Feature

• Bi-Directional Signal Conversion
• No AC Power or Batteries Needed
• Male or Female Coax BNC Connectors Available
• Ultra-Miniature Enclosure

Technical Specification

Ÿ   Electronic specification

Matching Impedance: 75 ohm unbalanced coaxial to 120 ohm balanced twisted pair

Bit Rates: 2Mbit/s and 8Mbit/s as per G.703

Return Loss 2Mbit/s and 8Mbit/s as per G.703 requirements

Insertion Loss: <0.2dB for 2Mbit/s service(51kHz to 3MHz), <0.3dB for 8Mbit/s service(211kHz to 10MHz)

Cross Talk: >60dB from 51kHz to 10MHz between two channels

Pulse Shape: 2Mbit/s and 8Mbit/s as per G.703



Ÿ   Material

Coax Connector Body: Brass. Finish Cu/Ni

Coax Connector Insulator : PYFE

Coax Connector Inner Contact : Female, CuPh. Finish Cu/Ni/Au

Plastic Enclosure: Steel Dark Blue/Black

RJ45 Contacts: CuPh. Finish Cu/Ni/Au



Ÿ   RJ45 Connector:

Shielded,8 Position,8 Contacts

PIN 1: TX+ , Sending Data +

PIN 2: TX+ , Sending Data –

PIN 4: RX+      Receiving Data +

PIN 5: RX- Receiving Data -



Ÿ   Mechanical & Environment Parameter:

Working Temperature -30 to 75

Dimension: 66*41*21 mm not include connector

Dimension: 79*41*21 mm include connector



Application

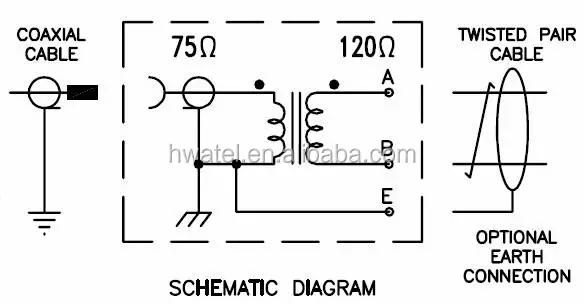

BALUN Schematic diagram



Ordering Info

•  Balun-24-BNC-RJ45: 24 ports 19 inch Rack Balun with BNC female Connector and RJ45/48 connector
• Balun-24-BNC-RJ45-2U: 24 ports 19 inch Rack Balun with BNC female Connector and RJ45/48 connector
• Balun-16-BNC-RJ45: 16 6ports 19 inch Rack Balun with BNC female Connector and RJ45/48 connector
• Balun-1-BNCf-RJ45: Box style Balun with BNC female connector and RJ45/48 connector
• Balun-1-BNCm-RJ45: Box style Balun with BNC male connector and RJ45/48 connector
• Balun-1-1.6/5.6m-RJ45: Box style Balun with 1.6/5.6 male (Siemenz) connector and RJ45/48
• Balun-1-BT43m-RJ45: Box style Balun with Bt43 male connector and RJ45/48 connector
• Balun-1-PT-1.6/5.6m-RJ45: pigtail style Balun with 1.6/5.6 male (Siemenz) connector and RJ45/48 connector
• Balun-1-1.6/5.6f-IDC: Balun with 1.6/5.6 female(Siemenz) connector and Krone IDC style termination
• Balun-1-1.6/5.6m-IDC: Balun with 1.6/5.6 male(Siemenz) connector and Krone IDC style termination
• Balun-1-1.2/2.3f-IDC: Balun with 1.2/2.3 female(CC4) and Krone IDC style termination
• Balun-1-1.0/2.3m-IDC: Balun with 1.2/2.3 female and Krone IDC style termination
• Balun-1-BNCf-IDC: Balun with BNC female and Krone IDC style termination
• Balun-1-BNCm-IDC: Balun with BNC male and Krone IDC style termination
• Balun-1-SMA-IDC: Balun with SMA female and Krone IDC style termination
• Balun-1-BT43f-IDC: Balun with BT43 female connector and Krone IDC style termination
• Balun-1-BT43m-IDC: Balun with BT43 male connector and Krone IDC style termination
• Balun-8-BNC-RJ45: 8 ports 19 inch Rack Balun with BNC female Connector and RJ45/48 connector
