truck mounted portable borehole water well drilling rig machine

Product Overview

Description

truck mounted portable borehole water well drilling rig machine



Water wells multi-function rig is a crawler type, high efficiency and multifunction of drill hole equipment,

it is mainly suitable for drilling Wells, geothermal air-conditioning hole and other USES.



2, feature of portable drilling machine :



1,The drill can work in different formation to create depth of 200 m.

2,The rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with

high torque and big diameter hydraulic oil cylinder, a factory engine to provide power for hydraulic

system, two levels of intake air filter and air compressor design, prolong the service life of diesel

engine.

3,Unique pump group design and convenient maintenance, reduce the maintenance cost.

4,Centralized control of the hydraulic control console, convenient operation.

5,This drill adopts engineering machinery dedicated crawler chassis, cross-country

performance is strong.

6,Independent module design, can make the drilling rig is installed on the truck, to increase

its mobility.

7,Combined the locator, but according to different types of drill pipe and is adjusting the

positioning tray, guarantee the positioning centering accurate and reliable.



3,parameter of portable drilling machine :





Water Well Drill KW20
Model	KW20
Dia.hole	Φ115-254
Drilling depth	200m
Air consumption	16-30m3/min
Working pressure	10.5-24.6bar
Ground clearance	280mm
Support cylinder stroke	1000mm
Feed cylinder stroke	2400mm
Feed power	45000N
Lift power	95000N
Speed of rotator	60-105rpm
Rotation torque	4000N.m
Climb capacity	25°
Traveling speed	0-2.5 Km/h
Weight	8500kg
Dimension	5100x2300x2850
Recommended compressor	LGCY-21/20
	LGCY-26/20
Engine
Engine model	YC6B125-K10
power	92KW/122HP
Rotation speed	2200rpm
Drilling components
Hammer	DHD360(DTH380)
Dia. Of  rod	Φ89mm
Length of rod	3m
Dia. Of bit	Φ115-254mm

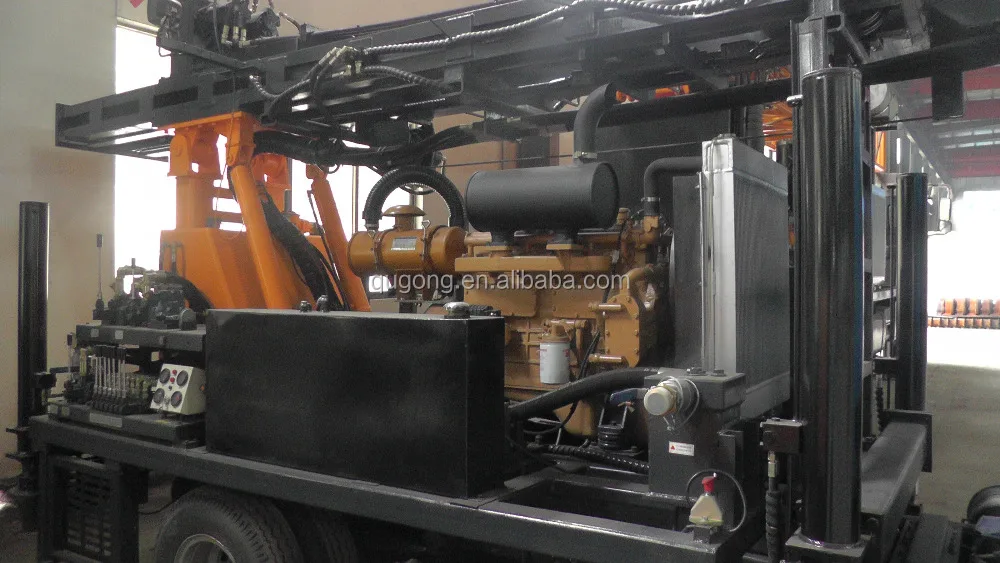

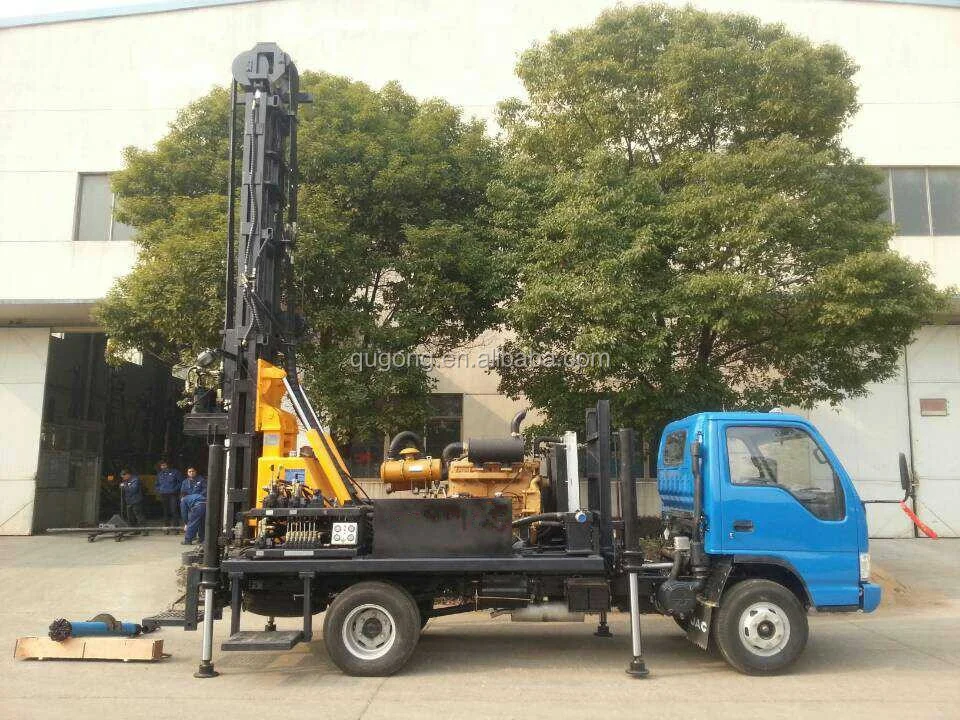

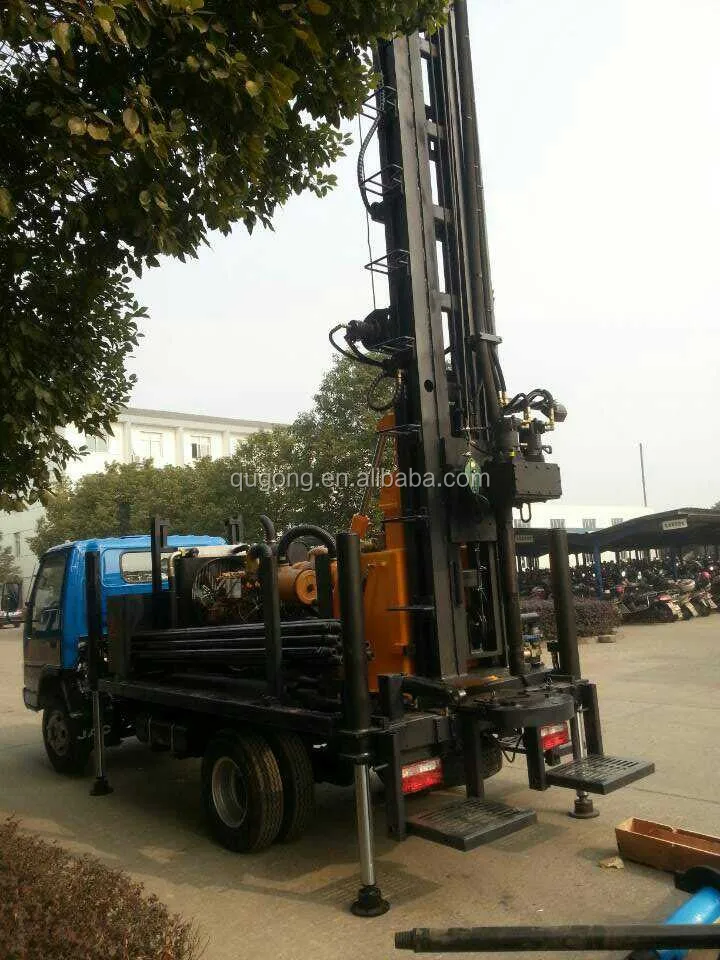

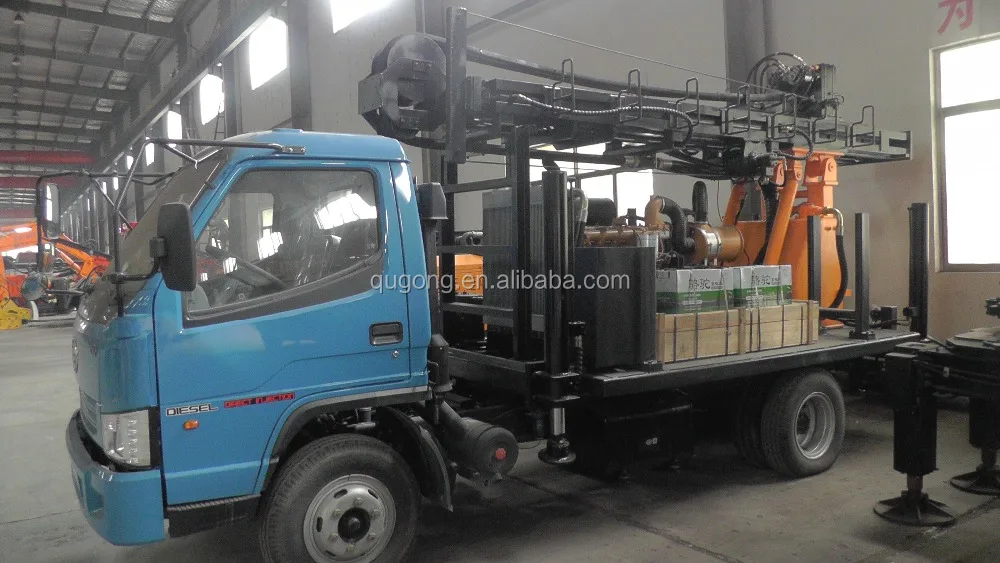

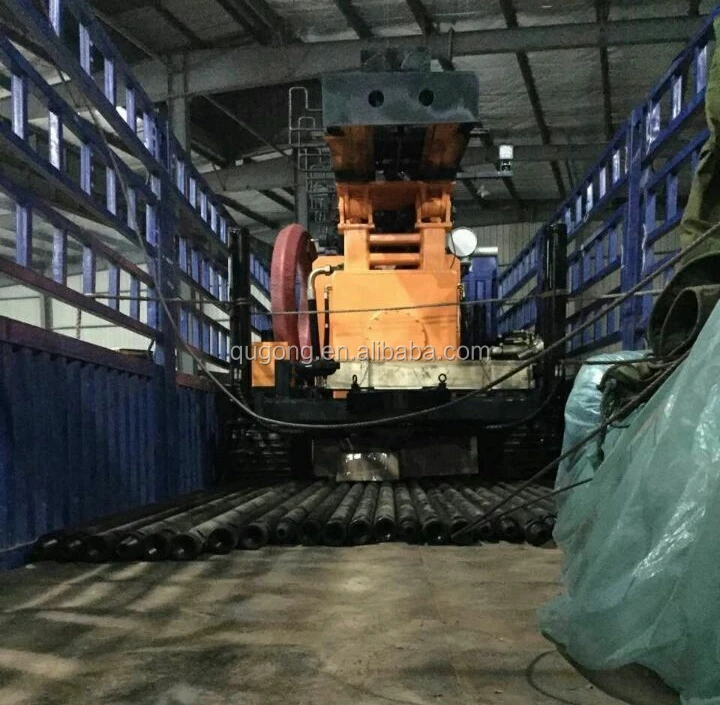

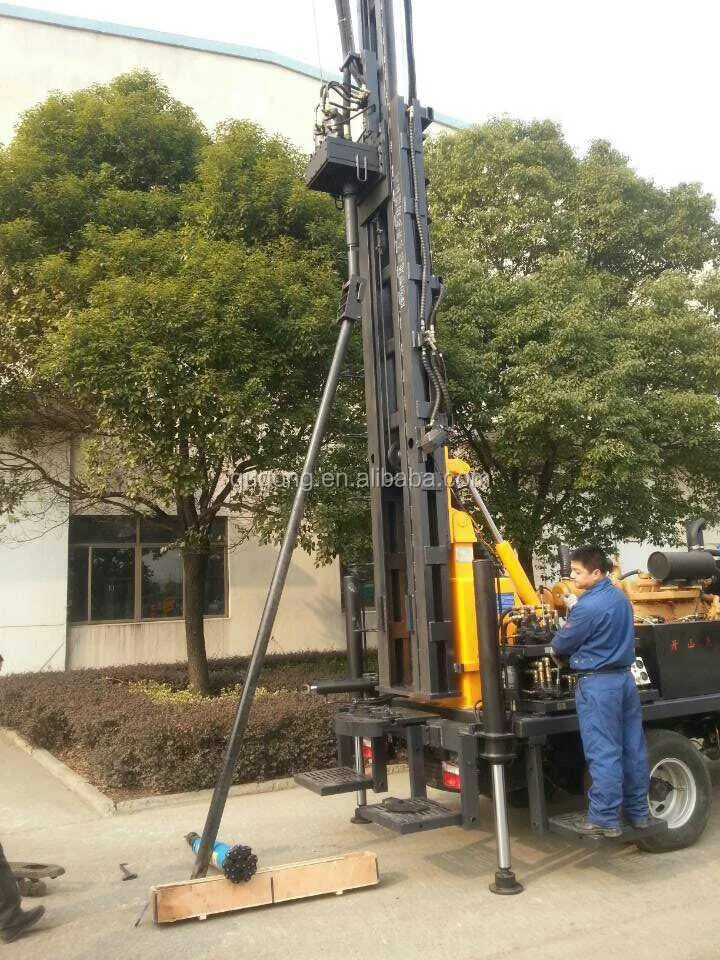

photos of portable drilling machine:

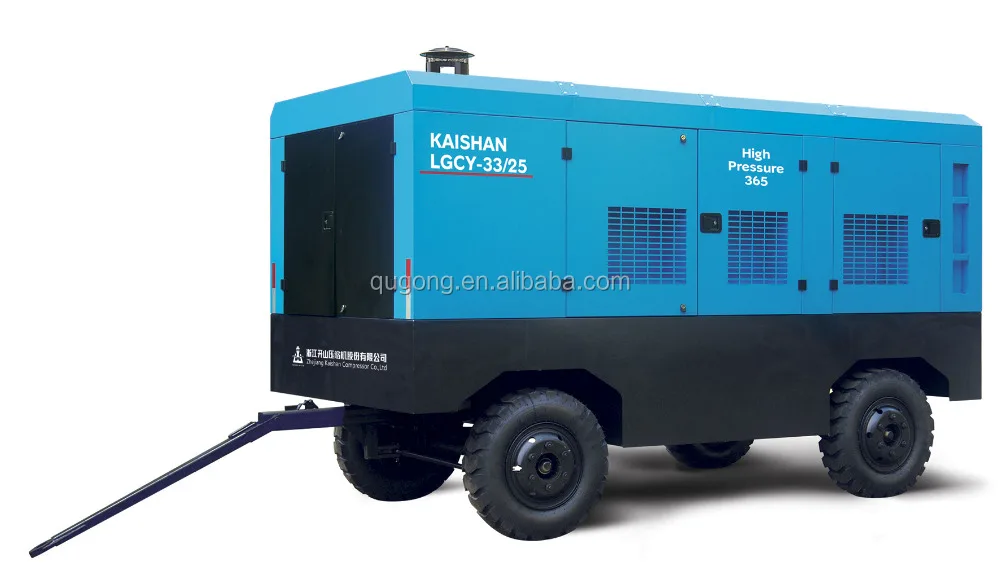

 suitable air compressor for portable drilling machine :



working pressure:25bar

capacity:33m3/min

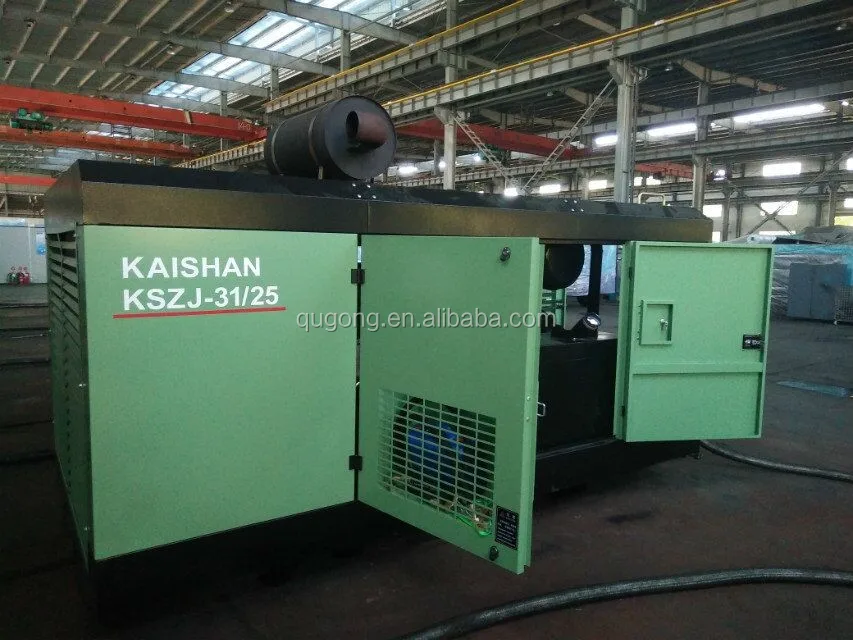

cheap portable drilling machine air compressor



working pressure:25bar

capacity:31m3/min
