Hydraulic DC Bi directional Motor 12V 1.5KW
- Category: >>>
- Supplier: Wuxi Jinle Automobile Motor Factory
Share on (60678060680):
Product Overview
Description

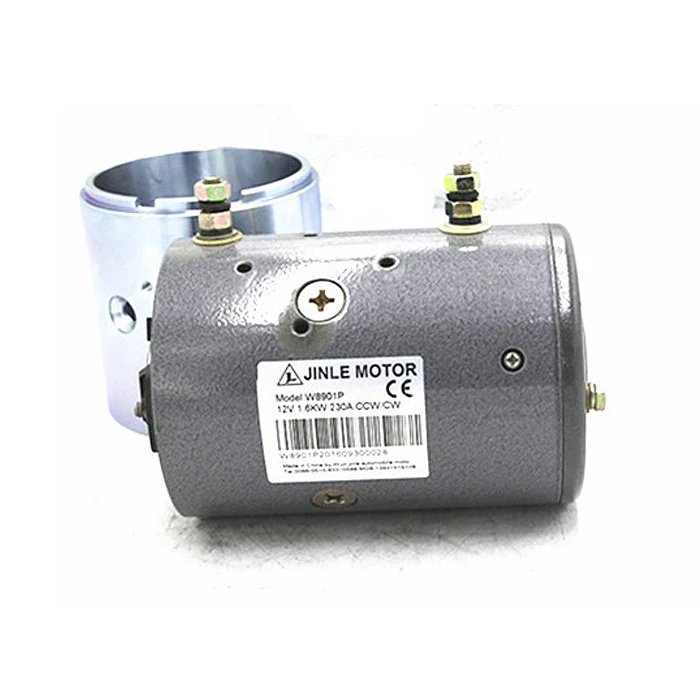

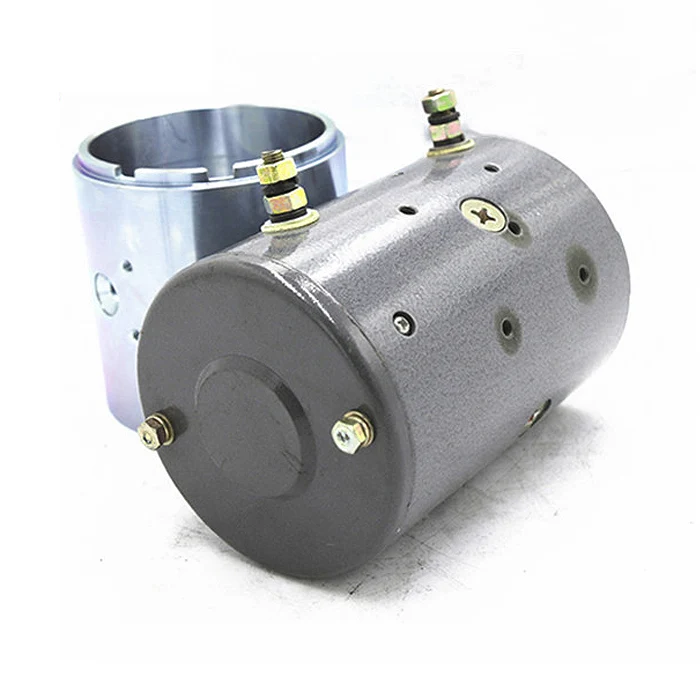

Hydraulic DC Bi-directional Motor 12V 1.5KW
Product Description
Our Jinle hydraulic DC Motors are widely used in forklift lifting, van tail board, wing plate and hydraulic power unit equipment etc. Consists of stator, 100% copper wire armature, commutor and carbon brush etc.
Specifications of Hydraulic DC Bi-directional Motor 12V 1.5KW
Model: W8901P
Material: 100% copper wire armature
Voltage: 12V
Power: 1500W
Speed: 2220rpm
Rotation: Bi-directional
O.D: 114mm

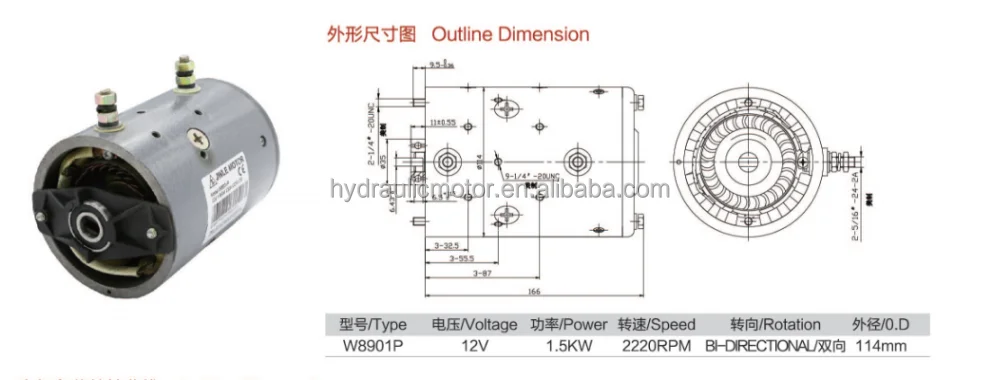

Outline Dimension of Hydraulic DC Bi-directional Motor 12V 1.5KW

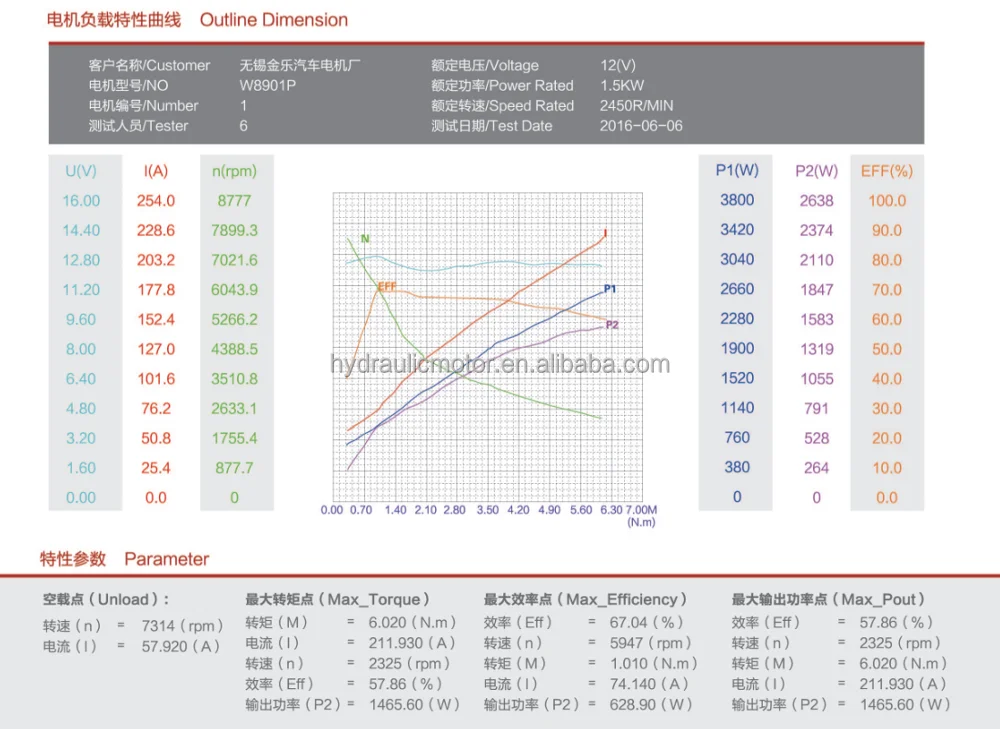

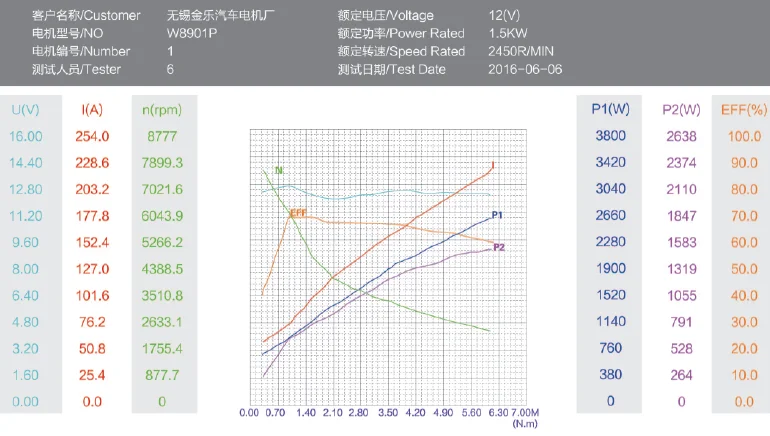

Motor Load Characteristic Curve of Hydraulic DC Bi-directional Motor 12V 1.5KW
Parameter of Hydraulic DC Bi-directional Motor 12V 1.5KW
| Unload: | ||
| Speed(n) | = | 7314rpm |
| Current(l) | = | 57.920A |
| Max_Torque: | ||
| Torque(M) | = | 6.020N.m |
| Current(I) | = | 211.930A |
| Speed(n) | = | 2325rpm |
| Eff | = | 57.86% |
| Output Power(P2) | = | 1465.60W |
| Max_Efficiency: | ||
| Eff | = | 67.04% |
| Speed(n) | = | 5947rpm |
| Torque(M) | = | 1.010N.m |
| Current(I) | = | 74.140A |
| Output Power(P2) | = | 628.90W |
| Max_Pout: | ||
| Eff | = | 57.86% |
| Speed(n) | = | 2325rpm |
| Torque(M) | = | 6.020N.m |
| Current(I) | = | 211.930A |
| Output Power(P2) | = | 1465.60W |
Advantage of Hydraulic DC Bi-directional Motor 12V 1.5KW
1) Low noise, easy brush replacement, 100% copper wire, good quality fresh raw materials
2) Strictly control every production, inspection, packing link
3) Efficient and stable running time,one year warranty
4) OEM and customized service avaliable
5) Advanced automatic and semi-automatic equipments
6) Robust construction for long and reliable service life
7) 12V, 24V, 36V, 48V,60V,72V as per customers' option
8) High class professional R&D team and skilled workers
9) Factory established in 1996 over 20 years' manufacturing experience
10)Highly qualified service, able to solve any problems
Customized production is available. Send me the parameters, we will customize for you!
FAQ
Jinle hydraulic dc motor/electric dc motor 12v 24v 48v 60v 72v and power pack unit
1. Business Type
a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters
c. Employees: over 80 in office & workshops
2. Certificates
CE, ISO9001:2000 etc.
3. How long could we get the goods?
a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders
4. Quality Control
We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
a. 100% inspection before packing
b. Spot inspection before shipment
