Price:$7,300.00 - $7,500.00

Quantity:


Product Overview

Description


Product Description

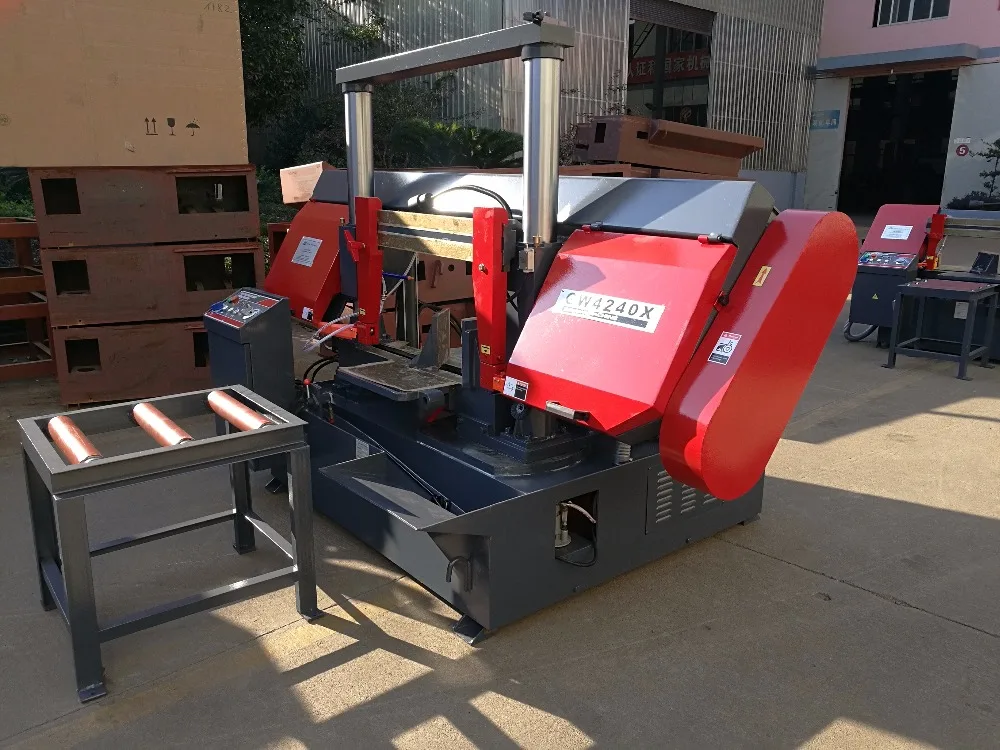

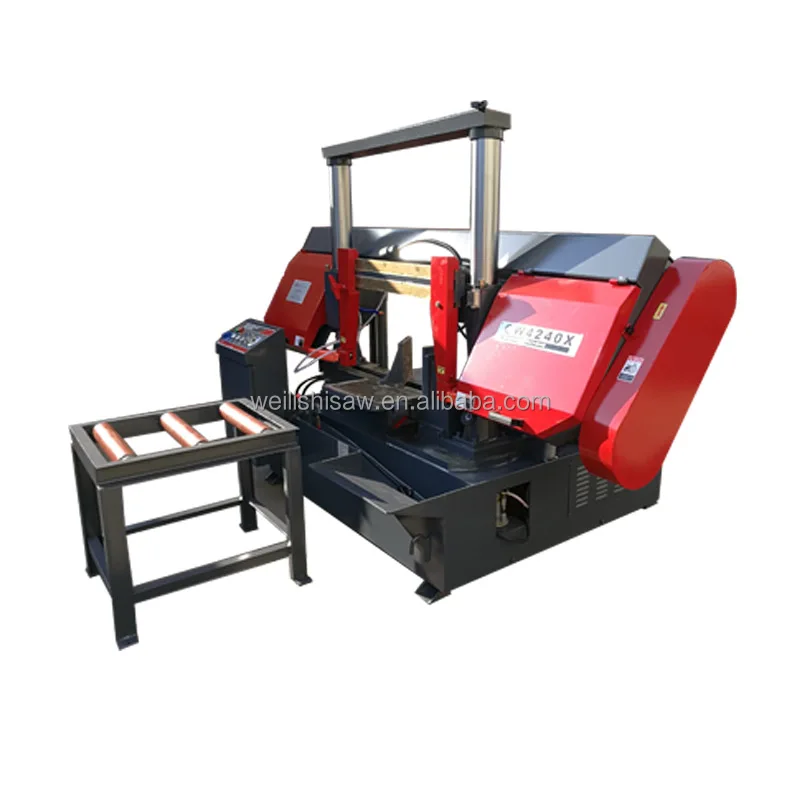

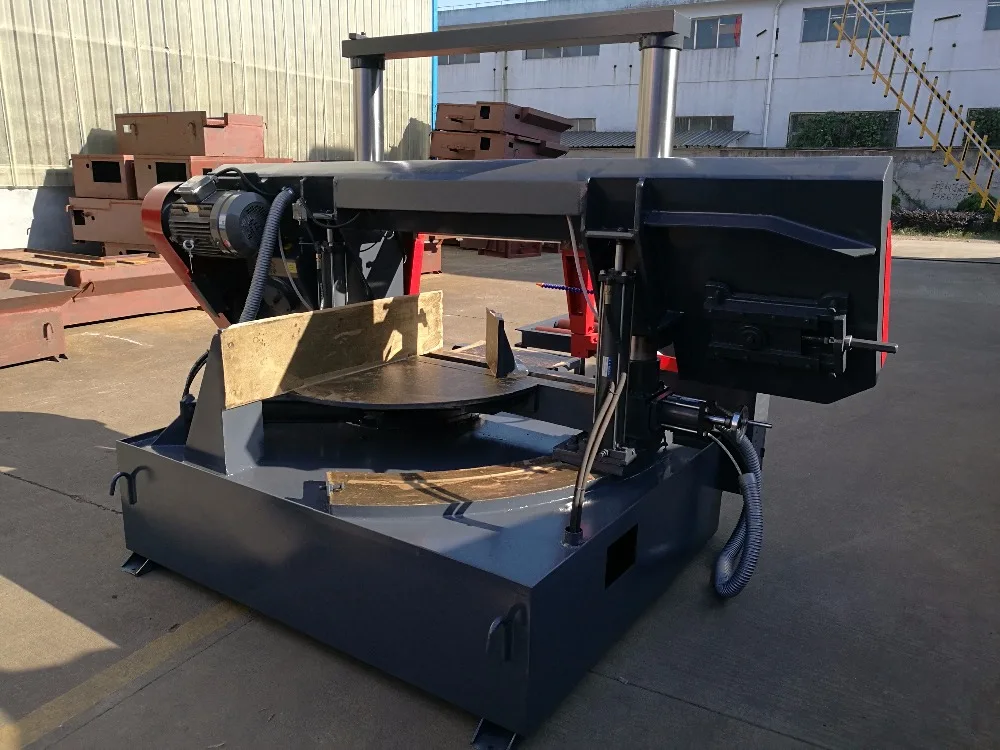

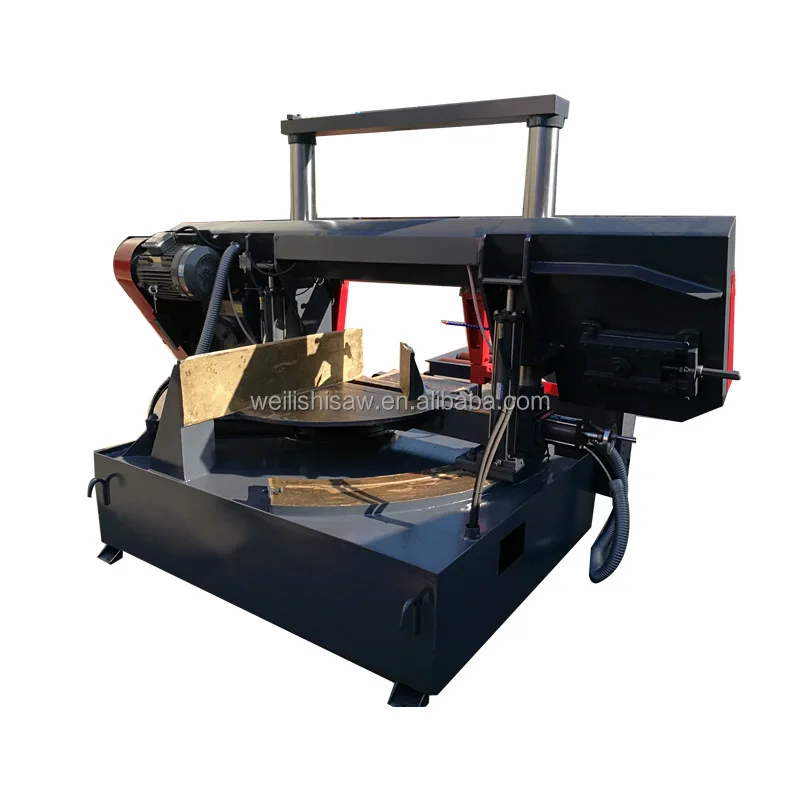

Metal Cutting Sawing Machine GW4240X

Band saw machine GW4240X is middle size for cutting steel and other metal . It is with ratotation function , cutting angle from 0 degree to 45 degree. It can cut structual steel , H beam and other special steel.

\t
SPECIFICATIONS FOR SAWING MACHINE GW4240X
\t

Maximum Cutting Capacity  0°
\t
Round
\t
400mm
\t
Square
\t
400*600mm
\t
Rectangle
\t
400*600mm
\t

Maximum Cutting Capacity 45°
\t
Round
\t
400mm
\t
Square
\t
400mm
\t
Rectange
\t
400mm
\t
Voltage
\t
380V
\t
Power
\t
4KW
\t
Blade tension form
\t
Manual
\t
Clamp form
\t
Hydraulic
\t
Blade speed
\t
34/60/77m/min
\t
Blade clear
\t
Brush
\t
Blade size
\t
5550*41*1.3mm
\t
Blade guide
\t
Carbide
\t
Coolant motor
\t
1.5kw
\t
Hydraulic motor
\t
0.09kw
\t
Water tank
\t
43L
\t
Hydraulic tank
\t
60L
\t
Feeding form
\t
Manual
\t
Feeding table
\t
0.7m
\t
Machine size
\t
2800*1800*1850mm
\t
Machine weight
\t
2000kgs

Band Saw Machine GW4240X Main Features

1) Double column structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components  parts ,electric parts and operation parts.

3) Angle cutting from 0 degree to 45 degree..

4) Fitting cut the metal , steel , pipe , tube.

Certifications
Detailed Images

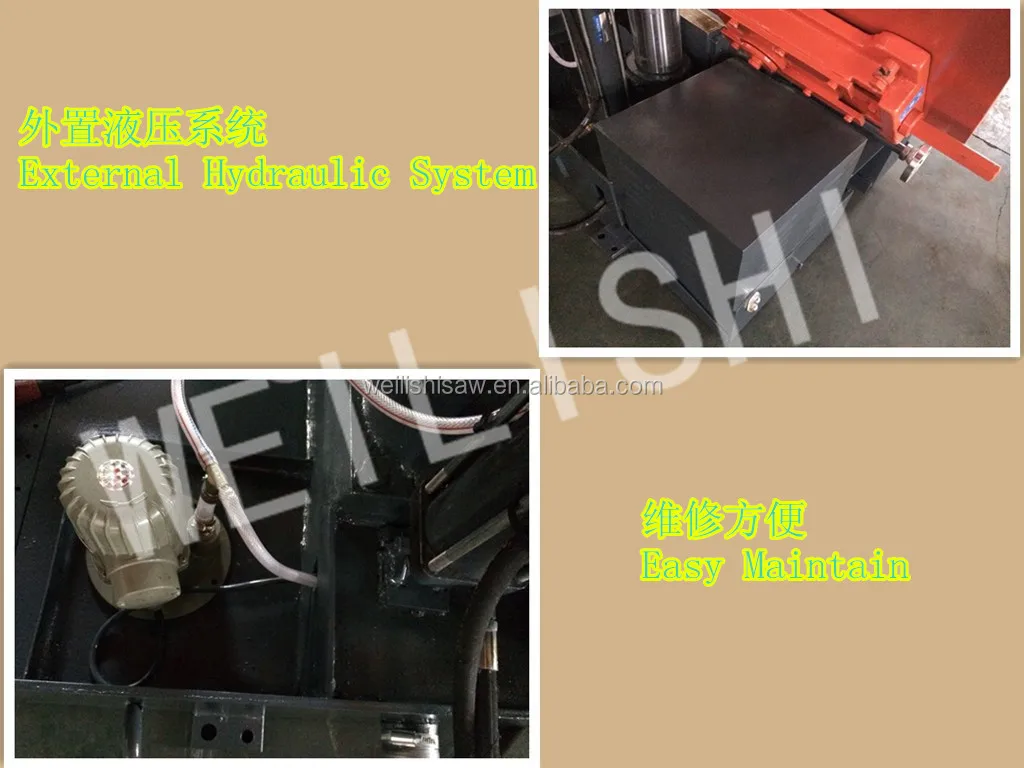

Machine hydraulic system

Name:Hydraulic

Brand:seven ocean

Original: taiwan

Domestic famous engines, strong driving force.

Main Features

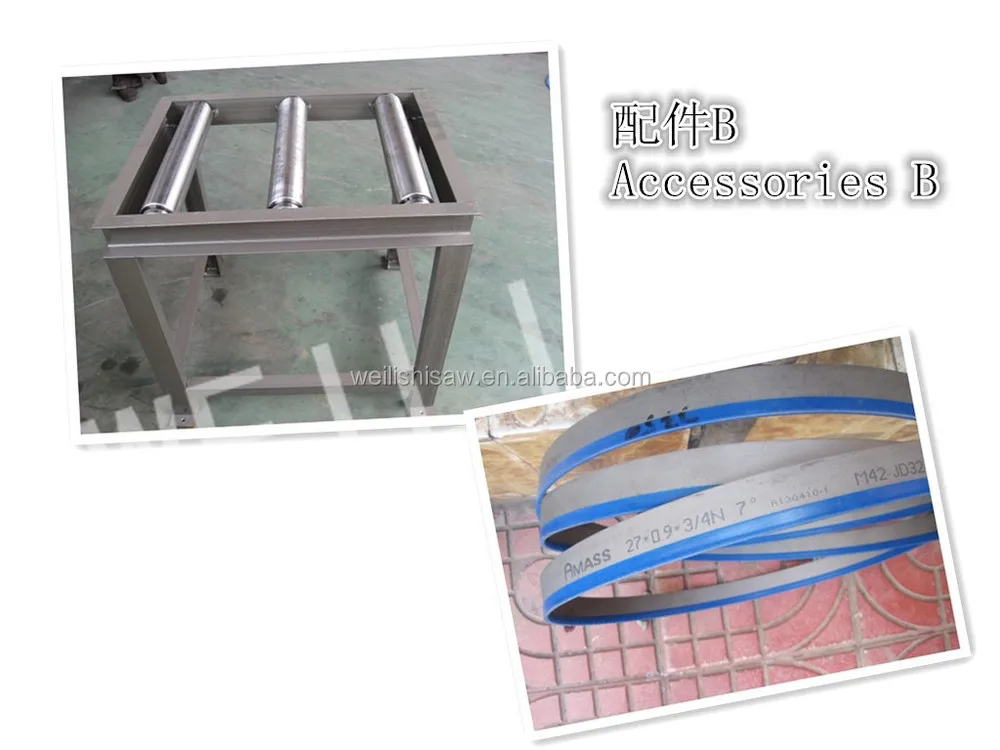

Name: Band saw blade
Brand: WEILISHI
Original: China
Every machine has one blade as free

Machine Parts

Name:Electricity system
Brand:Siemens
Original: Germany
Famous brand for electricity to protect your machine , keep machine all day running

Main Features

Name: Machinical
Brand: WEILISHI
Original: China

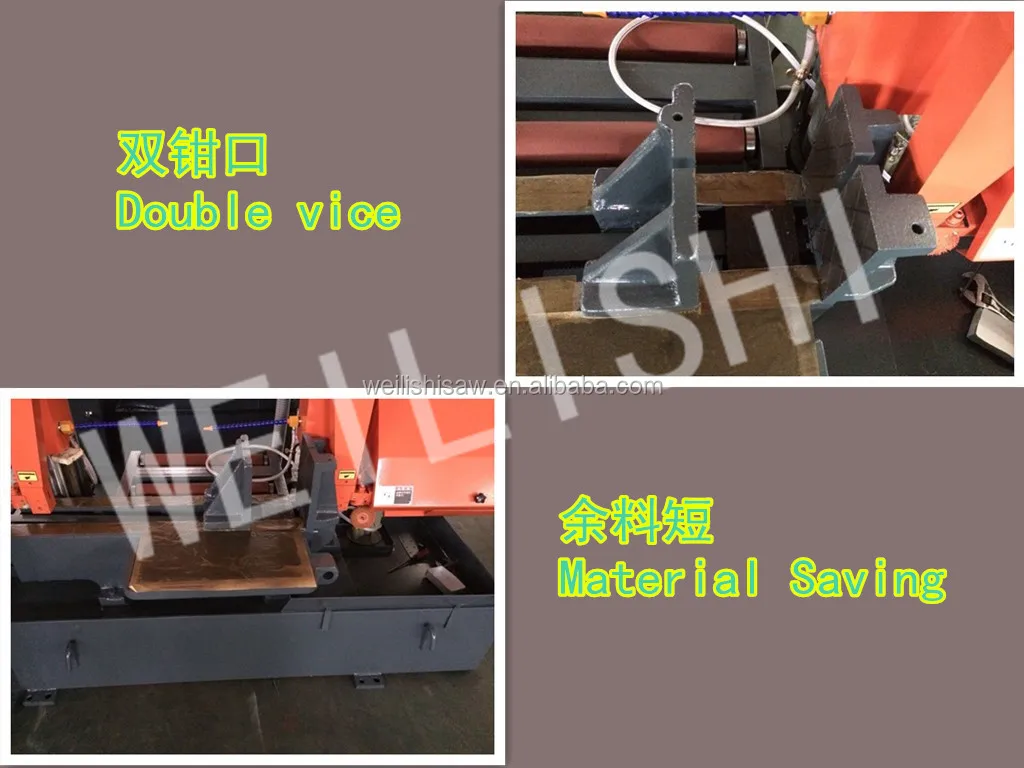

Double vise to clamp the material , cutting the metal more easy.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

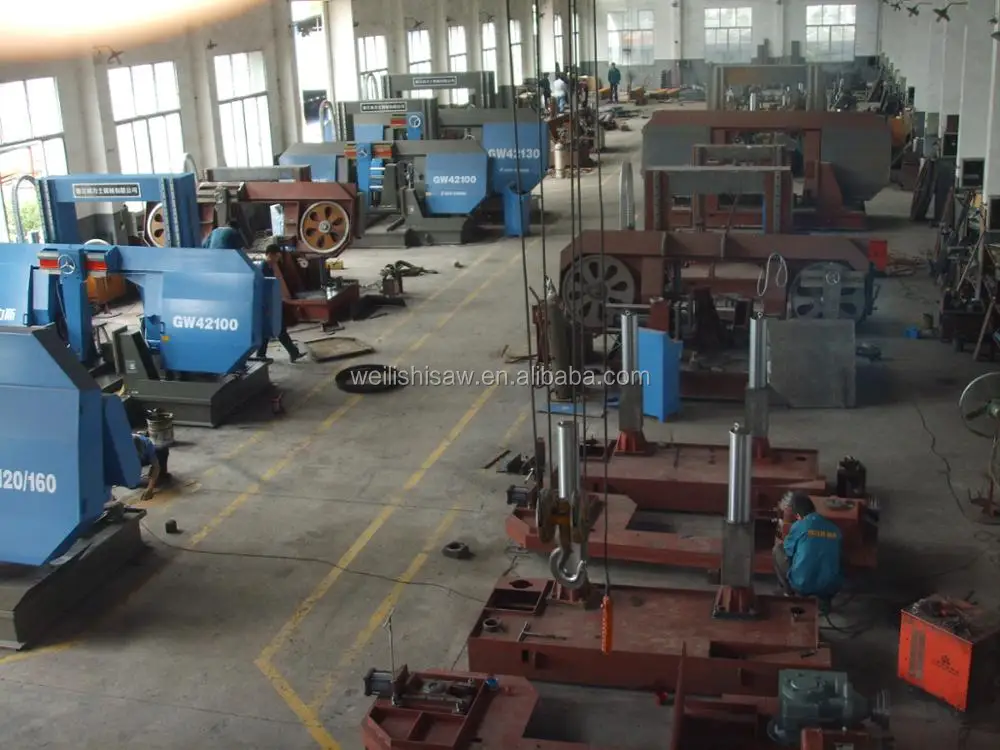

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging Simple
\t
Size
\t
2800*1800*1850mm
\t
Weight
\t
2T
\t



Packaging Details
\t
The normal package is PP BAG .The band saw machine take large space , if we pack it in PP bag, it will save space.
\t
Packaging
\t
Size
\t
2900 * 1950  * 1900 mm
\t
Weight
\t
2.2 T
\t



Packaging Details
\t
The  package is plywood box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
