12V19V24V(5 32V) to 12V 1A 2A 3A DC DC Power Voltage Regulator Stabilizer Converter 12 volt Power Supply for Car Radio Speaker
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60678076012):
Product Overview
Description
12V19V24V(5-32V) to 12V 1A 2A 3A DC DC Power Voltage Regulator Stabilizer Converter 12 volt Power Supply for Car Radio Speaker
| Product name | Voltage Stabilizer 12V 1A/2A/3A |

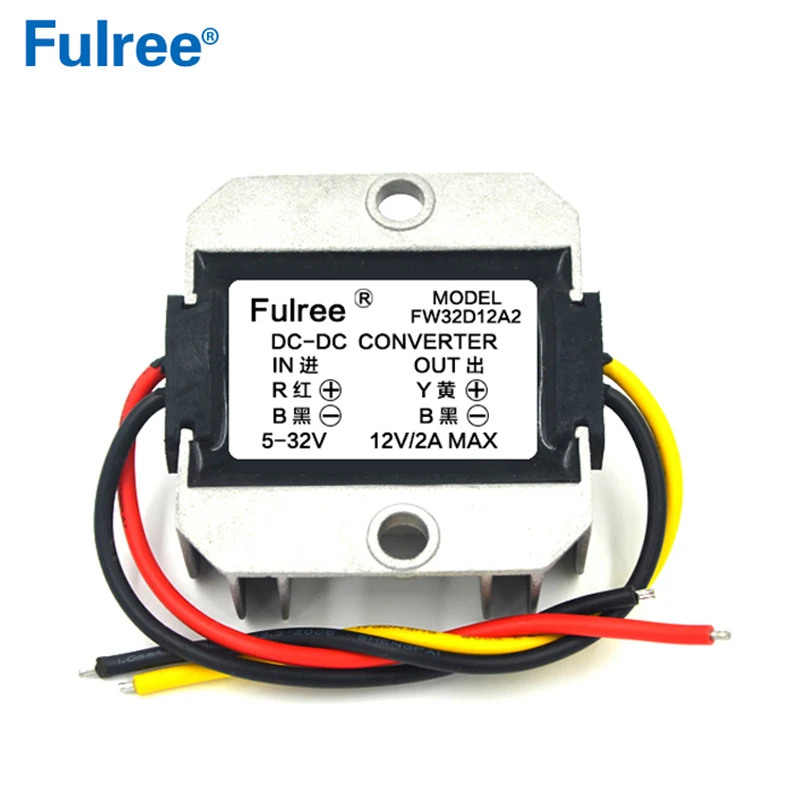

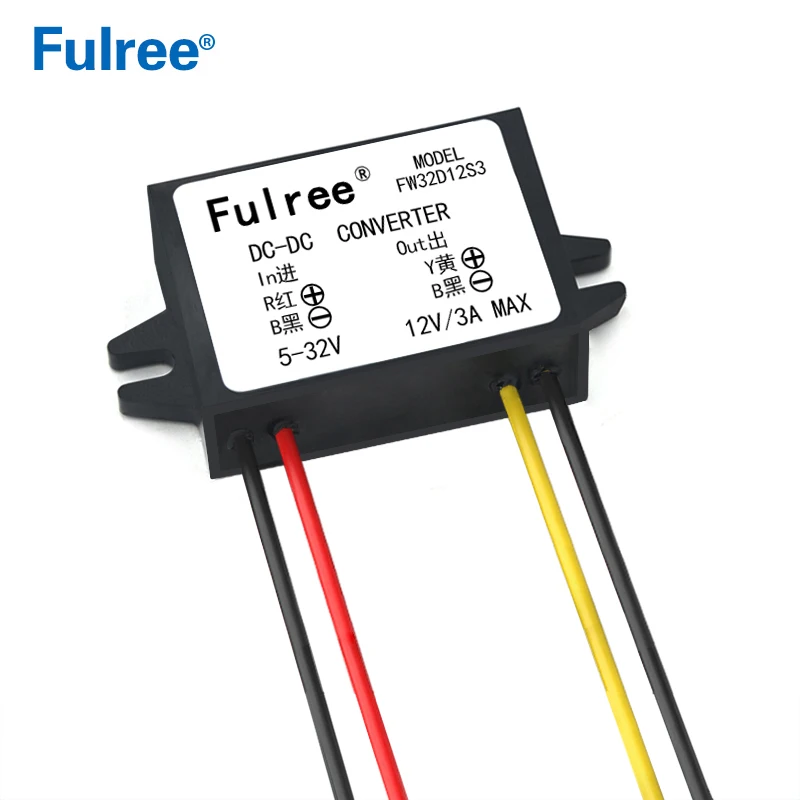

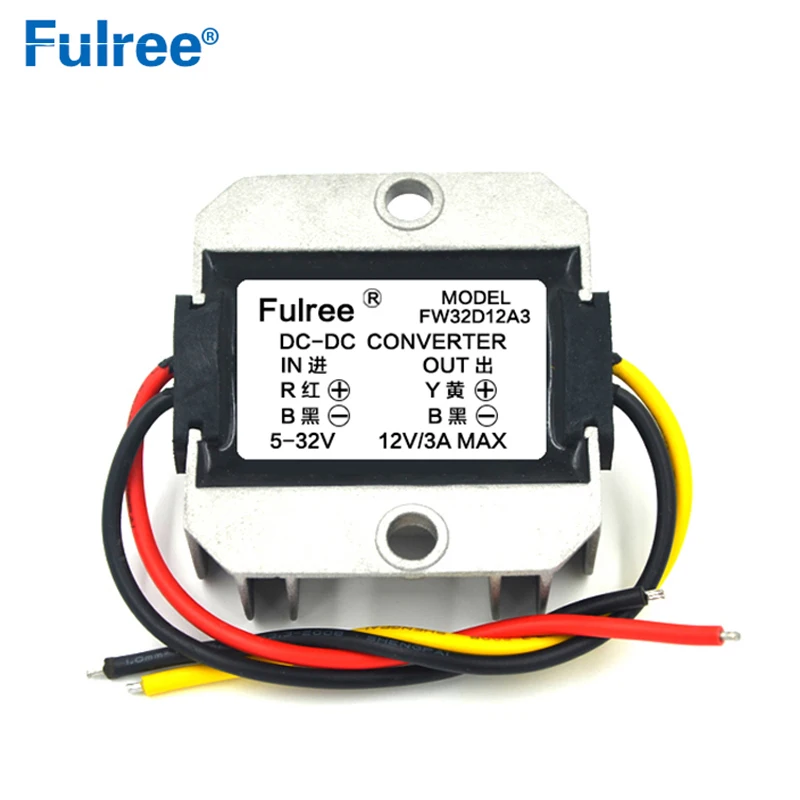

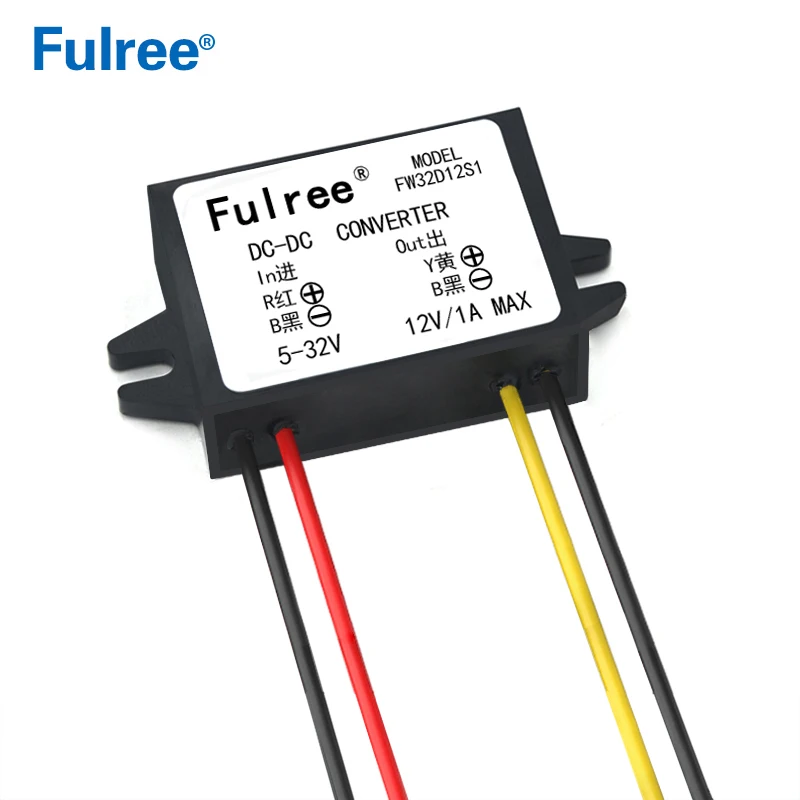

| Model | ABS Housing: FW32D12S1 / FW32D12S2 / FW32D12S3 Aluminum Housing: FW32D12A1 / FW32D12A2 / FW32D12A3 |
| Input rated voltage | 12V DC |
| Input voltage range | 5-32V DC |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | 12V |
| Output current | 1A / 2A / 3A MAX |
| Output rated power | 12W / 24W / 36W Max |
| Output peak power | 15W / 30W / 43W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated module |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Instant absorption of high voltage protection waterproof IP68 design, anti-shock protection |
| Short-circuit protection | NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | ABS: 65G / Aluminum: 100G |
| Product size | ABS: 46*32*18mm / Aluminum: 66*60*22mm |
Other output current option for DC 12V TO 12V | 1A, 3A, 4A,10A, 20A(pls contact with our sales manager if need) |
Attention: | |
