Commercial 5W PA System Best Roof Speaker In Ceiling Speakers
- Category: >>>
- Supplier: Zhejiang Haoyuan Electronic Technology Co. Ltd.
Share on (60678121111):
Product Overview
Description
Product Description
100V 10W 6.5 inch steel PA ceiling speaker HSR163-6T
This ceiling built-in speaker is made of full metal. By the two
assembly brackets, which tighten automatically by spring
action when inserting the speaker into the hole, assembling
time is reduced to a minimum.
Technical data | HSR163-5T | HSR163-6T | HSR163-8T |
Load rating | 5 W | 10 W | 30 W |
Transformer tappings at 100 v | 5-2.5-1.25 W | 10-5-2.5 W | 30-15-7.5 W |
Frequency range | 180-15kHz | 150-15kHz | 120-15kHz |
SPL(@1W/m) | 90dB | 92dB | 94dB |
Speaker ￠ and Impedance | 5'' /8 ohms | 6 1/2'' /8 ohms | 8''/8 ohms |
Dimension ￠,Install depth(max.) | ￠158(46)mm | ￠210(57)mm | ￠247(90)mm |
Weight , Color | Appr 0.58kg , white | Appr 0.76kg , white | Appr 1.81kg white |

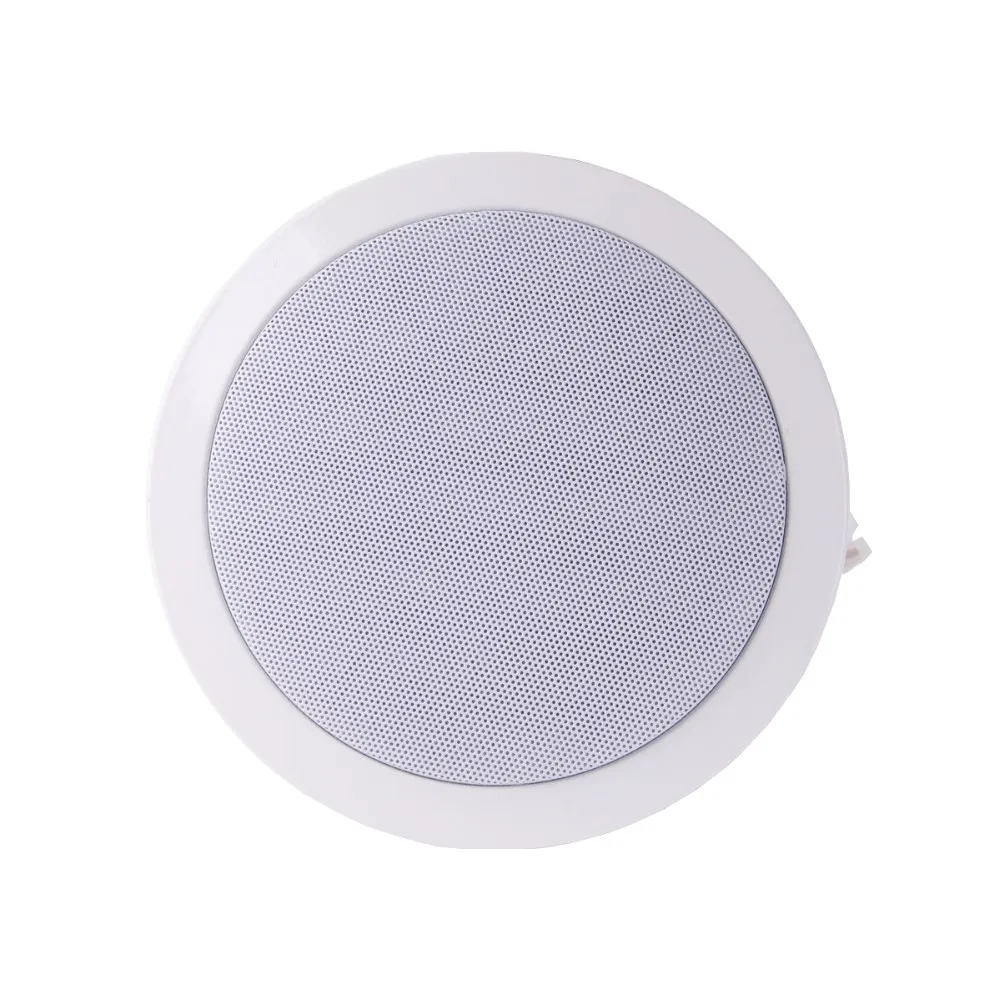

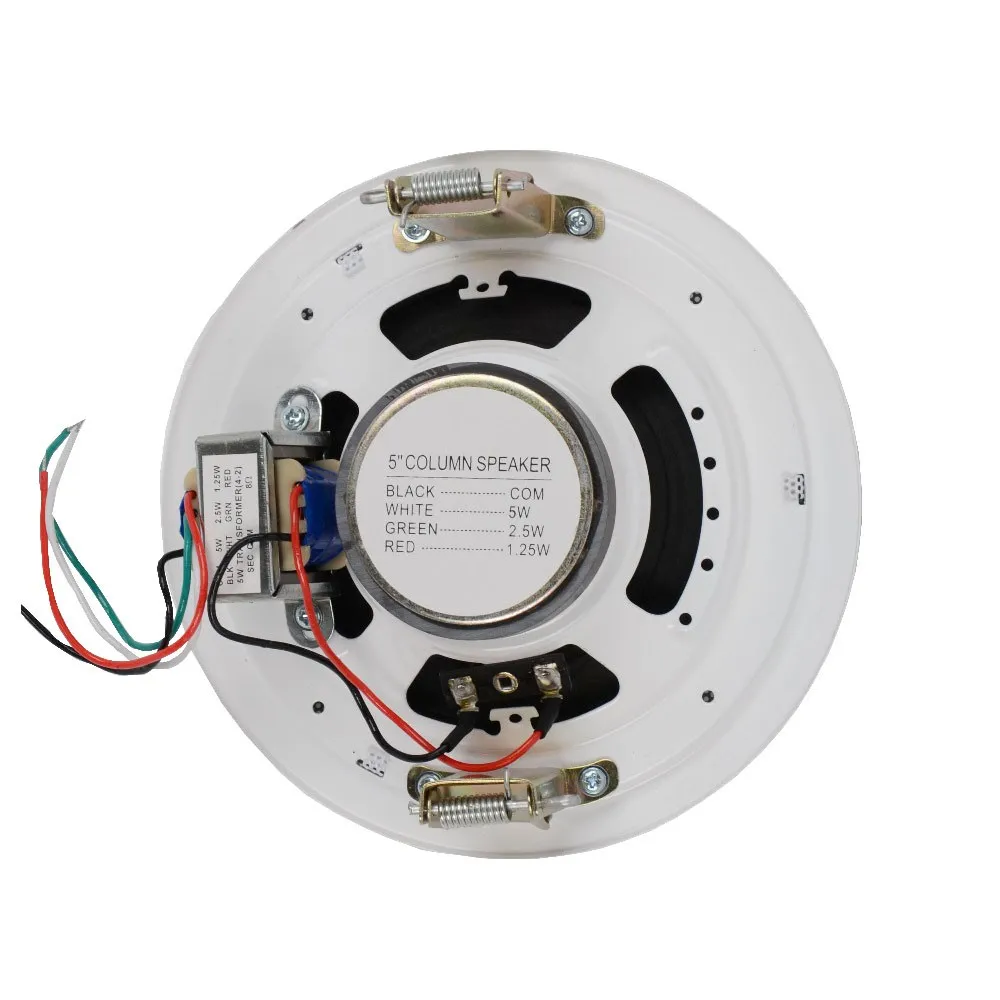

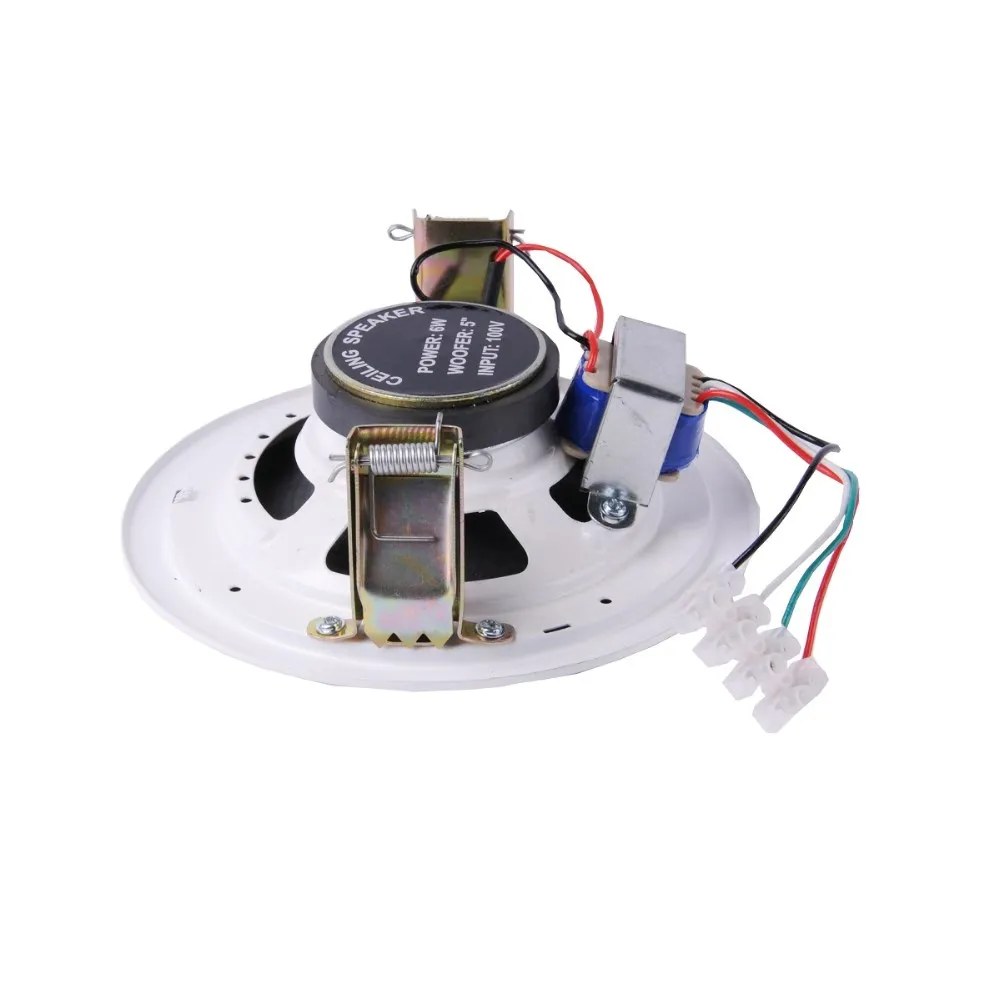

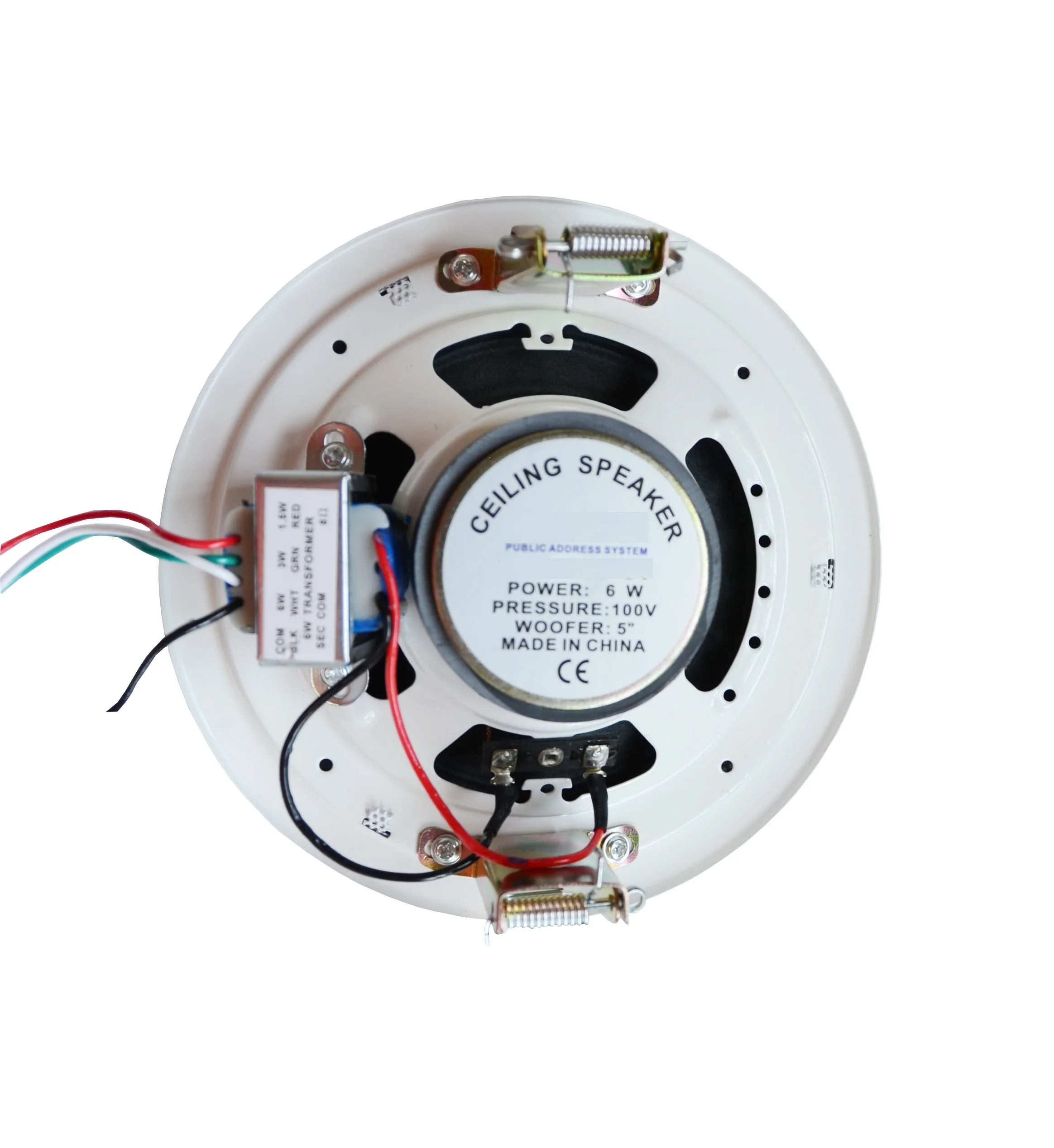

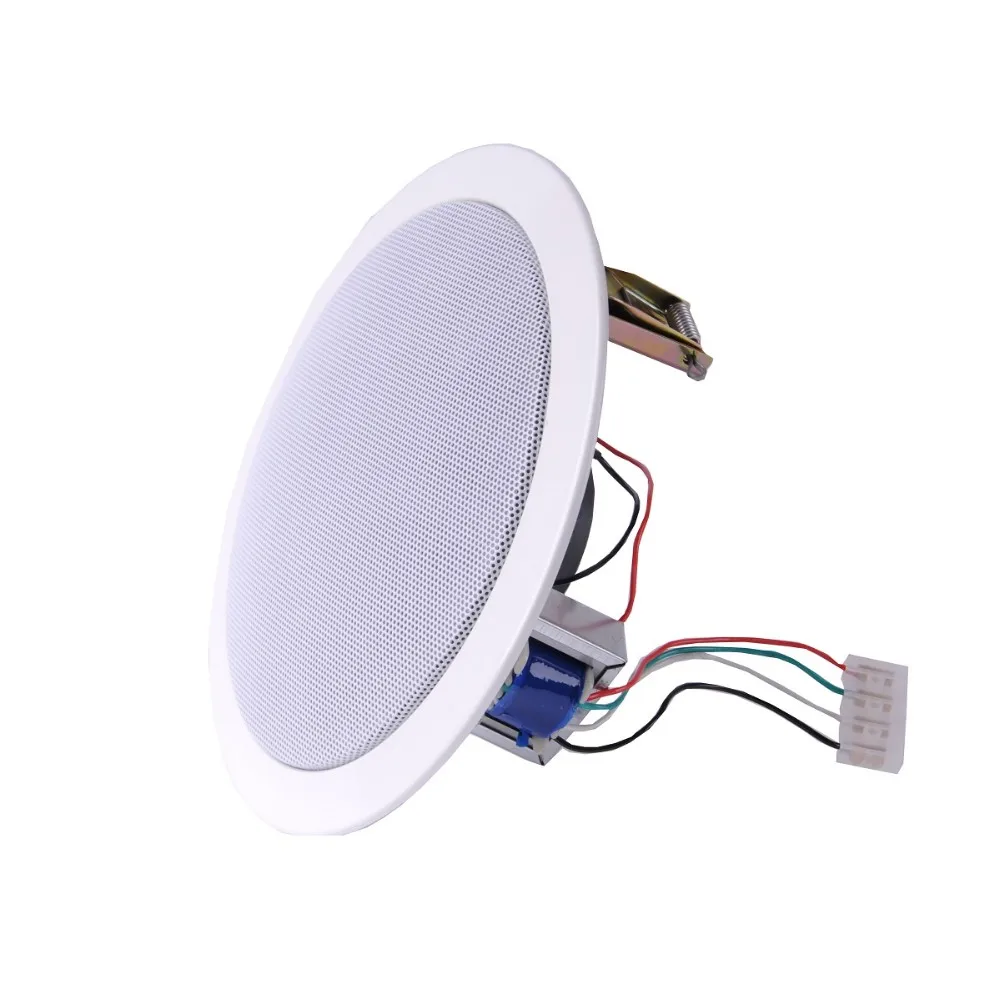

Detailed Images
Machine Parts
Name: 5" speaker unit
Original: china
Modern, very discreet design with approx.2 mm rim height.
Very easy to mount, suitable for all ceiling types.
Main Features
Name: Installtion
Original: China
Optionally with specially prepared chassis and transformer also in humid room execution available.
A special lacquer finish of the speaker in all RAL colors is possible, if desired
.
\t\t\t\t\t\t\t\t\tCOMPANY \t\t\t\t\t\t\t
FRANK AUDIO CO., Ltd. locates at Huzhou city China. It's near form Ningbo and Shanghai sea port. Our company was established in 1997. We are Using advanced equipment and technology, we specialized in the production of audio system, PA Speakers and Home theatre systems. What's more, we provide a full range of products such as wifi speaker, blutooth speaker, loudspeakers, megaphones, sirens, driver units , horn speakers, column speakers and various of public address system In-ceiling and in-wall speakers. Our factory covers 10,000 meter square, and there are more than 120 workers work for us. Under such condition we will bring you good serve and high quality productions. We place a firm emphasis on continual innovation, excellence in production and dedication to customer service.
\t\t\t\t\t\t\t\t\tSHOWROOM & EHIBITION \t\t\t\t\t\t\t
PA amplifier, PA wall speaker, ceiling speaker, horn speaker, Bluetooth/wifi speaker, megaphone, microphone. ...
ISO90001/ CE / IP56 & IP66 Certificate
Every year Shanghai, Guangzhou prolight+sound, Canton Fairand foreigh countries like USA, Germany
PRODUCE & WAREHOUSE
We have seven produce line / two material warehouse / one Finished goods warehouse
1. Transformer / Voice diaphragm
2. Speaker unit
3. speaker box
4. Circuit board
5. Amplifier
6. Speaker
7. Megaphone
