electronic weight sensor thin plane load cell 30kg 75kg 150kg 300kg TAL240
- Category: >>>
- Supplier: HT Sensor Technology Co. Ltd.
Share on (60678208428):
Product Overview
Description

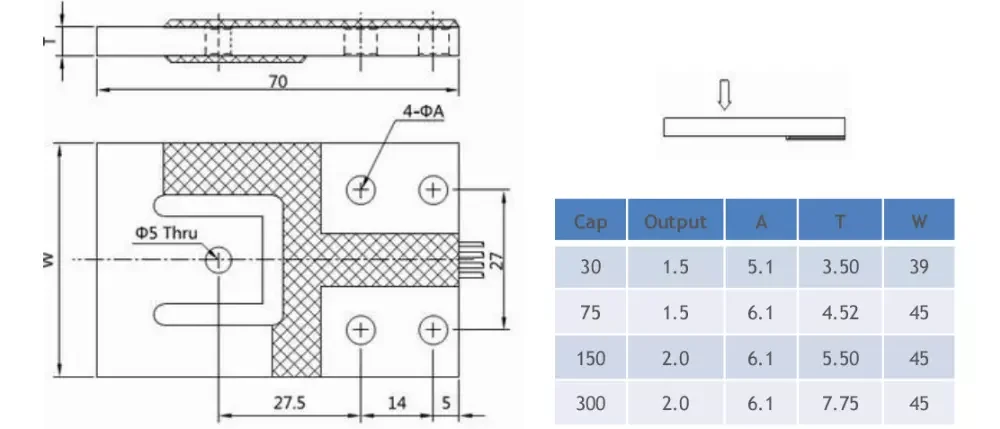

TAL240 PLANAR BEAM TYPE LOAD CELL
◆Capacity :30~300kg
◆Material: aluminum alloy
◆Type: planar beam type
◆ Four pieces matched output
◆Defend grade: IP65
◆Application: Ultra-low platform scale, low thin medical scale, personal scale, airport baggage scale,
postal scales etc.
Capacity: | 30 ,75, 150, 300kg | Safe overload: | 120%FS | ||
Rated output: | 1.0~2.0± 0.2mV/V | Ultimate overload: | 150%FS | ||
Excitation voltage: | 5~10Vdc | Input resistance: | 1130 ± 20Ω | ||
Combined error | ± 0.05%FS | Output resistance | 1000 ± 10Ω | ||
Zero balance | ± 0.1%FS | operating temperature range: | -10 ~ +55 | ||
non-linearity: | ± 0.05%FS | compensated temperature range | -10 ~ +40 | ||
hysteresis: | ± 0.05%FS | temperature coefficient of SPAN | ± 0.05%FS/10℃ | ||
Creep: | ± 0.05%FS/3min | temperature coefficient of ZERO | ± 2.0 or ± 0.05 | ||
Electrical connection | 4 color wire. 60cm (30kg ,75kg); 15cm(150kg ,300kg) Excitation(+):Red Excitation(-):Black Signal(+):Green Signal(-):White | ||||
