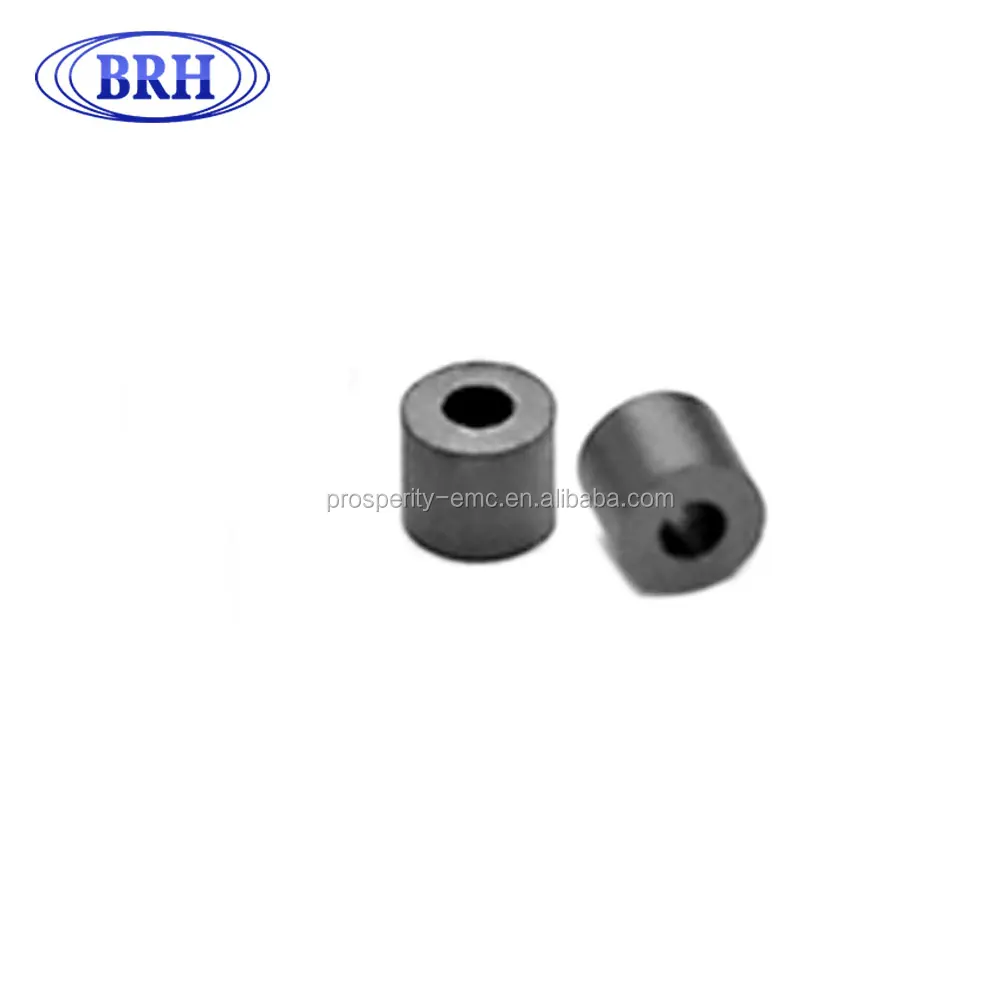

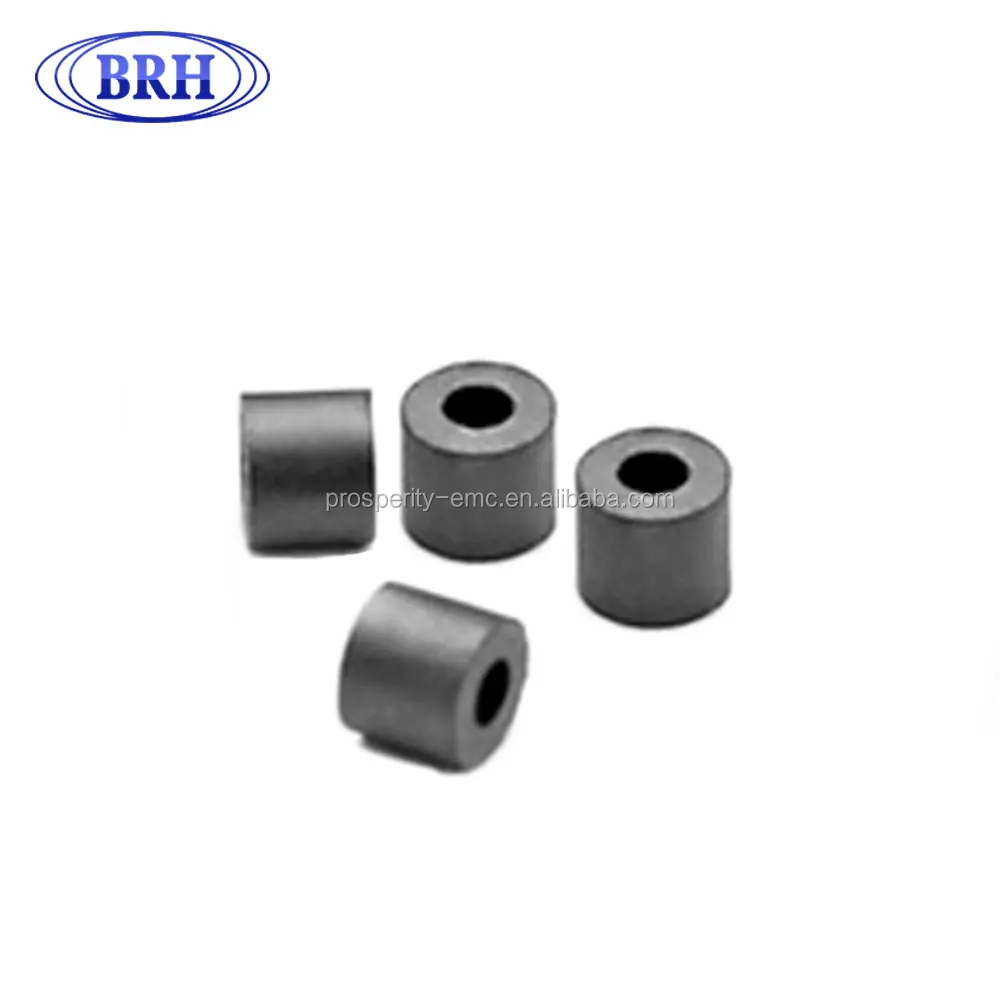

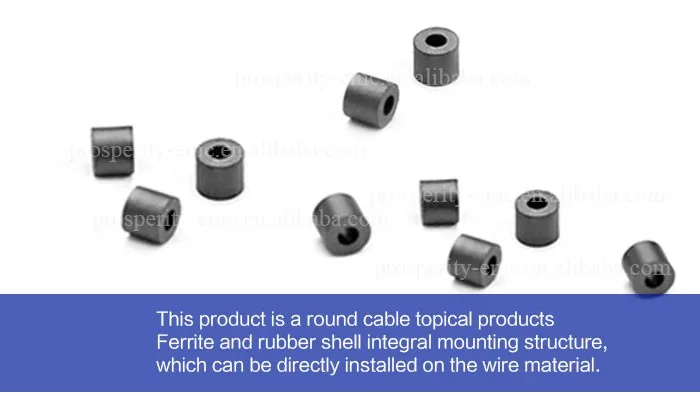

Very cheap price high frequency NiZn small size ferrite bead core for EMC

\t

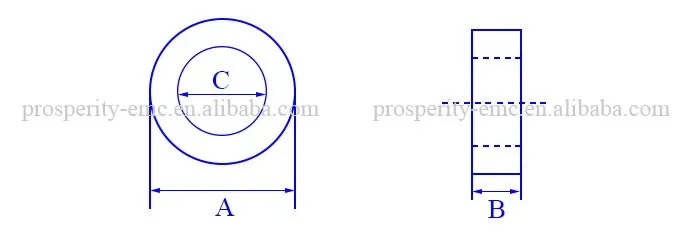

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
A2 T 3.5*3*1.5
\t
3.5±0.4
\t
3.0±0.4
\t
1.5±0.4
Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 T 3.5*3*1.5
\t
at 25 MHz
\t
18 Ω MIN
\t
at 100 MHz
\t
55 Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t

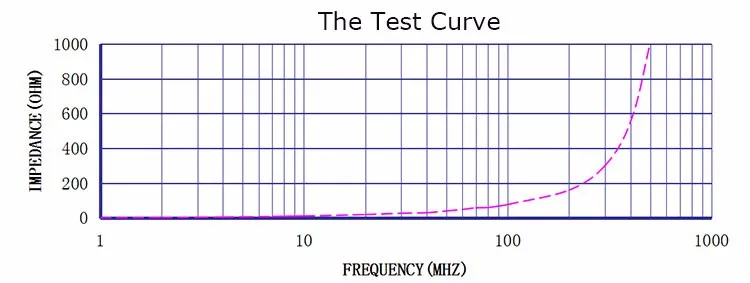

Test Data For Pre Production Samples
\t
MEAS. Item
\t
Ω
AT 25MHz
\t
Ω
 AT 100MHz
\t
A
m/m
\t
B
m/m
\t
C
 m/m
\t
Suggest
\t
18 Ω MIN
\t
55 Ω MIN
\t
3.5±0.4
\t
3.0±0.4
\t
1.5±0.4
\t
1
\t
22.42
\t
69.53
\t
3.49
\t
3.03
\t
1.55
\t
2
\t
24.56
\t
68.42
\t
3.48
\t
3.02
\t
1.55
\t
3
\t
22.51
\t
69.54
\t
3.51
\t
3.03
\t
1.54
\t
4
\t
22.17
\t
68.75
\t
3.50
\t
2.99
\t
1.56
\t
5
\t
23.05
\t
69.72
\t
3.51
\t
3.01
\t
1.53
\t
6
\t
22.42
\t
70.13
\t
3.51
\t
3.02
\t
1.61
\t
7
\t
23.08
\t
68.54
\t
3.49
\t
3.01
\t
1.62
\t
8
\t
24.13
\t
68.55
\t
3.47
\t
3.02
\t
1.58
\t
9
\t
22.15
\t
69.73
\t
3.48
\t
2.99
\t
1.61
\t
10
\t
24.07
\t
68.98
\t
3.51
\t
3.01
\t
1.63
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
23.06
\t
69.19
\t
3.50
\t
3.01
\t
1.58
\t
R
\t
2.41
\t
1.71
\t
0.04
\t
0.04
\t
0.10
\t
The above test data for reference,Actual results may differ due to different production batches.
