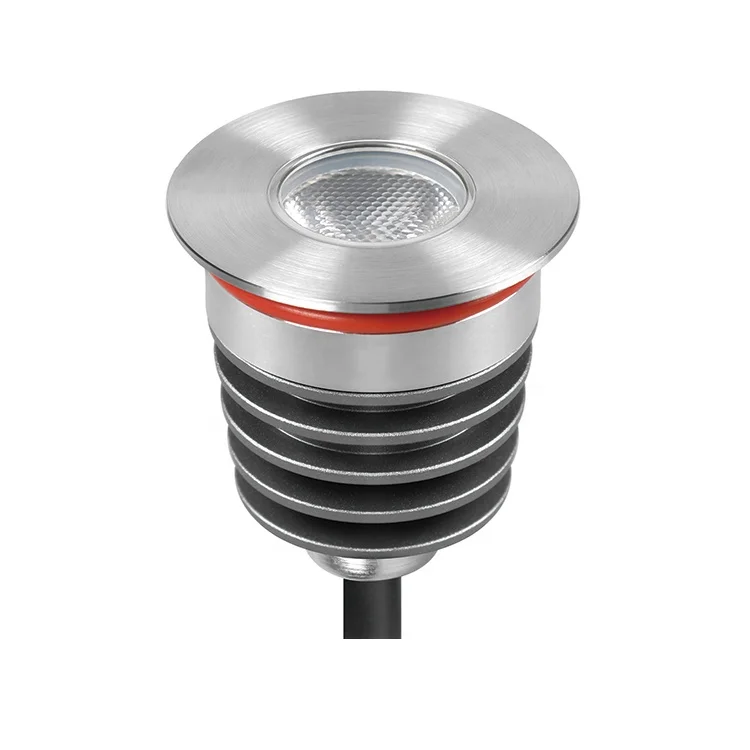

  • 3w IP67 led deck lighting inground light led ground light with ce and rohs
3w IP67 led deck lighting inground light led ground light with ce and rohs
3w IP67 led deck lighting inground light led ground light with ce and rohs
3w IP67 led deck lighting inground light led ground light with ce and rohs
3w IP67 led deck lighting inground light led ground light with ce and rohs
3w IP67 led deck lighting inground light led ground light with ce and rohs
3w IP67 led deck lighting inground light led ground light with ce and rohs
3w IP67 led deck lighting inground light led ground light with ce and rohs

3w IP67 led deck lighting inground light led ground light with ce and rohs

Share on (60678289127):


Price:$11.30 - $34.00

Quantity:


Product Overview

Description


Product Features

3w IP67 led deck lighting inground light led ground light with ce and rohs

.1 PC 3W CREE XPE LED
.Beautiful appearance housing design
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.15°,25°,38°,45°,60°,120°beam angle as options
.110~130 lm luminous flux output
.IP67 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you

Data Sheet
\t
General Data
\t
Item No.
\t
UL-1001
\t
Power
\t
3 Watts
\t
LED type
\t
1 PC 3W CREE XPE LED
\t
Luminous flux
\t
110~130 l m
\t
CCT
\t
2700K,3000K, 4000K, 6000K,R/G/Y/B
\t
CRI
\t
80+
\t
Beam angle
\t
15°,25°,38°,45°,60°,120°
\t

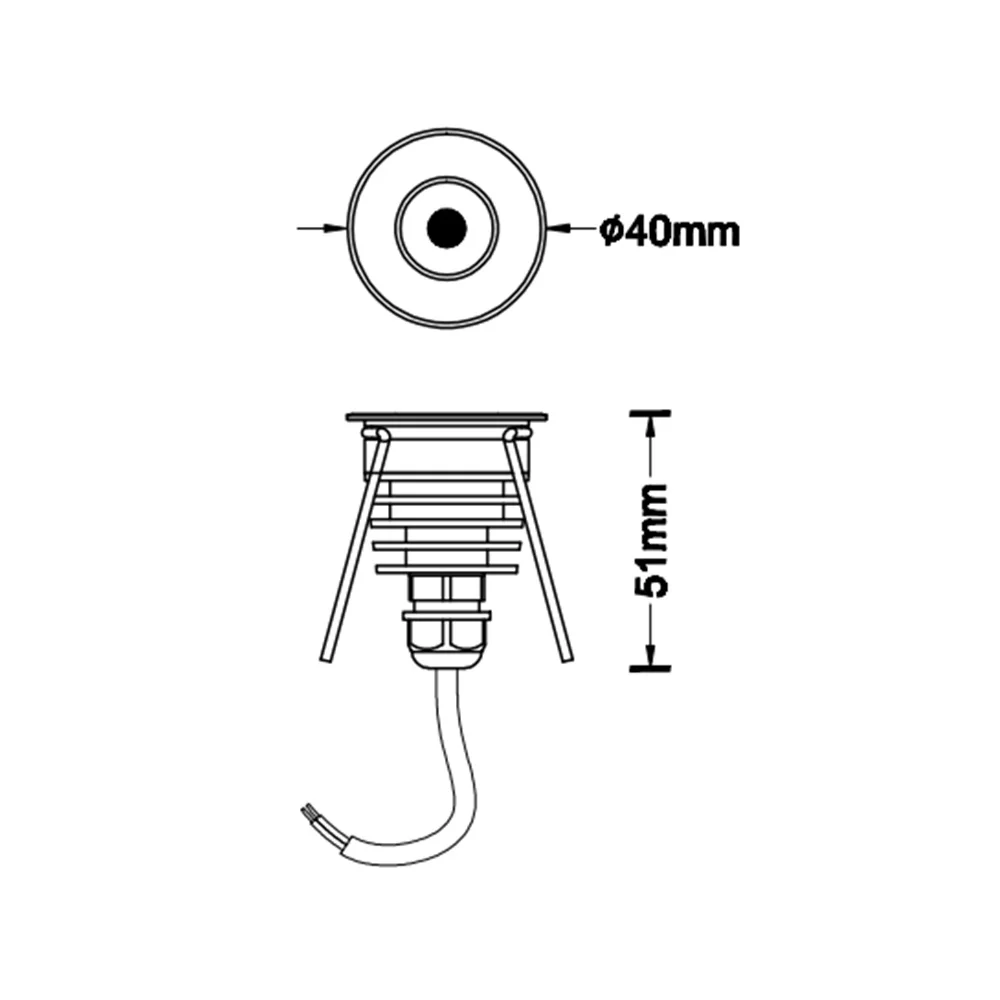

Dimension
\t
40 x 53 (mm) Diameter x Height
\t
Cut out
\t
38 mm
\t
Net weight
\t
0.21 kgs
\t
Warranty
\t
3 years
\t
Certifications
\t
CE, RoHS
\t
Electrical Data
\t
Input voltage
\t
DC12V~DC24V
\t
Insulation class
\t
Class III
\t
Cable
\t
1PC rubber cable 1.5M H05RN-F 2x0.75mm square
\t
Driver
\t
Low voltage constant current output ,excluding the transformer
\t
Construction Data
\t
IP rating
\t
IP67 Waterproof
\t
IK rating
\t
IK06
\t
Housing
\t
Solid Passivated （Anodizing） Aluminum CNC machined
\t
Protection finishing
\t
20~25μm thickness anodized film for housing .Dark grey.
\t
Trim
\t
Stainless steel 316 as standard,Polished chrome Aluminium as options
\t
Glass
\t
Step tempered Glass.T=4mm.
\t
Accessories
\t
Mounting Sleeve
\t
Passivated （Anodizing） Aluminum CNC machined .Dark grey
\t
Clip
\t
With Aluminium spring that's for deck lights or ceiling lights application
Detailed Pictures

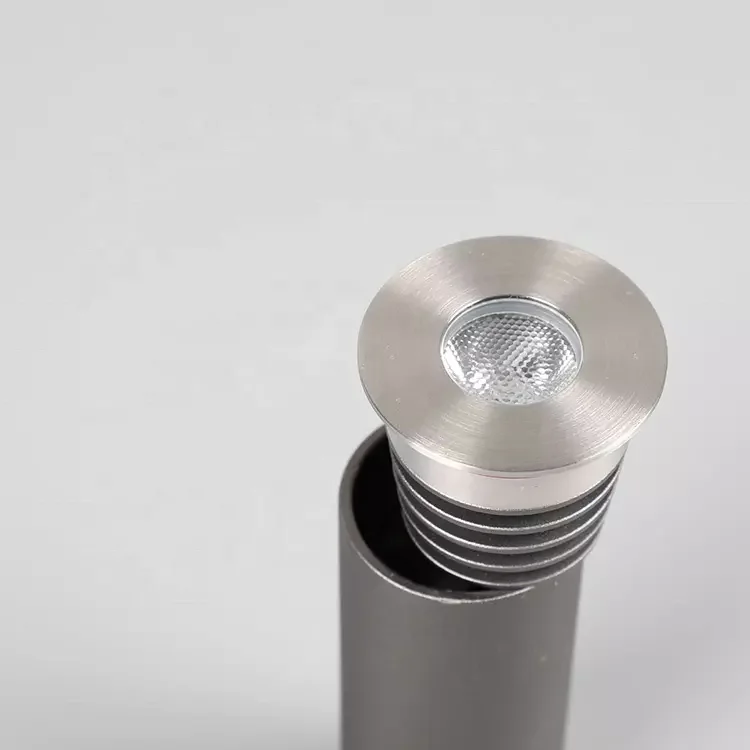

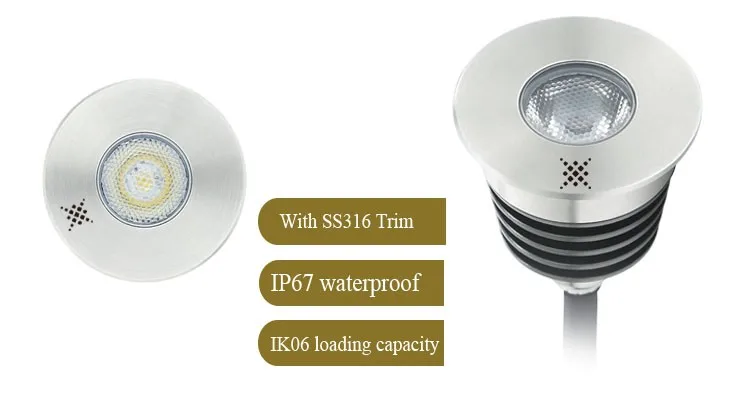

Stainless steel 316 (not 304) front cover and waterproof IP67 instead of IP65 deign, High loading capacity IK06.

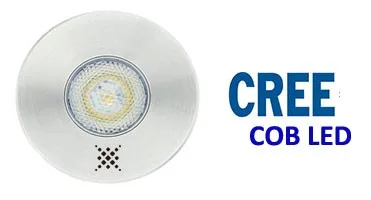

It's with imported high quality COB LED for long life.

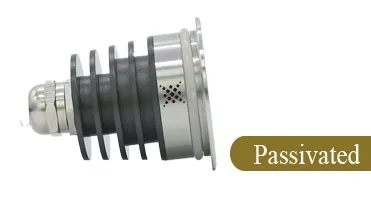

Passivated (Anodizing) Alumnium housing CNC machine that won't be fading even after 2 to 3 years.

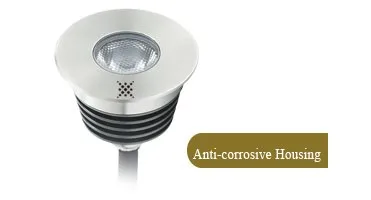

High quality anti-corrosive housing.

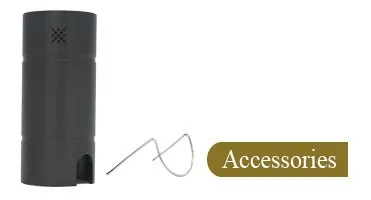

Accessories as options.




Illumination picture showcase

It's with CCT 3000K,and 45 degrees beam angle.

We have our own IES photometrical machine to make the IES test.

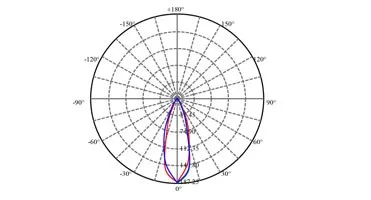

                        Light distribution cureve

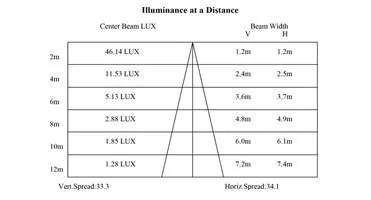

                               Lux distance curve

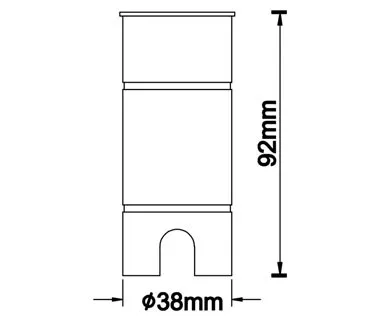

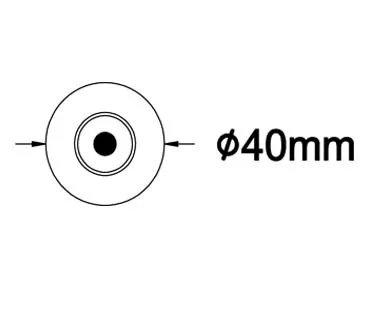

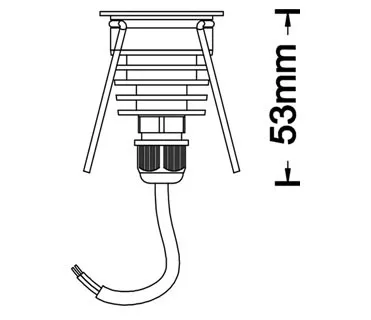

Dimension
Related products
Please click the picture to check this inground light series !

Please click the below picture to check our main products series or send me the Email info6(@)pyledlight.com for the PDF file E-catalogue to check our whole range products . (Pls remove "()")

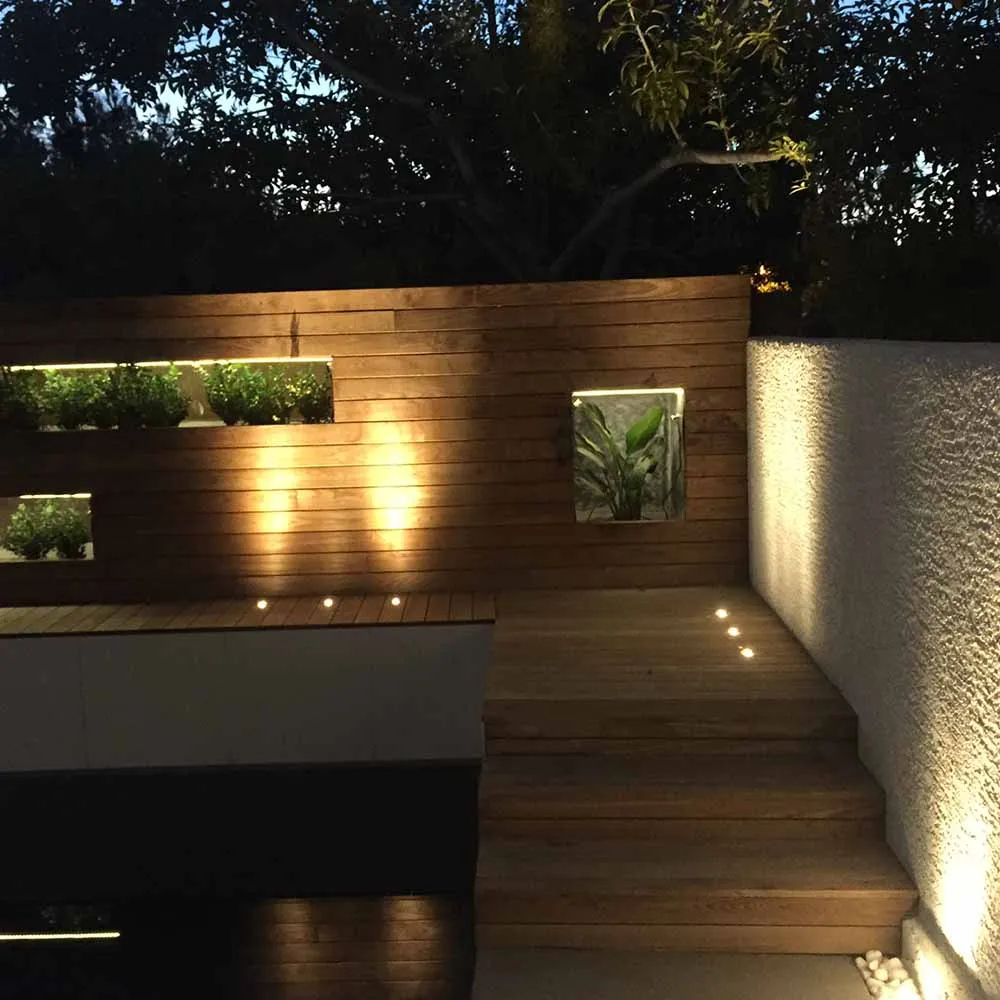

Application Pictures

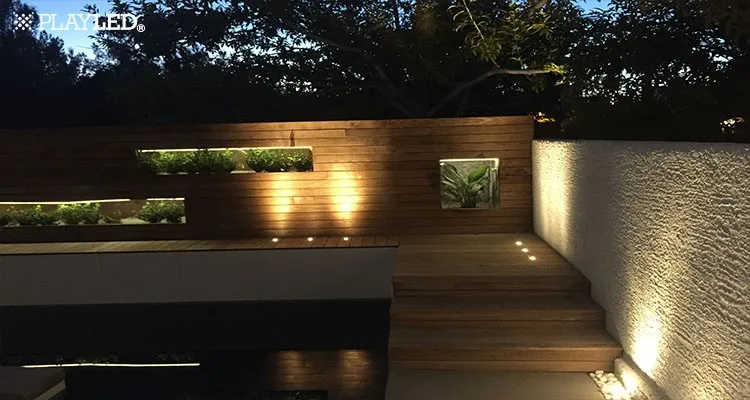

Exterior Inground Light for garden,terrace etc.

Company Introduction

Puyuan Electronic Illumination Co., Ltd. with registed brand PLAYLED is a professional LED lighting manufacturer in China,established in 2007 years.

It is specialized in producing Exterior LED lights, such as LED inground light, LED deck lights, Spike spot lights, step lights, underwater pool lights,LED flood lights,wall washer etc.. We not only pay much attention on quality but also on the details such as design ,finishing optics etc..

We adhere to quality standards of operation and is compliant with ISO9001:2008 for quality management operations system and ISO14001:2004 for environmental system certification.Our products have varying quality certifications such as CE,RoHS,TUV and cUL assure reliability,particularly those which are exported to Europe, North America,South America,Australia,Iceland,Malaysia,Indonesia and Philippines,UAE,Saudi Arabia etc.

We usually attended Guangzhou Fair, HongKong International Lighting Fair ( Autumn Edition),HongKong International Lighting Fair ( Spring Edition),Japan Light Fair,LED Expo Thailand,Light Middle East in DUBAI etc.

Contact Us

1.Are you a trade company or a manufacturer?

We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.

2.What is your delivery date?

 The delivery date is around 7-15 days for samples,and 15~25 days  for regular orders after receipt of payment.

3.What is your payment terms?

For samples: 100% deposit.

For regular order:30% deposit in advance and 70% balance before shipment.

The payment method can be Paypal,western union bank, bank for TT .

4.What's your delivery terms ?

We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.

5.What's your warranty ?

We are confident on our quality of design,and the warranty is 3 years.

6. Can I buy the quantity below MOQ ?
Yes,please contact us for the detailed prices based on your detailed quantity requirement.
