Stainless steel latest technology chilli powder processing machine

Share on (60678291058):


Price:RUB 91,812.24 - RUB 420,806.10

Quantity:


Product Overview

Description

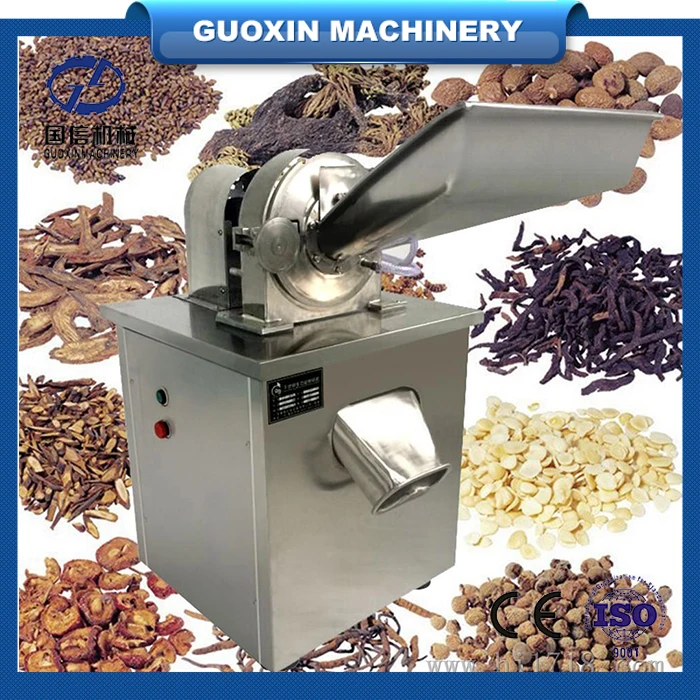

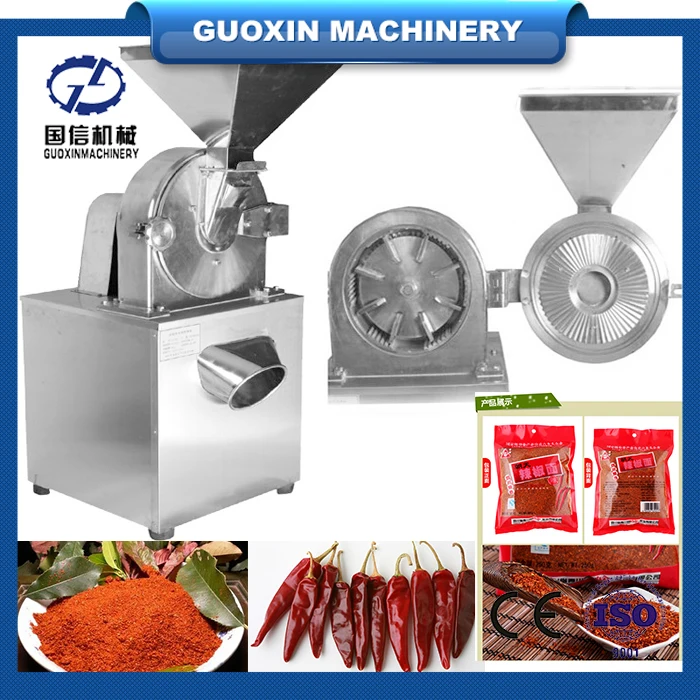

Stainless steel latest technology chilli powder processing machine

Product Description

chilli powder processing machine1

Brief Introduction of chilli powder processing machine:



This chilli powder processing machine mainly used for the pharmaceutical, chemical, food(example: ginger, chili, pepper, oil and wheat, soybean, sugar, star anise, cinnamon), and other materials in the crushing process low hardness, fineness adjusted between10~120mesh, high yield, fine grain size, low noise, low energy consumption, simple maintenance, and easy to install, especially for oily, viscous, heatsensitive, fibrous materials such as low hardness crushing process.

chilli powder processing machine.jpg chilli powder processing machine Features:

1. Crushing capacity, low energy consumption, the product is relatively small fineness.

2. Smashing large space, generated when the cutter operation of high strength wind, not only

to increase production capacity, reduce over crushed, and it can effectively avoid crushing the material in the production of the deposition and clogging.

3. Due to enhanced shear, therefore the fibrous material and the grinding capacity of

equipment than the average high.

4. The screen of the installation of facilities, location and reliable, are used plugin. Relative to

the ring will be screened by the form of life a lot high.

5. The design Built-inner motor, the machine’s center of gravity lower, effectively reducing the

noise of the equipment.

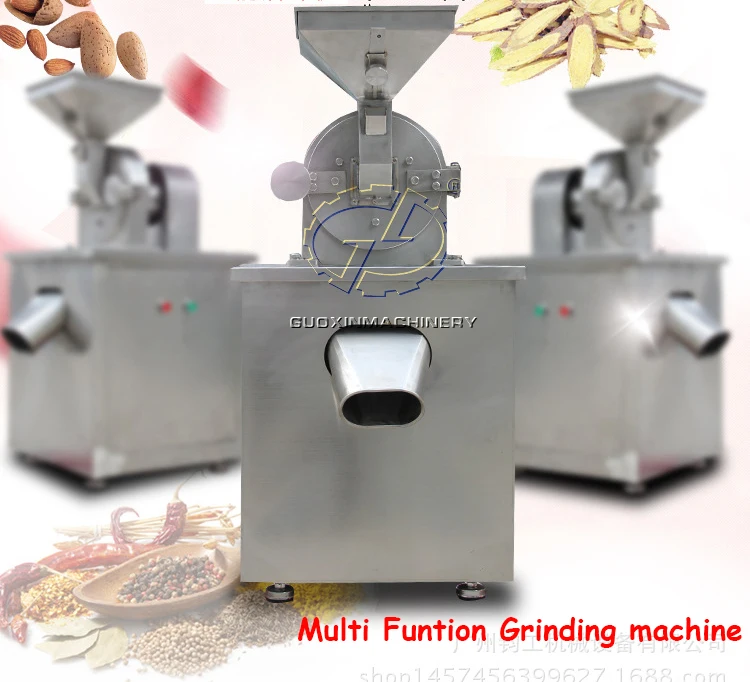

chilli powder processing machine11

Details 1 of chilli powder processing machine:

chilli powder processing machine6.jpg

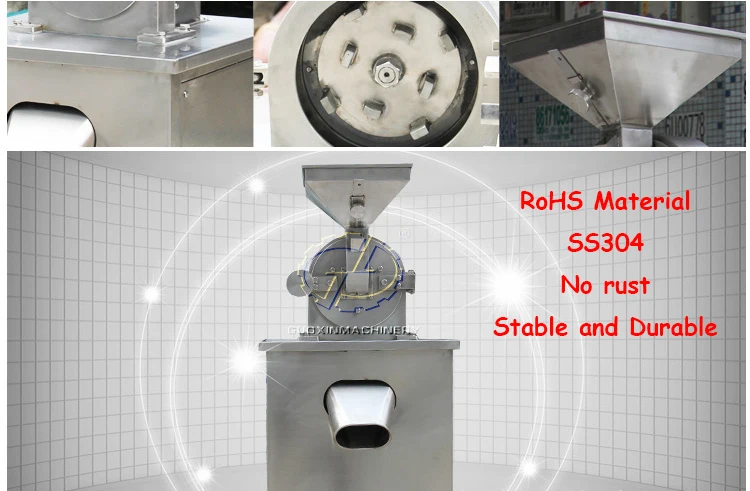

Details 2 of chilli powder processing machine:chilli powder processing machine8.jpg

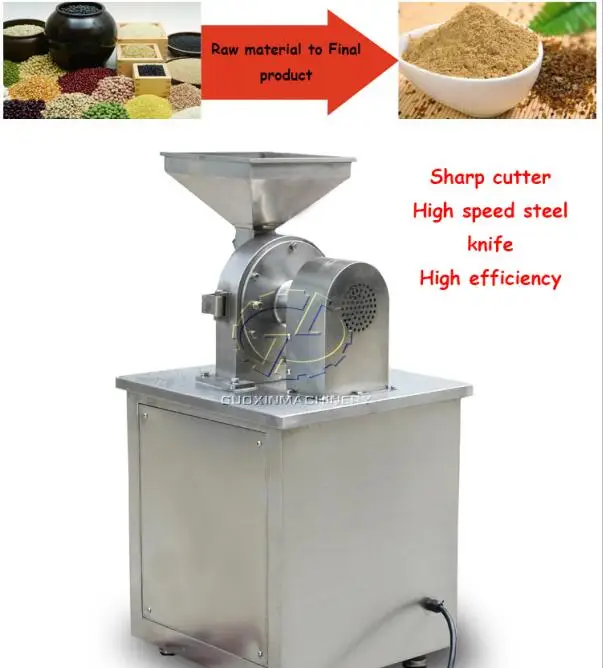

Details 3 of chilli powder processing machine:

chilli powder processing machine9.jpg

Technical Parameters

chilli powder processing machine10

chilli powder processing machine techinical Parameters:

Model

 Capacity

Spindle speed

Feeding Size

Crushing

 Fineness

Motor

Power

Overall Dimensions

weight

GX-15B

10-50kg/h

6000r/min

6mm

60-120

(mesh)

2.2kw

550*400*850

(mm)

150kg

GX-20B

60-150kg/h

4500r/min

6mm

40-120

(mesh)

4kw

600*550*1250

(mm)

280kg

GX-30B

100-300kg/h

3800r/min

8mm

40-120

(mesh)

5.5kw

700*600*1450

(mm)

340kg

GX-40B

160-800kg/h

3400r/min

10mm

40-120

(mesh)

11kw

900*800*1550

(mm)

450kg

GX-50B

200-1000kg/h

3000r/min

12mm

40-120

(mesh)

18.5kw

1050*850*1750

(mm)

450kg

GX-60B

300-1000kg/h

2800r/min

15mm

40-120

(mesh)

22kw

1100*900*1880

(mm)

670kg

GX-80B

400-2000kg/h

2000r/min

18mm

40-120

(mesh)

37kw

1200*950*1960

(mm)

900kg

GX-100B

500-3000kg/h

1500r/min

20mm

40-120

(mesh)

55kw

1350*1000*2100

(mm)

1300kg



Detailed Images

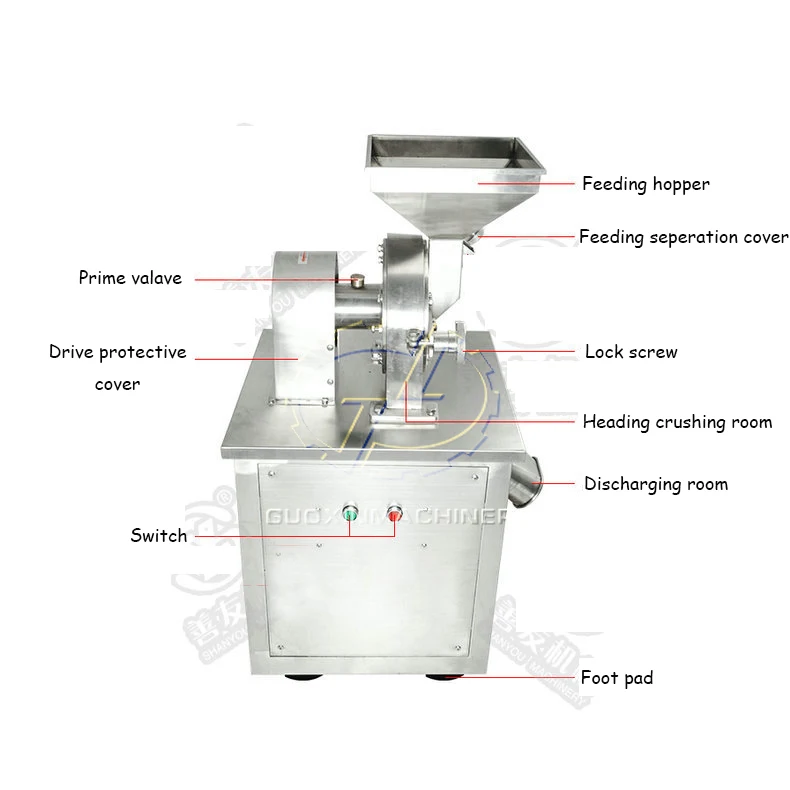

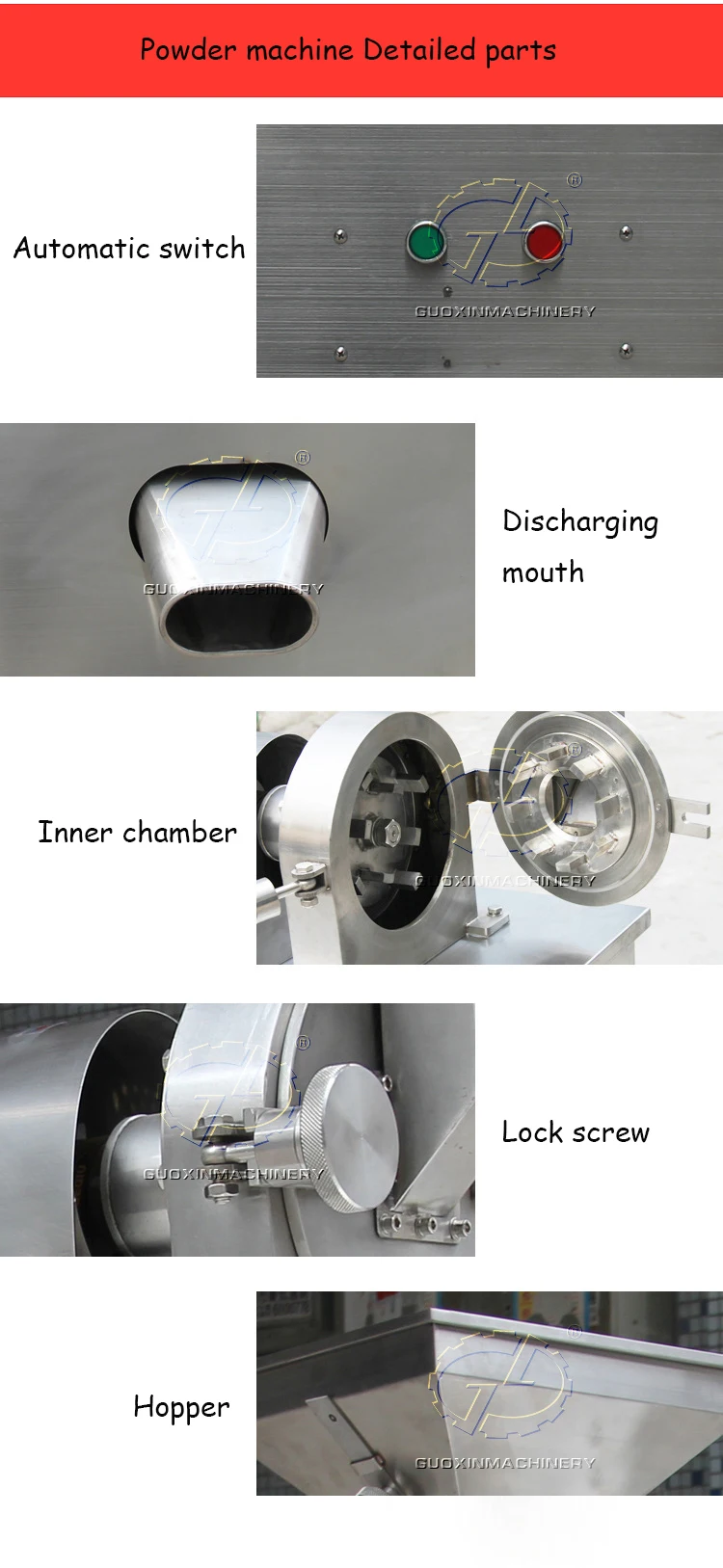

chilli powder processing machine Structure:

chilli powder processing machine structure1.jpgchilli powder processing machine structure.jpg

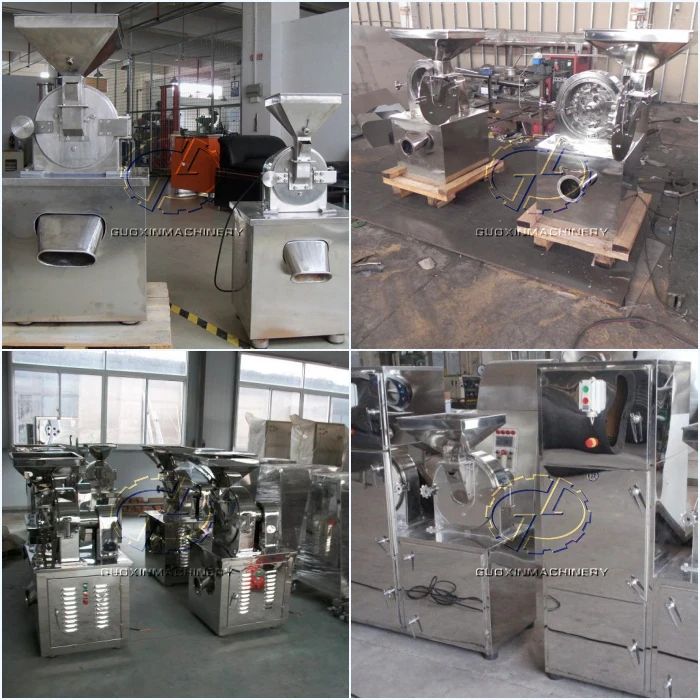

Our factory of chilli powder processing machine:

chilli powder processing machine5.jpg



Packaging & Shipping

For chilli powder processing machine:

chilli powder processing machine6
For chilli powder processing machine,Packing machine with wooden box, or delivery with Container without packing, to prevent them from destroying during transportation.
Then, we will choose the most convenient and economic way to delivey goods.
Besides, if our customer have specific demand with delivey, we can make it.
Our Services

Customer visiting:

customer visiting

Pre-sale services:
Act as a good advisor and assistant of clients; enable them to get rich and competitive
from the returns of their investment.
1) Select suitable equipment model.
2) Design and manufacture products according to clients’ special requirements.
3) Train technical personnel for clients.
4) Professional suggestion for customer.
Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
1)take photos(including raw material, semi-products, final products, and loading products)
1) Pre-check and accept products ahead of delivery.
2) Prepare all clearance documents, so that the customer clearance smoothly.
After-sale services:
Provide considerate services to minimize clients’ worries.
1) Provide civil engineering drawings of the equipment.
2) Free training(including installation,maintenace) to every customer.
3) Install and debug the equipment, ensure the dryer running smoothly.
4) Examine the equipment regularly.
5) Take initiative to eliminate the troubles rapidly at site.
6) Distribute the guarantee fittings door-to-door.
7) Provide technical exchange and support.
Company Information

chilli powder processing machine factory

Why Choose Us?

1,we are factory, not dealer, we can quote u best price.

2. we have stable work team and qualified engineer.

3. we have long cooperation shipping agency,can help u get the best freight.

4. our all products are approved CE quality inspection certificates.

certificate



FAQ

1) How is the quality of your chilli powder processing machine?
Our all products are certificated with CE quality inspection. Also manufactured strictly according to national and international standard, and we take a test on every machine before delivery.


2) What guarantee do you provide?
If the quality is not consistent with the description as we said or promised before you place order, we promise you 100% refund.And we now support Alibaba Trade assurance which can protect your money safe,if we don't deliver on time,and the quality is not good after you receive,we gurantee 100% refund.


3) How about price?
We have our own factory and can give you the competitive price. Besides, we have a policy that " for saving time and absolutely honest business attitude, we quote as low as possible, discount can be given according to quantity".
