3.5 inch X86 Celeron J1900 table embedded linux motherboard OEM projector motherboard
- Category: >>>
- Supplier: Shenzhen Zeal-All Industry Co. Ltd.
Share on (60678334192):
Product Overview
Description
Product Description

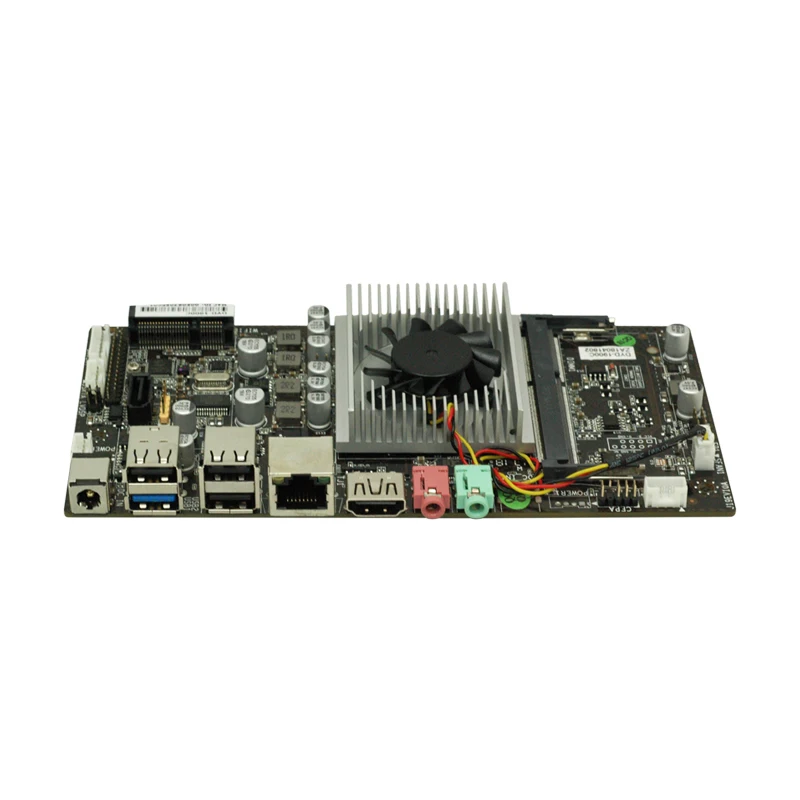

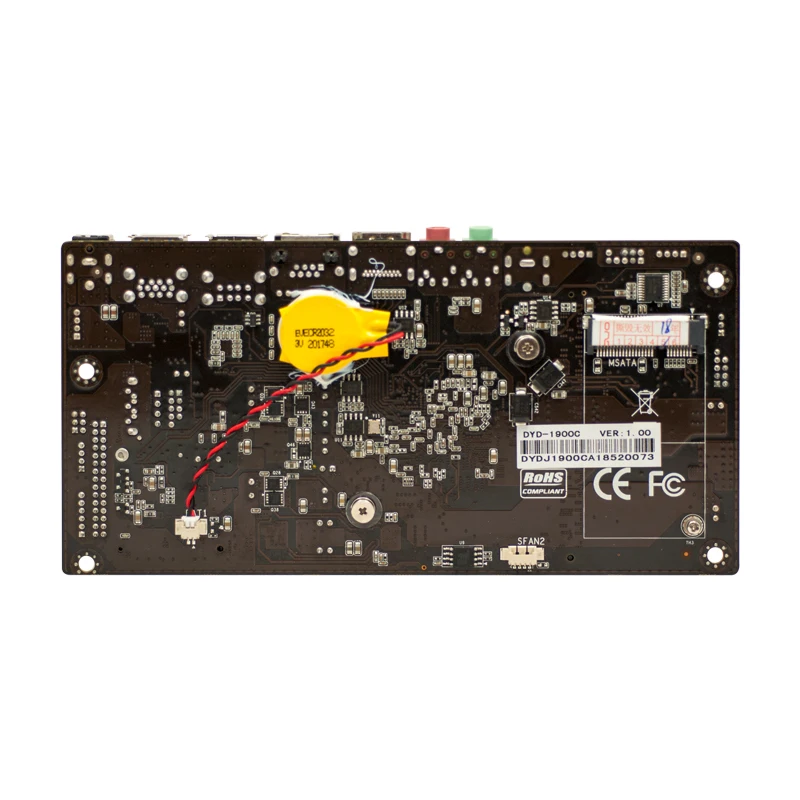

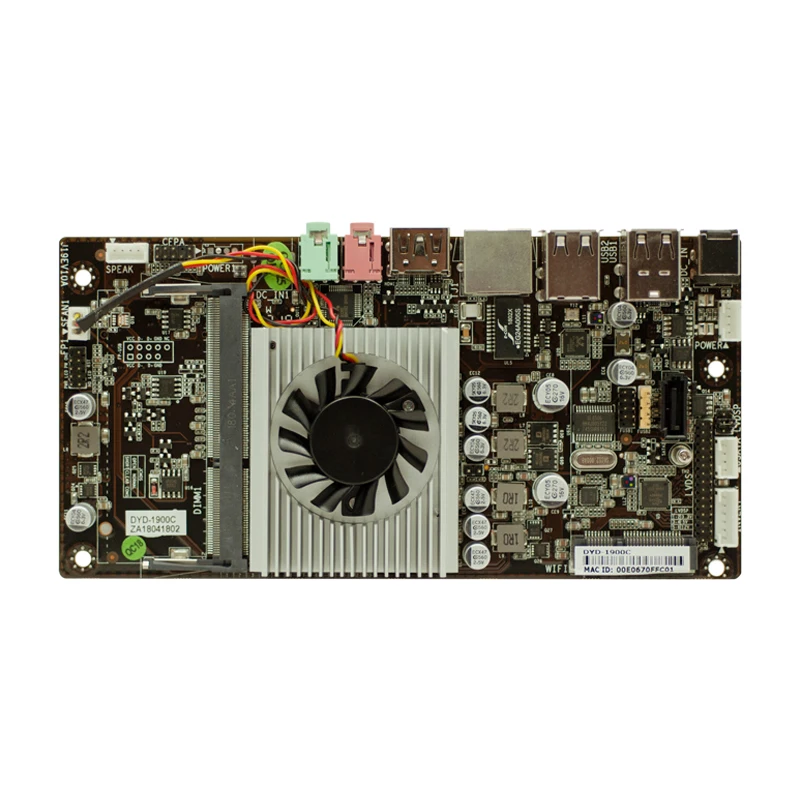

3.5 inch X86 Intel Celeron J1900 table embedded linux motherboard OEM projector motherboard
Product Features:
-Support Intel Celeron J1900 Processor (2M Cache, up to 2.42 GHz).
-Onboard Intel J1900 Chipset.
-Intel® HD Graphics
-Support HD/LVDS Display.
-DC_IN 12 VC Input power.

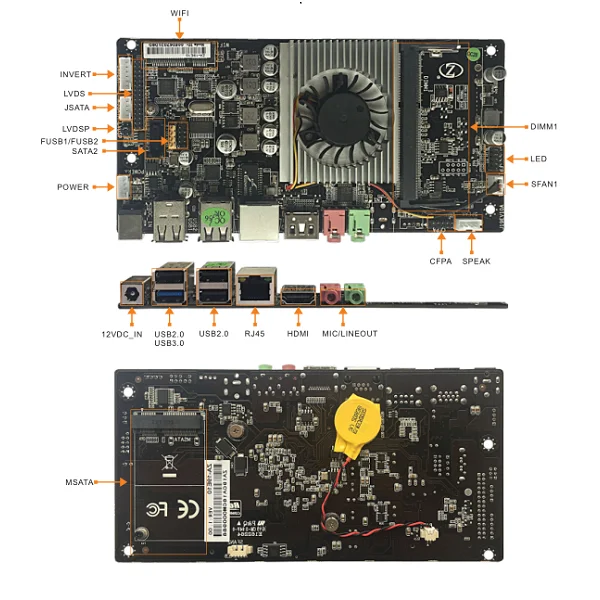

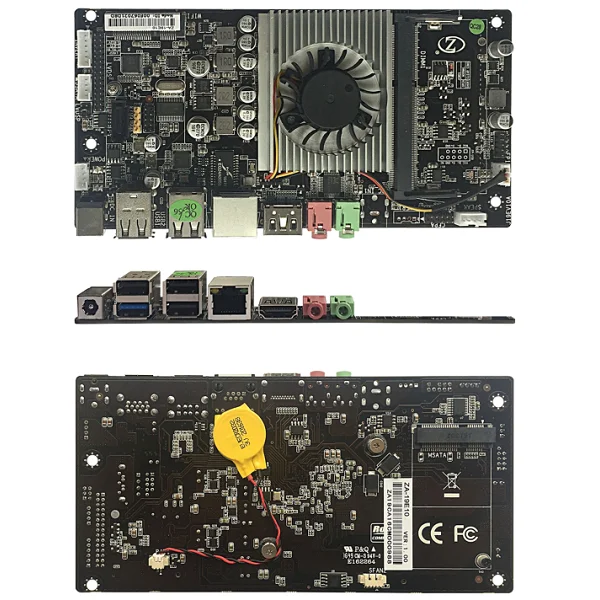

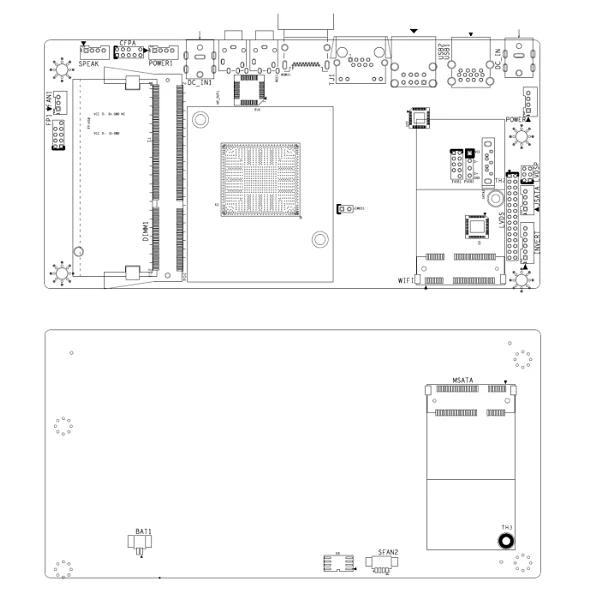

Model NO. | ZA-19E10 |
Size | 170mm x 85mm |
CPU | Intel Celeron J1900 Processor (2M Cache, up to 2.42 GHz) |
Memory | 1 DDR3 Slot support DDR3L-1600,Up to 8GB |
Graphics | Intel HD Graphics |
Chipset | J1900 |
Rear I/O | 1* DC Power Supply (12V) |
1* HD | |
3* USB2.0 | |
1* USB3.0 | |
1* LAN | |
1* Mic-in/Line-out | |
Internal I/O | 2* USB PIN,Support 3* USB2. 0 |
1* CPUFan | |
1* SYSFan | |
1*LVDS, Support Dual Channel 8 bit | |
1* SATA | |
1* Front Panel | |
Expansion Slot | 1* MINI-PCIE(Support MSATA) |
1* MINI-PCIE(Support WiFi 3G) | |
Storage | 1* SATA Slot |
BIOS | AMIBIOS,64M bit Flash Memory |
LAN | 1*Realtek 8111E,10/100/1000M, Ethernet Control |
H/W Monitoring | Temperature Management ,Voltage Management ,System Power Management |
Audio | ALC662 Dual Channel Output |
Operating System | Windows7, Windows8, Linux |
Temp. | -10° C ~ 55° C |
Humidity | 0% ~ 95% (Relative Humidity ,No Condensation) |
Product Showcase
Packaging & Shipping
Packing:
Original factory package
In anti-static bag + air bubble +paper box
Customized package
Delivery Time:
1 working day to confirm our stock.
3 working days for testing and shipping.
Customized product delivery negotiation via email.
Shipping Ways:
It will be shipped by DHL/Fedex/TNT/UPS/EMS or other ways.Please contact us and choose the best one.
All products will be strictly tested by QC department and shipped worldwide directly by sea,air and express.
We will provide all document you need to import.
Motherboard EXPO
Application
FAQ
A: 1.Professional embedded motherboard manufacturer for years with great experience.
2.Own factory and independent research, you can share directly with factory price.
3.Provode OEM/ODM service.
4. CE,FCC,ISO9001/14001 RoHs etc certificated,quality guaranteed.
Q: What is the time of delivery?
A: It depend on your quantity and production schedule.Usually,1-3 working days for sample order,
10-20 working days for mass production after receiving payment.
Q: What kind of payment do you accepet?
A: T/T,West union,Paypal,Visa,E-checking etc.
Q: How is your warranty policy for goods?
A: We focus on after-services,and all our products share 3 years warranty.
Contact Us
Company Information
Brief introduction:Shen Zhen Zeal-all Technology Co.,Ltd was established in 2013,a professional design and manufacturer for embedded computing products and Mini PC in China.we have ISO9001/14001 certified board-level manufacturing facility,Our team including hardware development engineers 18 people, product testing engineers 21 people, structural engineers 3 people, software development staff 25 people. The average working time of engineers in the industry is 8 years.We lalso have our own factory with 5,000 square meters in Shen Zhen.
Product Line:GM MINI-ITX motherboard, NANO-ITX motherboard, All in one motherboard, digital signage motherboard, POS motherboard, OPS and OPS-C motherboard and MiNi machine, network security motherboard, embedded industrial computer motherboard, special computer motherboard etc. All products complied with RoHS CE, FCC, UL certificates.
Product Application:retail banking, intelligent education, financial self-help, thin passenger cloud, digital security, digital signage, network security, industrial control etc.
Sales Network:1200+ domestic customers, 300+ oversea customers. 6 authorized distributors worldwide.
Zeal-all is committed to become the pioneer of China's information security, embedded products, to show the world China's technology and products.
"Wisdom,innovation, integrity,quality" is our enterprise spirit; we constantly beyond our-self and pursue the most perfect product for our customer.
