New promotion rigid flat pool solar heating Flat Plate collector
- Category: >>>
- Supplier: Shanghai Highshine International Trade Co. Ltd.
Share on (60678379727):
Product Overview
Description

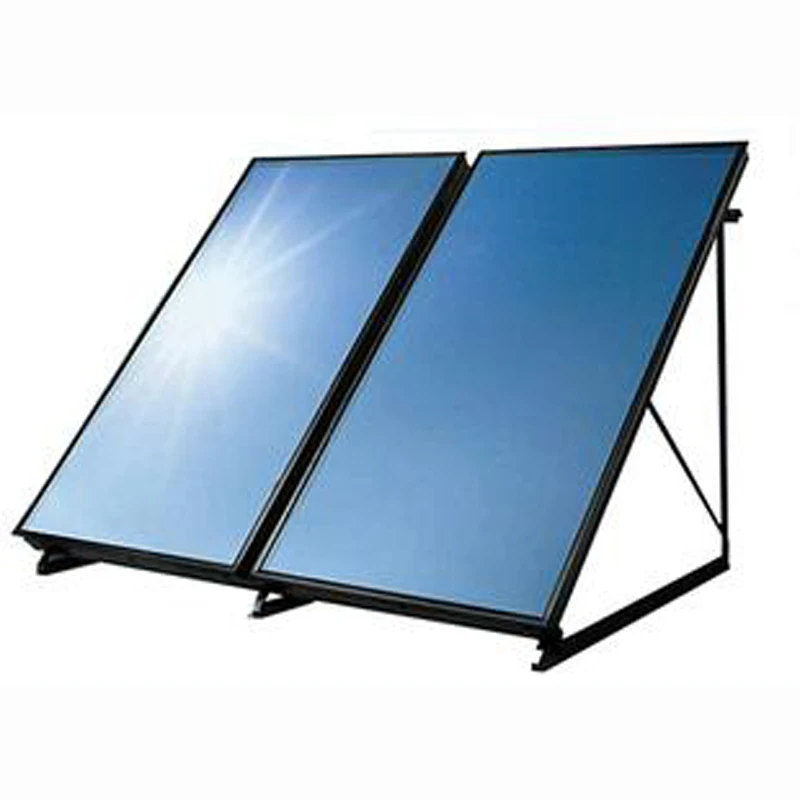

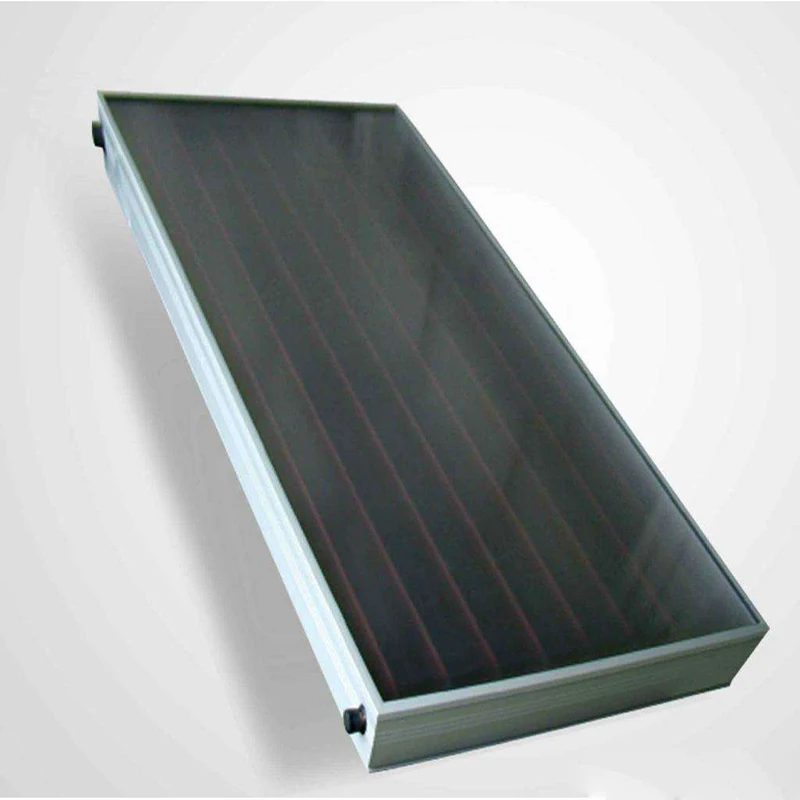

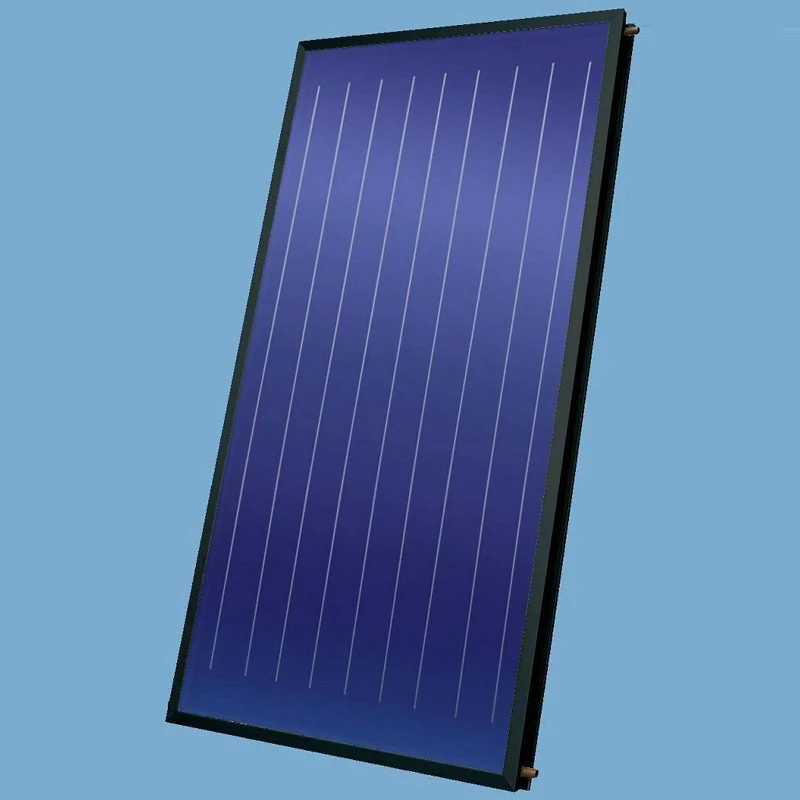

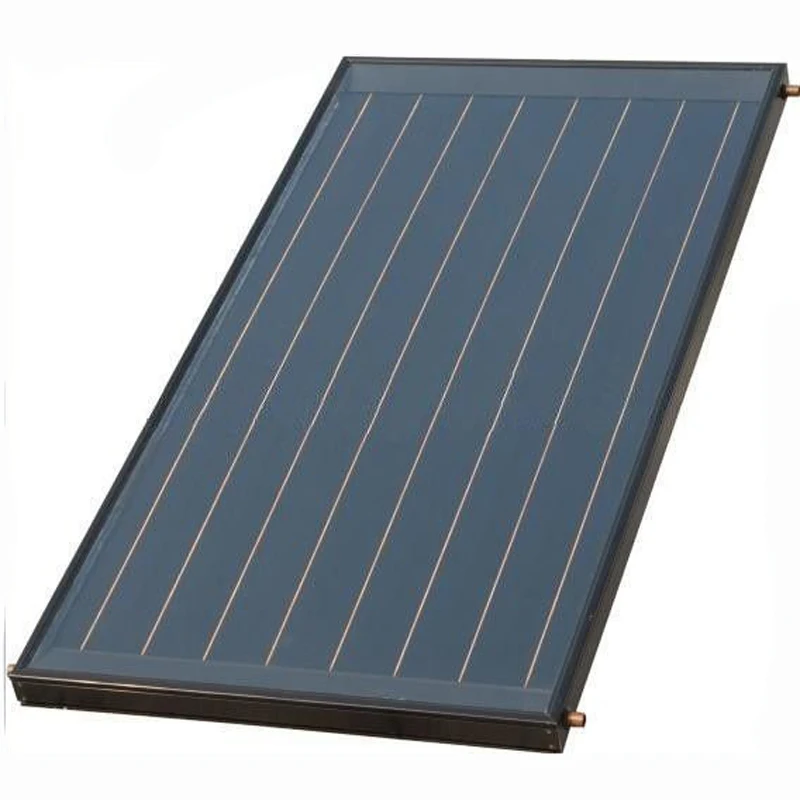

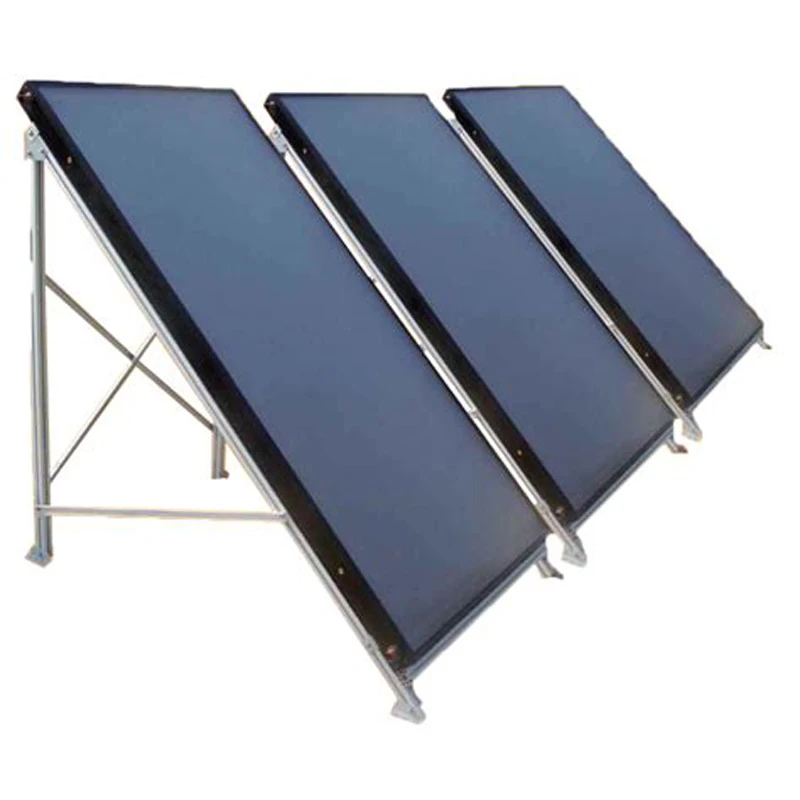

Flat Panel Solar Collector
Alumium Alloy Copper Pipe Material Flat Panel Plate Solar Water Collector with CE+Rohs
Components:
Tempered glass cover, absorbing plate, insulation and back plate, specific detail as bellow:
titanium coating advantages:
1. Titanium coating is evenly distributed and high quality
2. High Thermal efficiency, 95% absorption, 6% emission.
3. Excellent weather resistance, fastness for 25 years, efficiency declines less than 5%.
Model | CS-FP-III 2000/1000/80 | CS-FP-IV | CS-FP-IV 2000/1000/80 | CS-FP-II 2000/1000/80 |
Coating | Anodic Oxidation | Black chrome | Black chrome | Blue coating |
Welding | Laser | Ultrasonic | Laser | Laser |
Material of Absorber | Copper &Aluminum | Copper | Copper &Aluminum | Copper &Aluminum |
Size & Quantity header pipe | 22*08mm 2PCS | |||
Size &Quantity branch pipe | 10*0.6mm 7PCS | |||
Absorption rate | 0.90±0.03 | 0.93±0.03 | 0.92±0.03 | 0.94±0.02 |
Reflection rate | 0.18±0.05 | 0.10±0.05 | 0.10±0.05 | 0.05±0.02 |
Collector size | 2000 x 1000 x 80mm | |||
Frame color | Silver/Black/Champagne | |||
Gross area | 2m2 | |||
Absorber area | 1.85m2 | |||
Sealing | EPDM | |||
cover material | Ultra white and low iron fabric surface tempered glass | |||
Cover transmission | 92% | |||
Back plate material | 0.30mm galvanized steel | |||
Insulation | 30mm glass wool | |||
Max working pressure | 0.6MPa | |||
weight | 37kg | 37kg | 38kg | 38kg |
