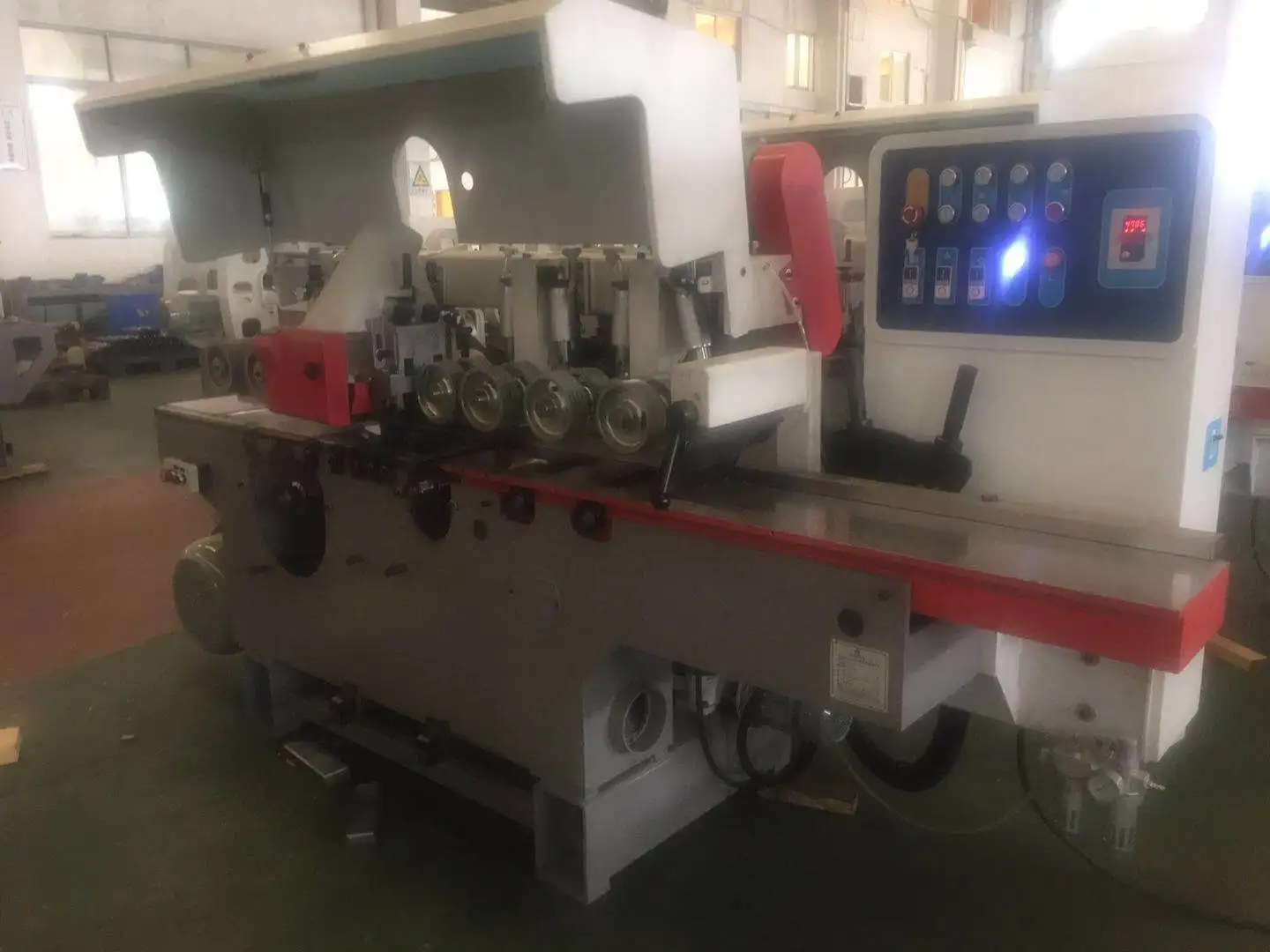

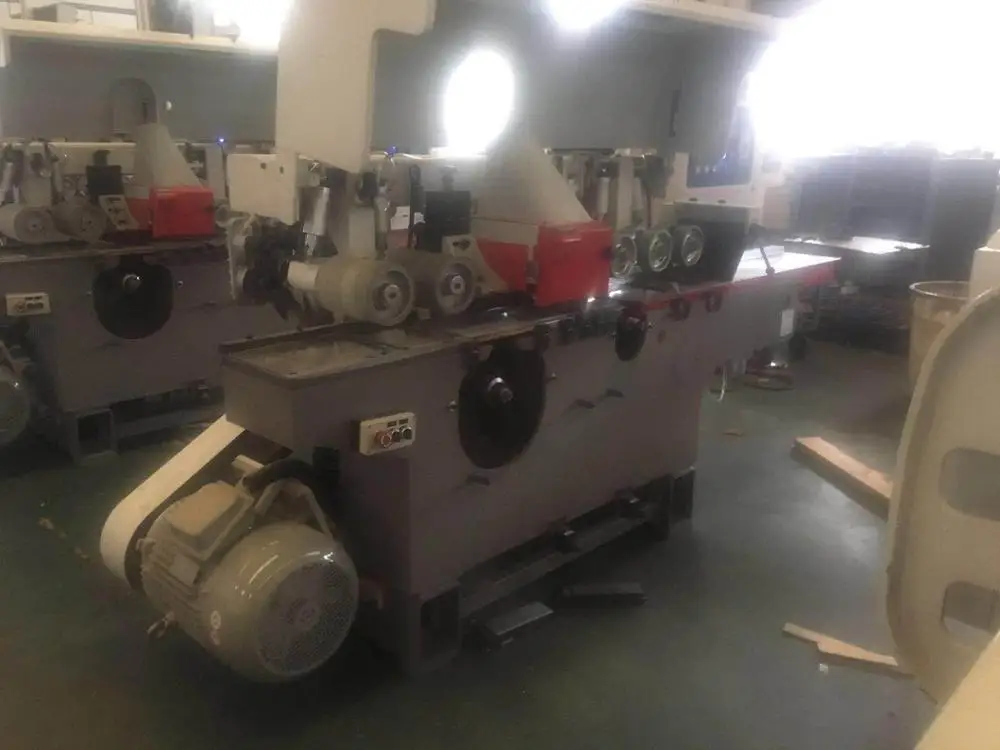

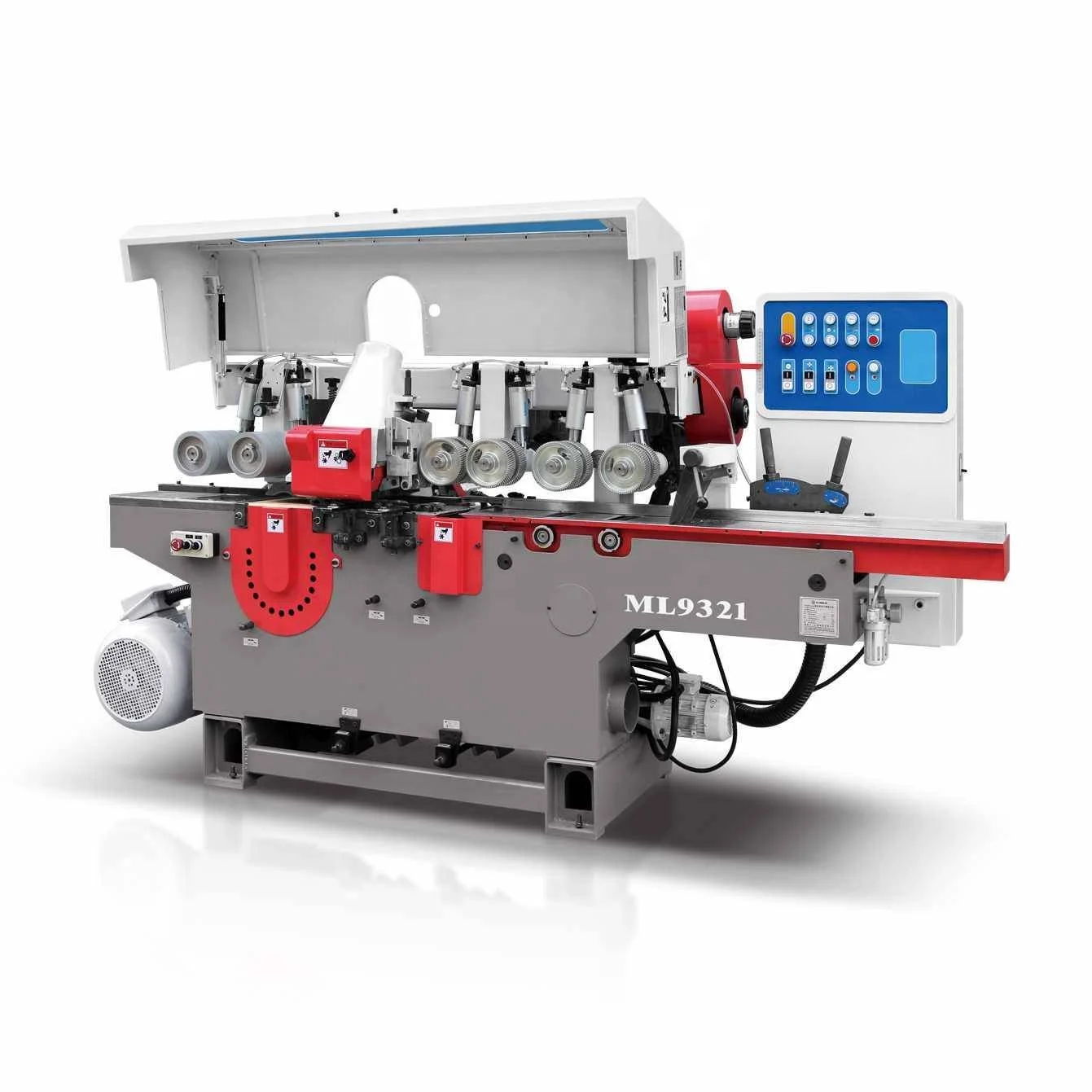

VH ML9321 Heavy Duty Solid Woodworking Machinery Double Side Planer With Multiple Rip Saw
- Category: Wood Saw Machines >>>
- Supplier: Shanghai Fuma Woodworking Machinery & Equipment Co. Ltd.
Share on (60678440206):
Product Overview
Description
VH-ML9321 Heavy Duty Solid Woodworking Machinery Double Side Planer With Multiple Rip Saw
| SPECIFICATION& MODEL | VH-ML9321 | VH-ML9321A |
| Max. working width(mm) | 200mm | 200mm |
| Max. working thickness(mm) | 75mm | 75mm |
| Feeding speed(m/min) | 4-18m/min | 4-18m/min |
| Top spindle diameter(mm) | 40mm | 40mm |
| Top spindle rotation rate(r/min) | 6000r/min | 6000r/min |
| Top spindle movement(mm) | 20mm | 20mm |
| Top spindle motor power(kw) | 5.5kw | 5.5kw |
| Bottom spindle diameter(mm) | 40mm | 40mm |
| Bottom spindle rotation rate | 6000r/min | 6000r/min |
| Bottom spindle motor power(kw) | 4kw | 4kw |
| Cutting spindle diameter(mm) | 50mm | 40mm |
| Cutting spindle rotation rate | 4000r/min | 5000r/min |
| Max. saw blade diameter(mm) | 300mm | 300mm |
| Spindle power(kw) | 22kw | 22kw |
| Spindle elevating motor(kw) | 0.37kw | 0.37kw |
| Feeding motor power(kw) | 2.2kw | 2.2kw |
| Elevating motor power(kw) | 0.37kw | 0.37kw |
| Total power(kw) | 34.44kw | 34.44kw |
| Air pressure(Mpa) | 0.6Mpa | 0.6Mpa |
| Dimension(mm) | 3070×1230×1540mm | 3070×1230×1540mm |
Model | VH-M9321 |
Max.working width | 200mm |
Min.working length | 350mm |
Max working thickness | 75mm |
Min working thickness | 15mm |
Top spindle diameter | 40mm |
Top spindle rotation rate | 6000r/min |
Top spindle movement | 20mm |
Top spindle motor power | 5.5kw |
Bottom spindle diameter | 40mm |
Bottom spindle rotation rate | 6000r/min |
Bottom spindle motor power | 4kw |
Cutting spindle diameter(mm) | 50mm |
Cutting spindle rotation rate | 4000r/min |
Max. saw blade diameter | 300mm |
Spindle rotation rate | 6000rpm |
Feeding speed | 4-18m/min |
Top spindle motor power | 5.5kw |
Bottom spindle motor power | 4kw |
Saw spindle motor power | 22kw |
Saw spindle rotation rate | 5000rpm |
Spindle elevating motor | 0.37kw |
Feeding motor power | 2.2kw |
Elevating motor power | 0.37kw |
Air pressure | 0.6mpa |
Total power | 34.44kw |
Overall size | 3070x1230x1540mm |
Our Customers:
Our Big Family:
Our Services
Shanghai FumaWoodworking Machinery & Equipment Co., LTD is specialized in making woodworking machine,and also run as an agent for various brands and their plentiful models, so we can give you the most professional service with a competitive price. If you have interest in our production, please let me know.
