Product Overview

Description

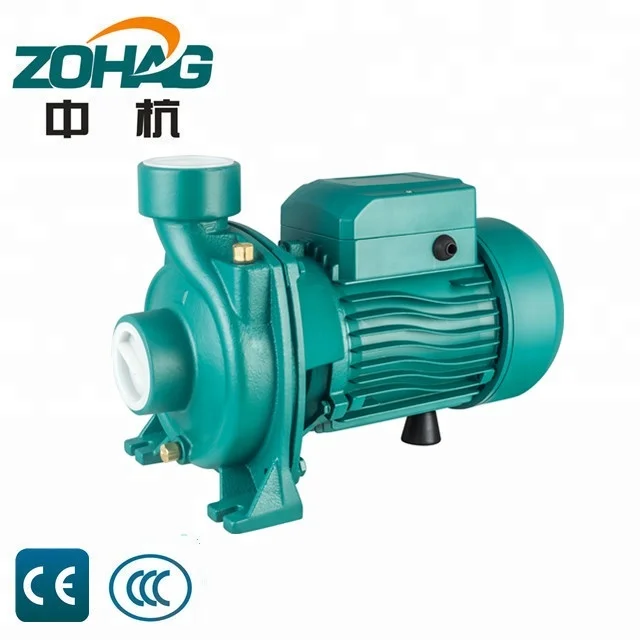

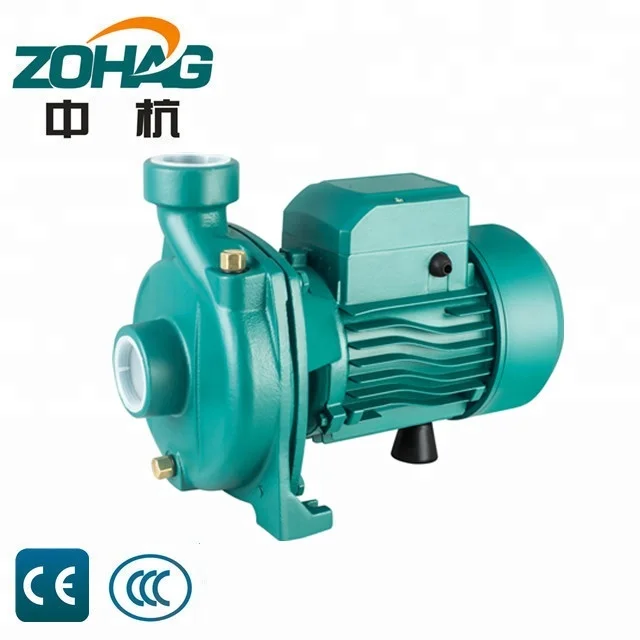

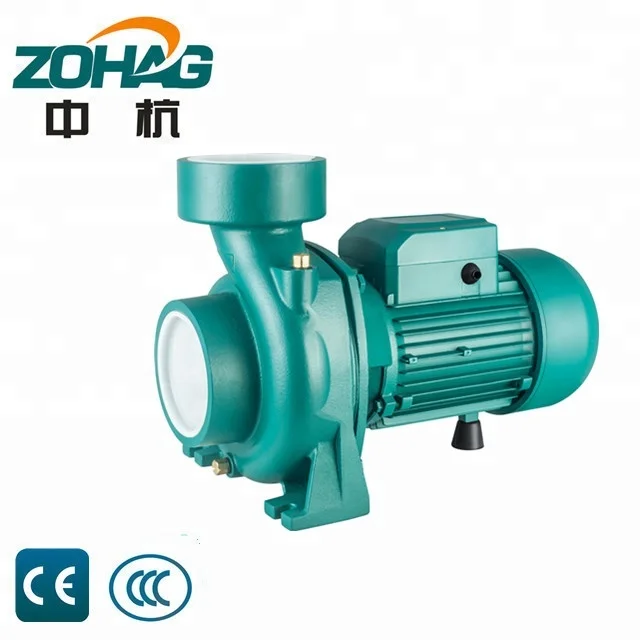

Chinese Factory HF Series 2HP Electric Centrifugal Water Pump

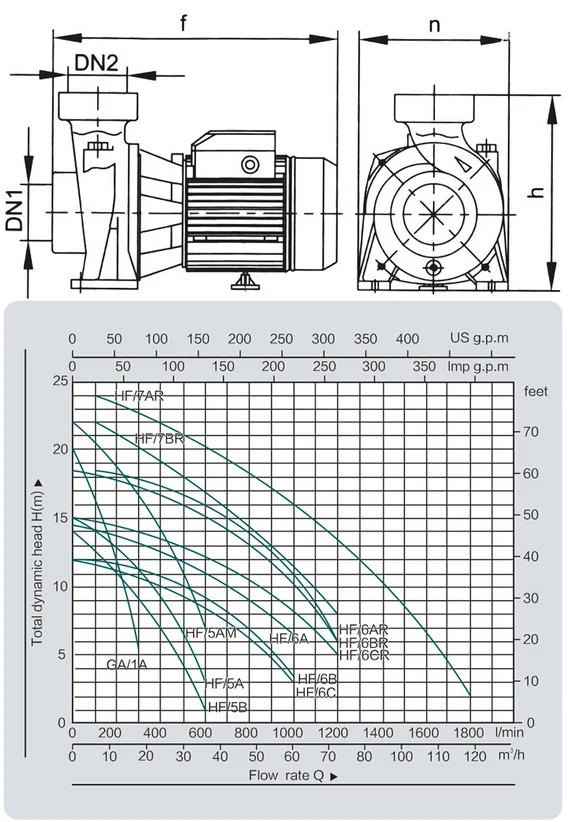

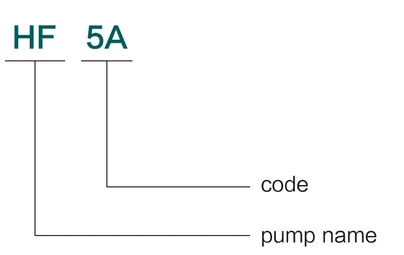

Model		P2		DN1	DN2	DIMESIONS
1~ 220V/240V	3~ 380V/415V	KW	HP			n	h	f
GA/1A	-	0.75	1.0	1.5"	1.5"	205	270	322
HF/5B	-	0.75	1.0	2"	2"	220	285	362
HF/5A	HF/5A	1.1	1.5	2"	2"	220	285	362
HF/5AM	HF/5AM	1.5	2.0	2"	2"	252	296	417
HF/6C	HF/6C	1.1	1.5	3"	3"	279	355	445
HF/6B	HF/6B	1.5	2.0	3"	3"	279	355	445
HF/6A	HF/6A	2.2	3.0	3"	3"	279	355	518
HF/6CR	HF/6CR	1.1	1.5	4"	4"	279	355	445
HF/6BR	HF/6BR	1.5	2.0	4"	4"	279	355	445
HF/6AR	HF/6AR	2.2	3.0	4"	4"	279	355	518
-	HF/7BR	3.0	4.0	4"	4"	278	355	518
-	HF/7AR	4.0	5.0	4"	4"	340	440	600



Applications For water supply from wells or reservoirs. For domestic use,for civil and industrial applications. For garden use and irrigation.   Operating conditions  Maximum fluid temperature up to +40℃. Maximum sand content:0.25%.   Motor and Pump Rewindable motor Three-phase:380V-415V/50Hz Single-phase:220V-240V/50Hz   Options on request Special mechanical seal  Other voltages or frequency 60 Hz Warranty:1 year (according to our general sales conditions).

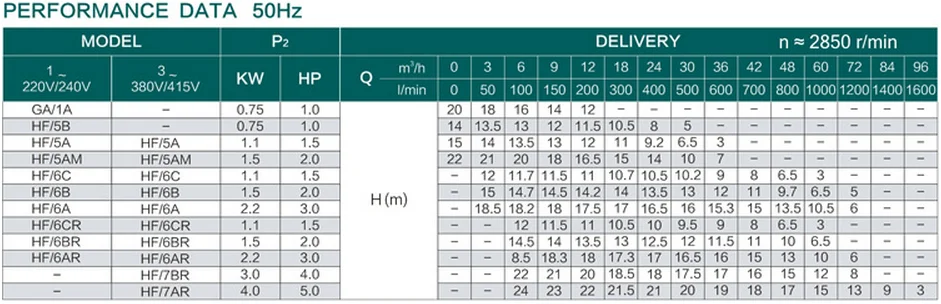

Performance Chart







Other Series Recommendation
4SD Series	6SP Series	4SKM Series
DK series	JET Series	QDX Seires

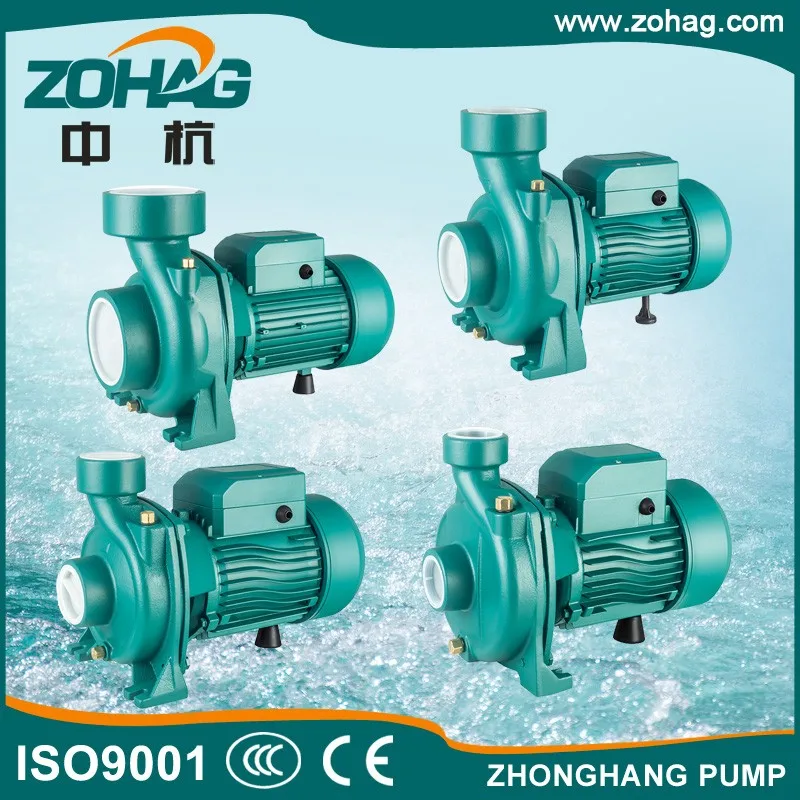

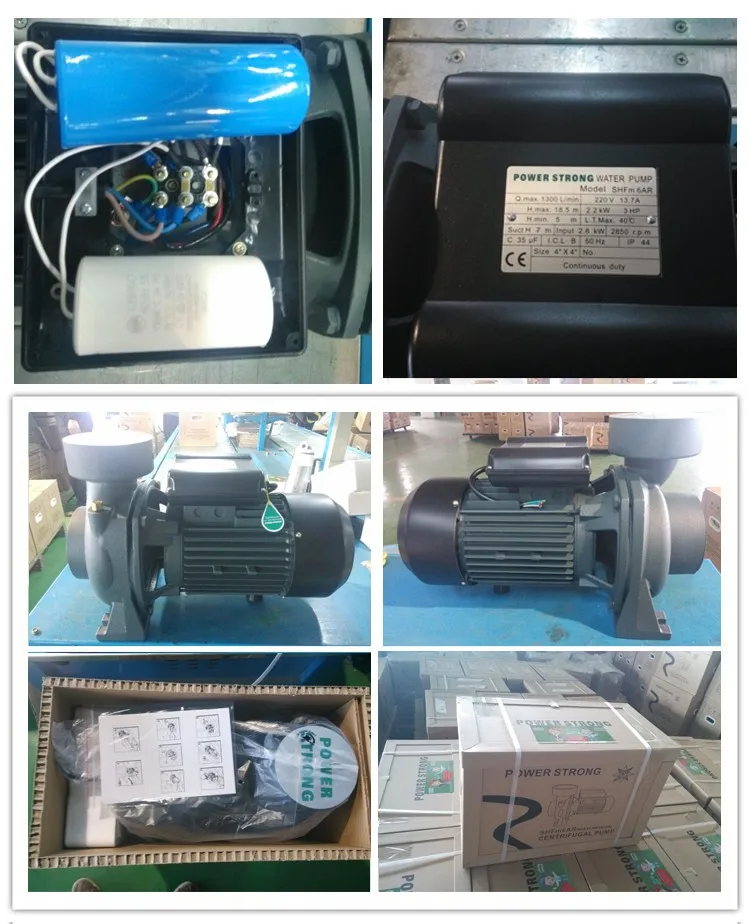

Production Display
