Product Overview

Description


Product Description

DESCRIPTION

Product Name: 25/30/40/50/65/75 mm small industrial top plate fixed caster with PP wheel
Series Name: L1 light duty castor wheel series
Series Size: 1 inches, 1-1/4 inches, 1-1/2 inches, 2 inches, 2-1/2 inches, 3 inches

FEATURES

Zinc-plated pressed steel housing with double steel ball raceway in swivel head
High performance PP wheel with precision straight roller bearing
15 - 60 kg loading capacity

SPECIFICATION

Blow is standard data (other option available) of this collection for your reference

\t
CASTER WHEEL SIZE
\t
WHEEL DIMENSION
\t
OVERALL HEIGHT
\t
LOADING CAPACITY
\t
3 inches
\t
75x25 mm
\t
95 mm
\t
60 kg
\t
2-1/2 inches
\t
65x21 mm
\t
84 mm
\t
50 kg
\t
2 inches
\t
50x21 mm
\t
65 mm
\t
40 kg
\t
1-1/2 inches
\t
40x17 mm
\t
54 mm
\t
30 kg
\t
1-1/4 inches
\t
30x14 mm
\t
43 mm
\t
20 kg
\t
1 inch
\t
25x13 mm
\t
34 mm
\t
15 kg
\t
Additional Data
\t
Mounting Type
\t
top plate (60x50 mm, 46x35 mm, 39x23 mm, 29x23 mm)
\t
Brake Type
\t
side lock brake, swivel (rotating/revolving), fixed (rigid)
\t
Fork Finishing Type
\t
zinc plated
\t
Bearing Type
\t
plain bearing
\t
Wheel Tread Material
\t
PP (polypropylene/polyolefin)
\t
Wheel Core Material
\t
PP (polypropylene/polyolefin)

REMARK

1. standard thickness: fork is 1.2 - 2.0 mm upon size, also can be customized
2. pls note that we do both that OEM for famous brands and ODM for distributors with full production line for all types of castor wheel and we are able to accurately identify which type of caster should be applied to which type of equipment and evrionment, pls give me a try, we'd offer one-stop casters solution for your any special requirements

Detailed Images

Product Comparison

maybe other factory make it, but we make it better

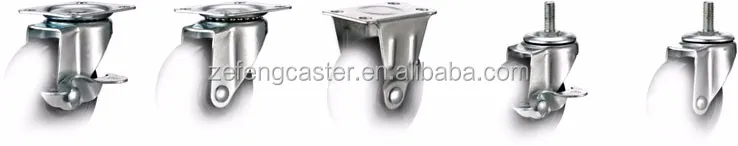

Fork Selection

For light duty castor wheel series, various types of fork component are available for different configuration of equipment, we can work together to find optimal caster solution for you applicantion


Wheel Selection

For L1 light duty castor wheel series, a wide variety of rubber wheels are available for different operation environment, let's work closely with our experts to select proper caster wheel for your unique application needs

PP (polypropylene/polyolefin) wheel

25/30/40/50/65/75 mm

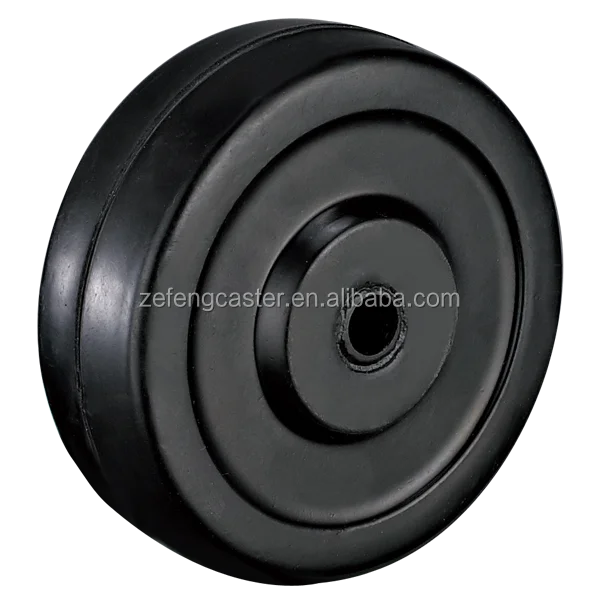

rubber wheel
25/30/40/50/65/75 mm

cast iron wheel

30/40/50/65/75 mm

Related Products

European industrial swivel top plate caster with rubber wheel

Left one is recommended similar product which under the same series with swivel top plate mounting


3 inches (75 mm) to 10 inches (250 mm) are available

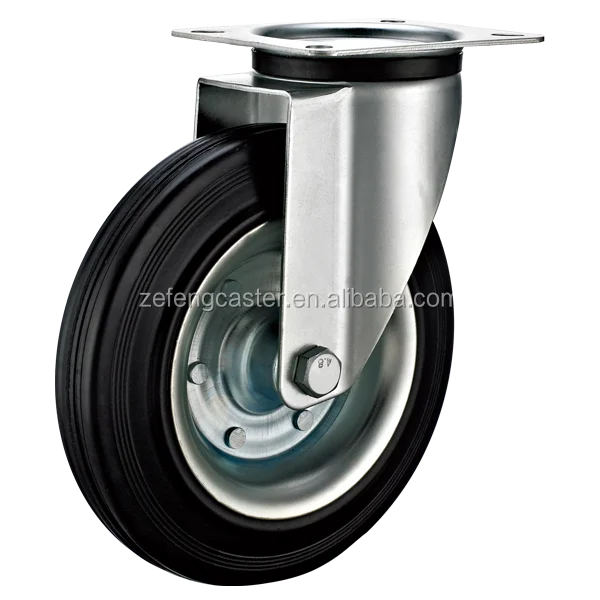

waste bin caster with black rubber wheel

Left one is recommended similar product which suitable for waste bin container

6 inches (160 mm)  to 8 inches (200 mm) are available

scaffolding caster with black rubber wheel

Left one is recommended similar product which suitable for scaffold and mobile ladder


6 inches (160 mm) to 8 inches (200 mm) are available

Our Service

Not find your needs?

It just shows standard casters in this shop, other wide array of casters are available in our factory, if you do not find information you need, pls contact me directly.


We also provide custom casters, let's closely work with design engineers to find the right caster and wheel to meet your specific application requirements.


Things to Note: OEM and ODM, WE DO BOTH!

Here we are -

Understanding your requirements is our first priority!

For over 12 years, Zefeng Caster Company has been providing reliable casters, wheels and solutions to famous brands and reputable distributors. We will work hard to deliver casters that exceed your expectations.

Contact us -

Our team is available between Monday through Saturday and can be reached at 086 158 1447 7815 (WeChat & What's App) and TradManager.

You may also contact us via email whenever necessary:)

We look forward to hearing from you.

Certifications

EN 1004 certification for scaffolding castor wheel

EN 840 certification for waste bin castor wheel

EN 12530 certification for European castor wheel

ANSI MHI ICWM certification for American style caster wheel

Engineering

Utilizing the latest in available technologies, our highly experienced design and engineering teams ensure every detail in performance, materials and aesthetics are delivered to meet customer expectations and safety standards.

This makes Zefeng create the greatest value for customer.

Manufacturing

Industry leading equipments and highly skilled workers confirm our casters meet stringent quality standards. We constantly strive to set standards in caster manufacturing innovation and automation.

This ensures Zefeng leads the industry in China-made casters and wheels.

Testing

To assure our products are of the utmost quality, we test to the highest standards and continually evaluate all production results and processes.

This allows Zefeng to offer an industry leading 1-year warranty on all WLD branded products.
