Wholesale module matrix POC ,monitor ports status , 4K 3D ,HD seamless switching matrix switcher
- Category: >>>
- Supplier: Kensence (shenzhen) Technology Development Co. Ltd.
Share on (60678483941):
Product Overview
Description
Wholesale module matrix POC ,monitor ports status , 4K 3D ,HD seamless switching matrix switcher
Product Description
Product Introduction of optical audio switch box

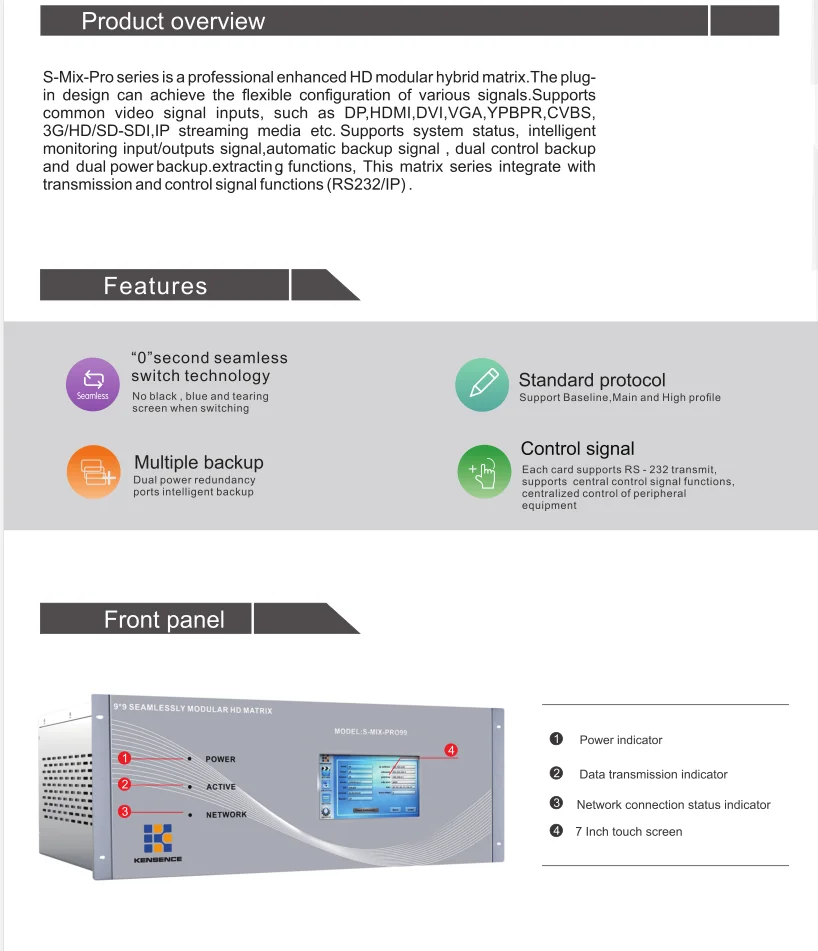

The S-Mix-pro series is an enhanced high definition hybrid matrix with a control signal. The plug-in design, can realize the site’s flexible configuration .It adopts the hot swap redundant power design, support 7*24 hours uninterrupted operation.
Supports common video signal input, such as DP, HDMI, DVI, VGA, YPBPR, CVBS, 3G/HD/SD-SDI, IP streaming media, etc., support powerful audio Embedded function, you can embed audio signal into the video signal, you can also be embedded audio signal out the the video signal .Matrix also supports control signal (RS232/IR) transmission and center console functions. Intelligent EDID switch can ensure the best display.
Product Features of rca sudio switch

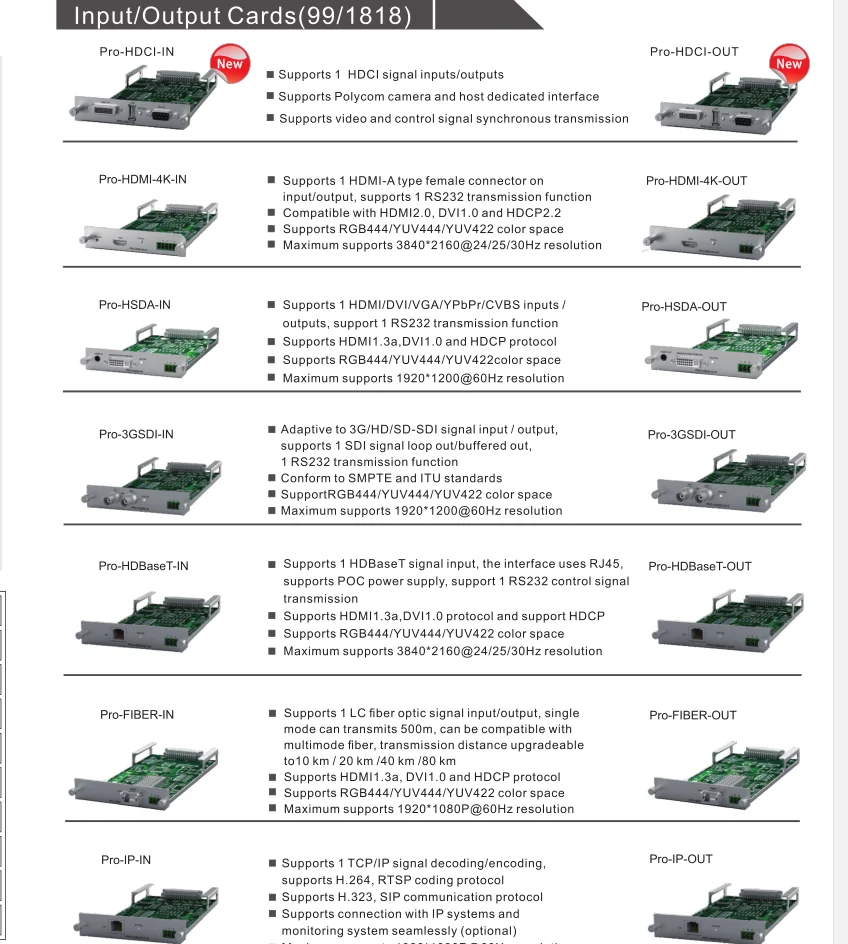

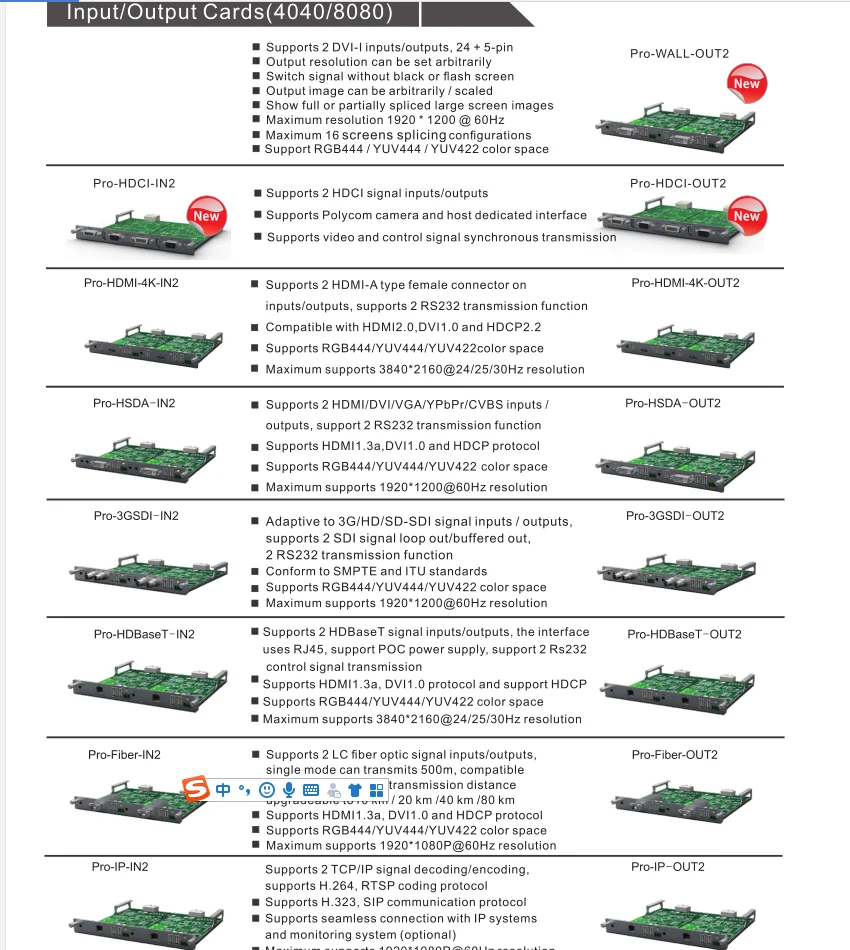

- Modular structure design,support flexible configuration the signal type of input and output channel
- Support CVBS,YPbPr,VGA,HDMI,DVI,AUDIO,3GSDI,HDBaseT,Fiber,IP streaming media input
- Support CVBS,YPbPr,VGA,HDMI,DVI,AUDIO,3GSDI,HDBaseT and Fiber,IP streaming media output
- Each card support RS-232 unvarnished transmission
- Support rapid seamless switching technology
- Intelligent EDID switching technology and intelligent HDCP managament
- Each input channel support Scaler adjustment
- Support Deep Color 48/36/30/24-bit,YUV4:2:2/4:4:4
- Each output channel can be fixed output by 16 kinds of common resolution
- Support TCP,UDP,IP,HTTP,NTP,RTP,IGMP,RTSP,RTCP protocol
- Support H.264 Baseline, Main High ,Profile code,advanced Video preprocessing algorithm MBAFF(Macro block adaptive frame field encoding)
- Support fiber optic transmission technology,up to 80KM
- Support control signal’s center console function,can realized the centralized control of peripheral equipment
- Support video port intelligent backup

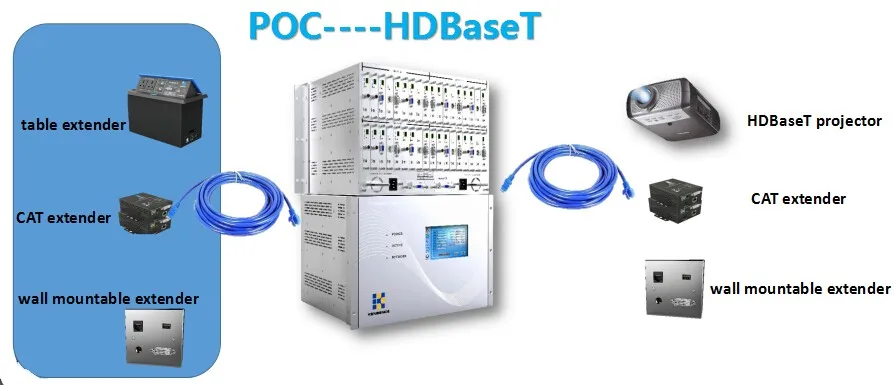

- Support POC(HDBaset)
- Support monitor the device’s temperature and monitor the video port status

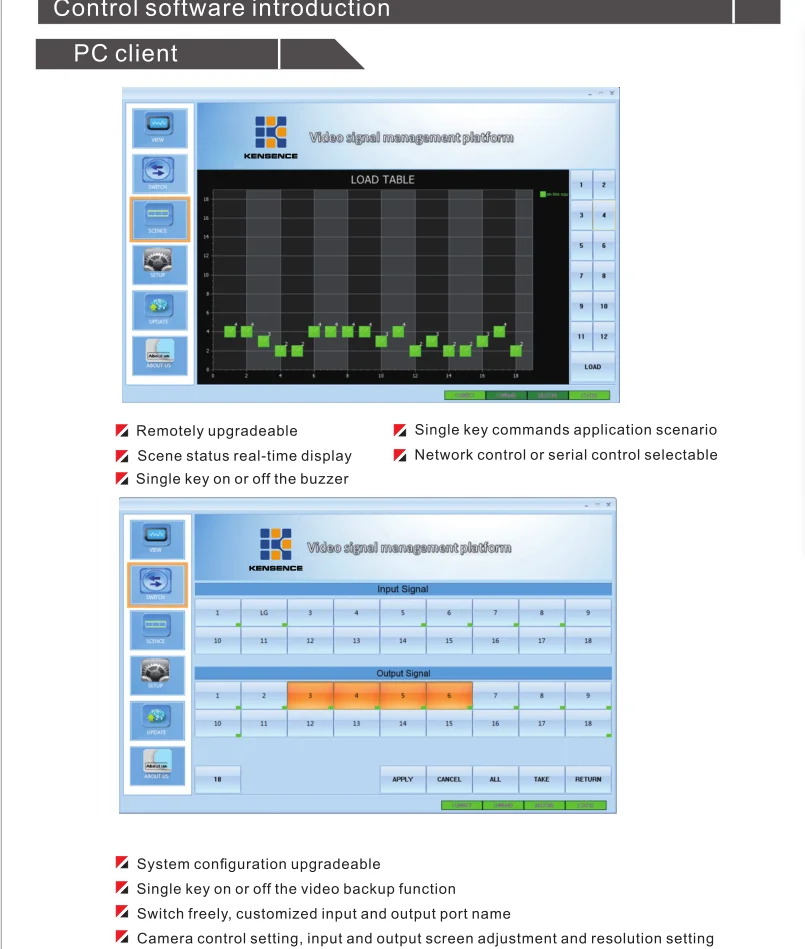

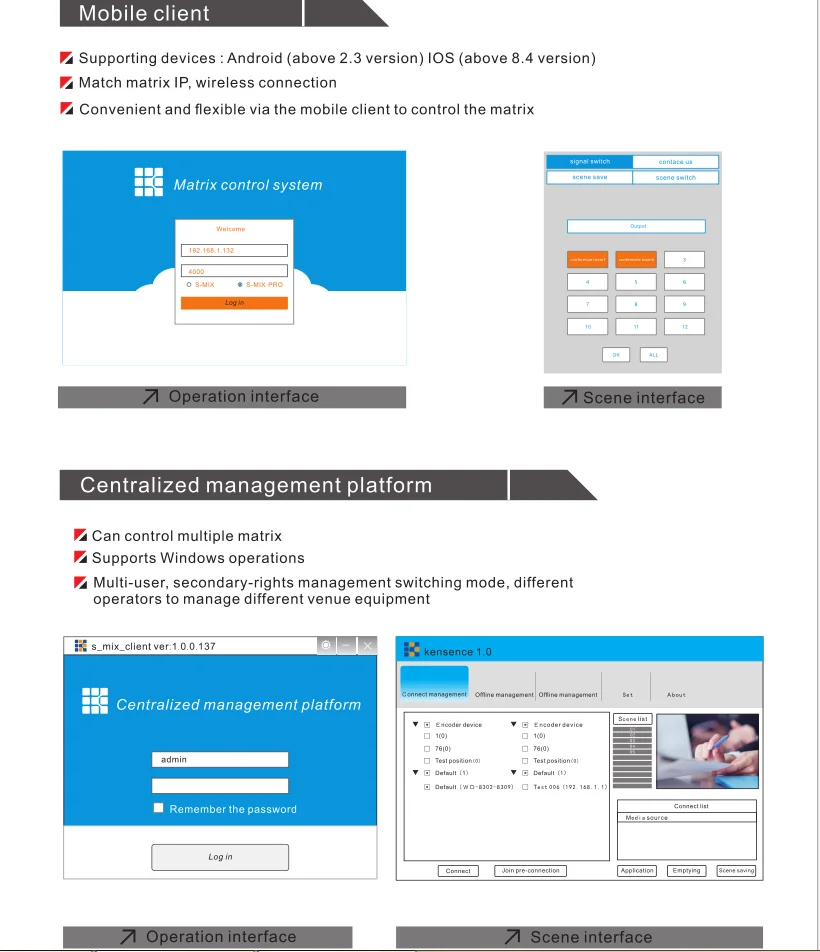

- Support dual RS-232, touch screen control and TCP/IP control
- Front panel 7 inch HD touch screen can feedback the real-time status
- Adopts dual power supply redundant design,support 7*24 hours uninterrupted operation

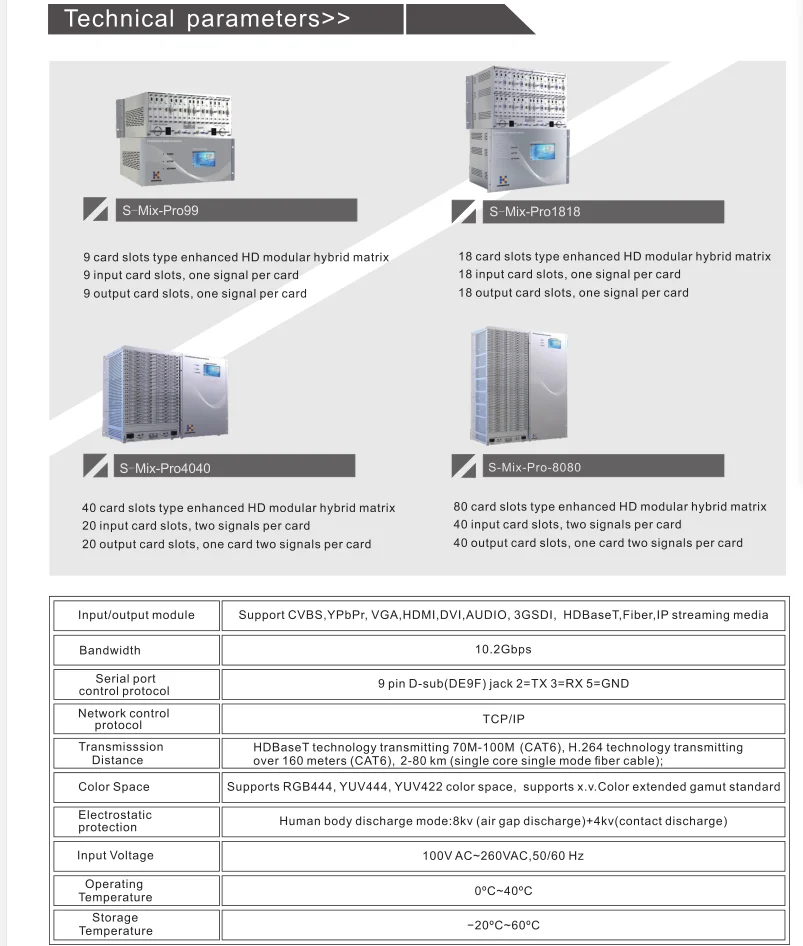

Product Specification of digital audio switch
Matrix mainframe specification:

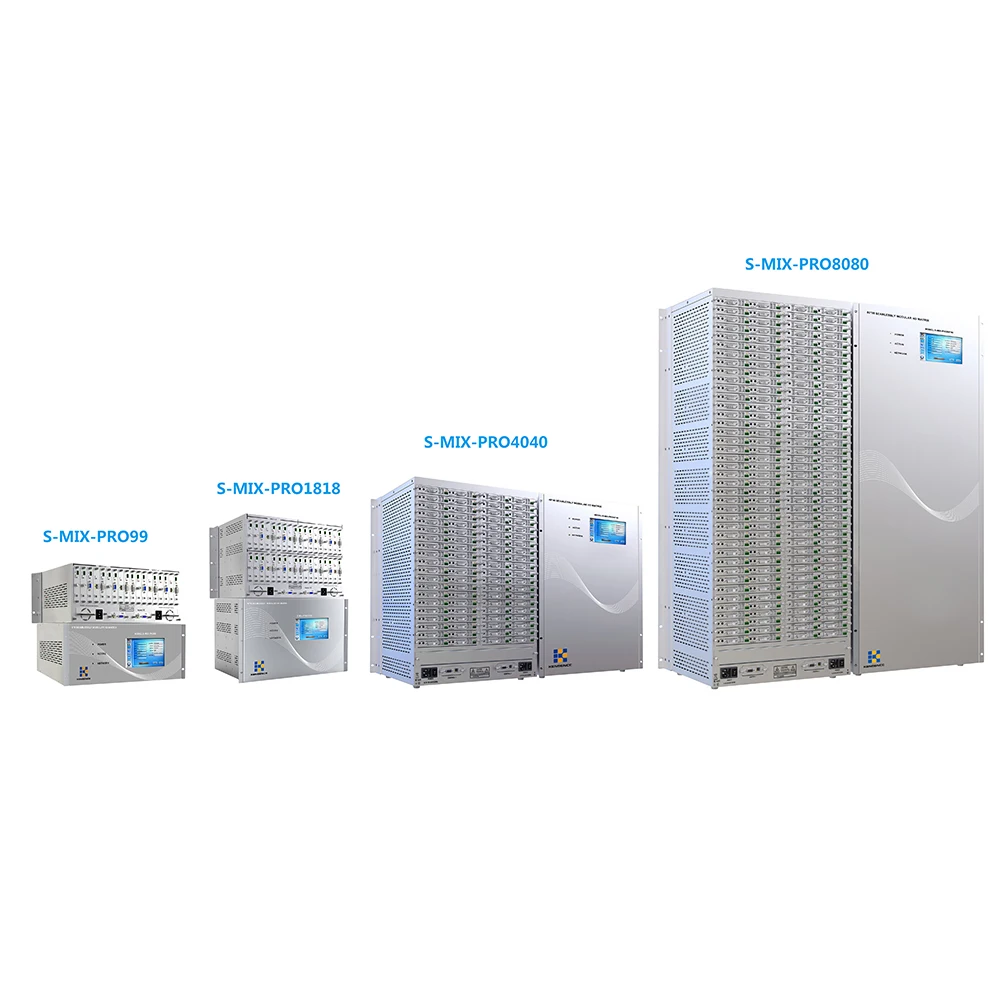

Model | S-Mix-PRO99 | S-Mix-PRO1818 | S-Mix-PRO4040 | S-Mix-PRO8080 | ||
Product name | 9 signal plug-in enhanced HD hybrid matrix | 18 signal plug-in enhanced HD hybrid matrix | 40 signal plug-in enhanced HD hybrid matrix | 80 signal plug-in enhanced HD hybrid matrix | ||
interface | Input ports | 9/9 | 18/18 | 40/20 | 80/40 | |
Output ports | 9/9 | 18/18 | 40/20 | 80/40 | ||
Input module | Support CVBS,YPbPr,VGA,HDMI,DVI,AUDIO,3GSDI,HDBaseT,Fibel,IP streaming media | |||||
Output module | Support CVBS,YPbPr,VGA,HDMI,DVI,AUDIO,3GSDI,HDBaseT,Fibel,IP streaming media | |||||
bandwidth | 10.2Gbps | |||||
control | Serial port contorl | control protocol | RS-232 (baud rate:115200 date bits:8bit stop bit:1 No parity bit) | |||
connector | 9pin D-sub(DE9F)receptacle 3=TX 2=RX 5=GND | |||||
Network IP | Control protocol | TCP/IP | ||||
connector | RJ45 port 10/100Base-T Ethernet | |||||
Color space | Support RGB444,YUV444,YUV422 color space,support x.v.Color expanded color gamut standard | |||||
Transmission distance | HDBaseT transmission up to 70m(CAT6),H264 transmission distance more than 200m(CAT6), 2-80KM(single core signal-mode fiber);30m(digital cable) | |||||
Electrostatic protection | Human body discharge pattern: ±8kV (air-gap discharge) ±4kV (contact discharge) | |||||
Input voltage | Power adapter 100VAC~260VAC,50/60 Hz,International adaptive power supply23W(max)/0.5w(standby state) | |||||
Work temperature | 0ºC~40ºC | |||||
Storage temperature | −20ºC~60ºC | |||||
Brief introduction :
Product features summarizes
- one card one signal (9&18)

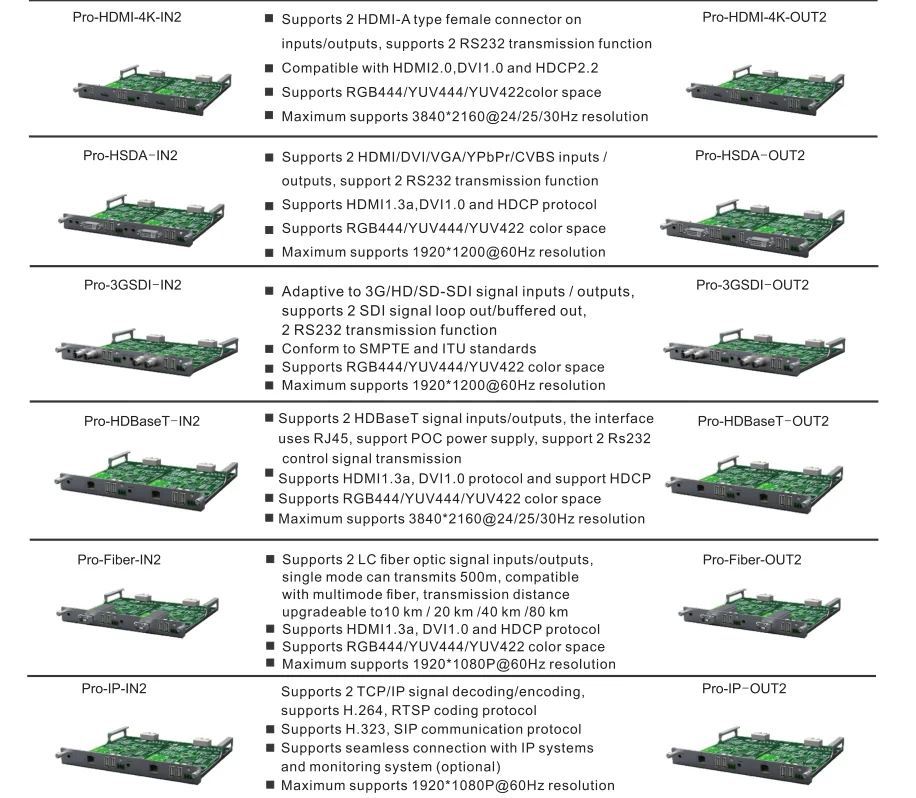

- New added 40 * 40 and 80 * 80 two chassis(one card two signal)
- The scale of matrix for multiples of 9
- fast seamless switching technology
- input/output Mixed with all common signals
- Support universal signal port technology 70m,100m optional cable module 2km~80km optional fiber
- Support image ±10% zoom
- Support image inversion
- Dual power backup,dual control backup
- Support RS232 control signal unvarnished transmission
- Support POC technology
- Support TCP/IP transmission technology
- Support monitor the overall matrix's tempreture
- Support monitor the input/output port status
- Intelligent adjustment board output resolution with software
- Support input signal intelligent backup function
