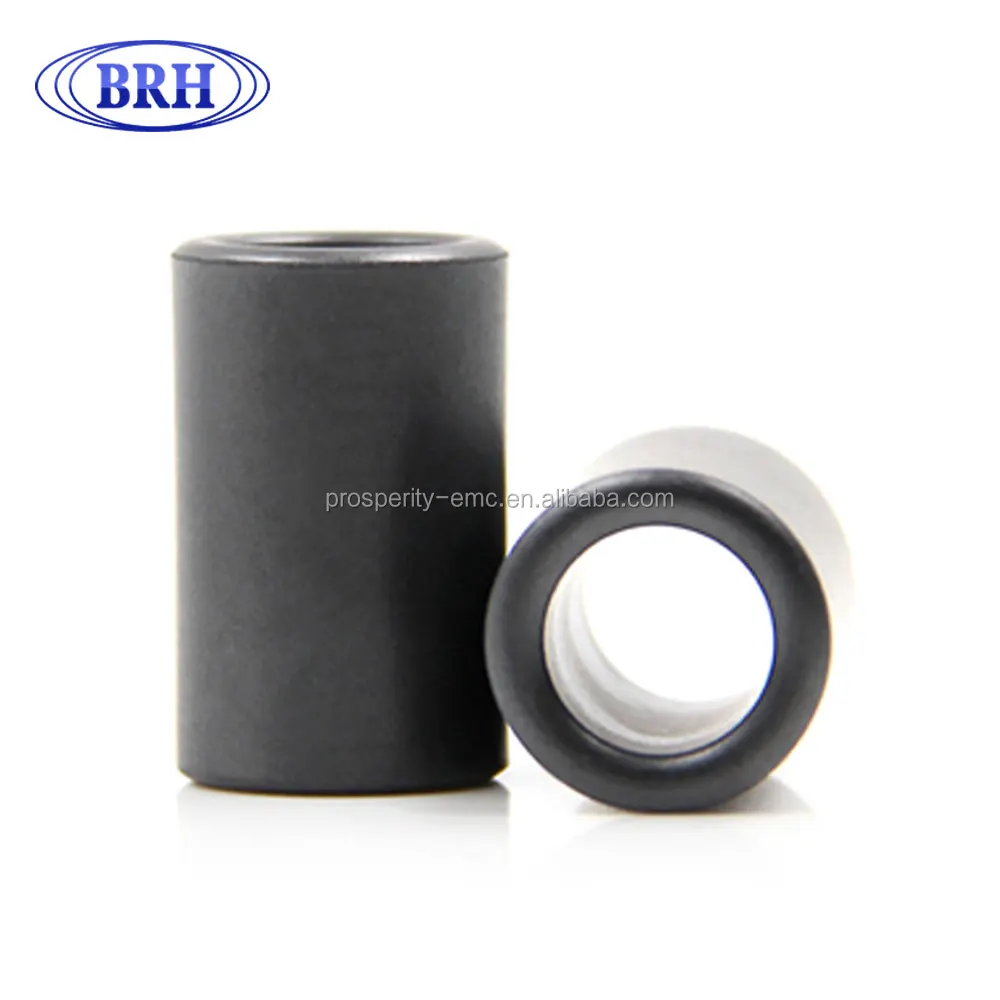

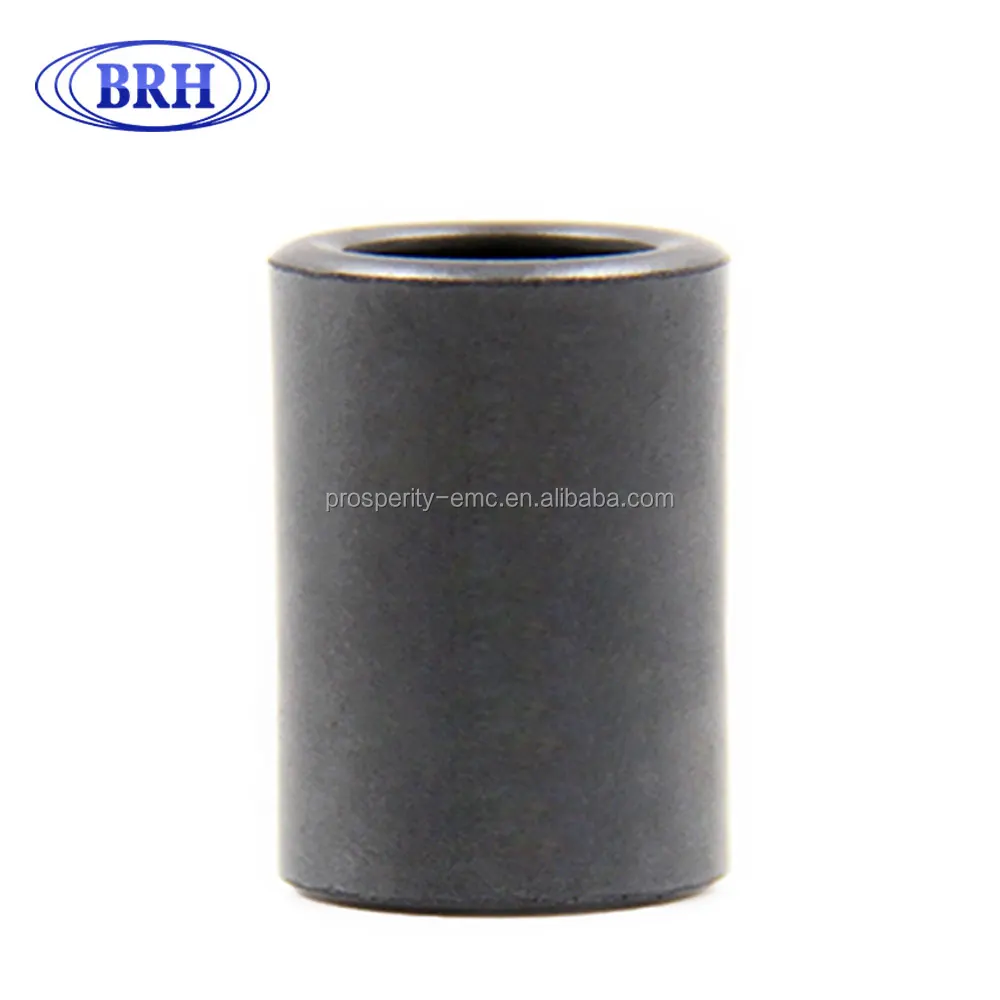

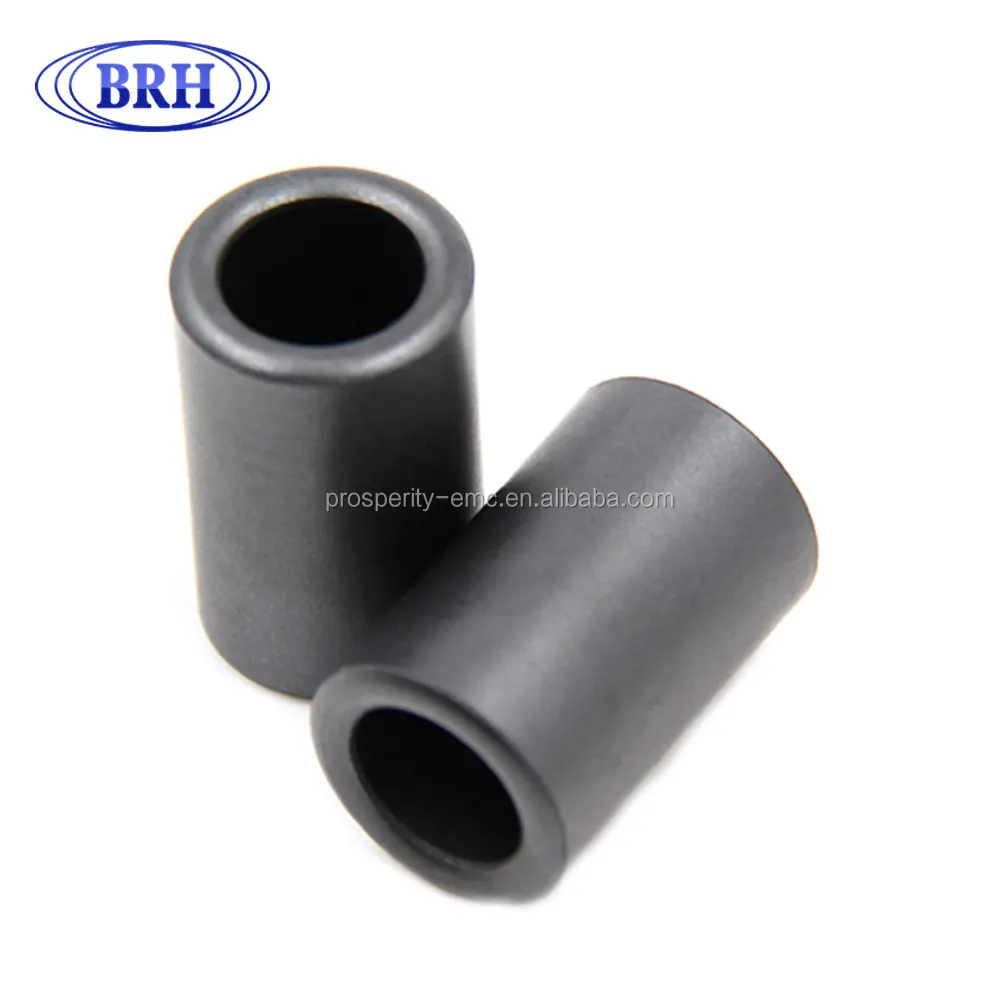

High frequency soft emi ferrite core for power cable
High frequency soft emi ferrite core for power cable
High frequency soft emi ferrite core for power cable
High frequency soft emi ferrite core for power cable
High frequency soft emi ferrite core for power cable

High frequency soft emi ferrite core for power cable

Share on (60678512440):


Price:

Quantity:


Product Overview

Description


Description
\t

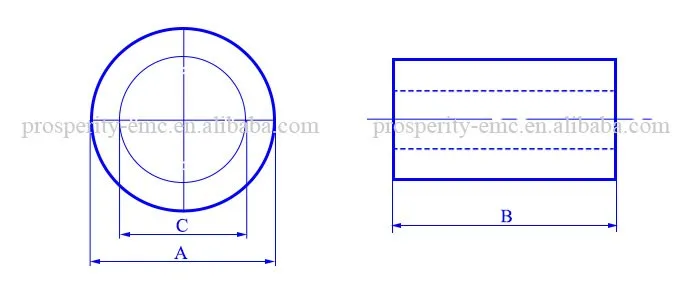

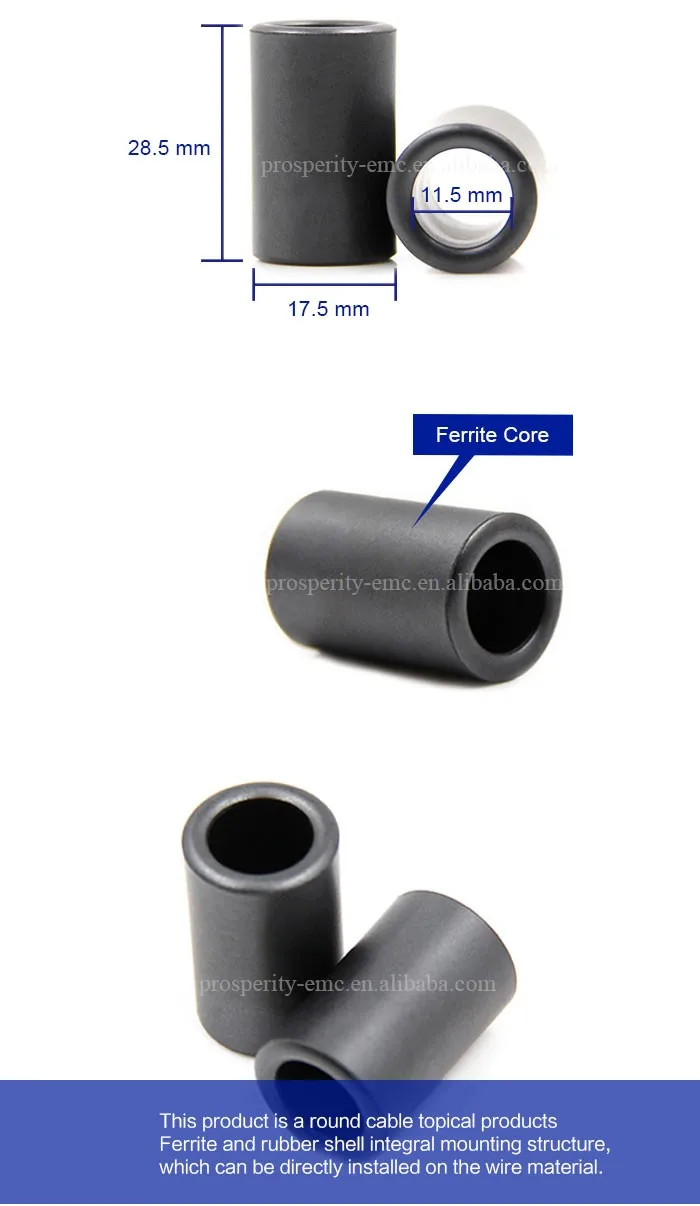

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
A2 RH 17.5*28.5*11.5
\t
17.5±0.6
\t
28.5±0.7
\t
11.5±0.6

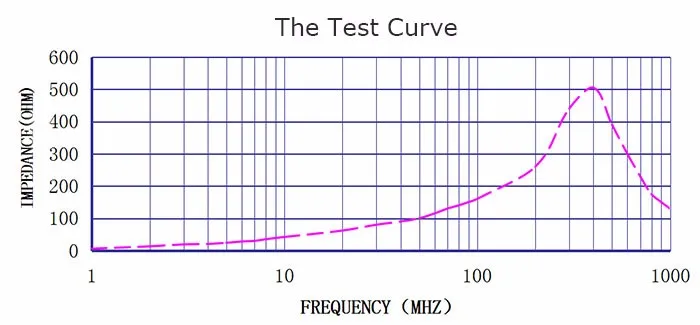

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 RH 17.5*28.5*11.5
\t
at 25 MHz
\t
55Ω MIN
\t
at 100 MHz
\t
135Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
Ω
AT 25MHz
\t
Ω
 AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
 m/m
\t
Suggest
\t
55Ω MIN
\t
135Ω MIN
\t
17.5±0.6
\t
28.5±0.7
\t
11.5±0.6
\t
1
\t
72.13
\t
162.63
\t
17.51
\t
28.49
\t
11.31
\t
2
\t
75.45
\t
165.45
\t
17.48
\t
28.51
\t
11.28
\t
3
\t
70.68
\t
163.47
\t
17.51
\t
28.52
\t
11.35
\t
4
\t
74.48
\t
165.78
\t
17.49
\t
28.51
\t
11.29
\t
5
\t
73.62
\t
166.52
\t
17.55
\t
28.47
\t
11.32
\t
6
\t
75.86
\t
160.84
\t
17.51
\t
28.48
\t
11.30
\t
7
\t
74.78
\t
162.58
\t
17.49
\t
28.48
\t
11.43
\t
8
\t
75.21
\t
163.46
\t
17.52
\t
28.53
\t
11.39
\t
9
\t
74.33
\t
160.89
\t
17.48
\t
28.47
\t
11.38
\t
10
\t
73.25
\t
163.52
\t
17.47
\t
28.51
\t
11.41
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
73.98
\t
163.51
\t
17.50
\t
28.50
\t
11.35
\t
R
\t
5.18
\t
5.68
\t
0.08
\t
0.06
\t
0.15
\t
The above test data for reference,Actual results may differ due to different production batches.
