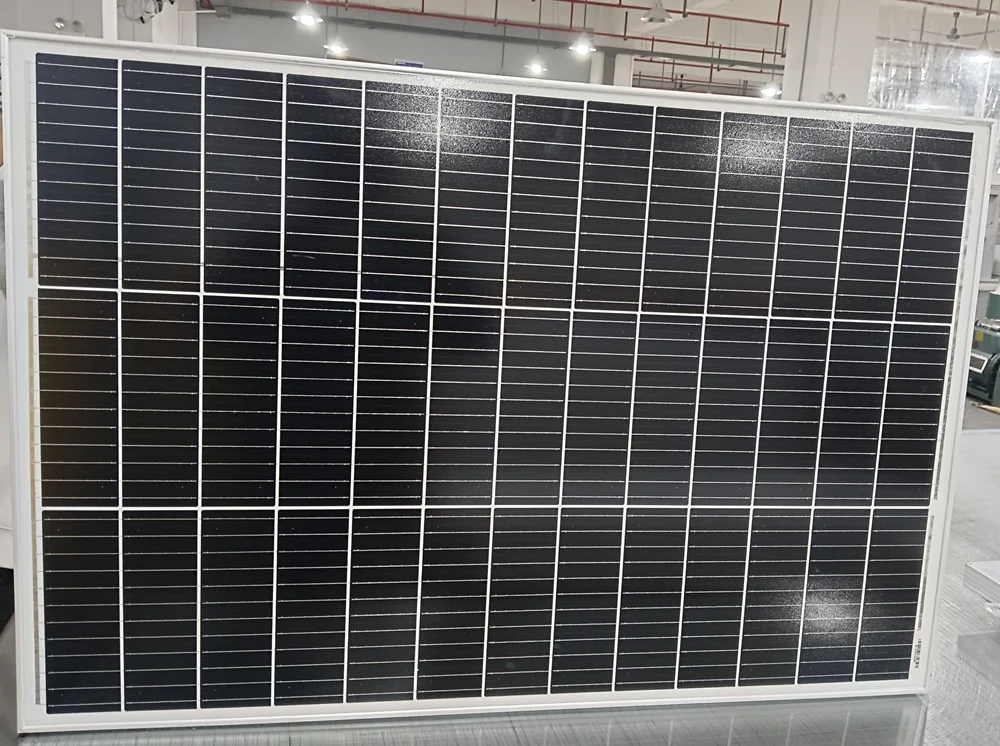

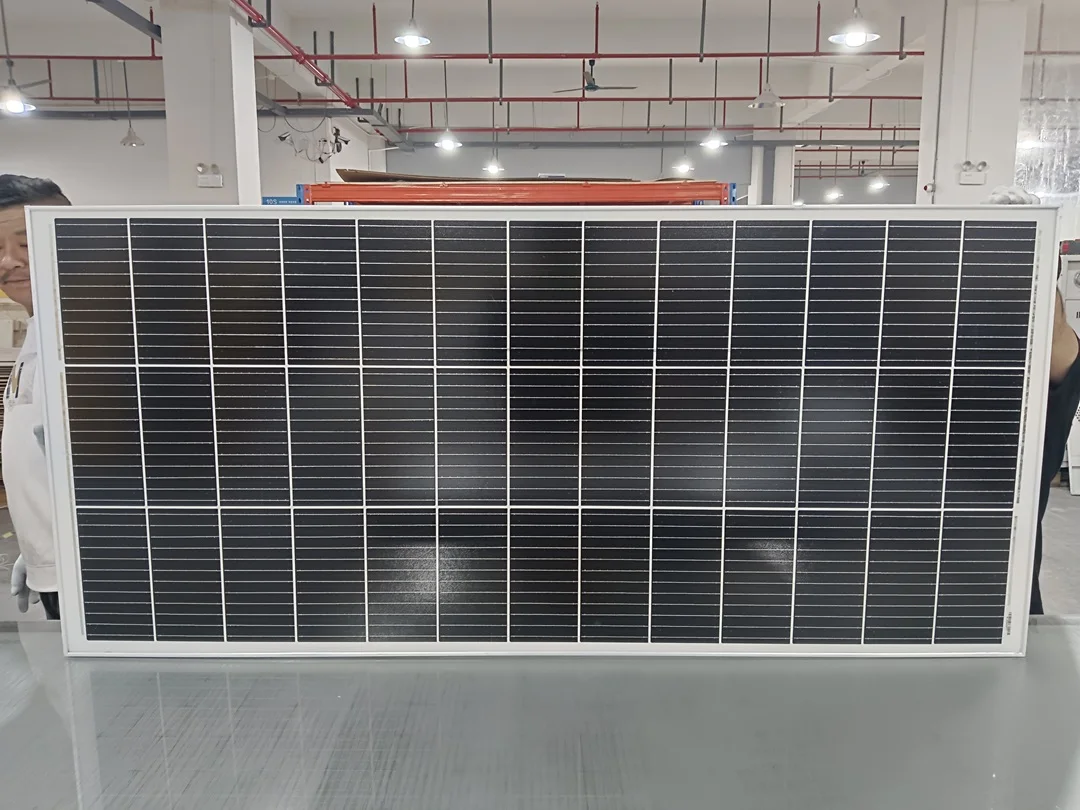

12v home USE system PERC TOPCON T TYPE CELL solar panels 150w solar panel

Product Overview

Description



1.Solar panel power from 3w to 300w according to customers' requirement

2.Solar panel nominl 12/24v DC for standard ourput

3.Aesthetic appearance and rugged design to withstand high wind pressure, hail and snow load

4.Rigorous quality control to meeting the highest international standard

5.Solar panel encapsulated with high transmission low-iron, tempered glass

6. Cells are laminated with TPT and EVA ensuring longer life and maximum performance

7. TPT imported from Krempel, Germany, ensure 25 years output power more than 80%





Product field:

1. Gird-connected power generation system

2. Off-grid power generation system

3. Building-integrated power generation facilities

We have a wild range of successful project all over the world.

We have advanced ,mature and stable supply production line, support your request on solar market



Module Type			OSA-33M-150				OSA-33M-160
Testing Condition			STC		NOCT		STC		NOCT
Rated output (Pmp/Wp)			150		113		160		121
Rated voltage(Vmp/V)			18		16		18.2		16.2
Rated current (lmp/A)			8.34		7		8.8		7.4
Open circuit voltage (Voc/V)			20.8		18.5		21		18.7
Short circuit current (Isc/A)			8.8		7.8		9.3		7.89
Module efficiency (%)			20.65%				20.85%
Power Tolerance(W)			0~+5
Standard Test Condition(STC):Irradiance 1000W/m2,Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT):Irradiance 800W/m2,Ambient Temperature 20℃, AM1.5,Wind Speed 1m/s





Cell Type	MONO  210×105mm
No. of Cells	33(3×11)
Dimension	1230x670x30mm
Weight	9.5kg
Glass	3.2mm, Low lron Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68.3 diodes
Output Cables	4mm²,Length 900mm or customized
Connector type	MC4 compatible

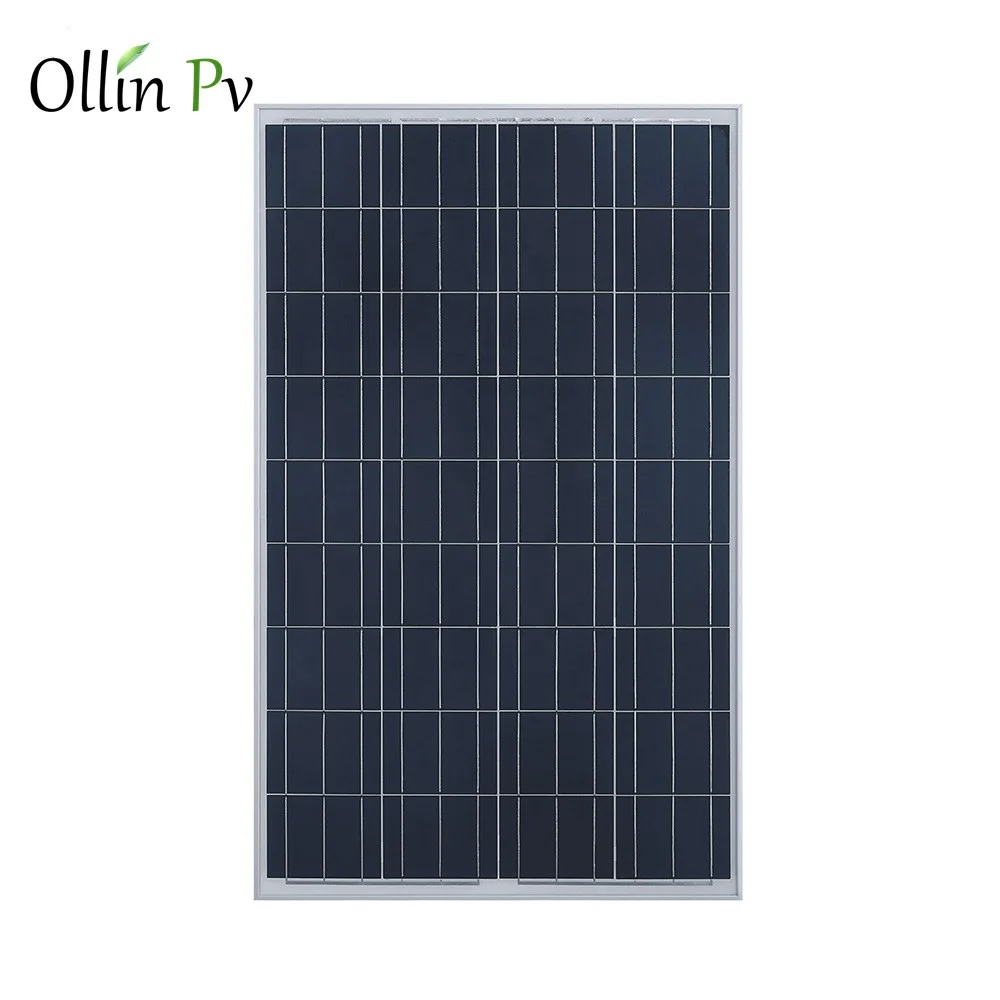

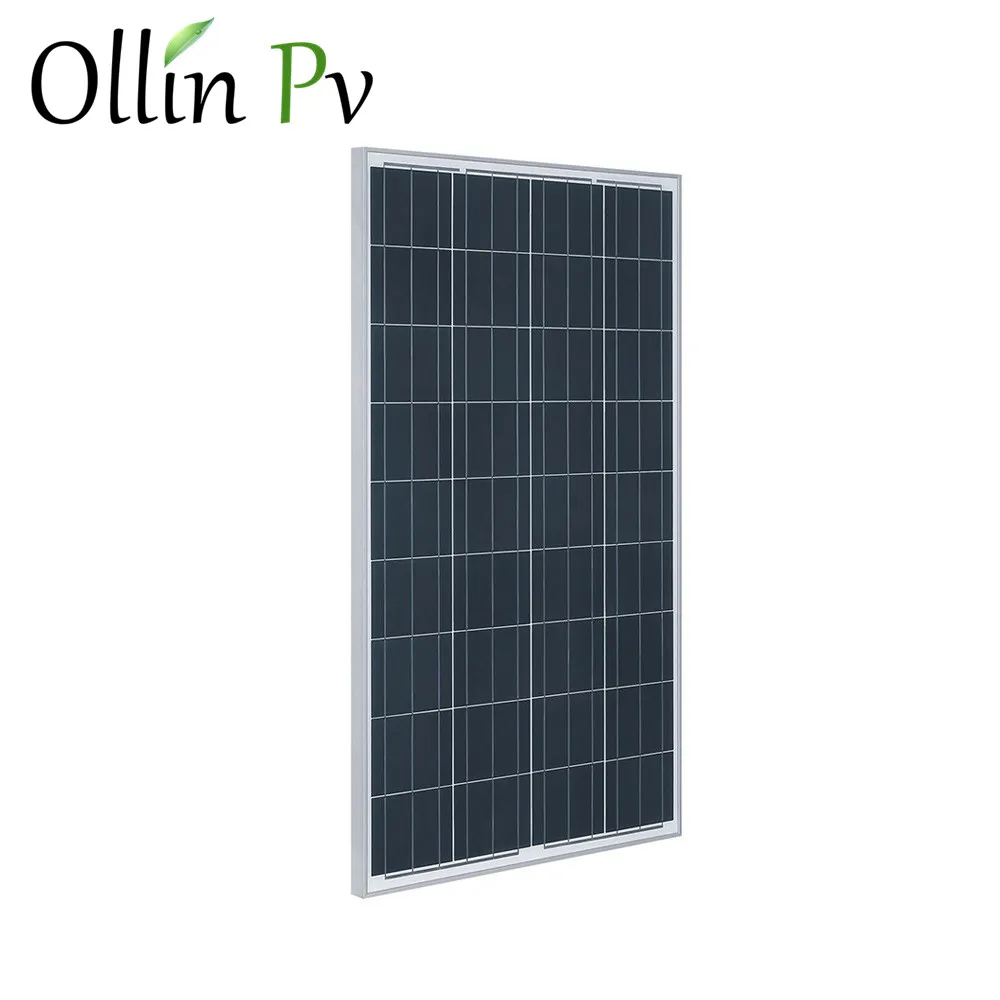

OLLIN-130P-160P
Polycrystalline Solar Module
Mechanical Data
Cell type				Poly156mm*156mm
No.of cells				36 in series(4*9)
Dimensions				1480*680*40mm
Weight				10kg
Electrical Data
Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)
Power			130WP		150WP		160WP
Open circuit voltage(Voc)			21.5V		21.5v		21.6V
Max. power voltage(Vmp)			17.46V		17.48V		17.5V
Short circuit current(Isc)			7.8A		8.99A		9.59A
Max. power current(Imp)			7.2A		8.3A		8.89A
A grade power Tolerance			± 3%
Max.system voltage			1000V
Operating temp.			—40℃~80℃
Temperature coefficients of Pmax			-0.47% /℃
Temperature coefficients of Voc			-0.38% /℃
Temperature coefficients of Isc			+0.1% /℃
