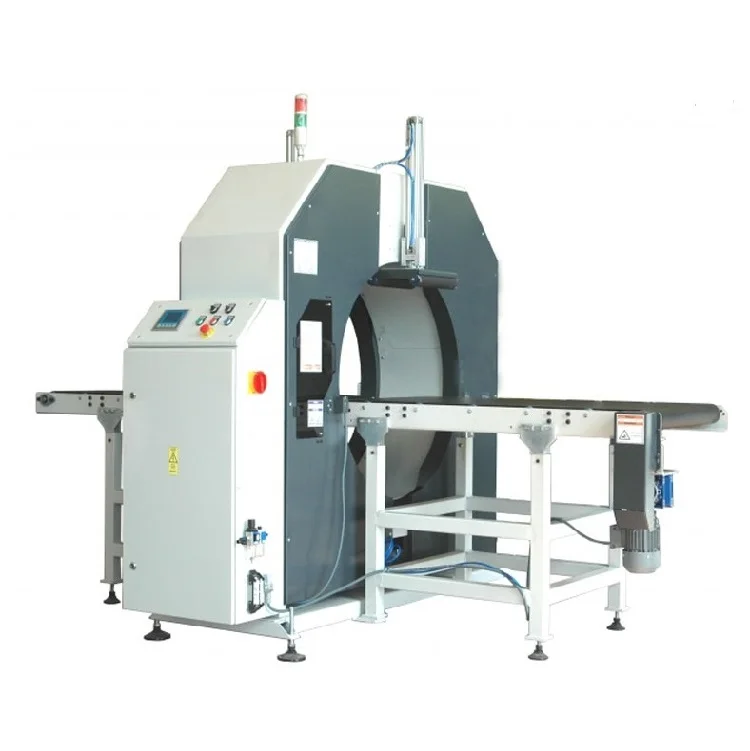

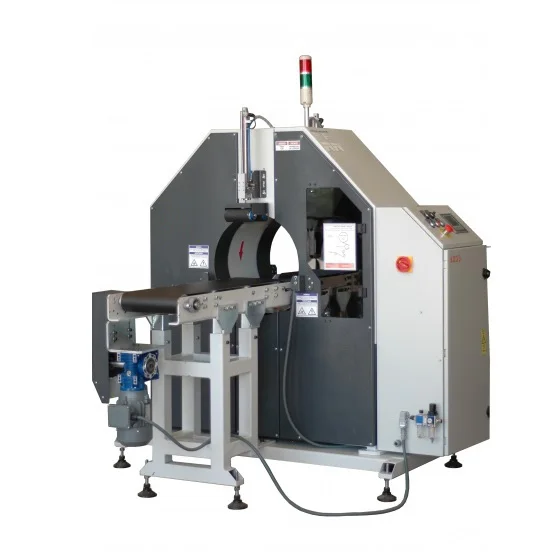

Advanced quality horizontal orbital wrapping machine with stretch wrapper customized service
- Category: >>>
- Supplier: Shanghai Fhope Machinery Co. Ltd.
Share on (60678514397):
Product Overview
Description
Product DescriptionAdvanced quality horizontal orbital wrapping machine with customized service
Advanced quality horizontal orbital wrapping machine with customized service
Description of horizontal wrapping machine:
Product Application

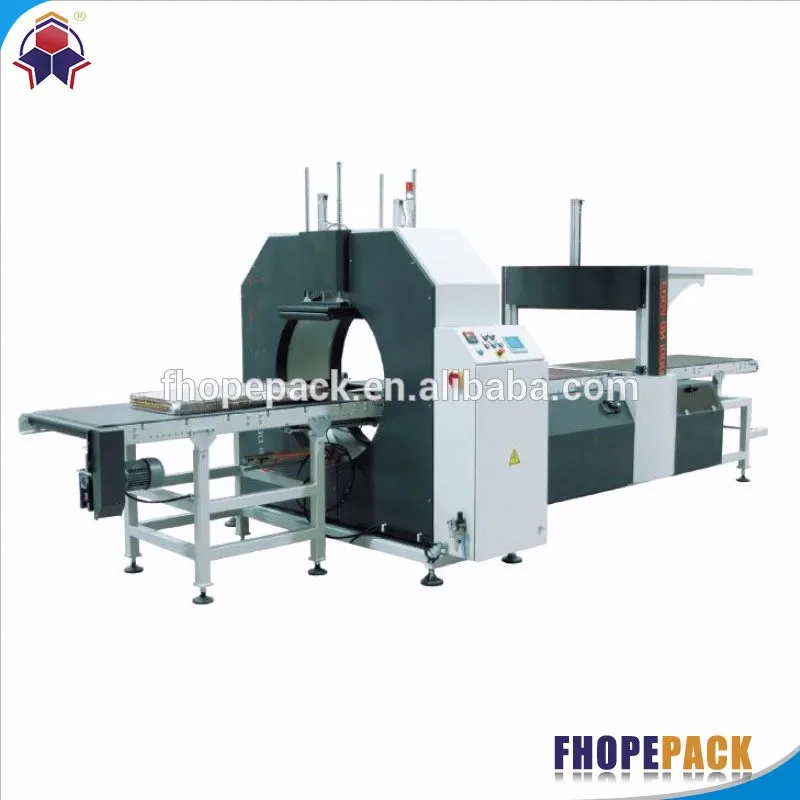

This is semiauto orbital stretch film wrapper and orbital packging machine with automatic material cutting and sealing device specialized for packing horizontal objects such as sheets, aluminum profile, doors, Floor board, window, furniture… the wrapped package is well-protected & sealed & looks more tidy. The machine can be connecting to the packing line for automatically wrapping.
| SPECIFICATIONS FOR ORBITAL SPIRAL STRETCH WRAPPER | |||
| SHGG-200 | SHGG-300 | SHGG-400 | |
| Object size: | Length:>1500mm Package OD: 100-200mm Weight:10-100kg | Length:>1500mm Package OD: 100-300mm Weight:10-300kg | Length:>1500mm Package OD: 100-400mm Weight:10-500kg |
| Air Supply: | 5~8kgf/cm2 | 5~8kgf/cm2 | 5~8kgf/cm2 |
| Wrapping Speed: | 5～18m/min | 5～15m/min | 5～15m/min |
| Packaging machinal | LLDPE stretch film Width: 50-200mm OD: 100-200mm ID: 50mm (Let me know, if you need another material) | LLDPE stretch film Width: 100-200mm OD: 100-200mm ID: 50mm (Let me know, if you need another material) | LLDPE stretch film Width: 100-250mm OD: 100-250mm ID: 50mm (Let me know, if you need another material) |
| Air supply | 5~8kgf/cm2 | 5~8kgf/cm2 | 5~8kgf/cm2 |
| Ring speed | App.10-80r/min | App.10-60r/min | App.10-60r/min |
| In feeding conveyor | 2000mm L×800mmW | 2000mm L×1400mmW | 2000mm L×1800mmW |
| Out feeding conveyor | 2000mm L×800mmW | 2000mm L×1400mmW | 2000mm L×1800mmW |
| Application | Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel, section | Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel,bundle | Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel,bundle |
More specifications and customized service are avaliable.
Operation
a) Place the products onto the orbital stretch wrap machine in-feeding conveyor.
b) Moving the product to wrapping position automatically while sensors detect it
c) Press down device presses the package automatically.
d) Products stop automatically while it at the sealing position.
e) Feeding and cutting packing material automatically.
f) Products go through the wrapper for automatic sealing and wrapping.
g) Place the reinforcing wraps to the tail end of the product.
h) Unloading the packed package.
i) End for circle

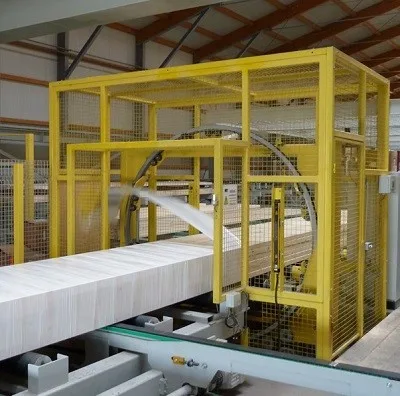

Application
Following are some applications per client's package and packaging goal. The solution there

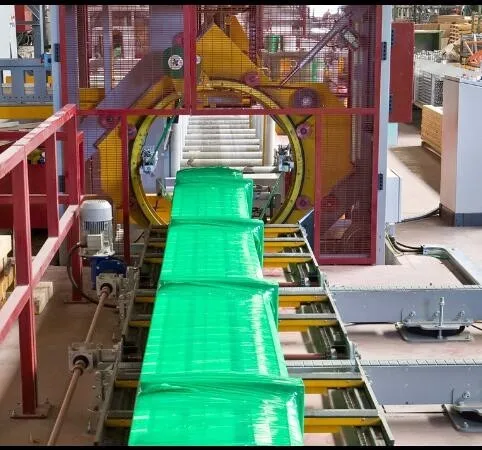

For profile, pallet, load

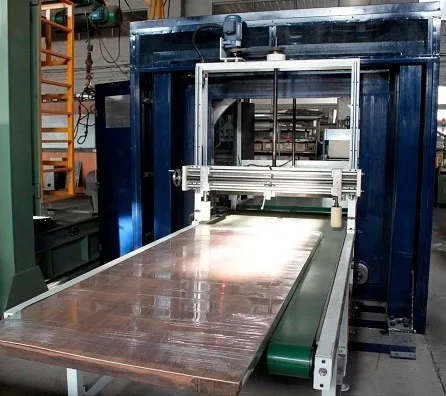

For wooden, door,windor

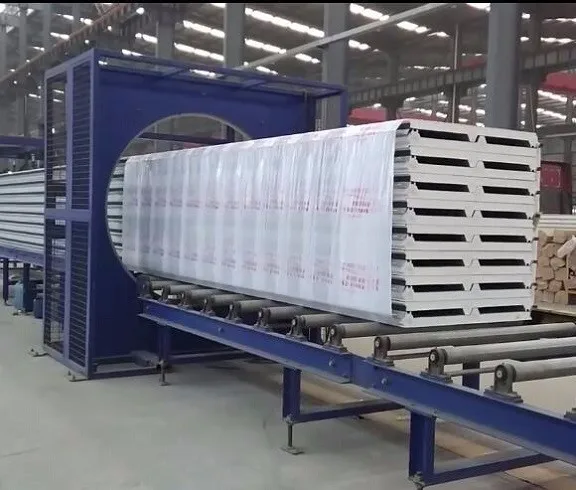

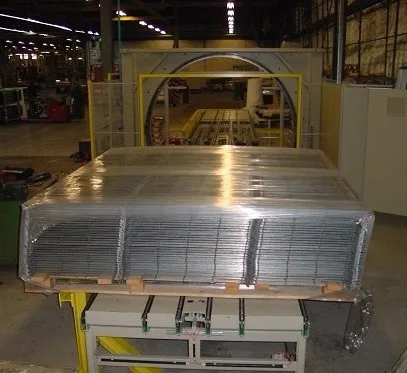

For panel and board
For door and panel
For aluminum, profile

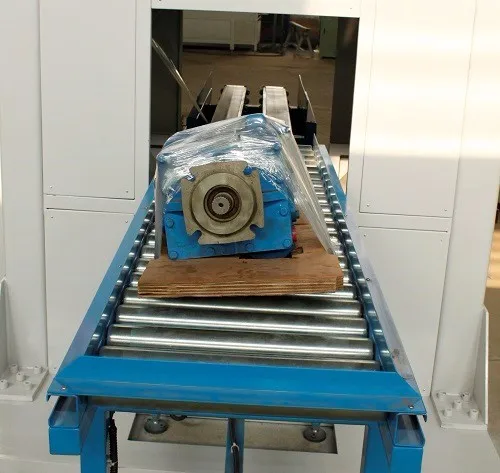

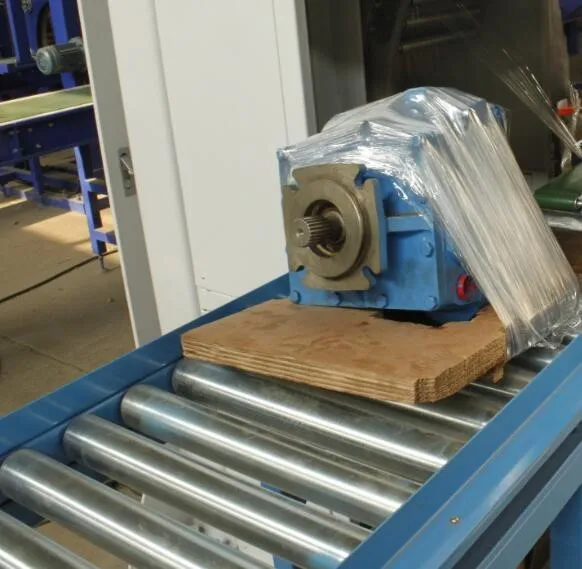

For motor, special package
Detailed Images

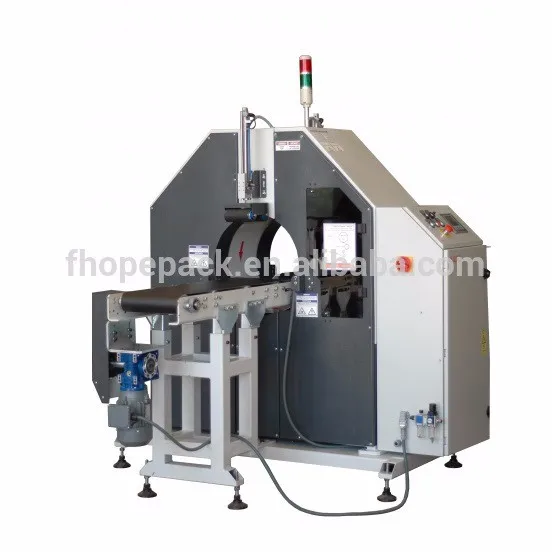

Detailed Images of flow panel horizontal wrapping machine

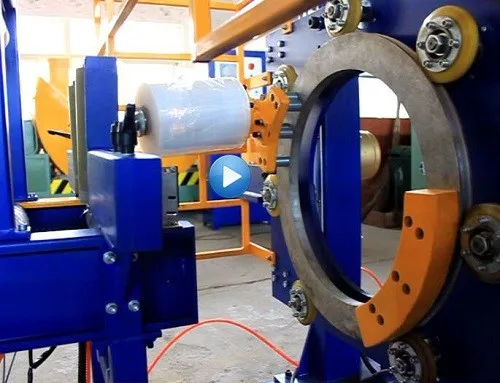

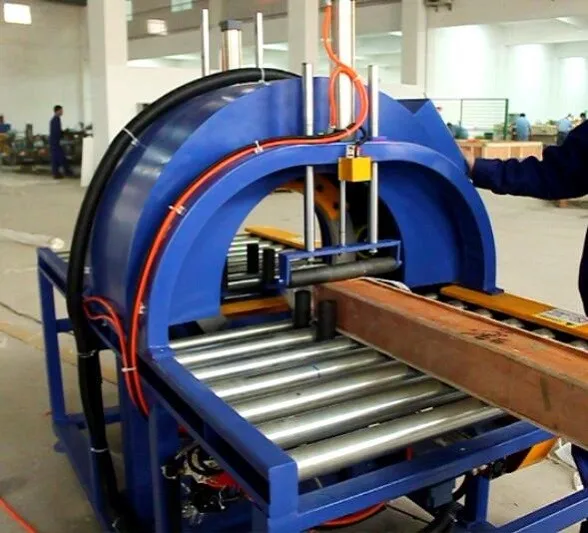

Wrapping Station
1) Reinforce aluminum cast-solid ring with strong structure makes steady in wrapping
2) Four-ring & double-PU wheel devices make working more safe stable & energetic.
3) The higher level main board with stronger structure and frame for wrapping.
Conveyor
1) Structure of the conveyor will protect the surface of the product.
2) Automatic infeed conveyor system and outfeed conveyor system.
3) Conveyors driven by motor with gear box.
4) Diferent type conveyors available via package

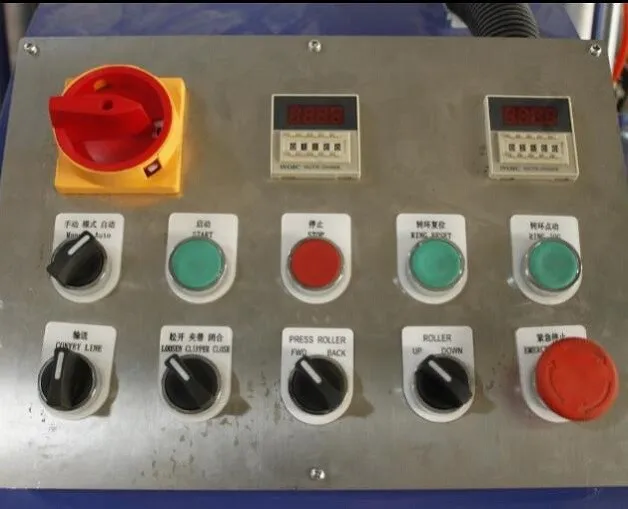

Control System
1) PLC and program makes machine able to do automatic wrapping according packing goal.
2) Interface HMI operation.
3) Photocell sensor is adopted for setting packing position and it is adjustable.
4) Stretch Wrapping position stop automatically and adjustable on touch screen.

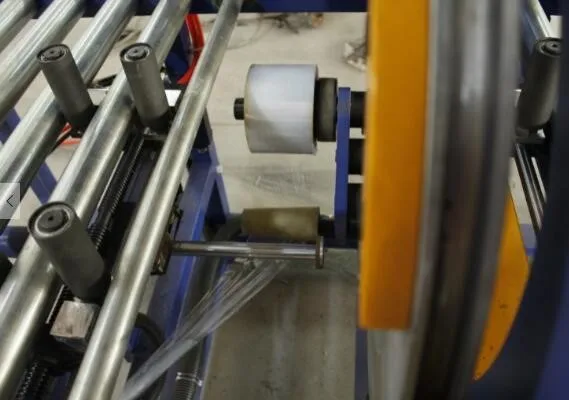

Automatic material cutter
1) Automatic material feeding and cutting device.
2) Automatic material clamping for next wrapping.
3) Sensor and PLC program control.
4) The operation parameter is adjustable.
5)This device makes machine automatically and unmanned operation.
Fhopepack.com provide autoamtic and semiauto orbital stretch wrapper and spiral wrapping machine per your specification and packaging goal. Following are some machinery avaialbel per package size. Customize solution is available too.
Videos

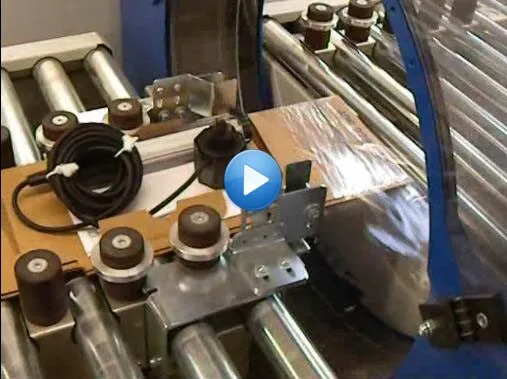

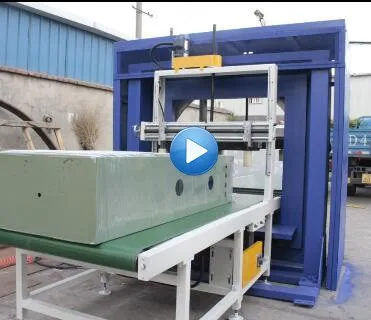

Click following for more video of orbital stretch wrapper
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and technical consulting support.
* Sample testing support.
* Study travel to your Factory and know your need.
* Solution drawing per specification
* Our factory visiting.
After-Sales Service
* Installation & commissioning with training how to instal the packaging machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Online technical support.
* Modification service
Company information
FAQ
Q1:Are you factory or trading company?
A: We are factory and manufacturer. We provide great product in customize solution and service.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!
Q3:How to place an order to us ?
A: Just contact us via TraderManager, E-mail, Skype, WhatsApp or telephone to confirm the product, Wire the deposit by T/T, then we will start to design and manufacture...
Q4 : What is the payment term?
A: 40% T/T deposit and 60% T/T balance payment before shipping.
For big value, we also can accept L/C.
Q5:How long is the delivery time?
A: About 20- 40 working days. The customize solution may need 60days
Q6 : What is the guarantee and service of machine ?
A: One year free warranty, life-long maintenance. We can provide free high quality service on-line, email, Tel...we also can provide door to door service, this is paid service.
Q7 : How many staff of your factory?
A: There are 100 peoples, including 12 machnical engineer, 8 electrical engineer
