ZSG 60 Automatic aluminum rotary pipe swaging machine for tube end taper reducing

Product Overview

Description

ZSG-50 Automatic aluminum pipe rotary taper swaging machine for tube end reducing



Main specification

1.Applicable material of the machine:carbon steel, stainless steel, aluminum , alloy, copper, brass etc.

2.Microcomputer controlling; Hydraulic driving.

3.Automatic and manual operations are available.

4.English or Chinese subtitles; man-machine conversion operation, easy.

5.Adopting linear slider rail, stable propulsion.

6.High accuracy and efficiency.



Technical parameter

Model/Name	ZSG-50	ZSG-60
Max. reducing capacity mm	Φ50×2.0	Φ60×2.5
Max. reducing length mm	300	450
Molding time m	10-60	10-60
Motor power KW	4	7.5
Cooling oil pump W	40	90
Rotate speed of main shaft r/min	175	286
Overall dimension mm	1020×620×1200	1300×880×1300
Weight T	800	1200

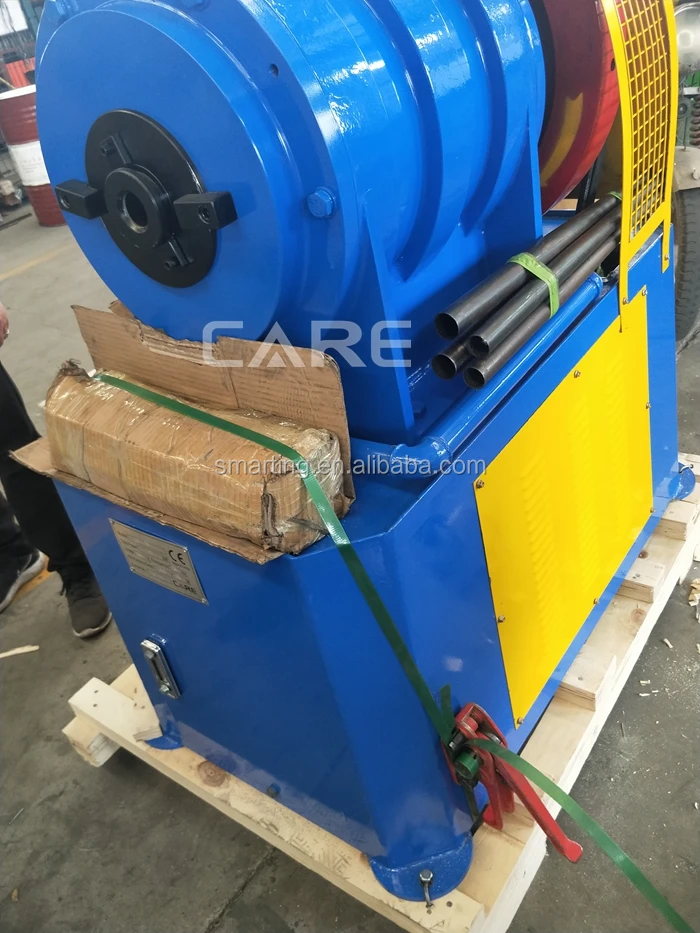

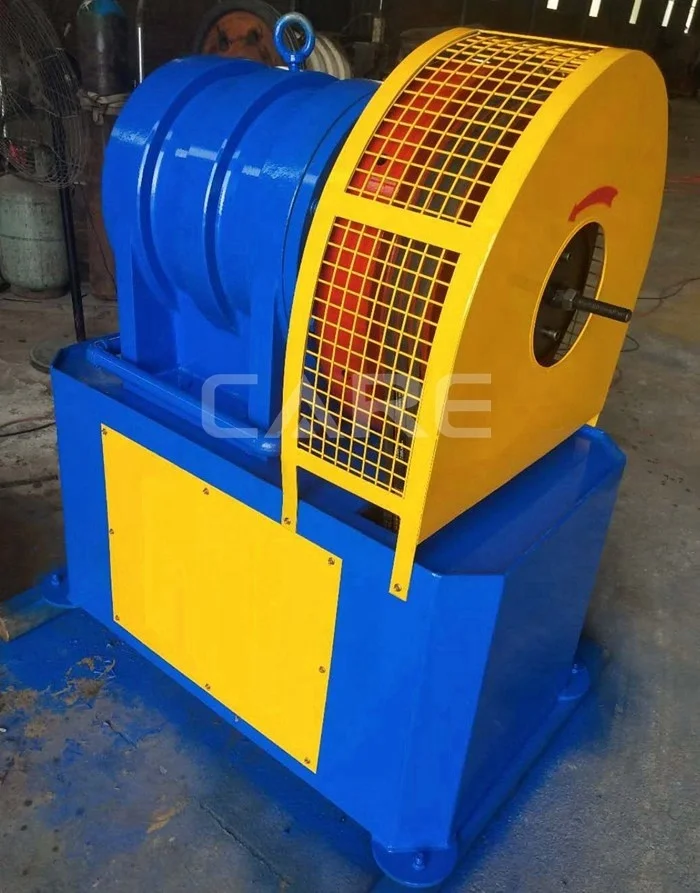

Machine photo

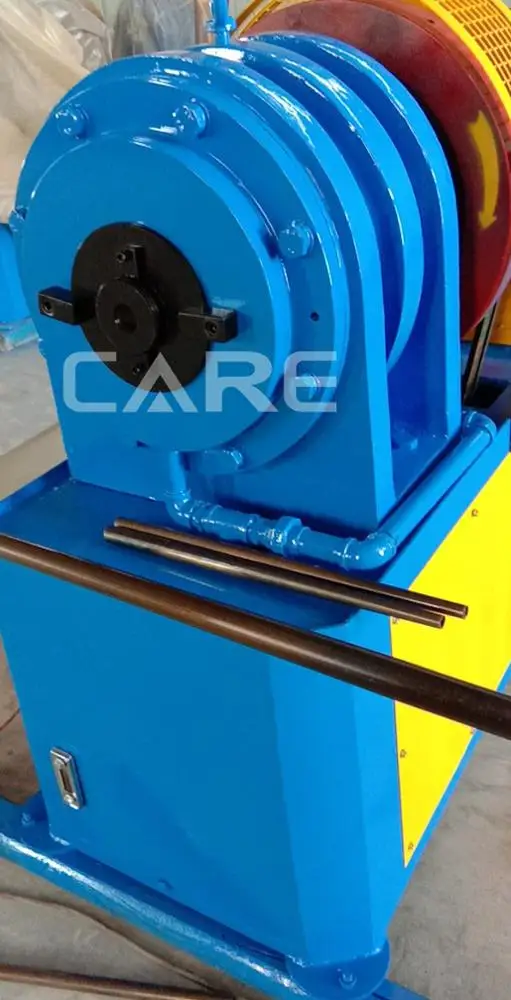

Automatic pushing feed

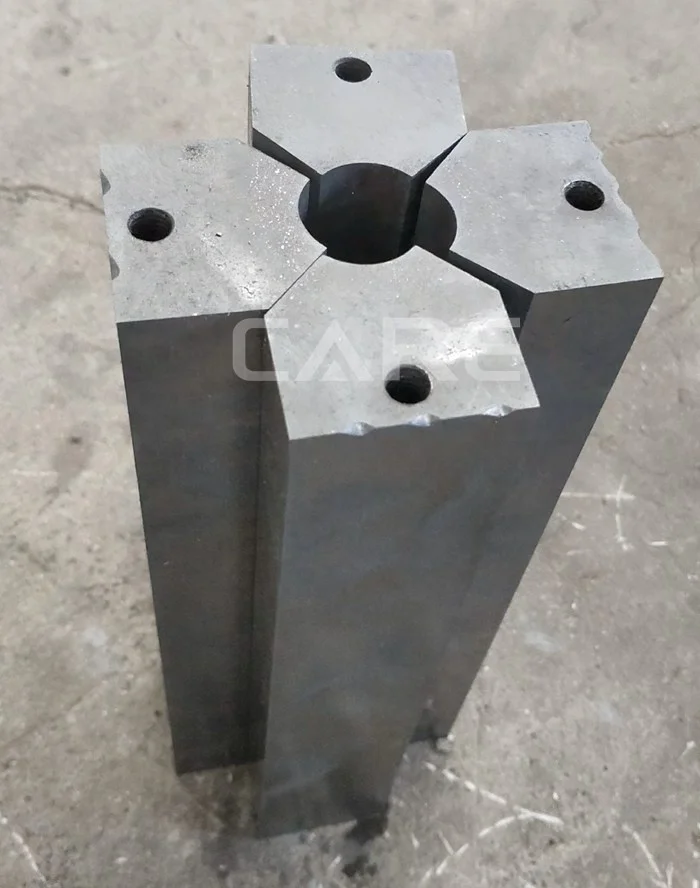

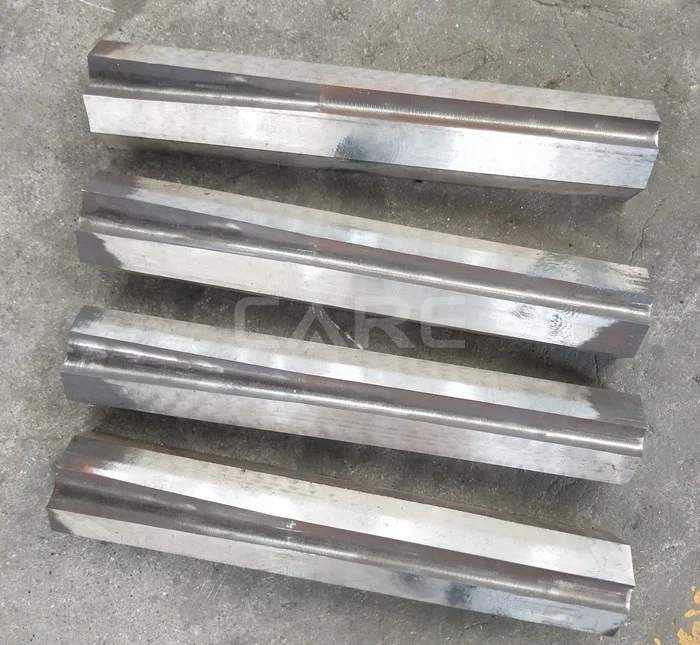

Reducing mold

Pipe sample
