1.We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.
Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.
|BOBIG POWER WEIFANG DIESEL GENERATOR|
|MODEL||BW21||silent type||Open type||+ATS|
|Prime power (KW/KVA)||15KW/18.8KVA||$||$||$|
|Standby power (KW/KVA)||16.5KW/21KVA||Freight:||$|
|The order is bigger,the price is lower|
|1. Engine: Y485BD WEIFANG|
|2. Alternator:BW-184E STAMFORD TYPE|
|3. Controller: DEEPSEA/Smartgen|
|4. Electronic speed control|
|6. Voltage: 220,230,240,380,400,415v|
|7. Rated speed: 1500rpm/1800rpm|
|8. 2*12V batteries, maintennance free type.|
|9. 24V charge dynamo.|
|10. Tank:Equipped with 10-12hours operation base tank|
|11. DIM: silent :1900*880*1060mm ,open:1400*610*1160mm|
|12. Nobise level: 69-72DB@7M ,if need lower noise level,please contact us.|
|13. Package:Plywood case|
|14. Radiator 50℃ max, fans are driven by belt with safety guard|

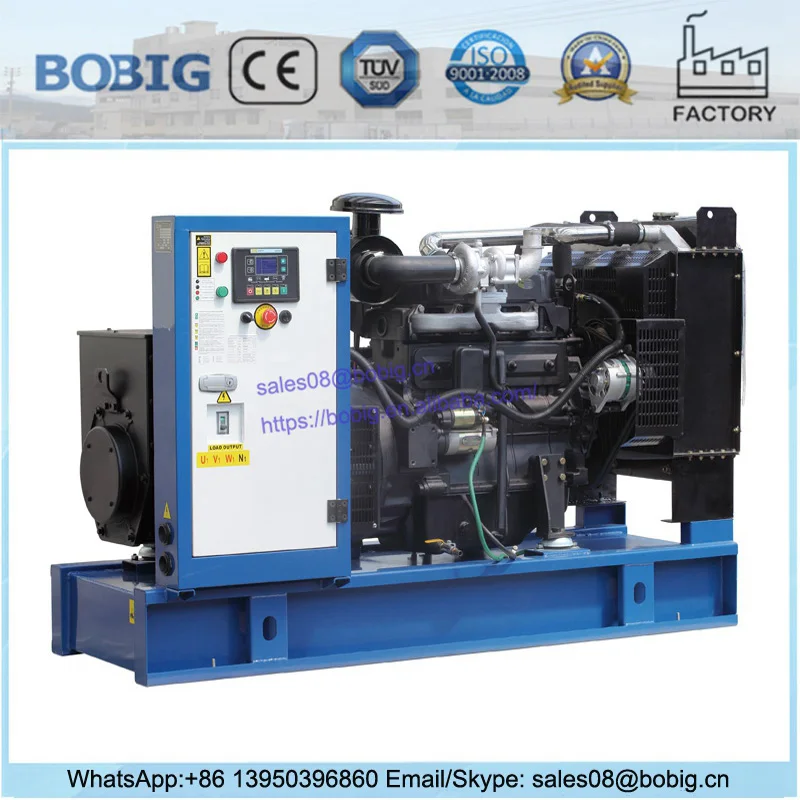

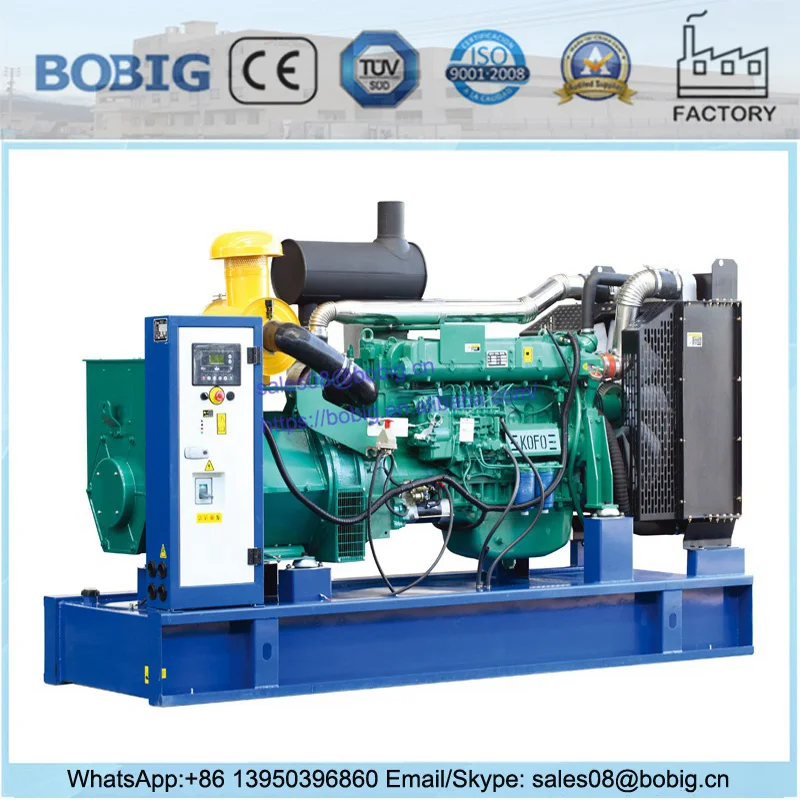

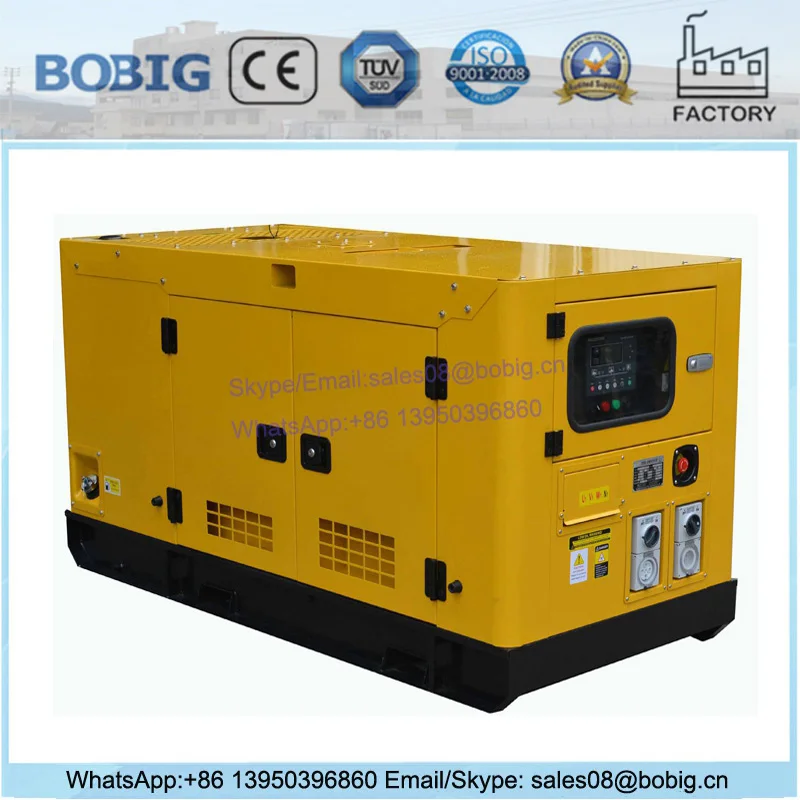

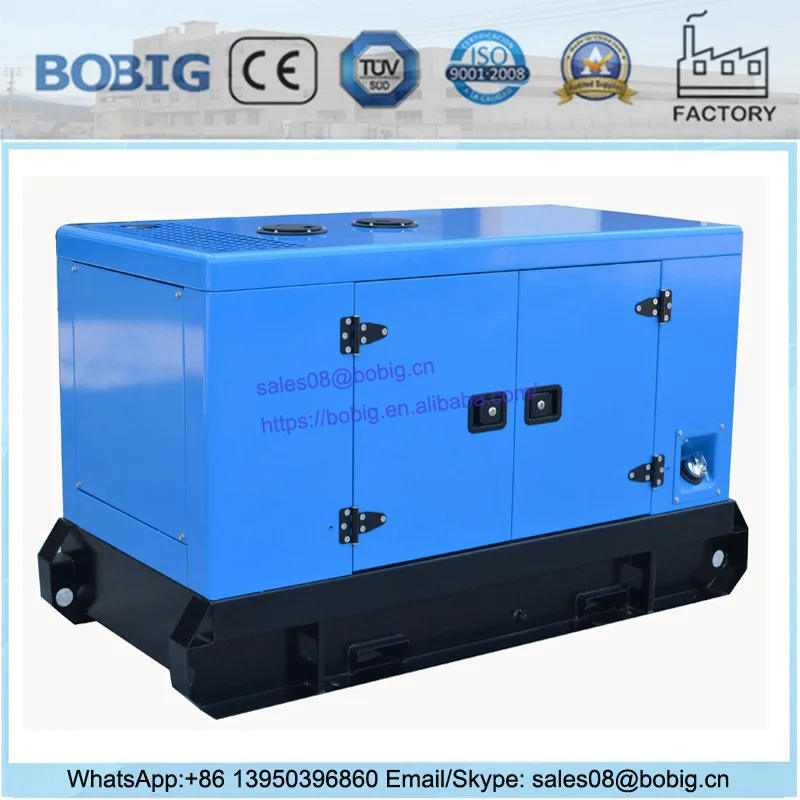

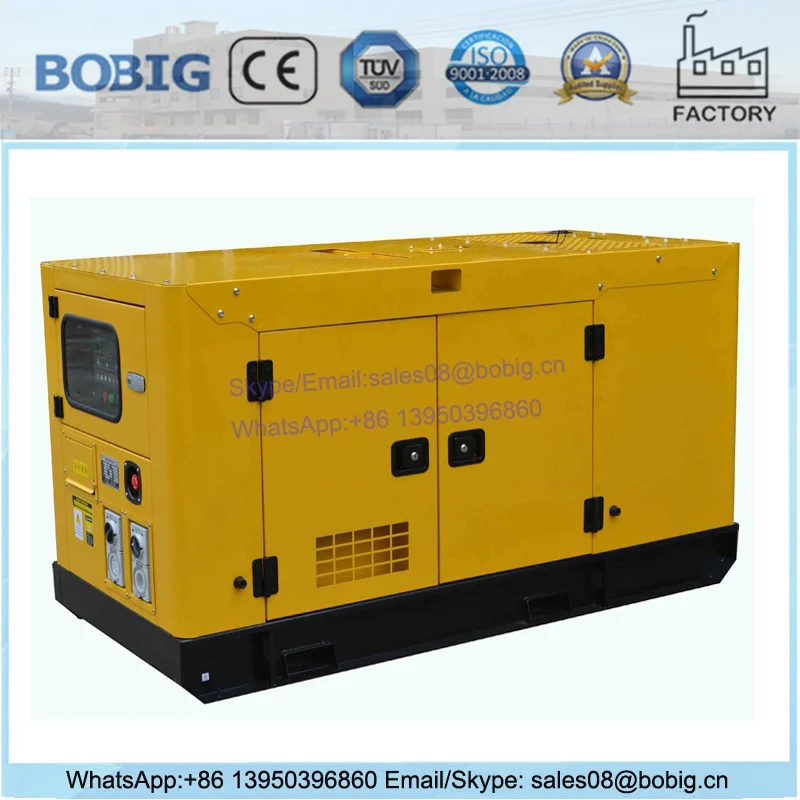

|PHOTO FOR REFERNCE ONLY|
|Number of cylinders||4|
|Cylinder arrangement||Vertical in line|
|Aspiration||Turbo Water Cooling|
|Prime power/speed (kW/RPM)||17/1500RPM|
|Standby power/speed (kW/RPM)||19/1500RPM|
|Cooling system||Positive Water Cooling Cycle|
|Coolant capacity (engine only) (L)||8|
|Steady speed droop (%)||1%|
|Total lubrication system capacity (L)||9|
|Oil consumption (g/kw.h)||0.15% of fuel consumption|
|Fuel consumption at 100% load (g/kw.h)||245|
|Fuel consumption at 75% load (g/kw.h)|
|Fuel consumption at 50% load (g/kw.h)|
|Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS1359|
|Exciter type||Single bearing, Brushless, Self-excited|
|Rated output prime power(KVA/KW)||20kW|
|Rated speed||1500 RPM|
|Rated frequency||50 Hz|
|Rated voltage||380 V|
|Voltage adjust range||≥5%|
|Voltage regulation NL-FL||≤±1%|
|Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25|
|Low oil pressure||Volt||oil pressure|
|High water temp||current||oil temp|
|Over speed||power||power factor|
|Over crank||speed||running time|
|Over load||frequency||water temp|
|Over/low volt||battery voltage|
|battery charge failure|
Plywood case ,10~15 working days after receiving customers
We are an electrical machinery manufacturer collecting the technological research, production and sale together. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, among which 20 people are technicians.
Our main products include gasoline generators, diesel generators 5-2000kva, gas generator,pump etc. Due to our advanced technique and devices,rich experience, reliable quality,considerate service and good team work,we have won a great reputation in the world market.
Adhering to the idea of "Quality, Creation, Service and Development", we keep the aim of updating technology, improving quality and providing better service all the time. We also have kinds of advanced equipment to test our products, such as CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment.
We always control product quality strictly and our company has obtained ISO9000 Quality System Certification. We warmly welcome you to build sincere cooperation with us.
BOBIG products has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, we will provide the free easy-damageable spare parts, caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance.
1. What is your MOQ, payment method, delivery time?
1. 15 years experience in supplying diesel generator sets and gas generator with different sorts of brand
2. We are Factory,you will have Factory price,Factory Quality,Factory Warranty.
3. Offer Super good service before and after sales,Respone your needs fast.
4. Our reputation for low prices, fast shipping and excellent customer service keeps customers coming back
