15 inch IP65 Wall Mounted Android Tablet Panel Pc For Outdoor Use
- Category: >>>
- Supplier: Shenzhen Innoda Technology Co. Ltd.
Share on (60678676086):
Product Overview
Description
15 inch IP65 Wall Mounted Android Tablet Panel Pc
Features
1.15inch Wall Mounted Android Panel Pc
2. RK3288 Processor
3. Aluminum shell
4. Unique ventilation design,Efficient heat dissipation
5.Installtion:panel type embedded,embedded,wall-mounted,desktop,rack-mounted
6.OEM, ODM acceptable

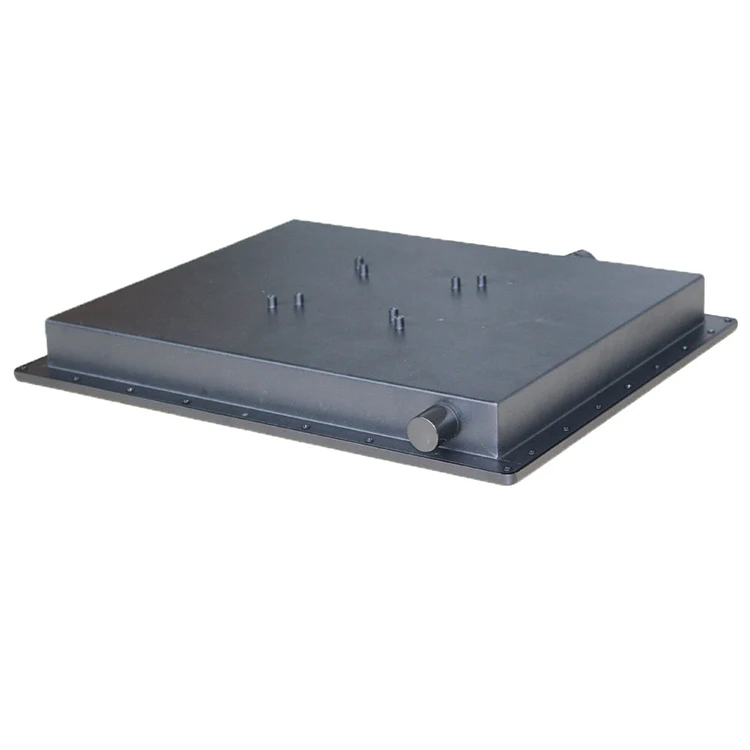

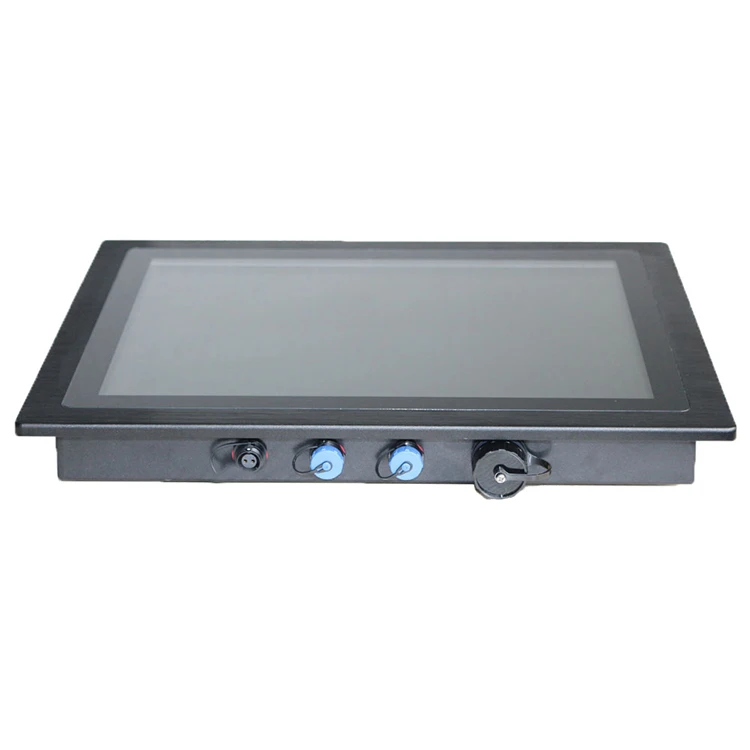

Detailed Images
Product Description
| Computer Configurations | |
| CPU | Rk3288 Quad-core A17+GPU Mail-T764, up to 1.8G |
| Memory | 2GB DDR3(up to 4G) |
| Storage | 16G EMMC |
| Operation System | Android 6.0 |
| Cooling | Fanless |
| Power Supply | 12V DC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resoltuion | 1024(H)*(RGB)*768(V) |
| Aspect Ratio | 4:3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500:1 |
| I/O Interface | |
| USB | xUSB2.0 |
| LAN(RJ45) | 1xRJ45 |
| Other Function(Optional) | |
| WIFI | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | RF/NFC Reader |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm |

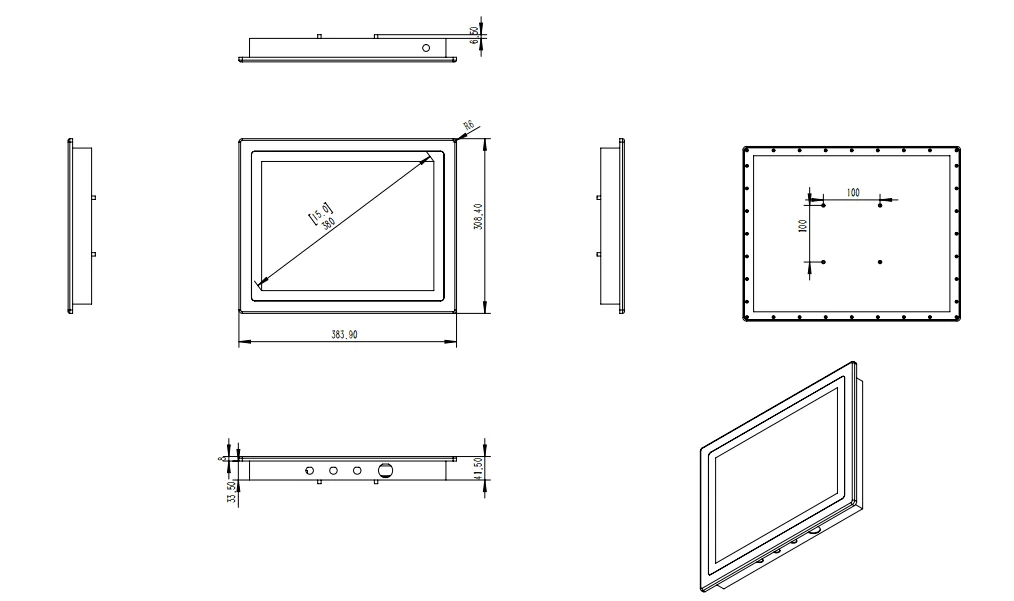

| Product Dimension(LxWxH) | 383.9x308.4x41.5mm |
| Packing Dimension(LxWxH) | 485x410x142mm |
| Weight | 6KG |
Customer Comments
Customized Function
Main Product
Packaging & Shipping
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
Application
Company Information
Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
Pls feel free to contact us as below methods, we will response to you in time.
Contact: Sunny
Tel: 0086-0755-29108731
Skype: sunnytech24
Mobile/WatsApp: 0086 13554782291
