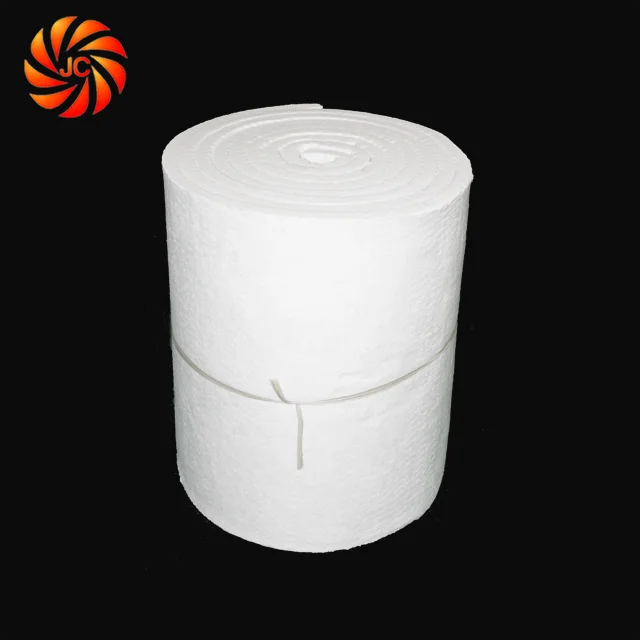

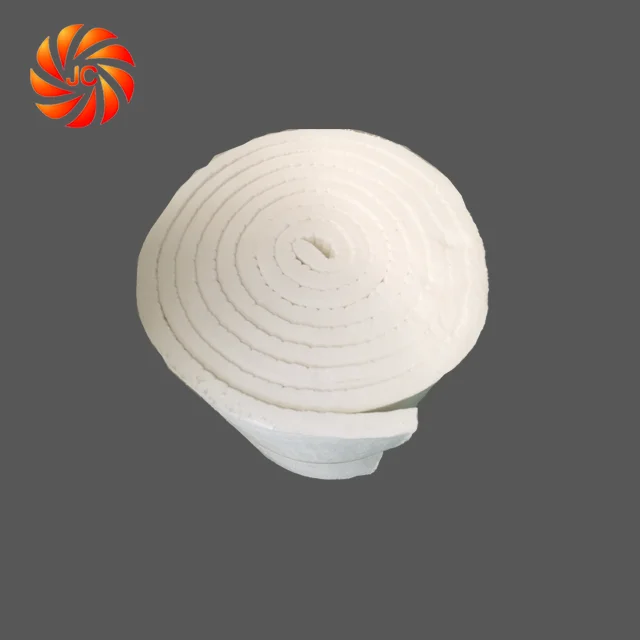

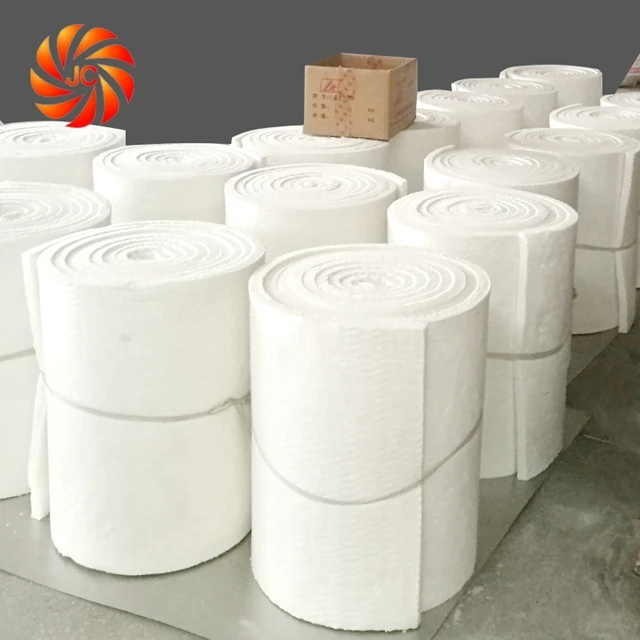

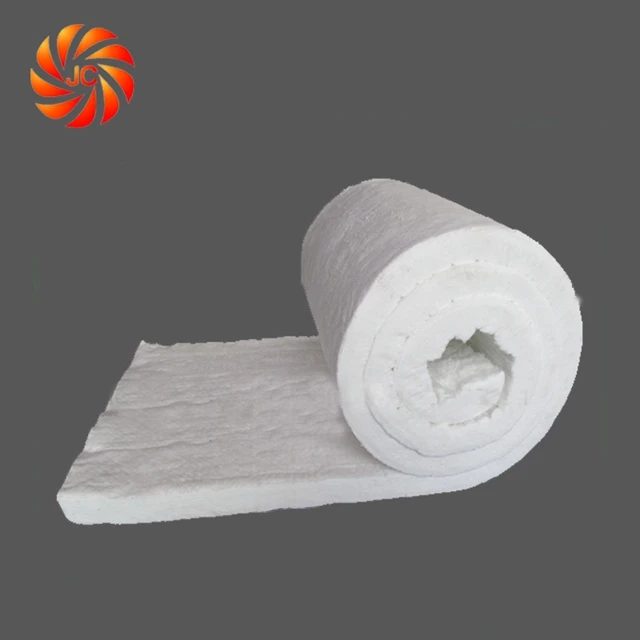

1430 Zirconium Ceramic Fibre Blanket for Boiler Insulation for Kiln Car Insulation and Seal
- Category: >>>
- Supplier: Zibo JC Eco-Tech Co. Ltd.
Share on (60678796242):
Product Overview
Description
Product Description
1430 Zirconium Ceramic Fibre Blanket are made from 1430HZ bulk fibers produced by the most modern spinning process, giving exceptional length & uniform distribution. Ceramic fiber blankets are manufactured with pure alumina-silica, forming a continuous blanket, mechanically sewed with double needle in order to provide better integrity to the surface on both sides of the blanket, a greater resistance in kaolin types and a higher purity. It contains no binder or other added constituents.
| ITEM | COM | STD | HP | HA | HAZ | HZ | |
| Classification Temperature(ºC) | 1100(2012℉) | 1260(2300℉) | 1260(2300℉) | 1360(2480℉) | 1400(2578℉) | 1430(2606℉) | |
| Working Temperature(ºC) | <1000(1832℉) | 1050(1922℉) | 1100(2012℉) | 1200(2192℉) | 1200(2192℉) | 1350(2462℉) | |
| Color | Pure White | Pure White | Pure White | Pure White | Pure White | Pure White | |
| Density(kg/m3) | 6#-8# | 6#-8# | 6#-8# | 8#-10# | 8#-10# | 8#-10# | |
| 96-128kg/m3 | 96-128kg/m3 | 96-128kg/m3 | 128-160kg/m3 | 128-160kg/m3 | 128-160kg/m3 | ||
| Line Shrinkage | ≤2.5 | ≤2.5 | ≤2.5 | ≤3.5 | ≤3.5 | ≤3.5 | |
| (%) After 24hours | (1000℃/1832℉) | (1000℃/1832℉) | (1100℃/2012℉) | (1250℃/2282℉) | (1200℃/2192℉) | (1350℃/2462℉) | |
| Thermal conductivity | 0.09(400℃/752F) | 0.09(400℃/752F) | 0.09(400℃/752F) | 0.132(600℃/1112F) | 0.132(600℃/1112F) | 0.176(600/1112F) | |
| (w/m.k) | 0.176 | 0.176 | 0.176 | 0.22 | 0.22 | 0.22 | |
| density(128Kg/m3) | (800ºC/1472F) | (800ºC/1472F) | (800ºC/1472F) | (1000ºC/1832F) | (1000ºC/1832F) | (1000ºC/1832F) | |
| 0.22 | 0.28 | 0.28 | |||||
| (1000 ºC/1832F) | (1200ºC/2192F) | (1200ºC/2192F) | |||||
| Tensile strength (Mpa) | >=0.04 | >=0.05 | >=0.05 | >=0.04 | >=0.04 | >=0.05 | |
| Chemical | Al2O3 | 44 | 46 | 47-49 | 52-55 | 52-55 | 39-40 |
| Composition % | Al2O3+SiO2 | 96 | 97 | 99 | 99 | - | - |
| Al2O3+SiO2+ZrO2 | - | - | - | - | - | 99 | |
| ZrO2 | - | - | - | - | % | 15-17 | |
| Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Na2O+K2O | ≤0.5 | ≤0. 5 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Size(mm) | Specification:0.5X24X50,1X24X25,2X24X12.5(7200X610X25/3600x610x50),other according to customer's requirement | ||||||
Our Exhibition

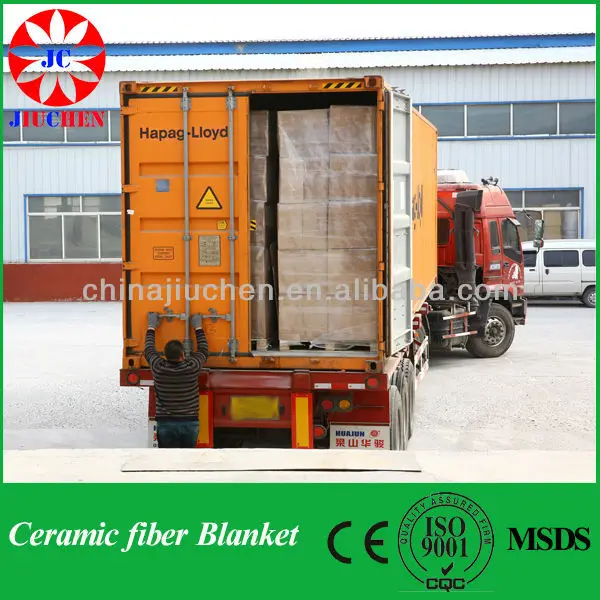

Packaging & Shipping

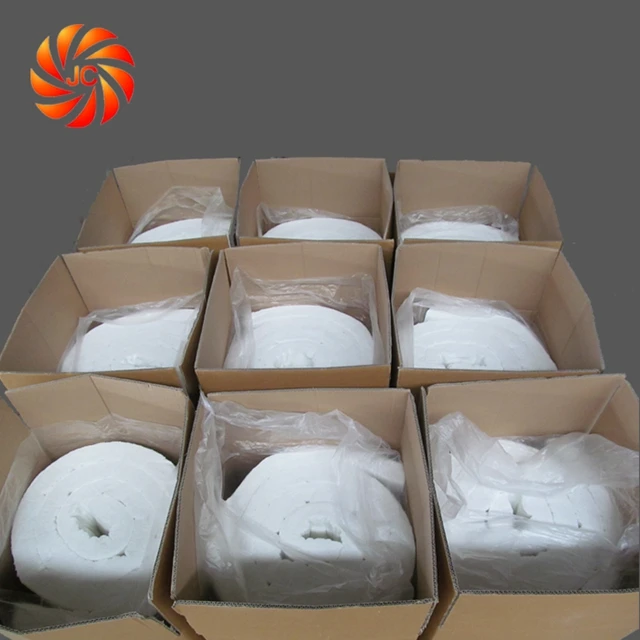

Ceramic Fiber Blanket

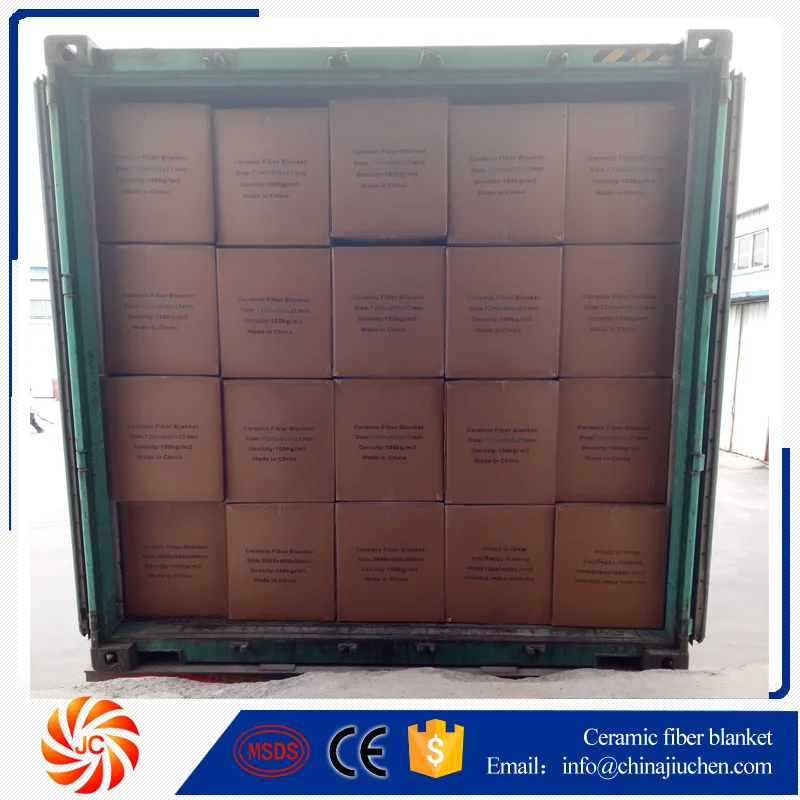

1.Carton box packing:
Width 610mm:225rolls(cartons)/20GP
525rolls(cartons)/40HQ
Width 1220mm:112rolls(cartons)/20GP
262rolls(cartons)/40HQ

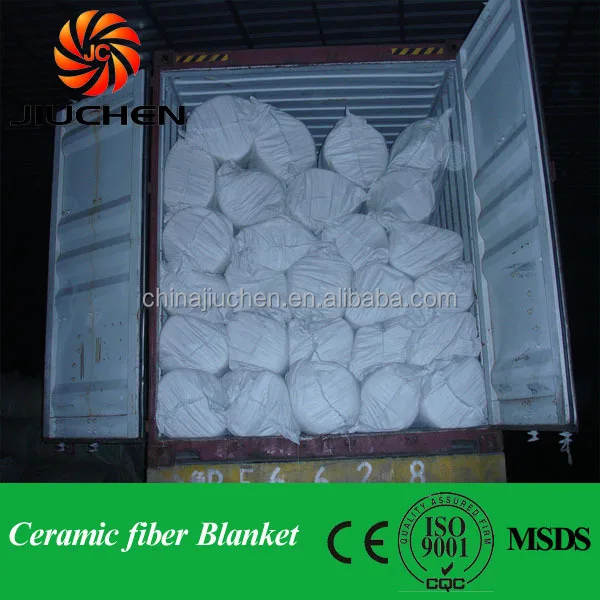

2.Woven bag packing:
Width 610mm:250rolls/20GP
600rolls/40HQ
Width 1220mm:125rolls/20GP
300rolls/40HQ
3.Carton box+Pallet
Width 610mm:420rolls(cartons)/40HQ
Width 1220mm:210rolls(cartons)/40HQ

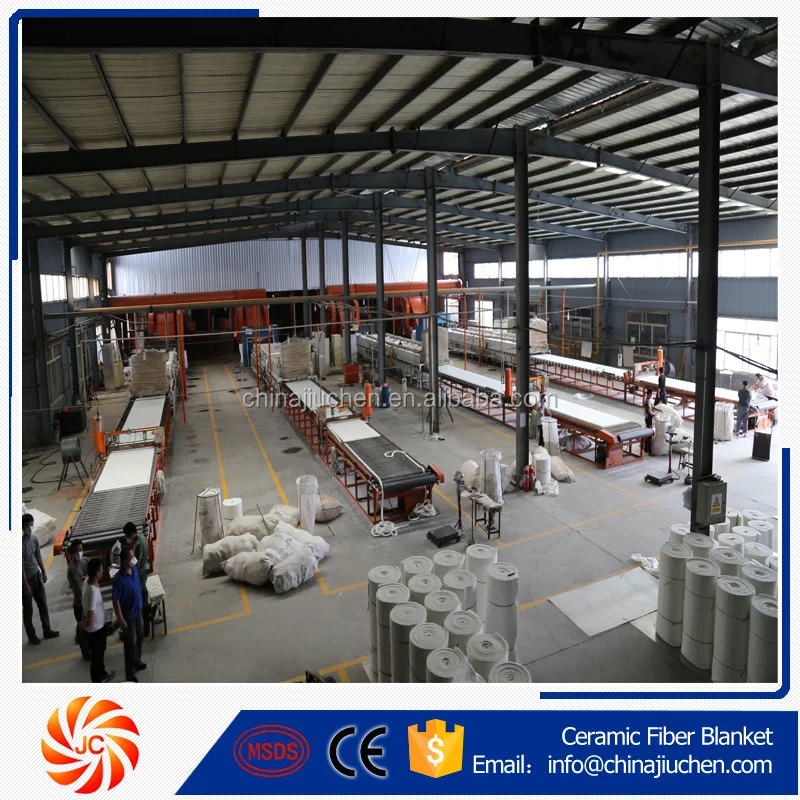

Factory show
