ZSFY A20T tension load cell 20t

Product Overview

Description

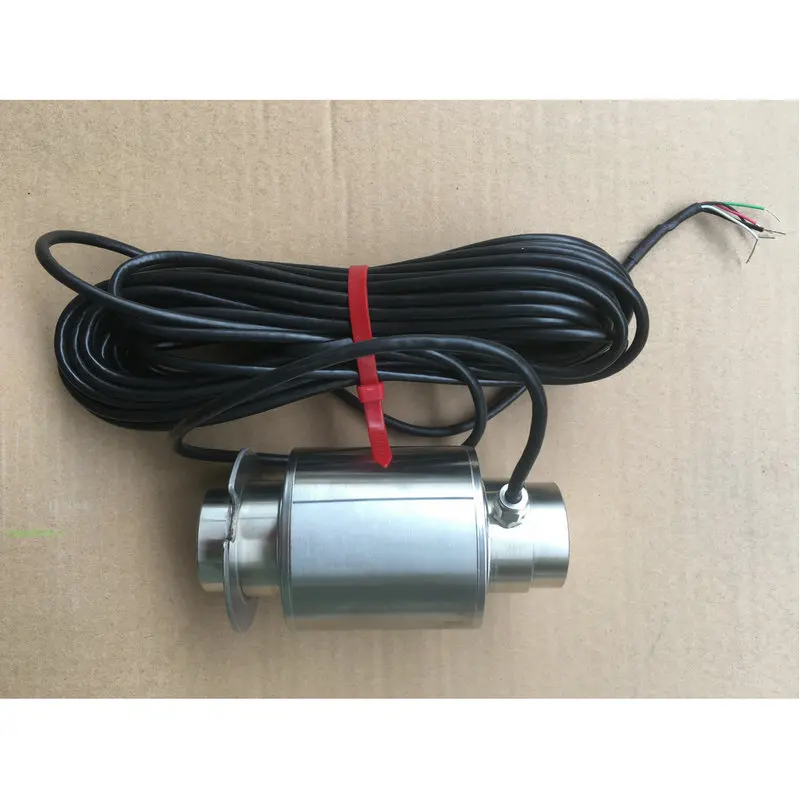

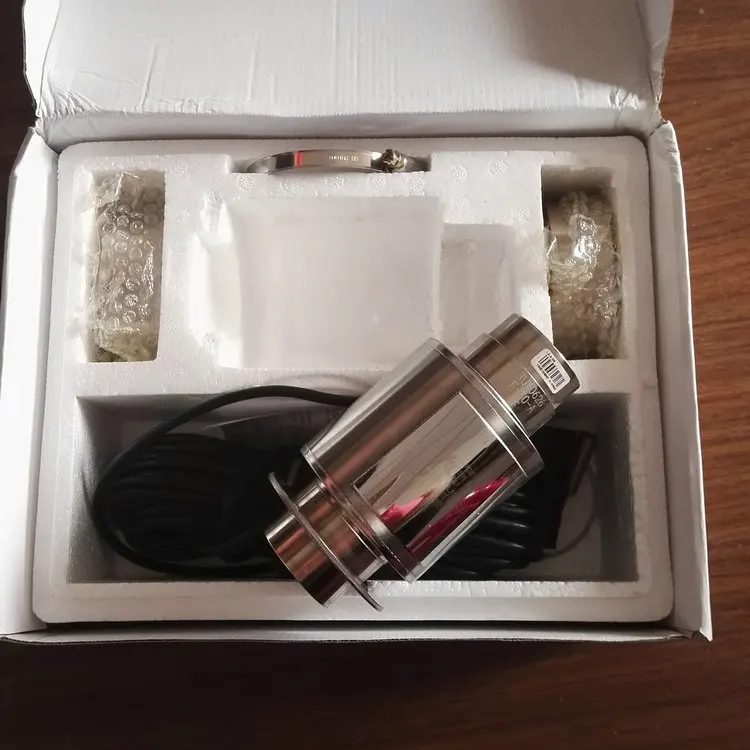

ZSFY-A20T tension load cell 20t



Truck scale, railway scale, axle-load scale, floor scale.

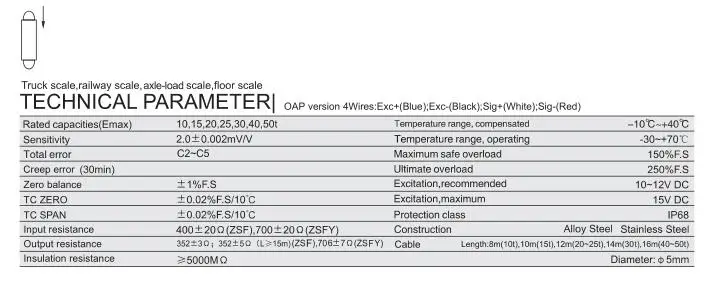

rated capacities(Emax):

sensitivity:2.0±0.002mV/V

total error:c2-c5

zero balance:±1%f.s

TC ZERO:±0.02%F.S/10℃

TC SPAN:±0.02%F.S/10℃

temperature range, compensated:-10~+40℃

temperature range, opearting:-30~+70℃

maximum safe overload:150%f.s

ultimate overload:250%f.s

excitation voltage, recommend: 10-12v dc

excitation voltage, maximum: 15v dc

protect class: IP68

constuction: alloy ateel, stainless steel
